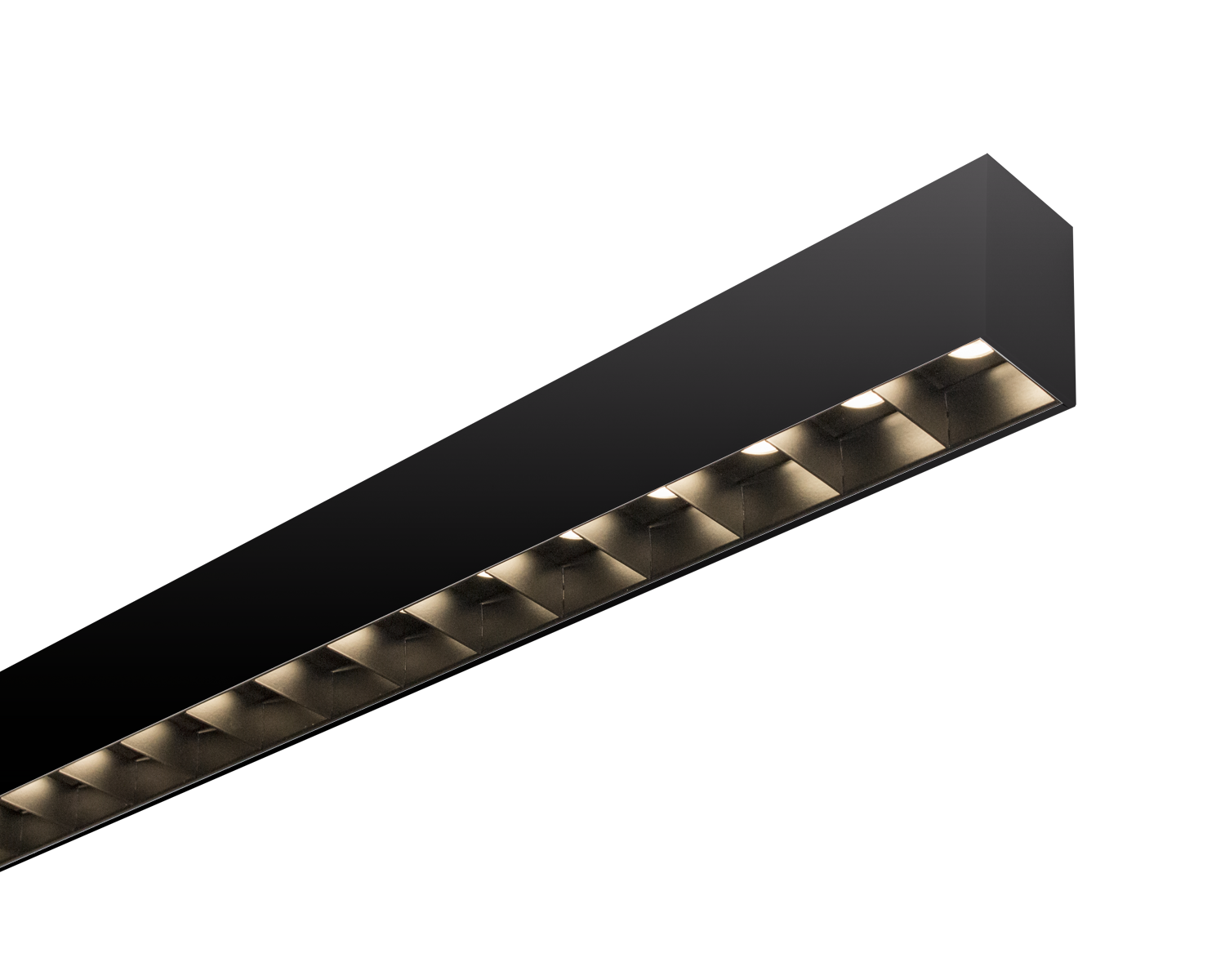

Vogue 5.8 LA

Linear wall grazer with dark light louvre

Product Overview

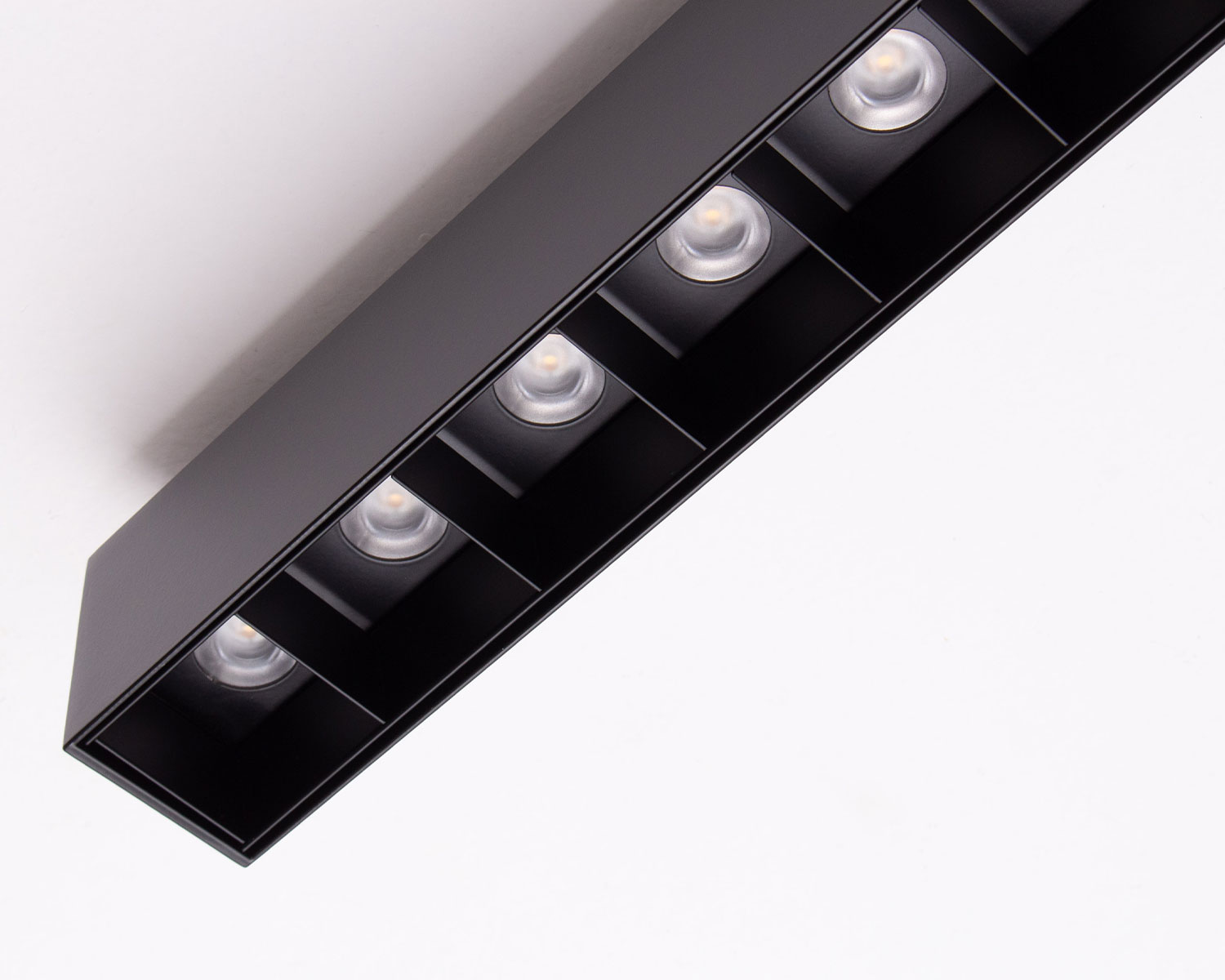

✔ Individual LED spotlights concealed within a darklight louvre, ideal for wall washing

✔ Available in single lengths of upto 3m and connected together to form long, straight runs

✔ Pitch of LEDs: 50mm

✔ Choice of beam angles available

✔ Standard, DALI or Casambi drivers, integral from to the luminaire

✔ Contact sales for help with pattern forming this product

✔ Suitable for Hospitality, Office, Retail, Gallery/Museum, Leisure

Finishes / Material
  • Silver (Anodised)
  • Black (Matt) RAL 9005
  • White (Signal) RAL 9003
  • Silver (White Aluminium) RAL 9006
  • Anthracite (Grey) RAL 7016
  • Custom
  • Body: Extruded Aluminium
  • Louvre: Aluminium
Sizes
  • 406 (L) x 53 (W) x 80 (H) mm
  • 606 (L) x 53 (W) x 80 (H) mm
  • 906 (L) x 53 (W) x 80 (H) mm
  • 1206 (L) x 53 (W) x 80 (H) mm
  • 1506 (L) x 53 (W) x 80 (H) mm
  • 1806 (L) x 53 (W) x 80 (H) mm
  • 2406 (L) x 53 (W) x 80 (H) mm
  • 3006 (L) x 53 (W) x 80 (H) mm
  • >3006 (L) mm
    For longer lengths please contact sales
  • M2M (L) mm
    Made to measure length

*Please Note: Made to measure sizes available - contact sales

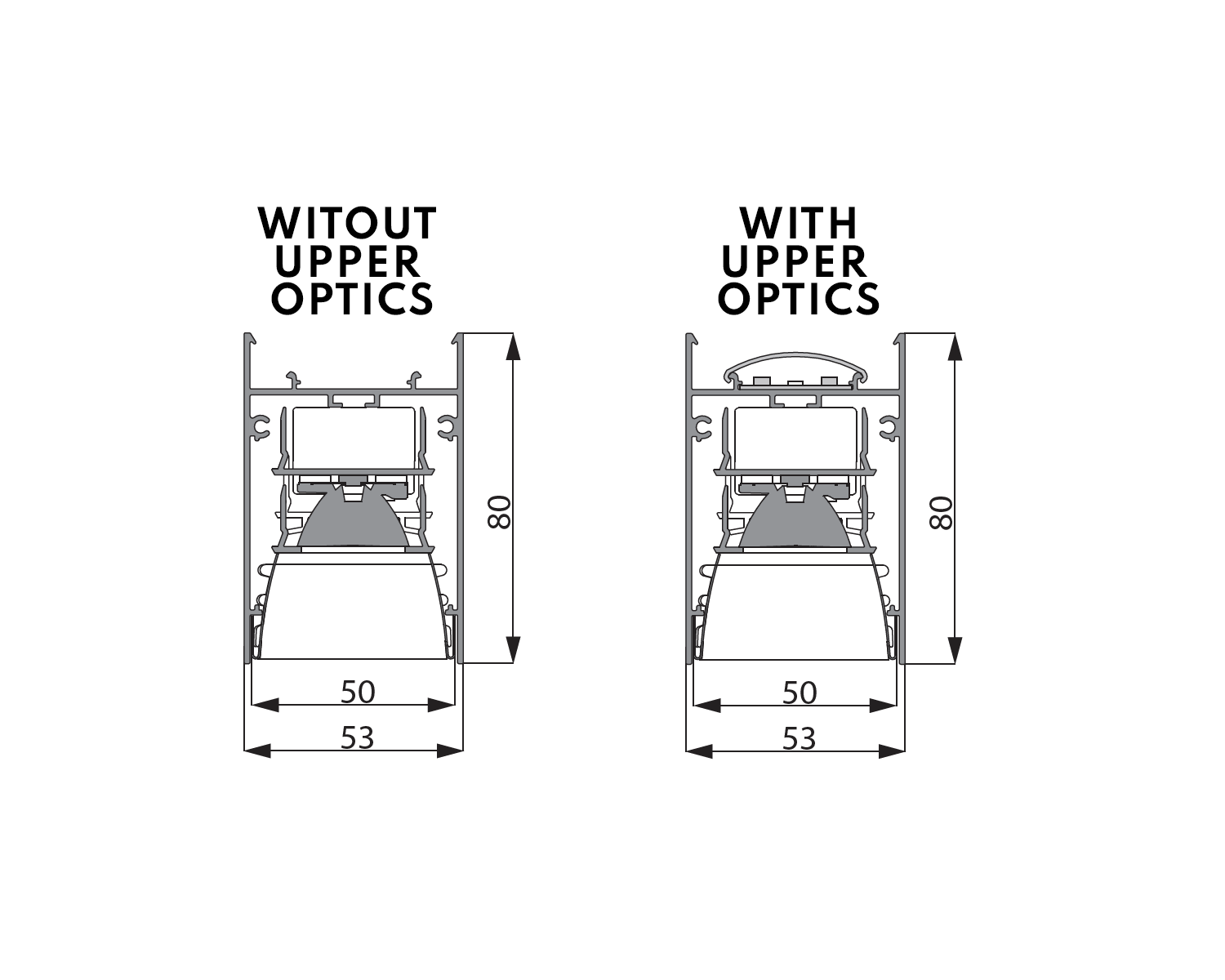

Technical Drawing
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 889Lm - 12351Lm
  • Circuit Watts 11cW - 132cW
  • Efficacy up to 101Lm/cW
  • MacAdams Cree 2 SDCM
  • Colour Temperature 3000K (2SDCM Single Bin)
  • Colour Rendering CRI90

Options.

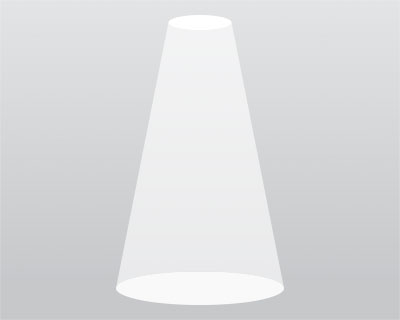

Beam Angle

  • 17° Beam Angle
  • 36° Beam Angle

Louvre Finish

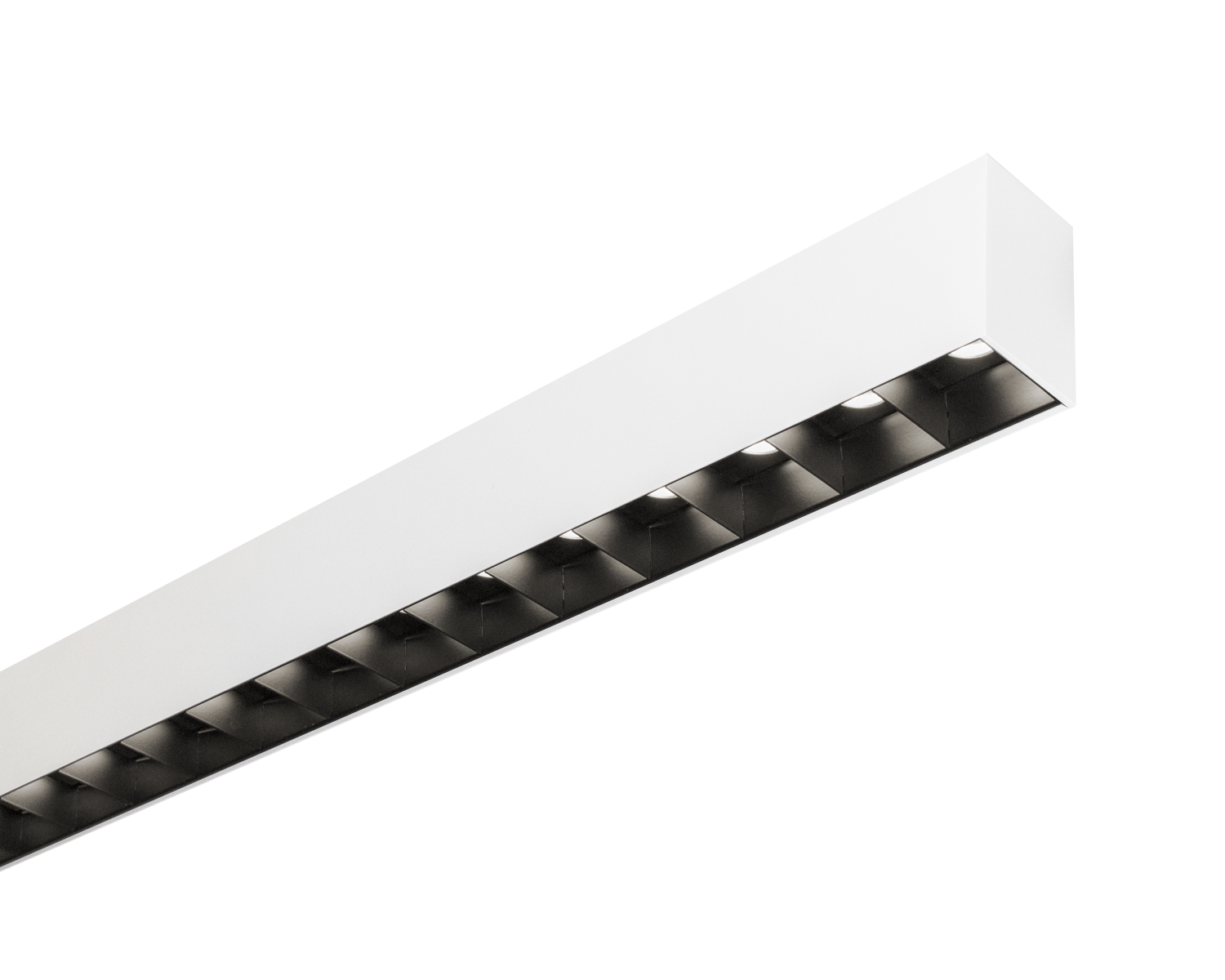

  • Black
  • White

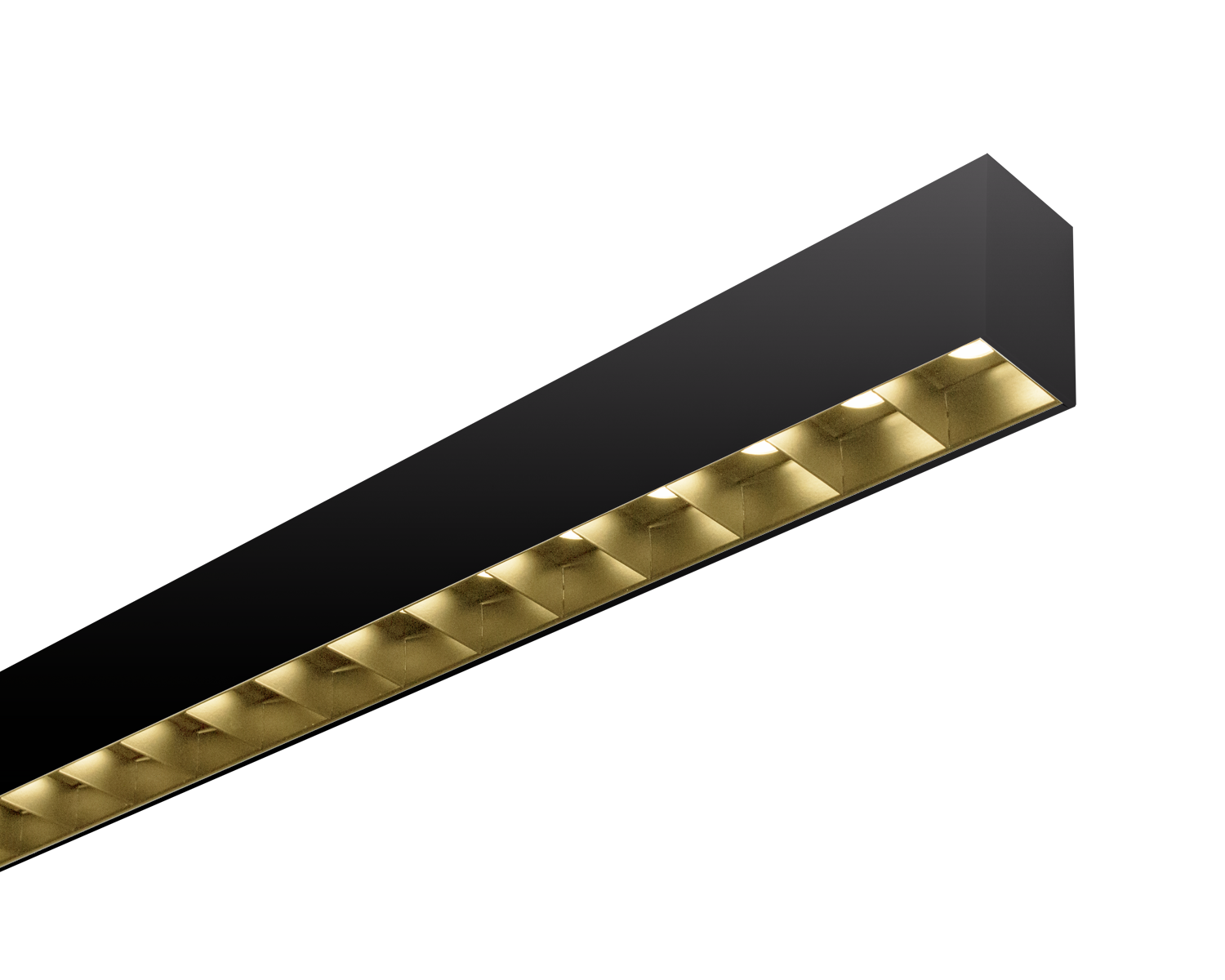

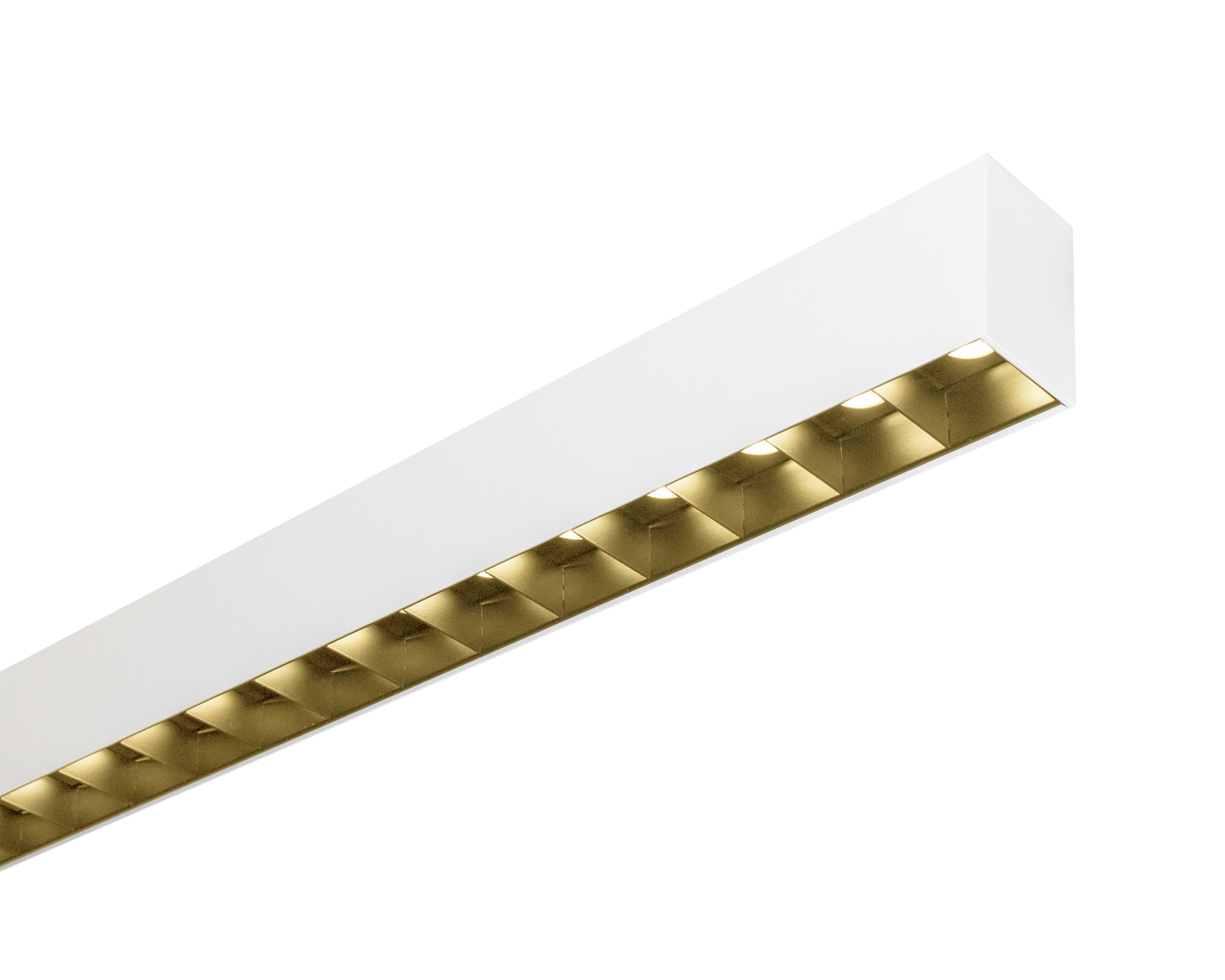

  • Gold

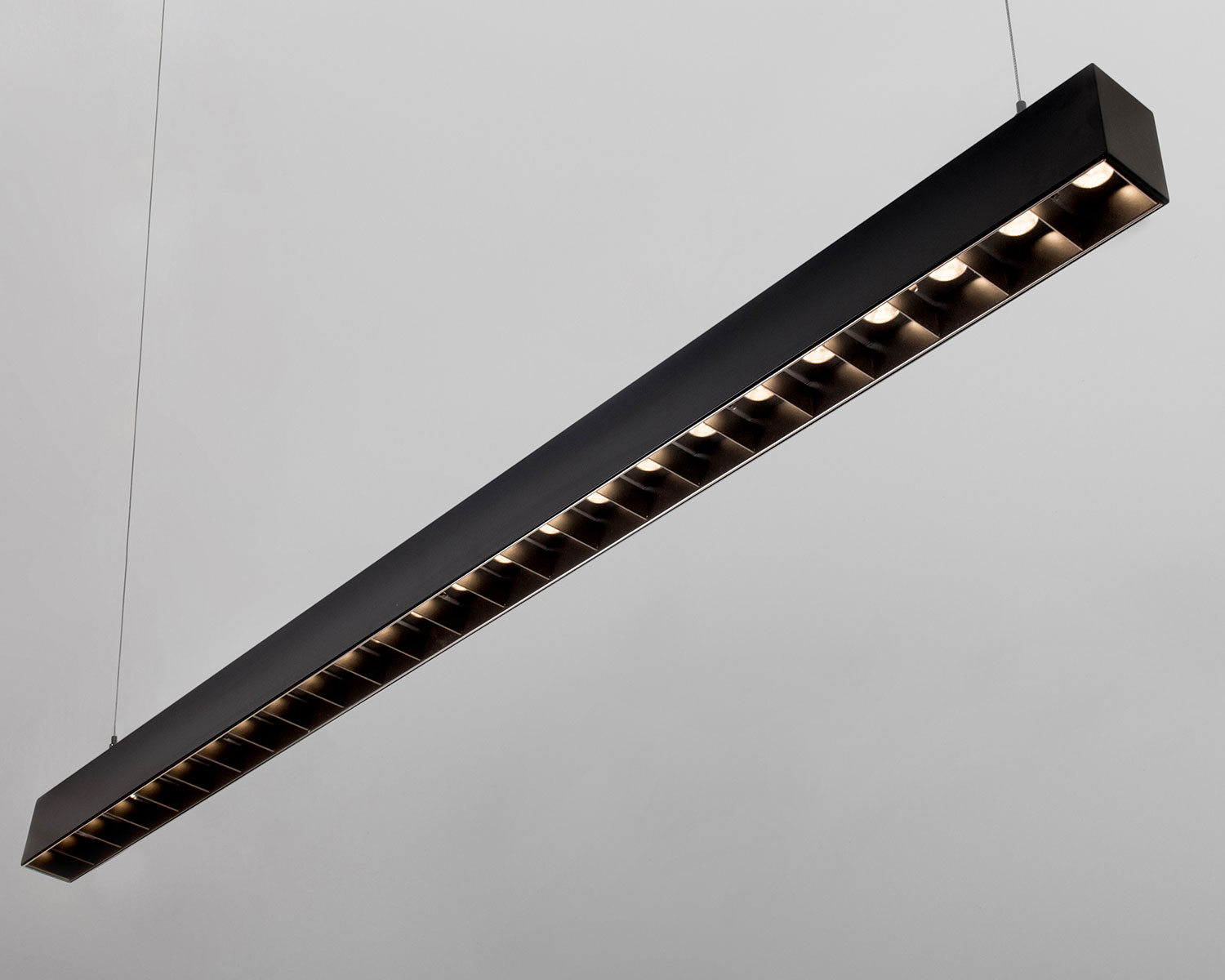

Mount (optional)

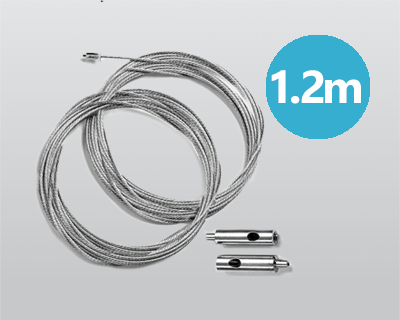

  • Suspension wire kit (1.2m)
  • Suspension wire kit (3m)

Additional Information.

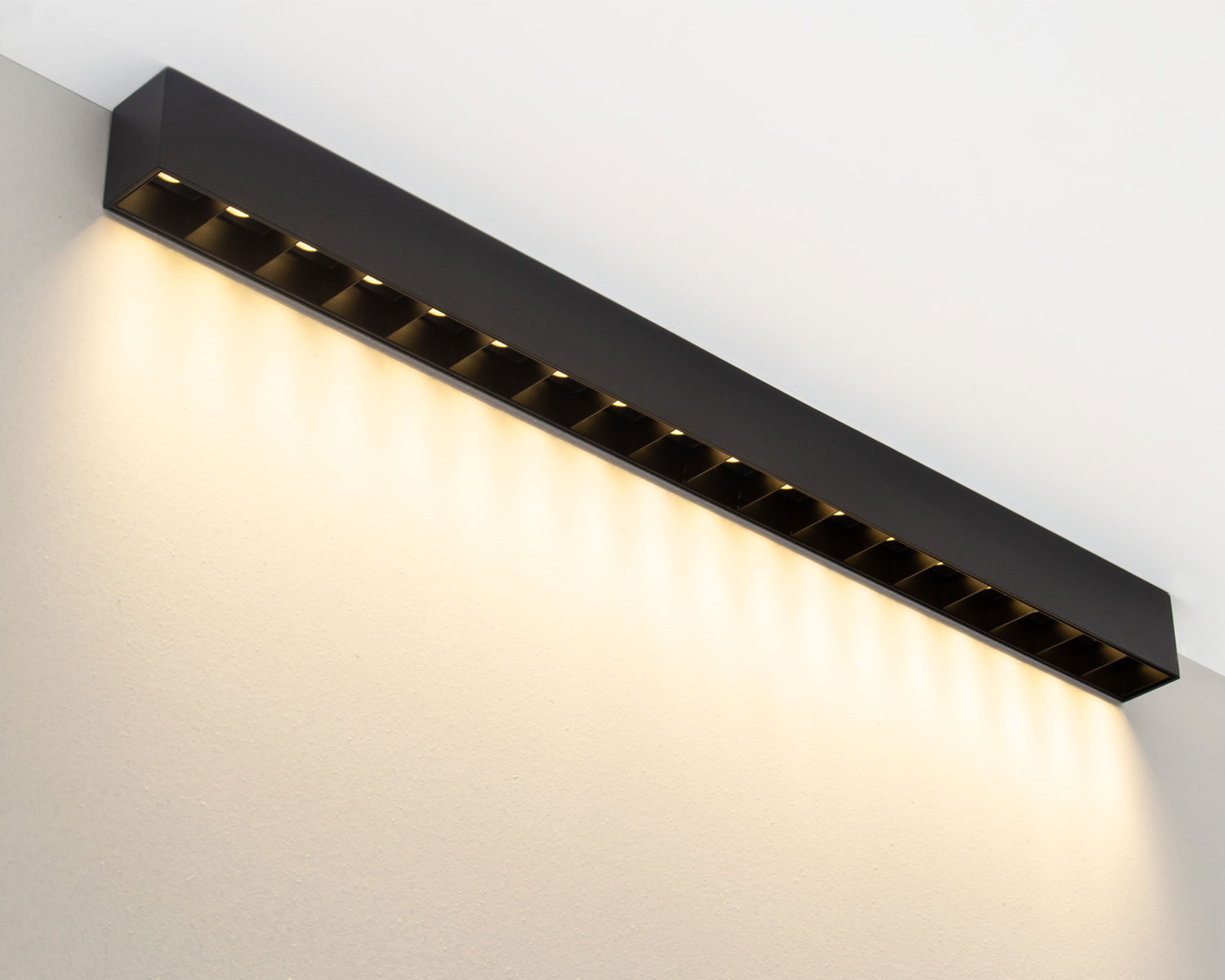

Vogue 5.8 LA is an architectural surface mounted linear wall grazer. Available in matt black, anodized silver or white, this high performance linear wall washer is ideal for providing uniform accent lighting to wall surfaces. If you are looking for a linear wall light to emphasise textured wallpapers or feature walls then Vogue 5.8 LA is a great choice.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.

You May Also Like...

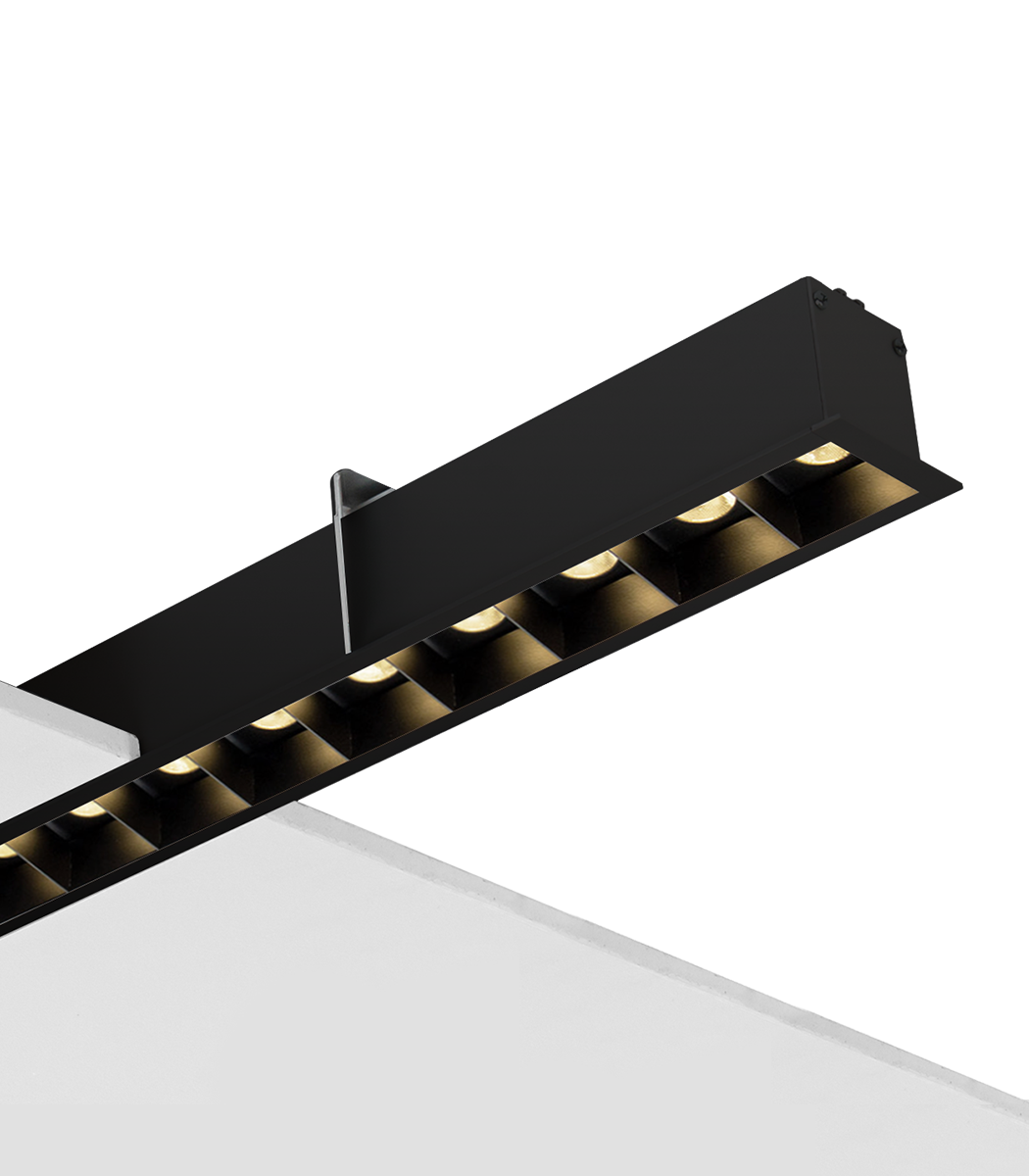

  • Vogue
    5.7 LA (R)

  • Vogue

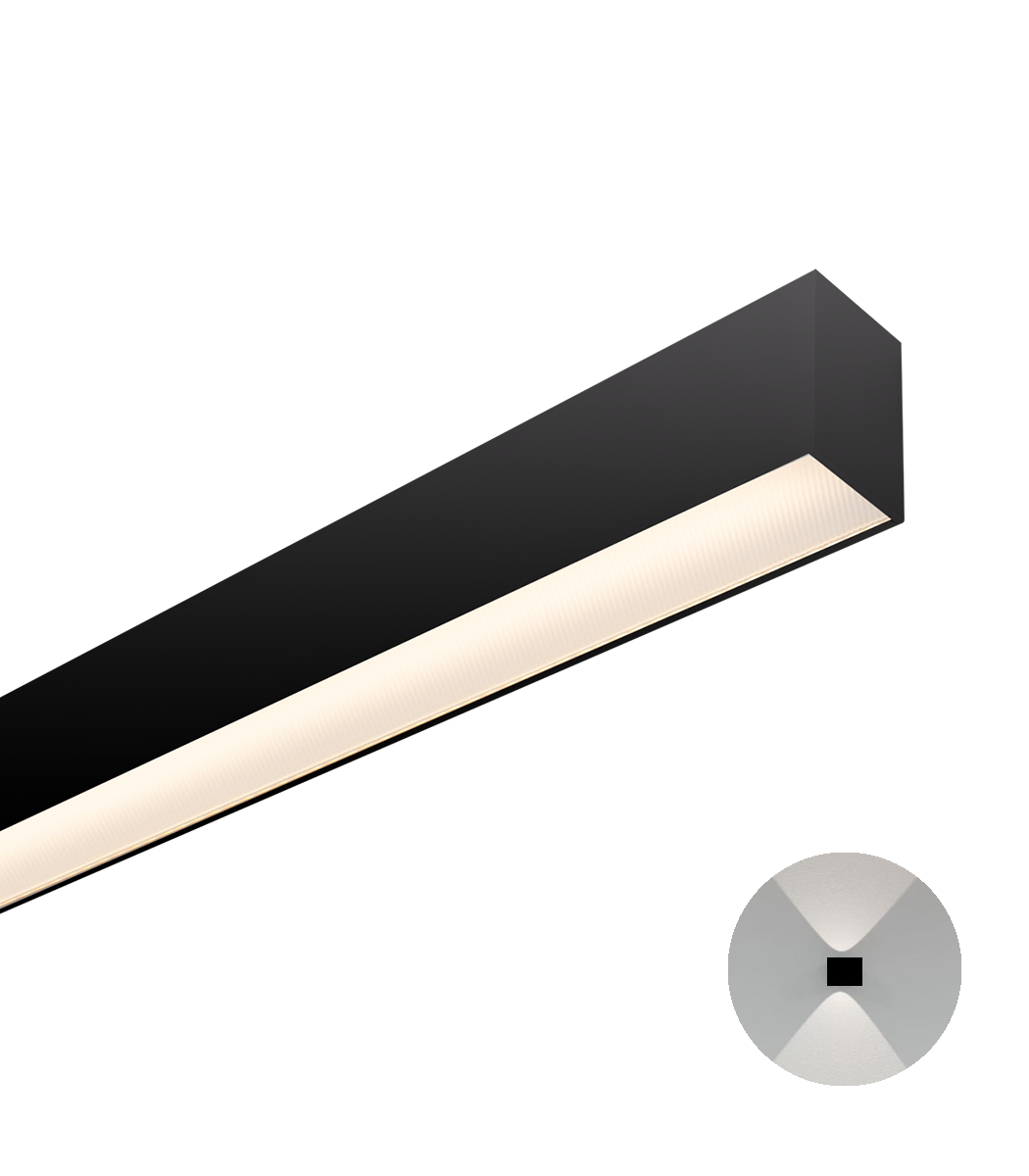

    5.8

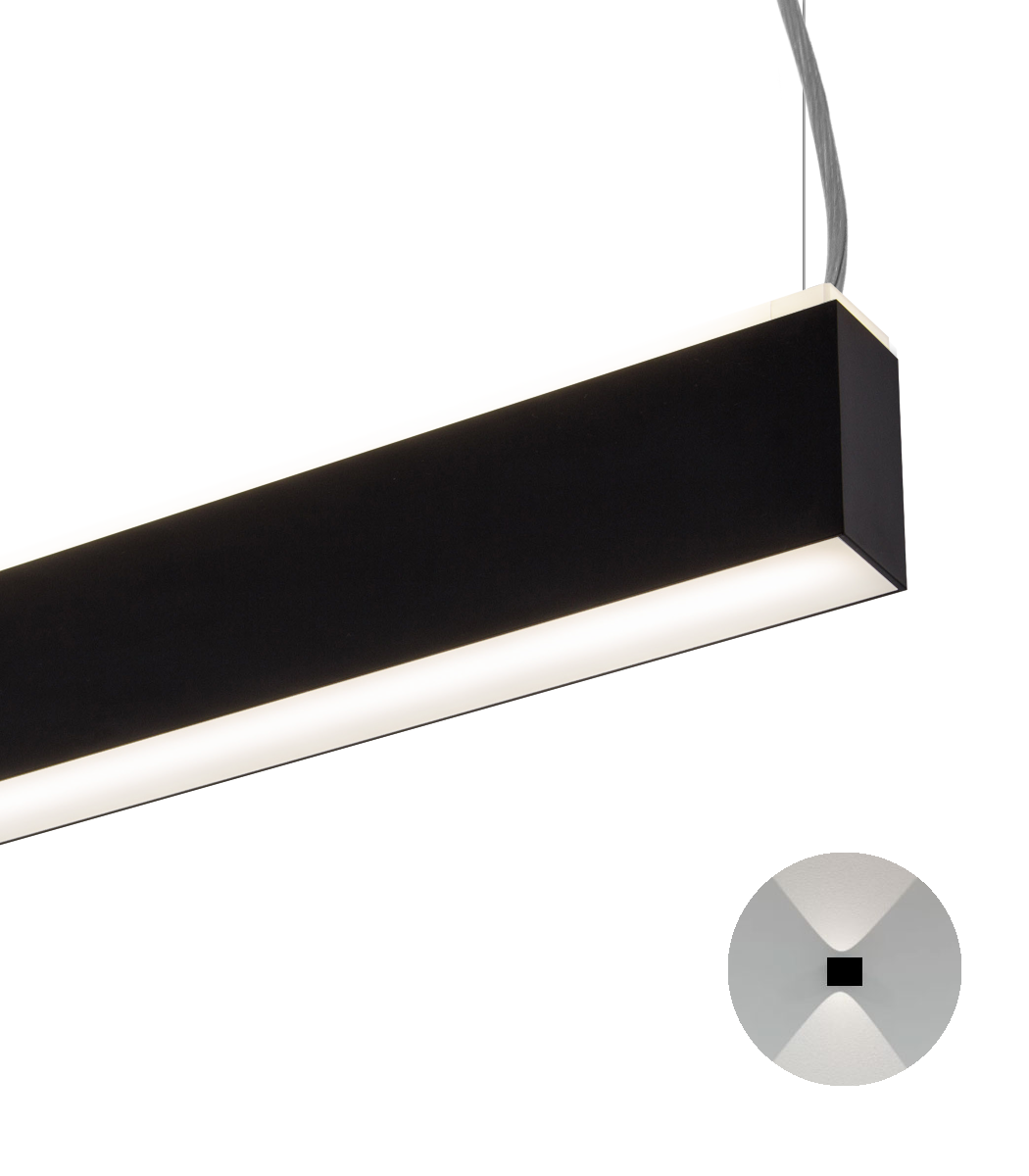

  • Vogue
