Vogue 5.10

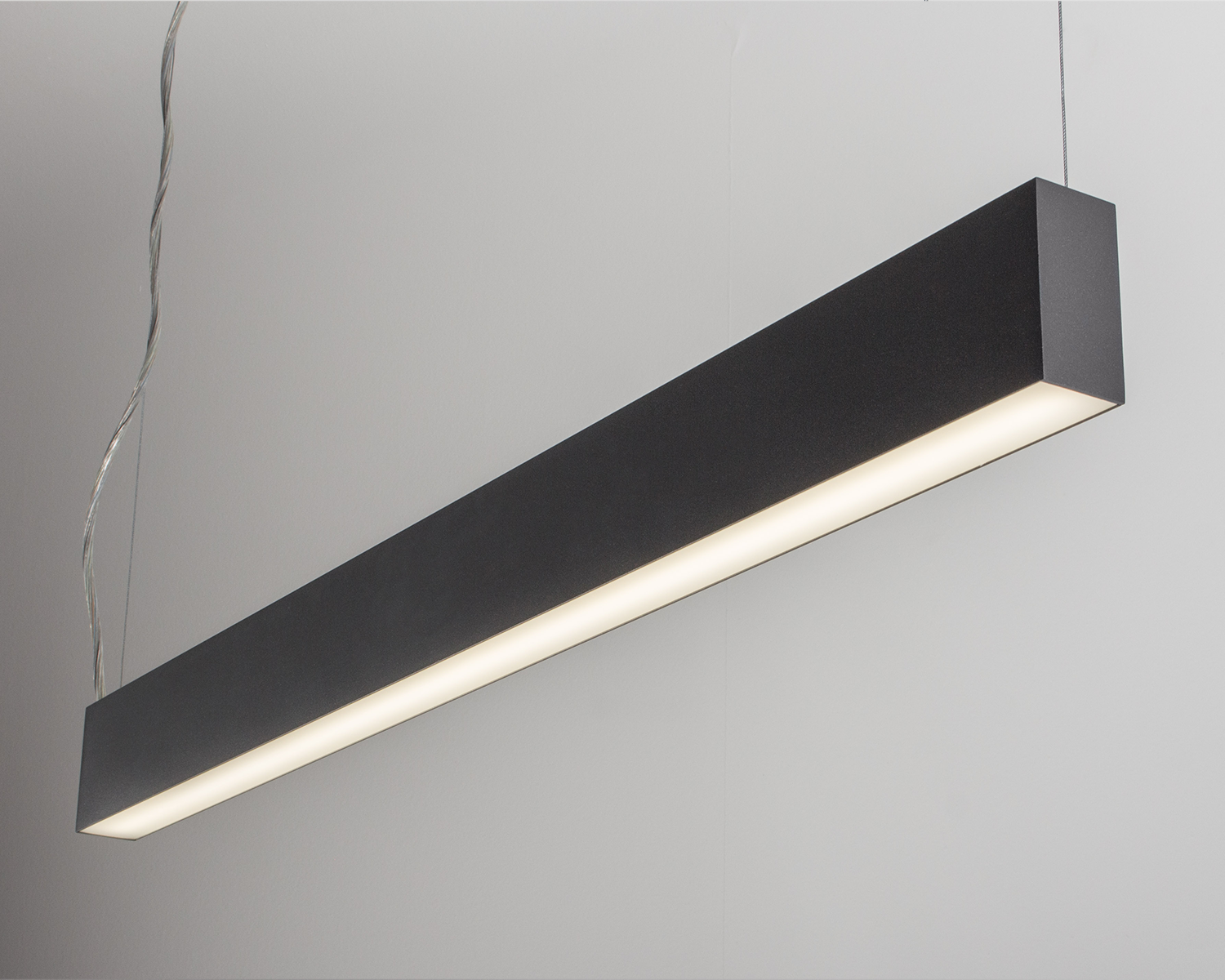

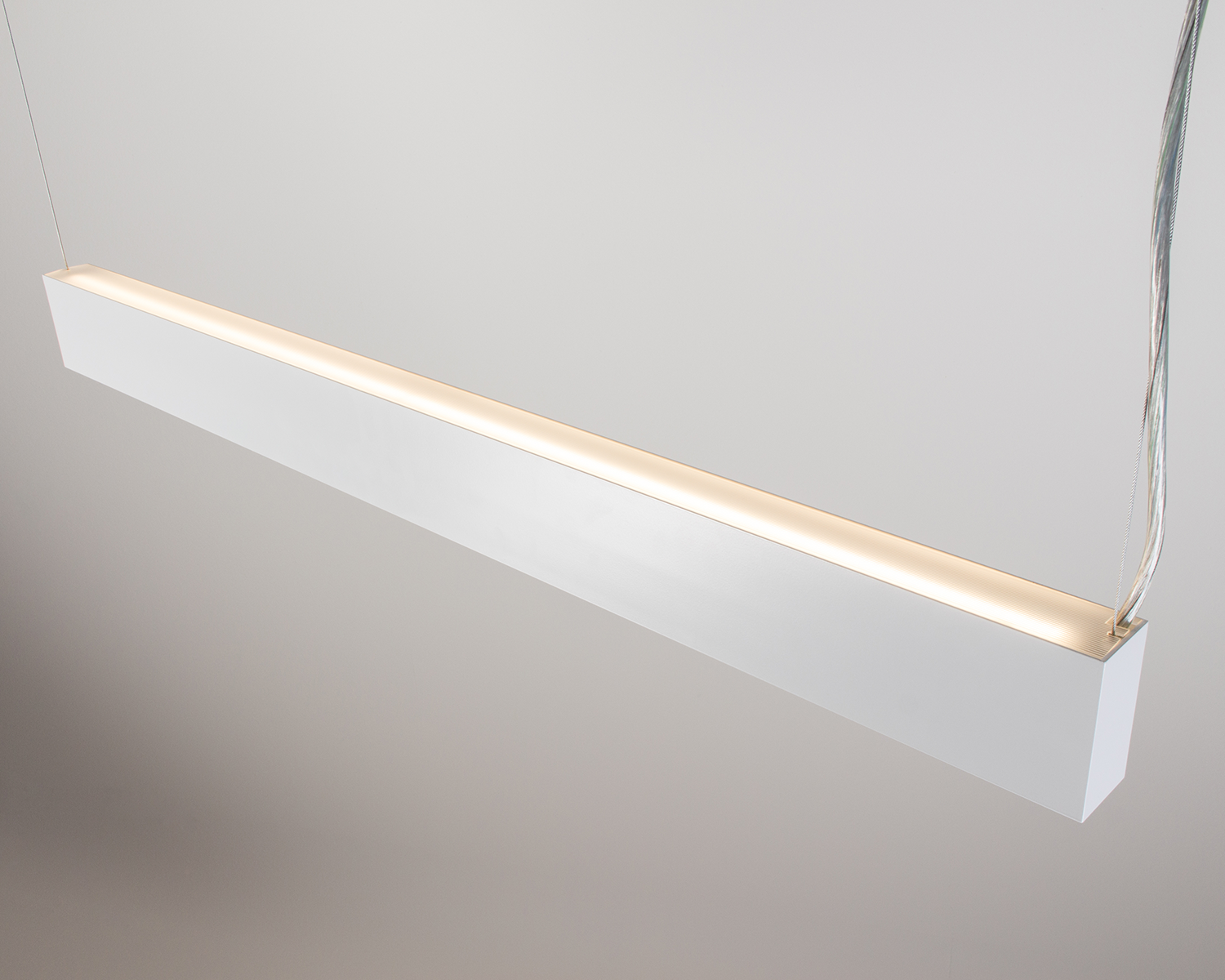

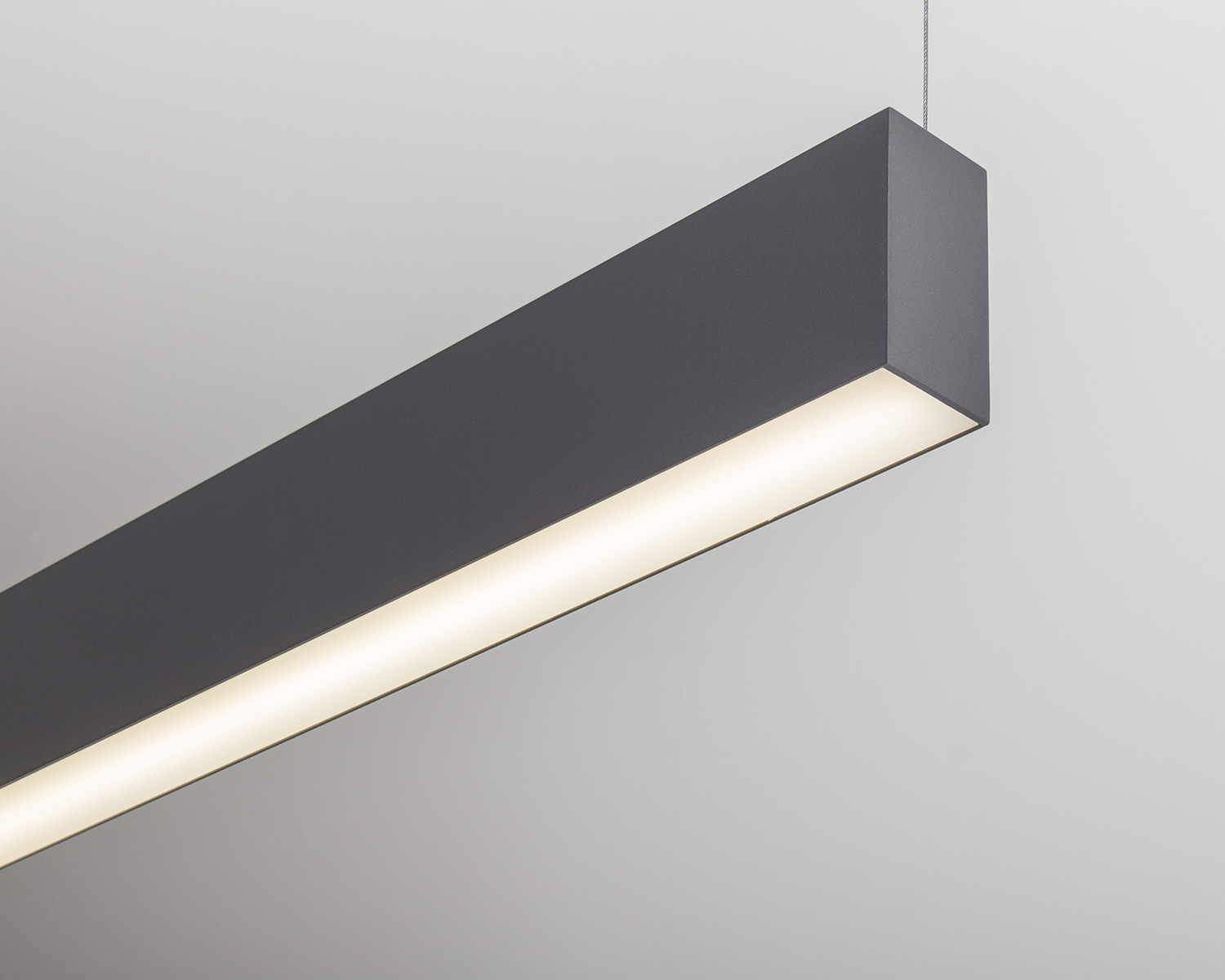

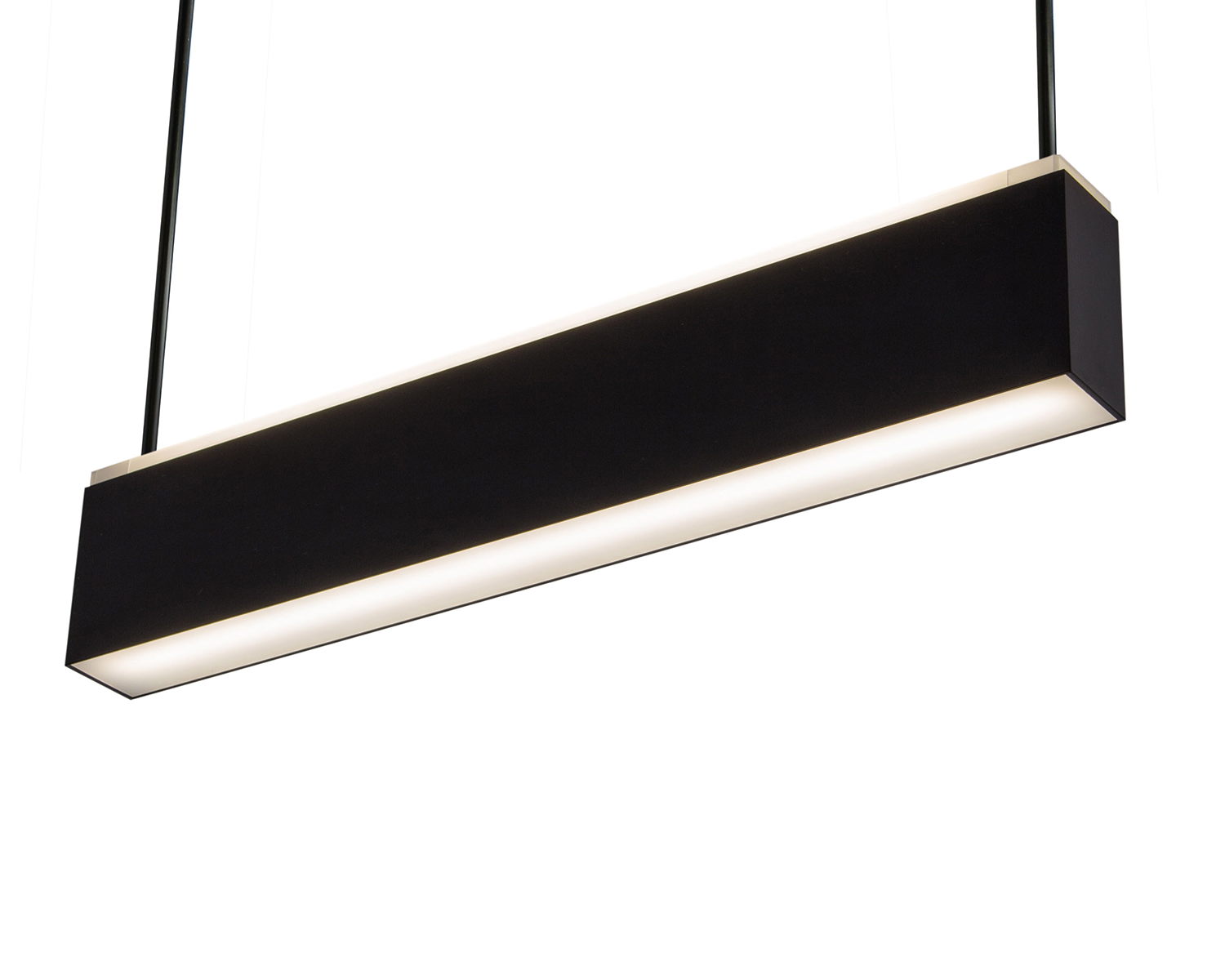

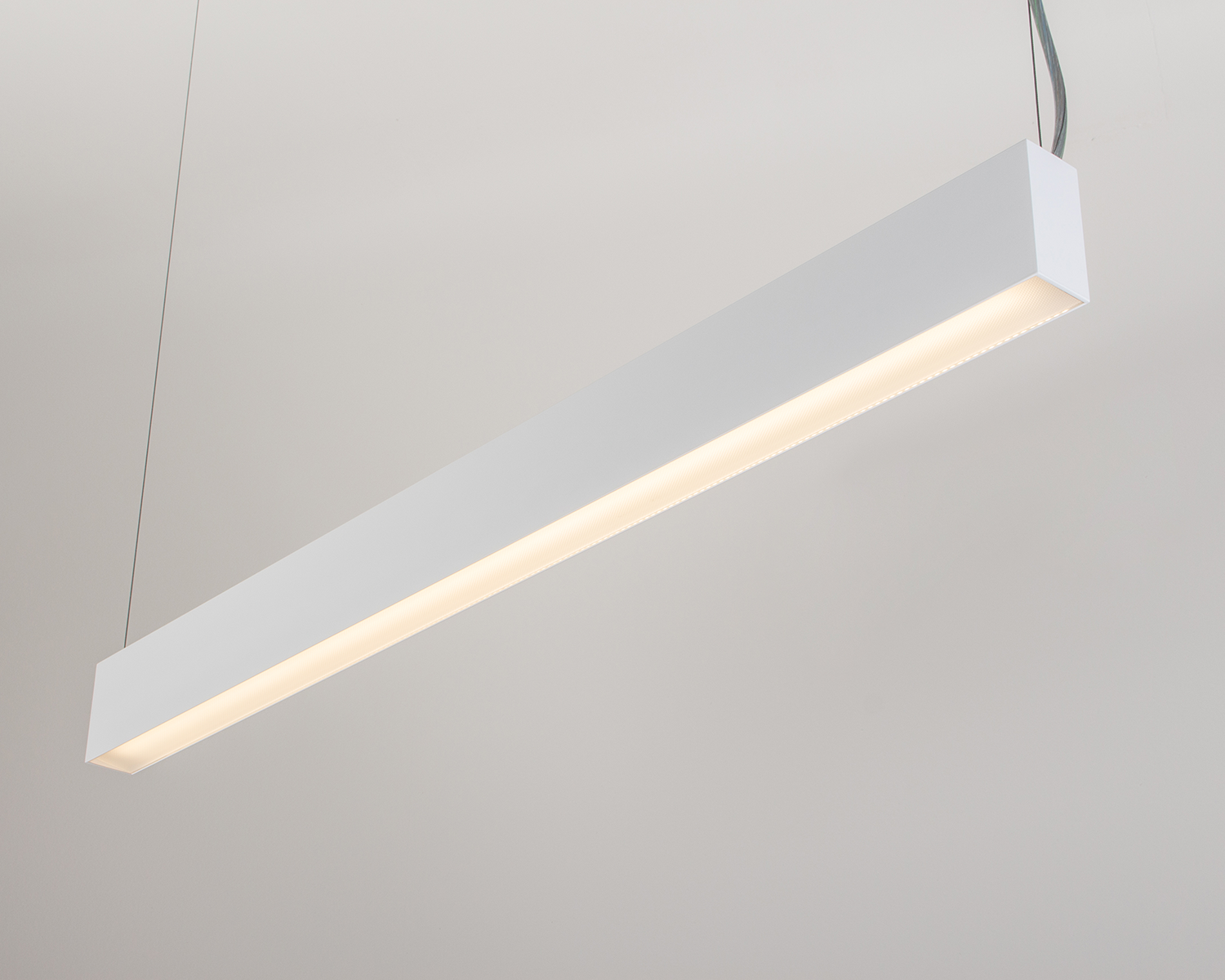

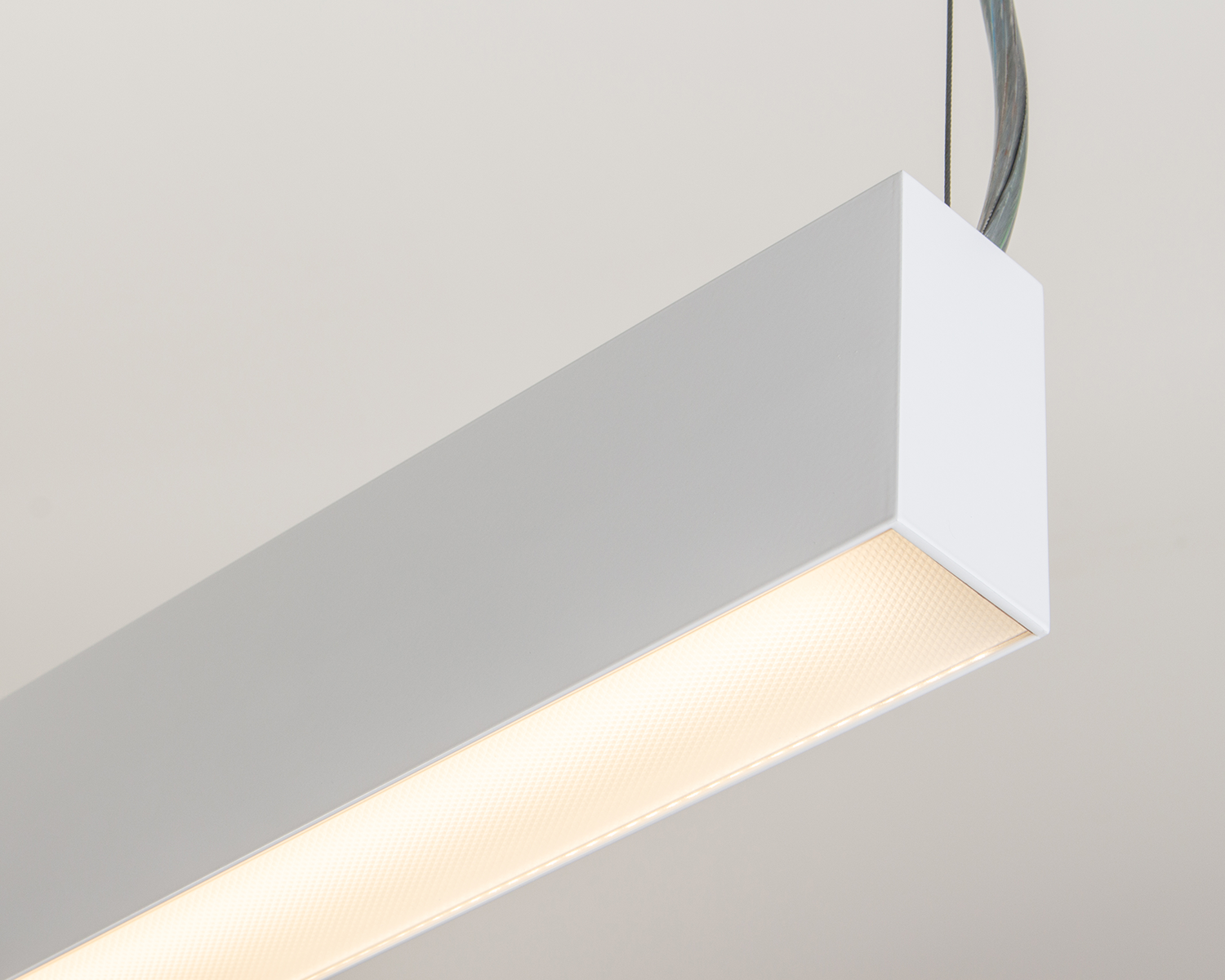

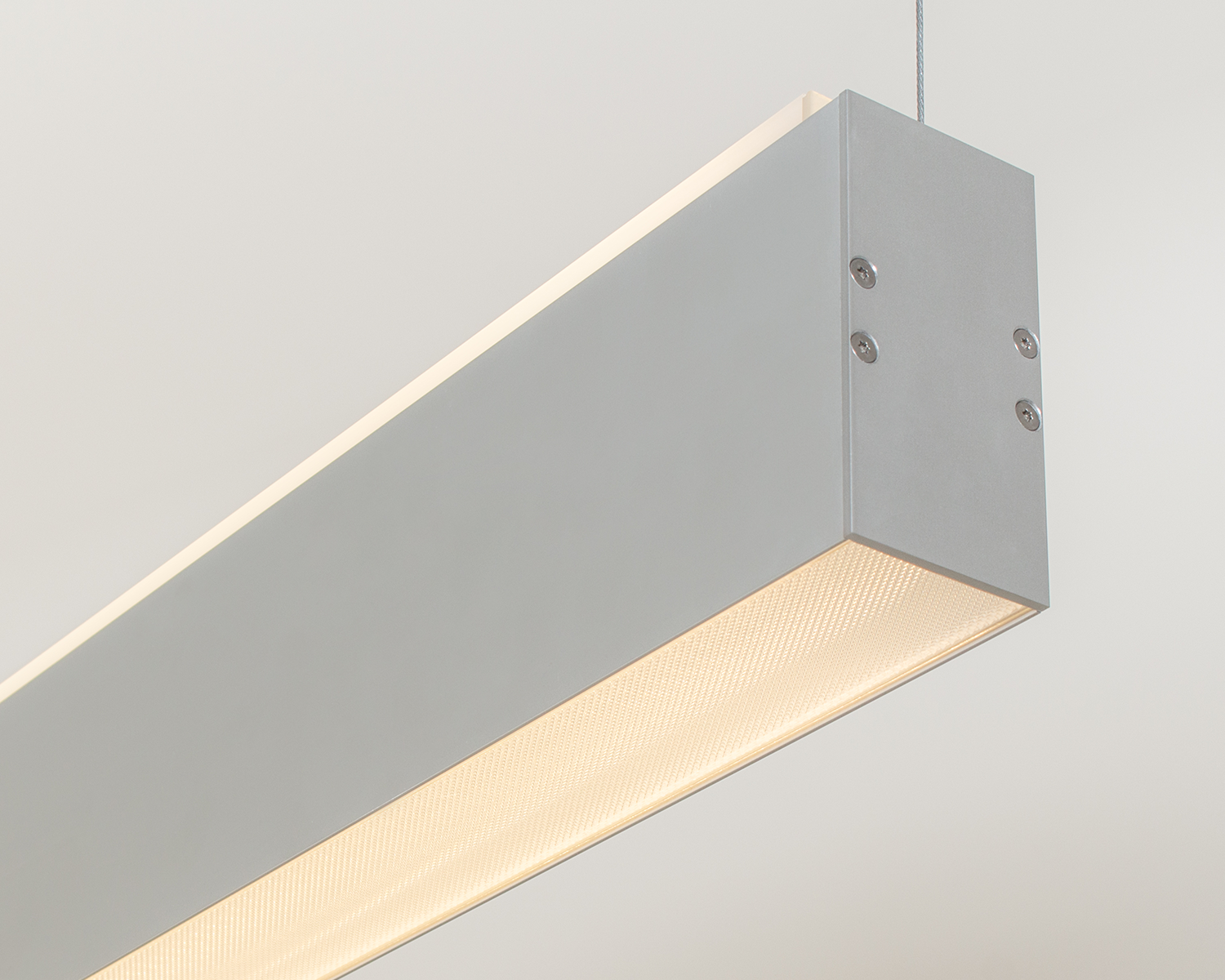

Bi-directional linear light made from extruded aluminium

Product Overview

✔ Extruded aluminium profile for pendant mounting

✔ Choice of upper and lower optical elements and body colours

✔ Upper optic can be raised by 6mm for broad lateral light distribution

✔ Clutch operated lockable wire suspensions. Rod suspensions also possible

✔ Integral DALI and emergency options

✔ Protection class IP20

✔ Choice of powers and light outputs

✔ Options for RGB or white colour tunable uplight and 3-circuit track. Contact sales for more information

✔ Contact sales for help with pattern forming this product

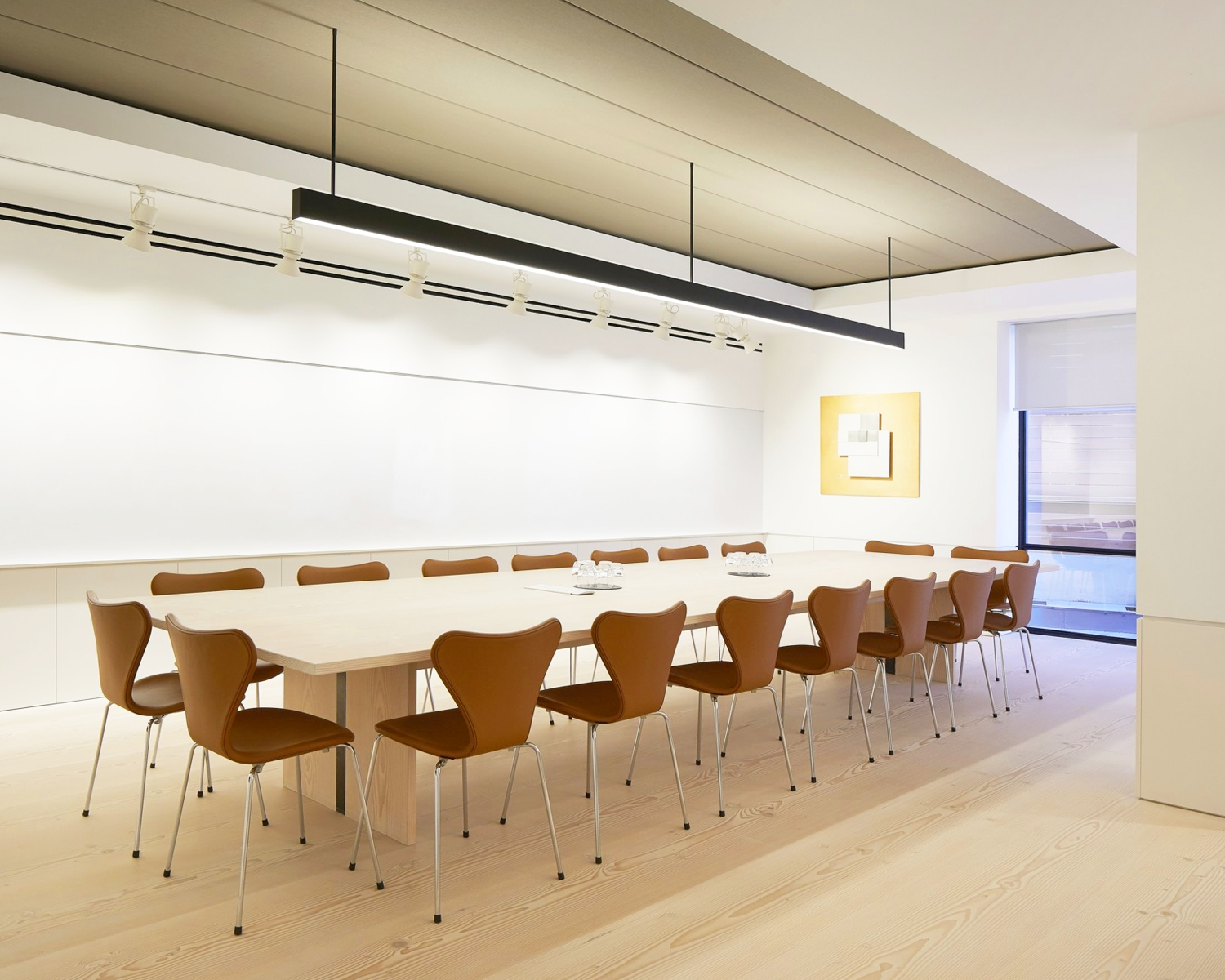

✔ Suitable for Office, Commercial

Finishes / Material

Silver (Anodised)
Anthracite (Grey) RAL 7016
Black (Matt) RAL 9005
White (Traffic) RAL 9016
White (Cream) RAL 9010
White (Signal) RAL 9003
Silver (White Aluminium) RAL 9006
Custom

Body: Extruded Aluminium
Diffuser: Polycarbonate

Sizes

1170 (L) x 53 (W) x 106 (H) mm
1512 (L) x 53 (W) x 106 (H) mm
1740 (L) x 53 (W) x 106 (H) mm
2310 (L) x 53 (W) x 106 (H) mm
2880 (L) x 53 (W) x 106 (H) mm
>3000 (L) mm
For longer lengths please contact sales
M2M (L) mm
Made to measure length

*Please Note: Made to measure sizes available - contact sales

Source Info Tier 1 LED components (Tridonic, Philips, Osram)
Lumens (delivered) 2142Lm - 21350Lm
Circuit Watts 20cW - 165cW
Efficacy up to 129Lm/cW
MacAdams 3SDCM
Colour Temperature 3000K / 4000K / Tuneable White (To Special Order (3000K - 6000K))
Colour Rendering CRI80 / CRI90

Mounting Suspended / Surface Mounted
Dimming Non-dimmable, DALI, Casambi Bluetooth
Emergency Non-emergency, 3 Hour Emergency, DALI Emergency
Base IP Rating IP20
Safety Class I
Voltage 230V, 50/60Hz
Power Factor >0.9
Lifetime 50,000hr (L80/B10)
Warranty 5 Years

*Please Note: . Many other drive currents possible to vary the light output for either the upper or lower light output. Contact sales for more info.

Datasheet (Custom)
Configure to Download
Images
Download
Photometry
Download

Options.

Lower Optic

Opal Cover
Diffused Microprism Cover

UGR19
Double Parabolic Louvre
Ladder Louvre with Lens

60º Lens and black louvre blades

Lighting Circuit

Direct (One direction)
Direct/ Indirect - 1 circuit light control
Direct/ Indirect - 2 separate lighting circuits

Suspension Type

Suspension wire kit (1.2m)
Suspension wire kit (2m)
Suspension wire kit (3m)
Rod Suspension

Finished the same as body colour

Upper Optic

Upper Clear Cover
Upper Opal Cover
Upper Opal Cover (Raised)

Additional Information.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
