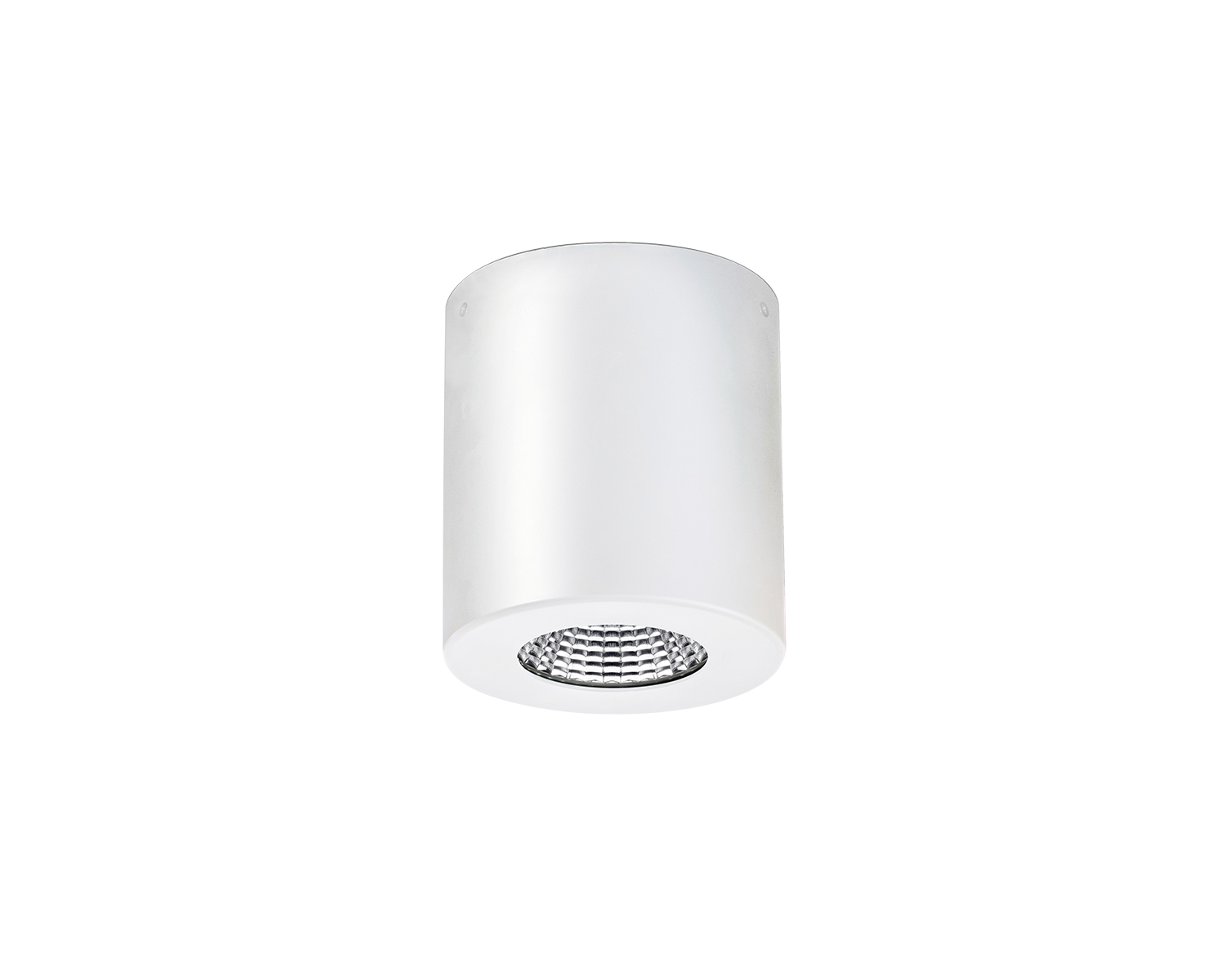

Arlo H81

Professional LED surface can downlight

Product Overview

✔ Tridonic LED & driver

✔ Multiple dimming options

✔ UGR19 versions available

✔ Made in the UK

✔ DALI and dimming options

✔ Suspension option

✔ Suitable for Education, Healthcare, Hospitality, Office, Retail, Commercial

Finishes / Material
  • White (Cream) RAL 9010
  • Black (Matt) RAL 9005
  • Silver (White Aluminium) RAL 9006
  • Custom
  • Body: Aluminium
  • Reflector: Aluminium
Sizes
  • 150 (Ø) x 170 (H) mm
    Weight: 1kg

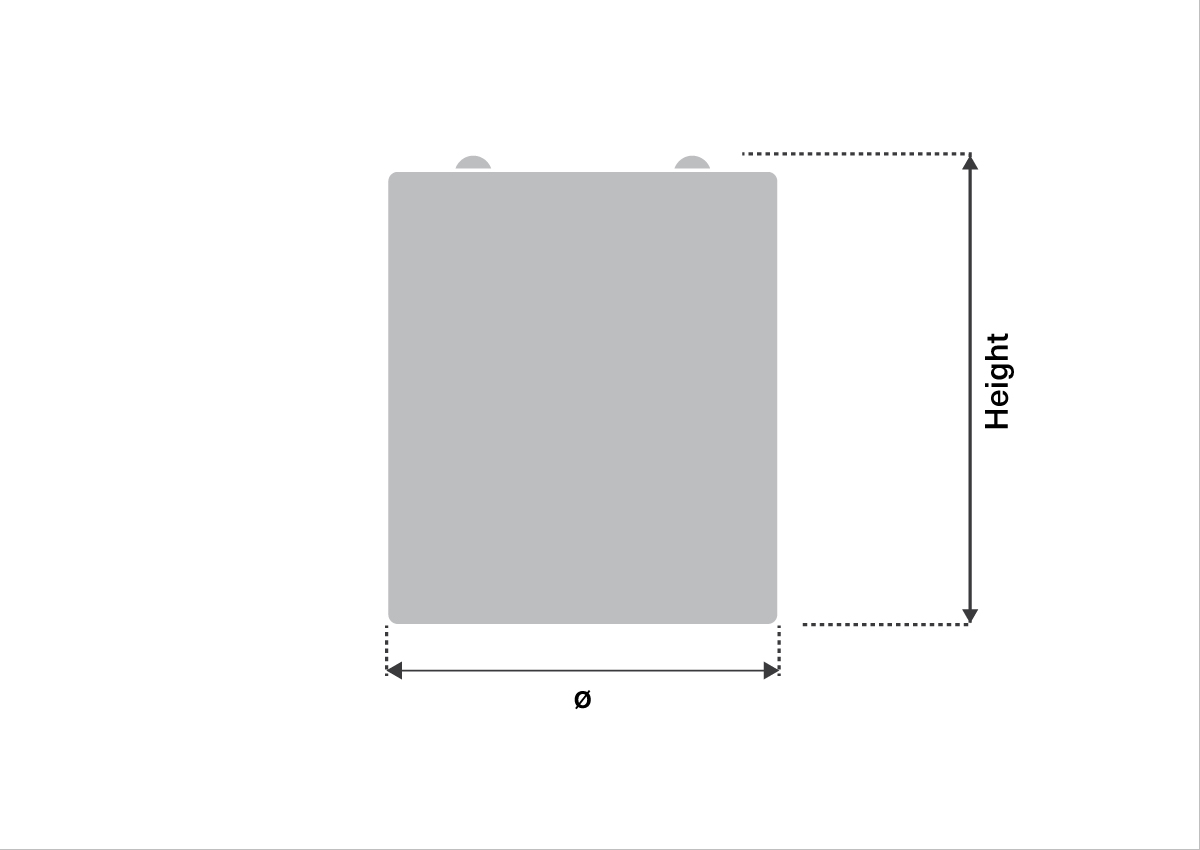

Technical Drawing
  • Source Info Philips Premium High CRI
  • Lumens (delivered) 1044Lm, 1766Lm, 2385Lm
  • Circuit Watts 8cW, 14cW, 19cW
  • Efficacy up to 130Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80

Options.

Reflector

  • Diamond Facet Reflector

    25º Beam

  • Diamond Facet Reflector

    40º Beam

  • Specular Reflector

    40º Beam

  • Satin Etched Reflector

    50º Beam

  • Diamond Facet Reflector

    60º Beam

Attachment (optional)

  • Deco Ring (Frosted)
  • Deco Ring (Black)
  • Acrylic Halo (Frosted)
  • Centre Etched Flush Glass Cover
  • Fully Etched Glass Cover
  • Clear Glass Cover

    Clear Glass Cover

Mount (optional)

  • Suspension wire kit

    2 metre suspension

  • Ceiling Rose (Round)

    Including 2 metre suspension wires

Additional Information.

The Arlo H81 fitting is a high CRI compact LED surface / suspended can downlight which can be configured in a number of options. A popular choice is the matt black can light. Arlo H81 is a popular choice if you are looking for a small surface mounted can light with Casambi dimming.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
