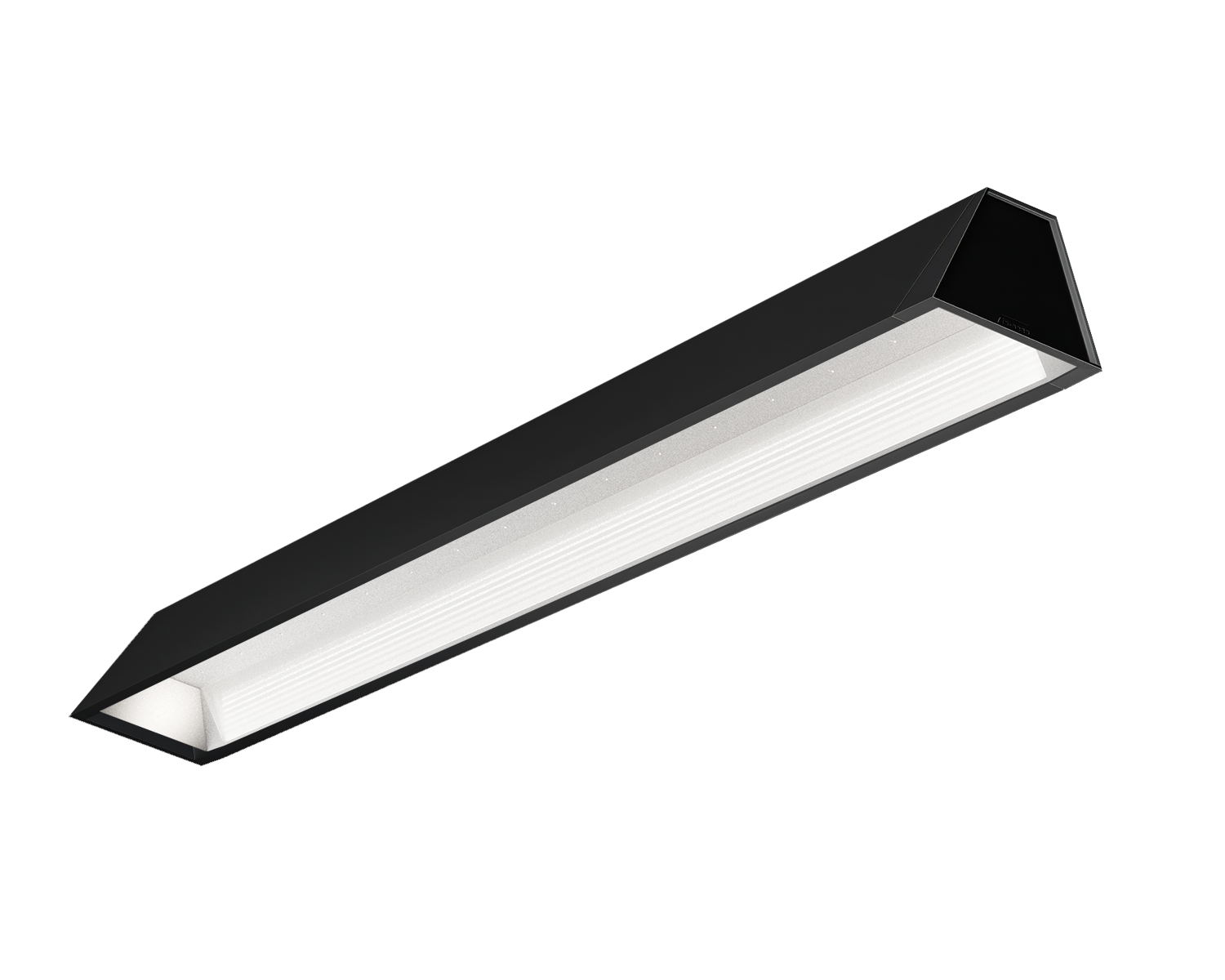

  • Alpha - Trapezoidal UGR 16 Low Glare commercial linear office light

Alpha

Low UGR trapezoidal commercial office light

Product Overview

✔ Innovative direct or direct/indirect solution for office lighting and professional areas

✔ Vertical lens UGR<19

✔ Vertical lens plus UGR<16

✔ Satin diffuser UGR<22

✔ Multiple dimming options

✔ Built-in driver

✔ Human centric lighting option - contact sales for more information

✔ Spot accent luminaire which can be integrated into a modular system - contact sales for more information

✔ Suitable for Commercial, Office

Finishes / Material
  • White (Signal) RAL 9003
  • Black (Matt) RAL 9005
  • Body: Aluminium
Sizes

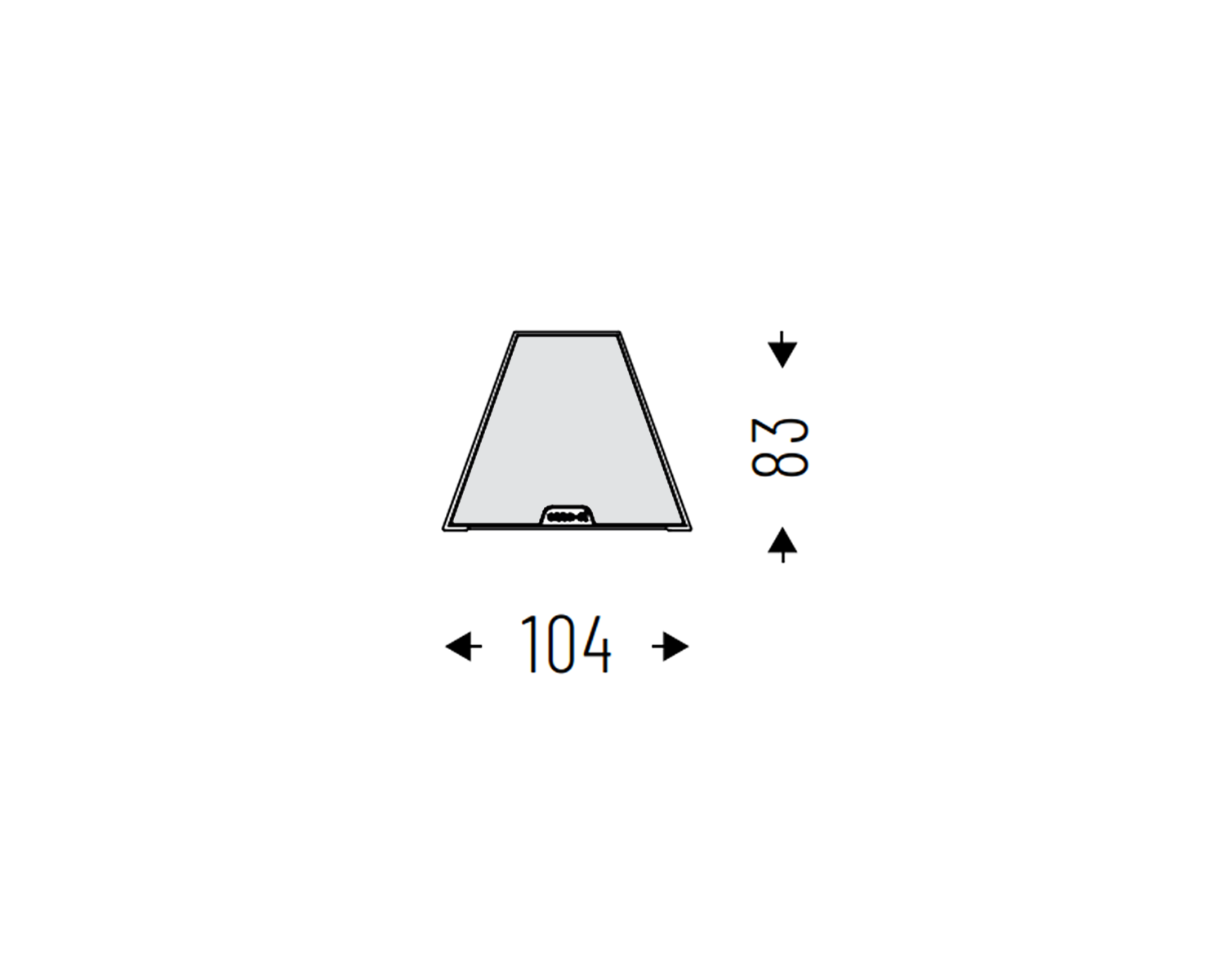

  • 1128 (L) x 104 (W) x 83 (H) mm
  • 1692 (L) x 104 (W) x 83 (H) mm
  • 2256 (L) x 104 (W) x 83 (H) mm
  • 2820 (L) x 104 (W) x 83 (H) mm
  • Source Info Tier 1 LED (Eg. Tridonic / Osram)
  • Lumens (delivered) 2997Lm - 12600Lm
  • Circuit Watts 28cW - 104cW
  • Efficacy up to 121Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 2700K (To order) / 3000K / 4000K / 6500K (To order) / Tuneable White
  • Colour Rendering CRI90

Options.

UGR Rating

  • UGR 16

    Refracted emission, PC Lens, Transversal blades

  • UGR 19

    Refracted emission, PC Lens

  • UGR 22

    Soft emission, PMMA frosted diffuser

Additional Information.

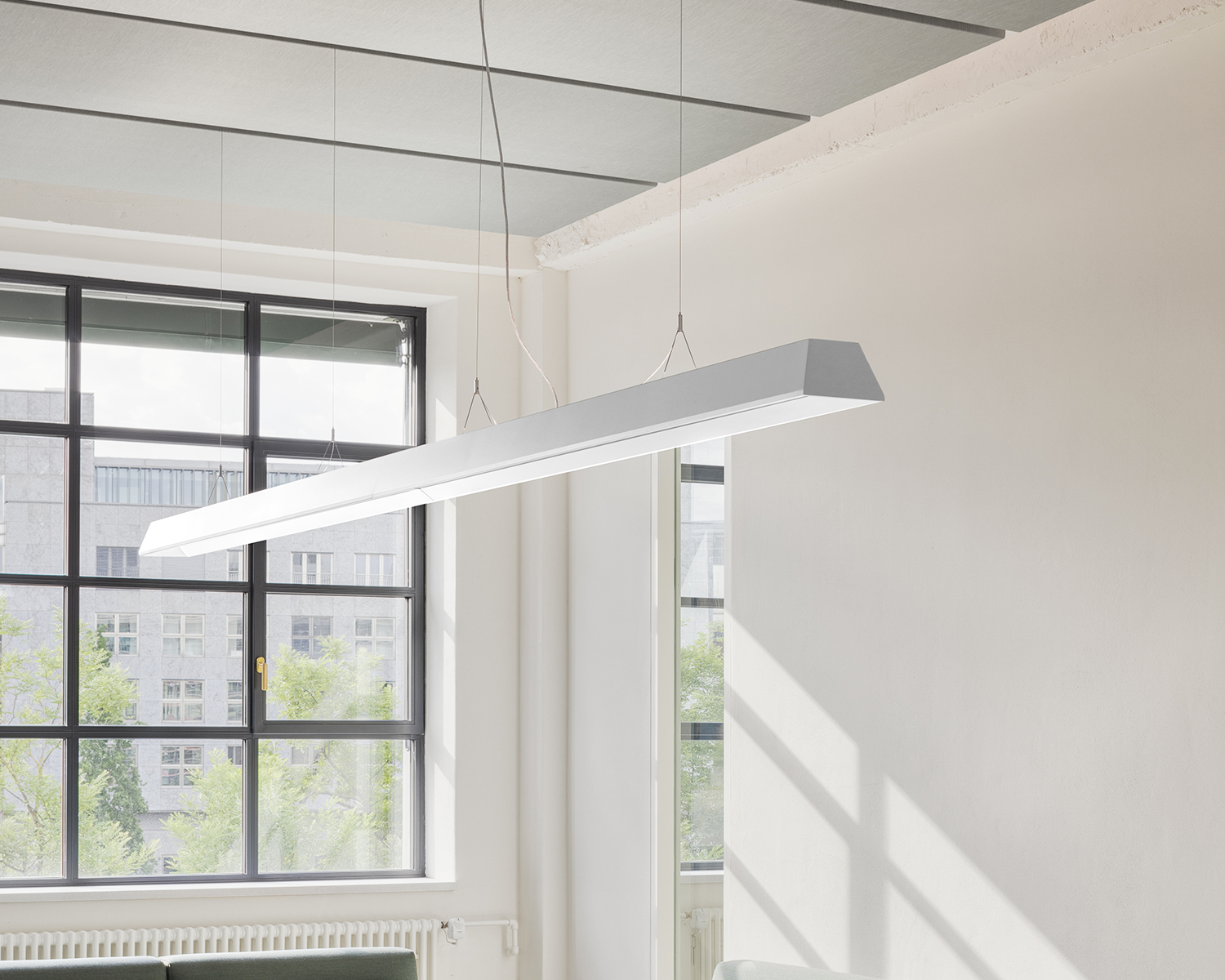

ALPHA is an innovative suspension lamp with an original design, perfect for enhancing the lighting of offices and professional spaces. Based on an optical refraction system, this product combines aesthetics and functionality for an elegant and discreet diffusion of light. Available with single or double emission.
