Tube H8 (360°) - 80mm Horizontal Suspended tube light fitting

Tube H8 (360°)

Horizontal suspended tube light with 360º homogenous glow

Product Overview

✔ Horizontal mounted cylindrical light with 360° light projection

✔ Supplied with transparent acrylic half moon clips

✔ Available in multiple lengths

✔ Optional DALI control

✔ Light source has energy efficiency class A++

✔ Available in multiple RAL finish options

✔ Vertical version also available

✔ Frosted diffuser

✔ Suitable for Education, Hospitality, Healthcare, Office, Retail, Gallery/Museum, Leisure

Finishes / Material

Aluminium (Brushed)
White (Traffic) RAL 9016
Black (Matt) RAL 9005
Anthracite (Grey) RAL 7016
Silver (White Aluminium) RAL 9006
Custom

Diffuser: Polycarbonate
End Caps: Aluminium
Painted

Sizes

80 (Ø) x 550 (L) mm
80 (Ø) x 1050 (L) mm
80 (Ø) x 1550 (L) mm
80 (Ø) x 2050 (L) mm
>2050 (L) mm
For longer lengths please contact sales

Source Info Tier 1 LED components (Tridonic, Philips, Osram)
Lumens (delivered) 2008Lm - 8033Lm
Circuit Watts 20cW - 79cW
Efficacy up to 102Lm/cW
MacAdams 3 SDCM
Colour Temperature 2700K / 3000K / 4000K
Colour Rendering CRI80

Mounting Pendant / Suspended
Dimming Non-dimmable, DALI, 1-10V Analogue
Emergency Non-emergency
Base IP Rating IP43
Impact Rating IK07
Safety Class III
UGR Rating <19
Voltage 220-24VAC, 50/60Hz
Temp Range -20ºC-45ºC
Lifetime 50,000Hrs (L70/B10)

Datasheet (Custom)
Configure to Download
Images
Download
Photometry
Download

Options.

Ceiling Rose Type

Surface Mounted

Ceiling Rose
Recessed Mounted

Ceiling Rose

Ceiling Rose Finish

White
Grey
Black
Anthracite

Suspension wire length

Suspension wire kit (1.5m)
Suspension wire kit (2m)
Suspension wire kit (3m)
Suspension wire kit (5m)

Additional Information.

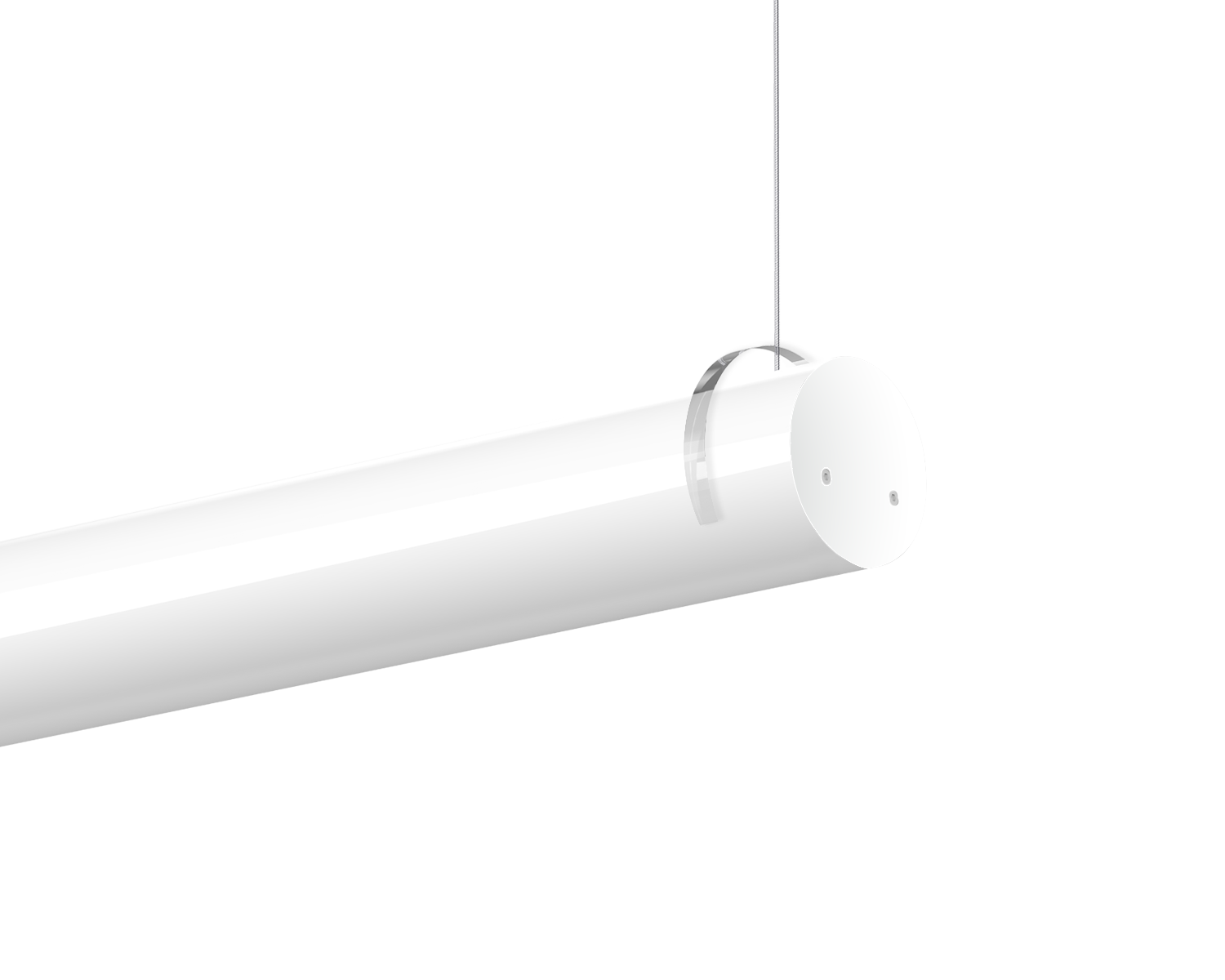

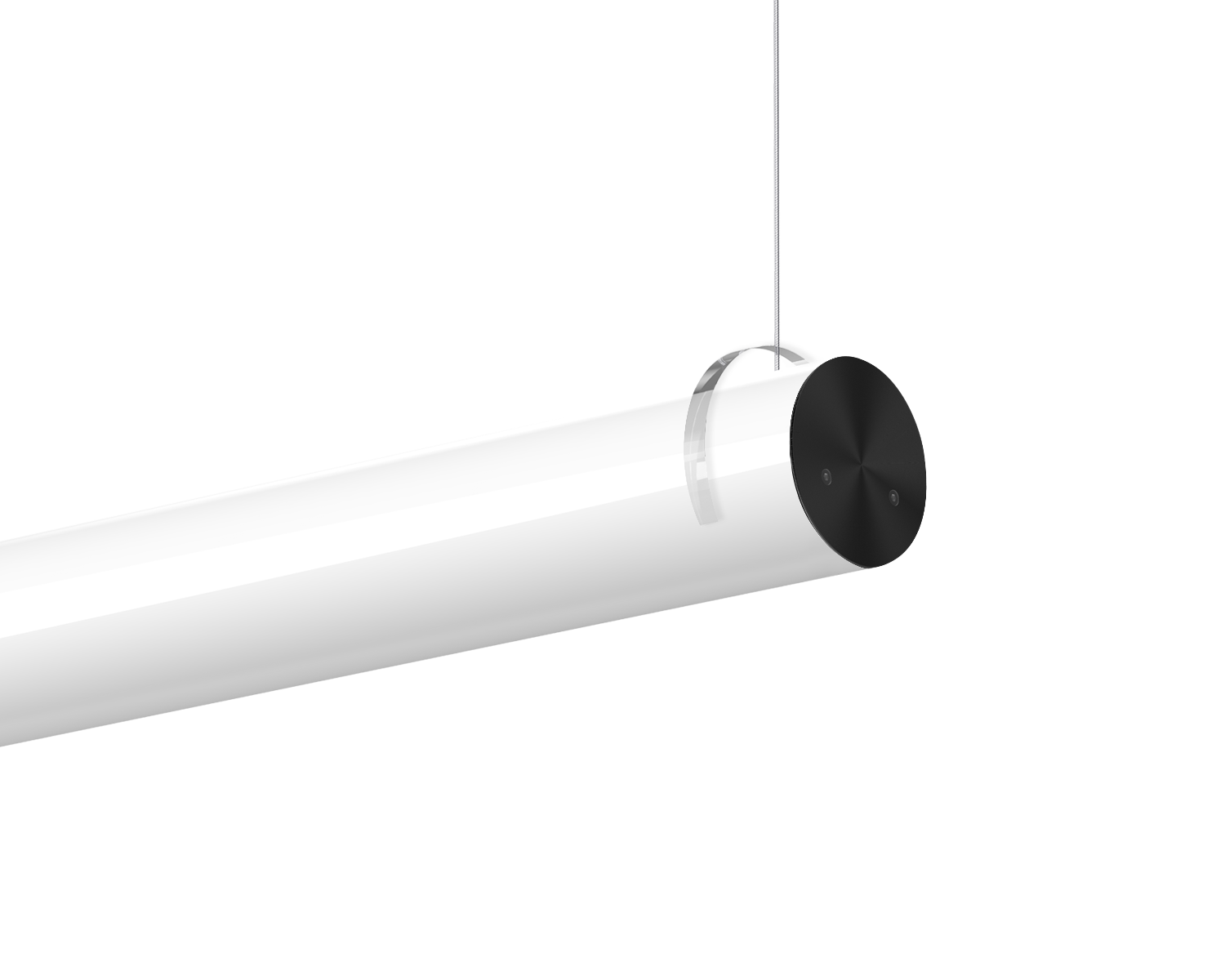

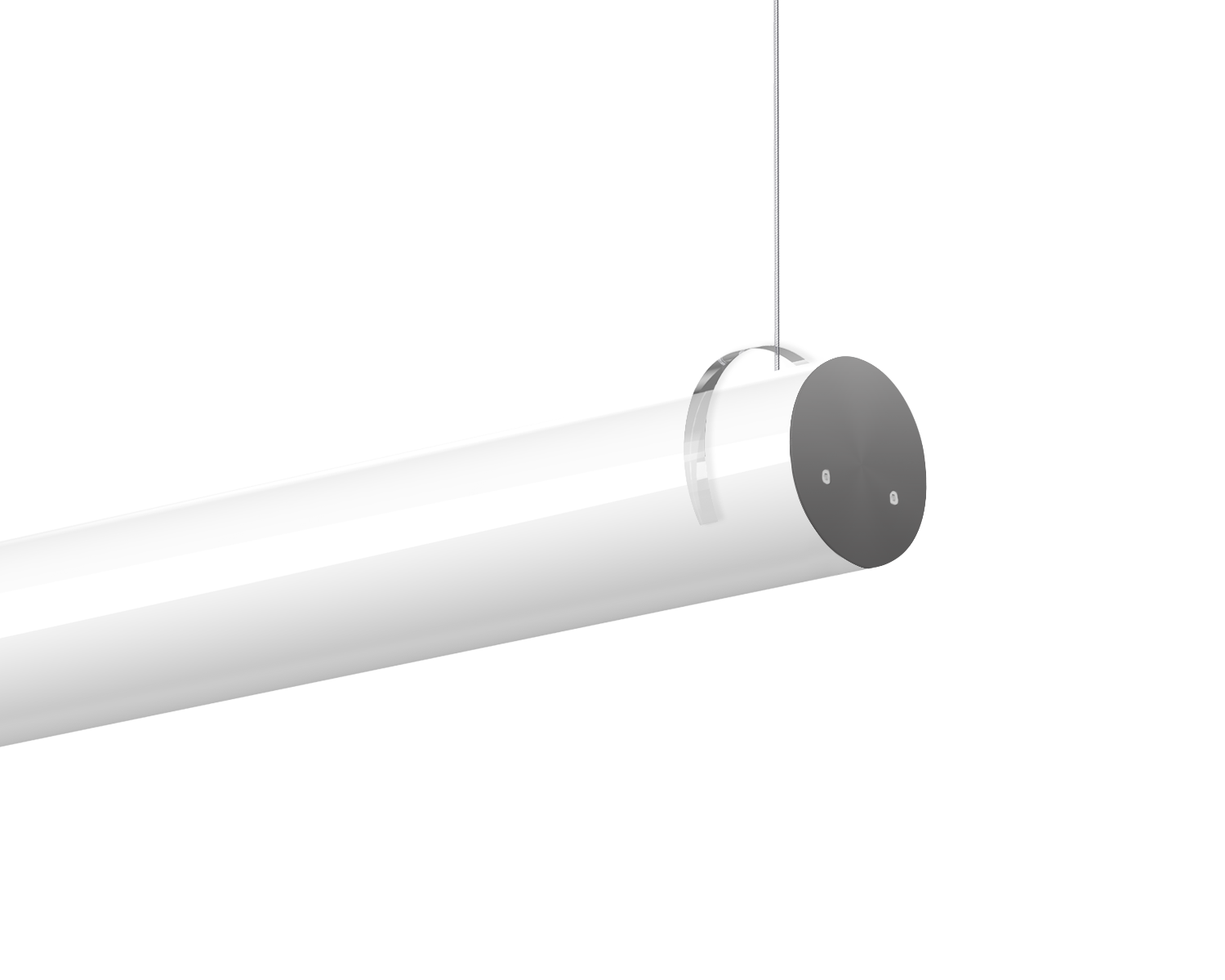

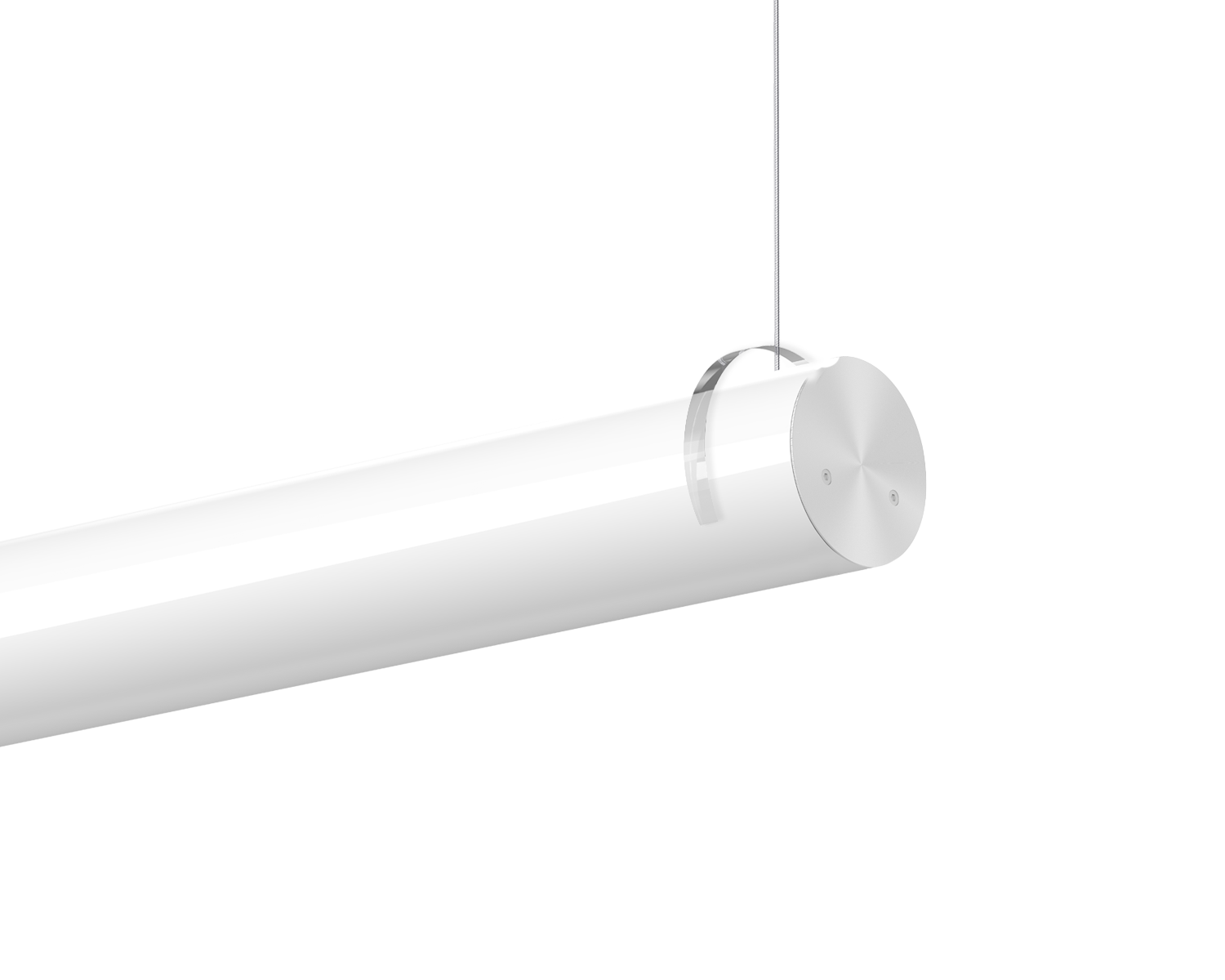

Tube H8 is our 80mm horizontal suspended tube light with 360° diffused light output in 2700K, 3000K or 4000K. It's opal linear tubular body is made from polycarbonate and it's aluminium end caps can be painted black, white, grey or custom RAL finishes. This slim, horizontal cylindrical pendant light emits an all round white light glow. It's classic, minimalist design makes it an ideal feature light for atrium, hotel, restaurant, church or even care home lighting. If you're looking for a slim vertical stick light then this commercial grade LED tube light is a great choice.
