Hexx PNL

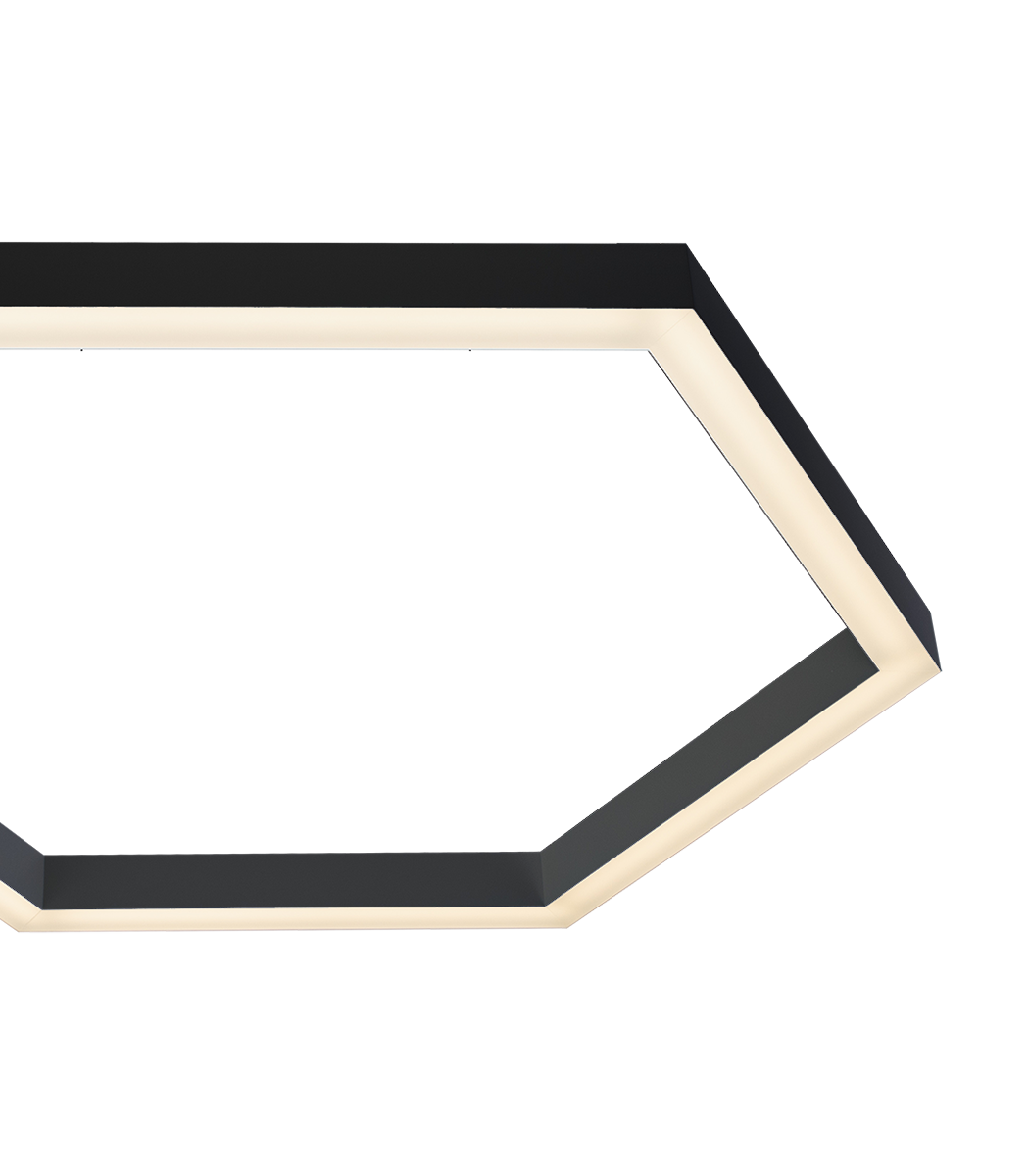

Architectural hexagon light for ceiling or suspended mounting

Product Overview

✔ Modern geometric hexagon shaped light

✔ Suitable for ceiling / pendant mount applications

✔ Integrated driver

✔ Option for dimming

✔ Suitable for Corridor lighting, Commercial, Hospitality, Office, Retail, Residential, Gallery/Museum

Finishes / Material
  • Black (Matt) RAL 9005
  • White (Signal) RAL 9003
    Matt
  • Silver (Anodised)
  • Silver (White Aluminium) RAL 9006
    Powder Coated
  • Custom
    On Request
  • Bracketry: Steel
  • Body: Aluminium
  • Diffuser: PMMA
    Opal
Sizes
  • 509 (Ø) x 80 (H) mm
    L2: 440mm, L3: 255mm
  • 751 (Ø) x 80 (H) mm
    L2: 650mm, L3: 376mm
  • 1132 (Ø) x 80 (H) mm
    L2: 980mm, L3: 566mm

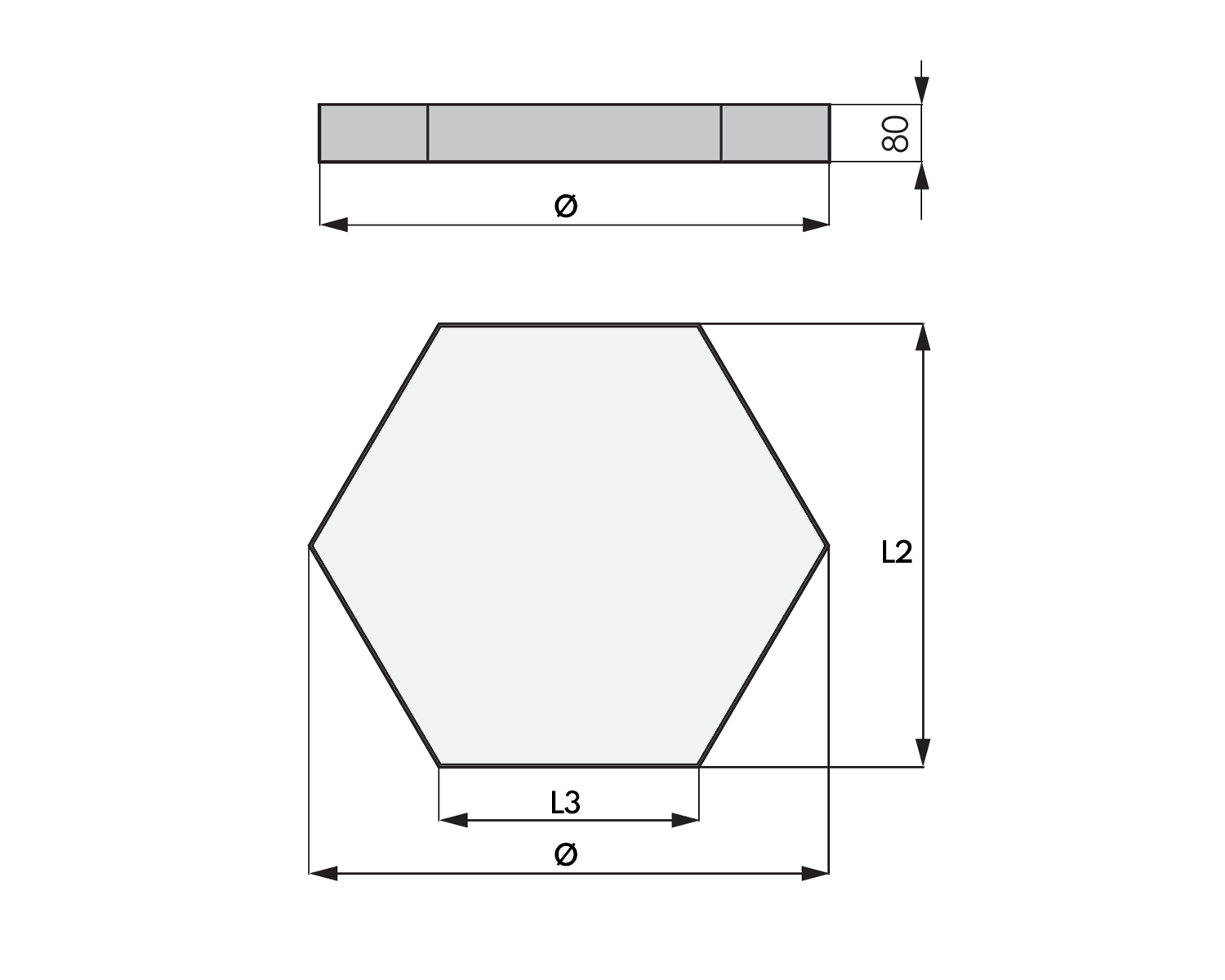

Technical Drawing
  • Source Info Tier 1 LED (Eg. Tridonic / Osram)
  • Lumens (delivered) 1026Lm - 11133Lm
  • Circuit Watts 11cW - 83cW
  • Efficacy up to 134Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80 / CRI90

Options.

Optic

  • Opal Cover

Mount (optional)

*Please Note: Wires are vertically mounted. Number of suspension wires vary depending on size of fitting.
  • Suspension wire kit (1.2m)
  • Suspension wire kit (2m)
  • Suspension wire kit (3m)

Ceiling Rose Finish (optional)

  • White
  • Black

Additional Information.

At a time when Geometric ceiling lights are becoming increasingly popular why not add a hexagon shaped light fitting to your interior? Hexx, our Architectural Hexagon ceiling light is bang on trend.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
