  • Edge EXT AS-WR - Exterior wall recessed asymmetric linear floor washer

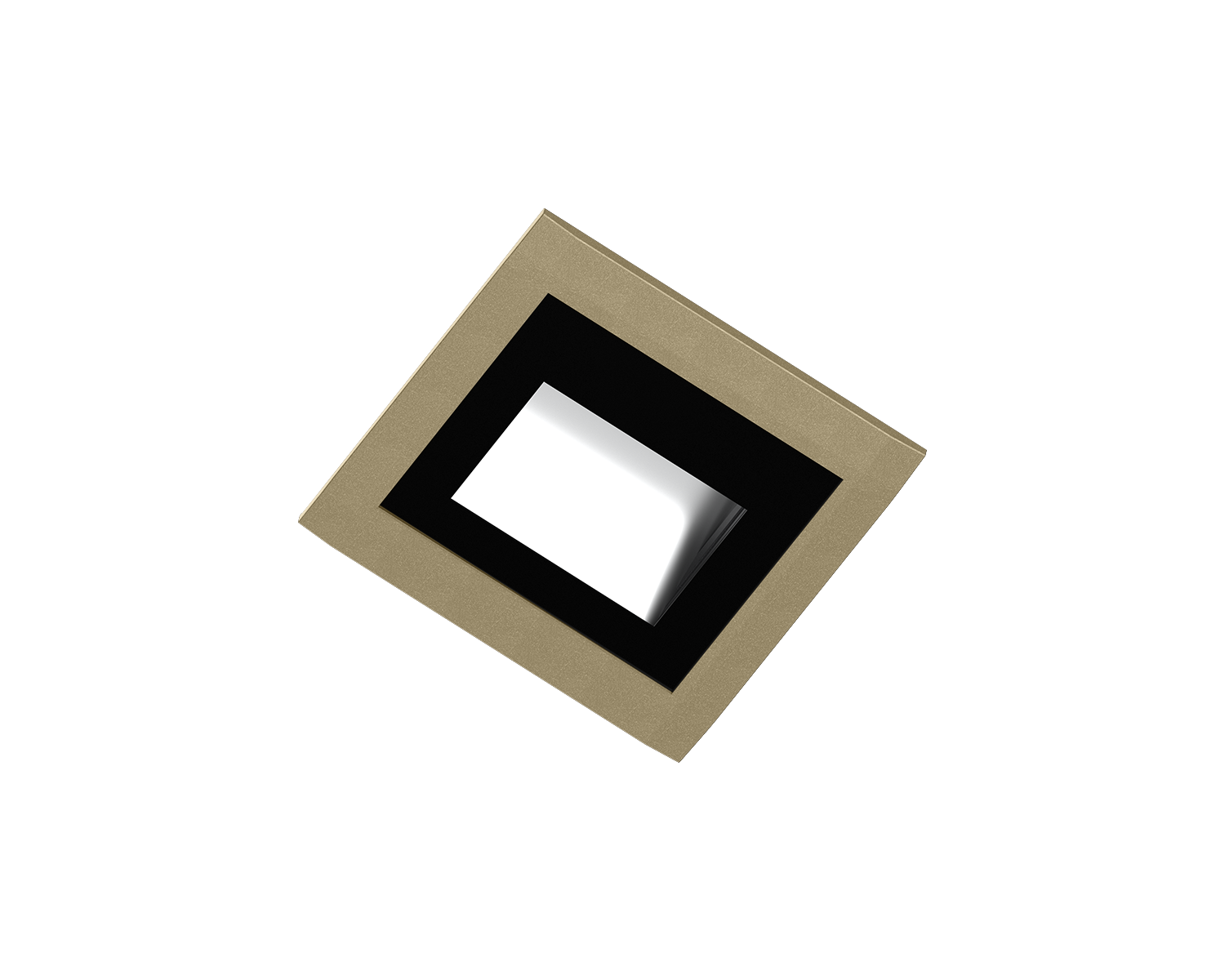

Edge EXT AS (WR)

Exterior architectural asymmetric wall recessed accent light

Product Overview

✔ Minimal architectural wall recessed linear fixture for accent lighting in exterior spaces

✔ Suitable for both concrete and conventional walls

✔ Supplied with silicone gaskets ensuring maximum protection in all weather conditions

✔ Resistant to atmospheric agents and UV rays finished in aluminium alloy treated with nano-bonderite

✔ Dimmable remote driver options available

✔ Multiple colour options available

✔ Tempered sodium calcium glass diffuser

✔ 2700K available on special request - contact sales

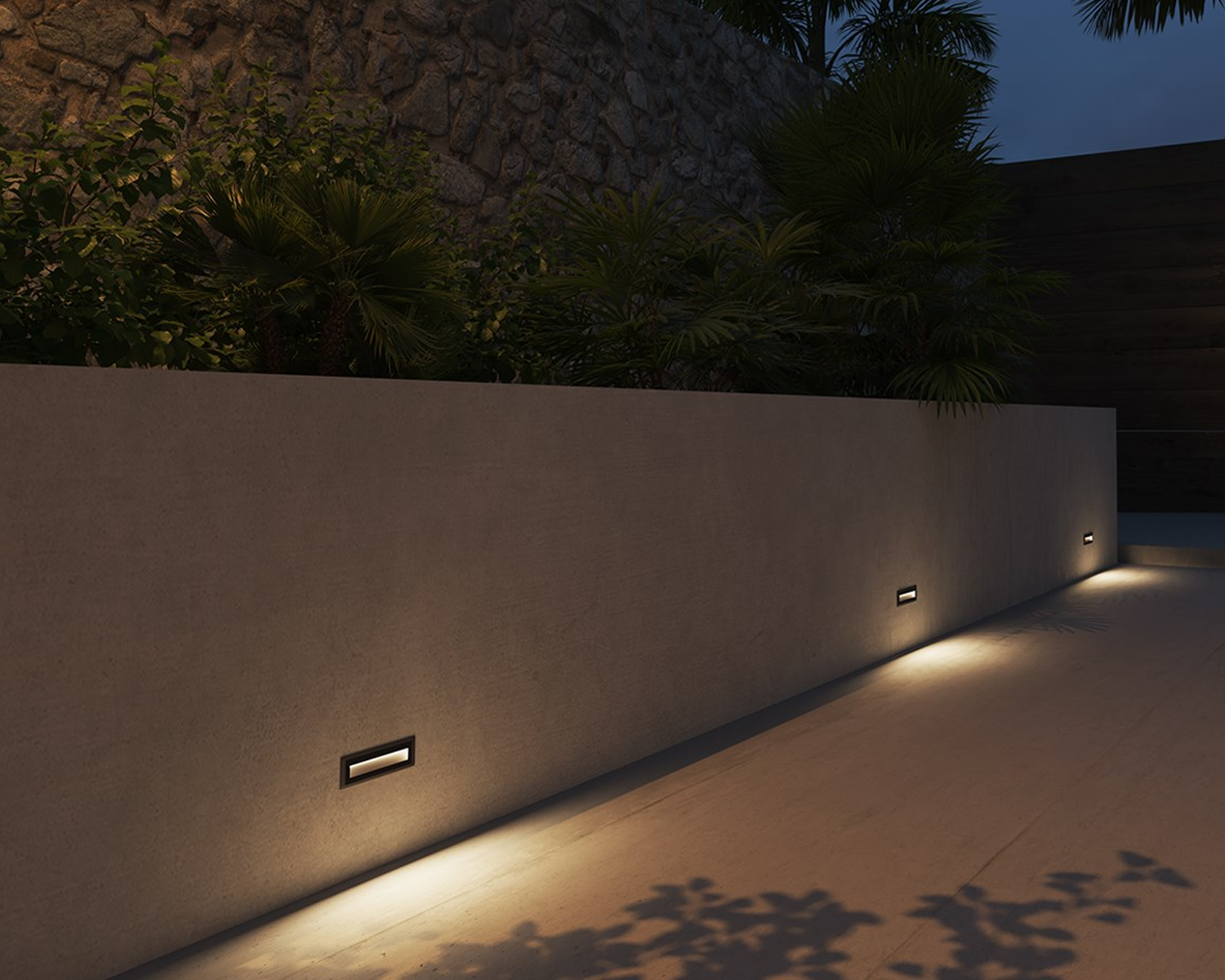

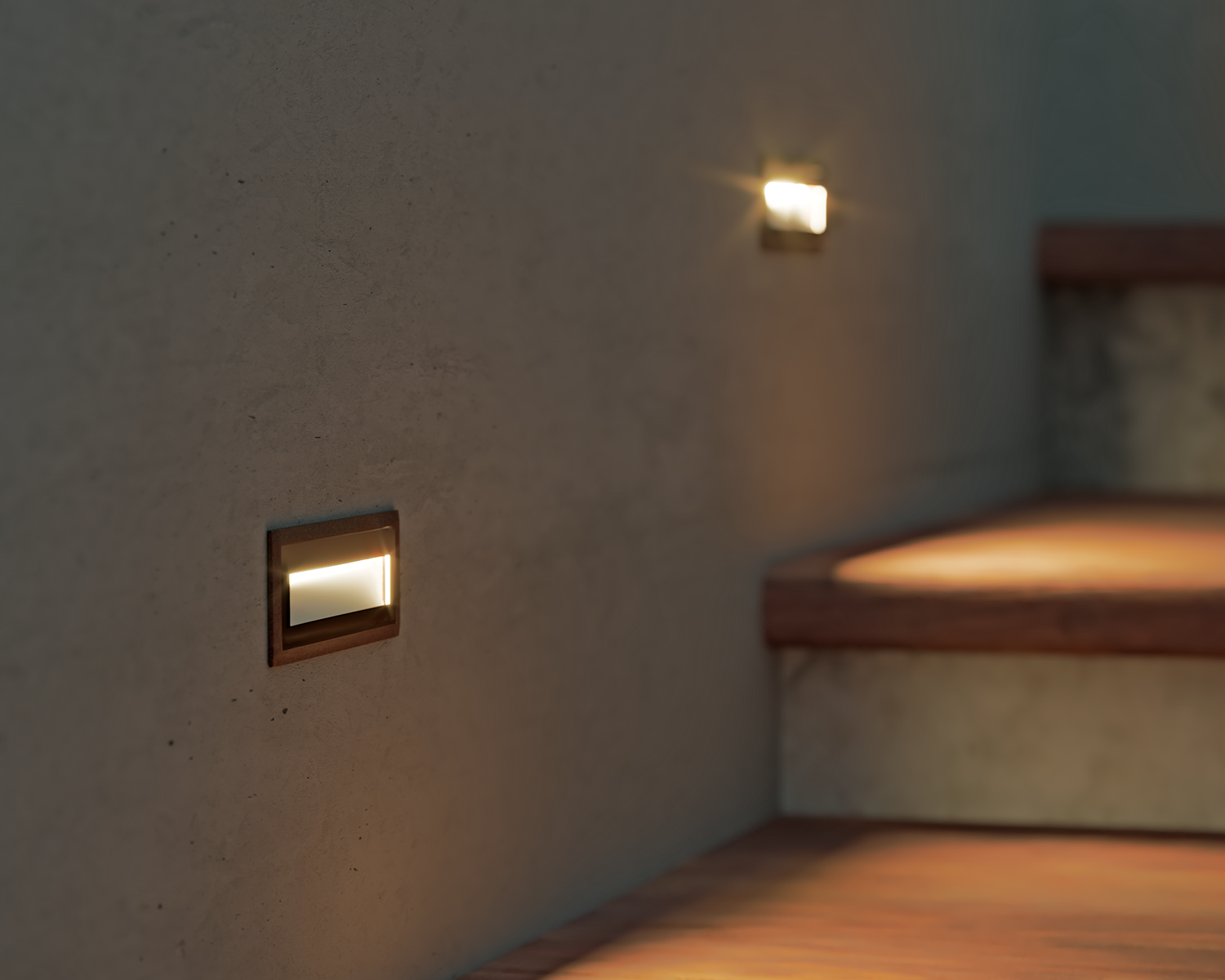

✔ Suitable for Stairs, Walkways, Driveways, Balconies & Terraces, Canopies / Entrance Areas

Finishes / Material

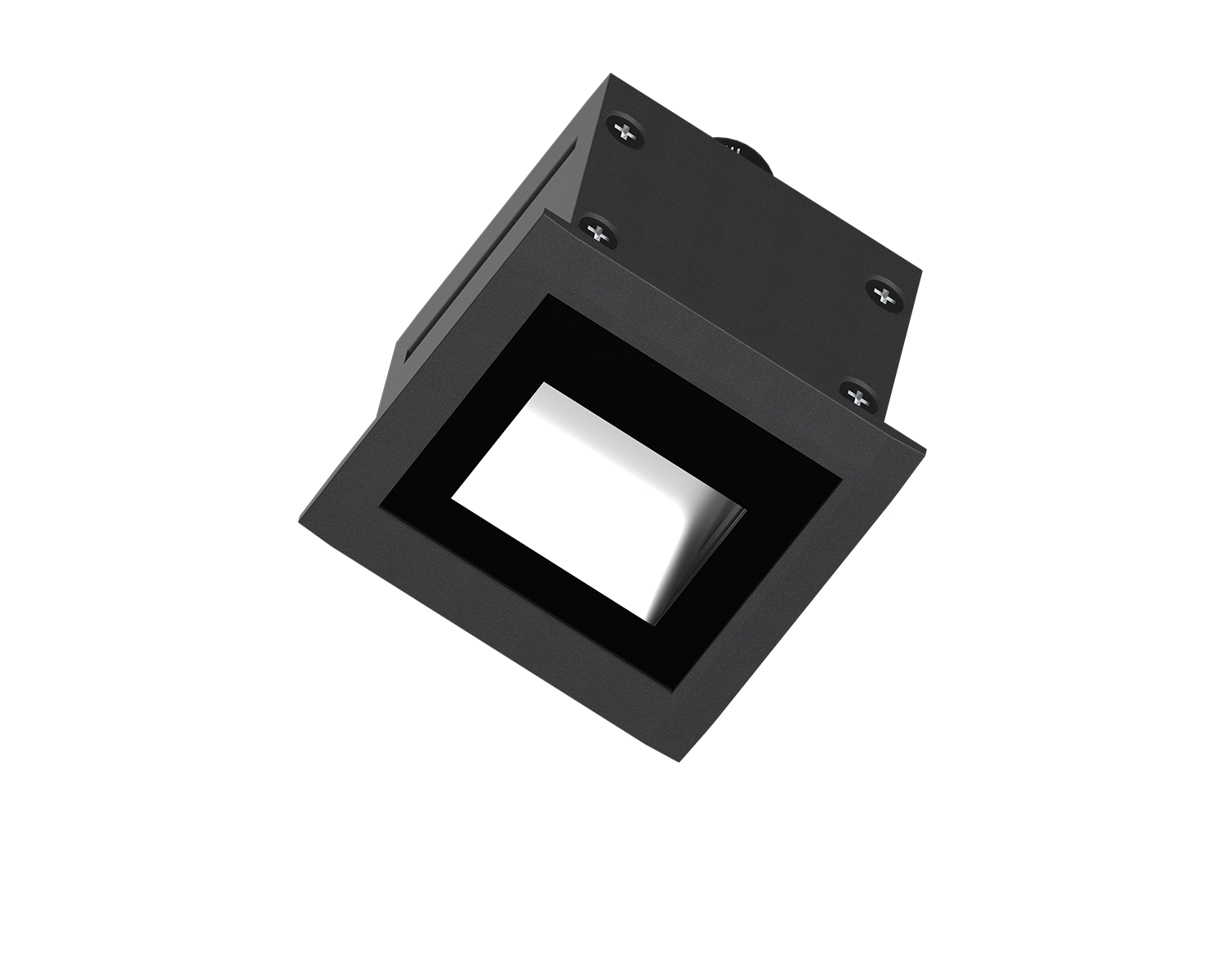

  • Anthracite (Grey) RAL 7016

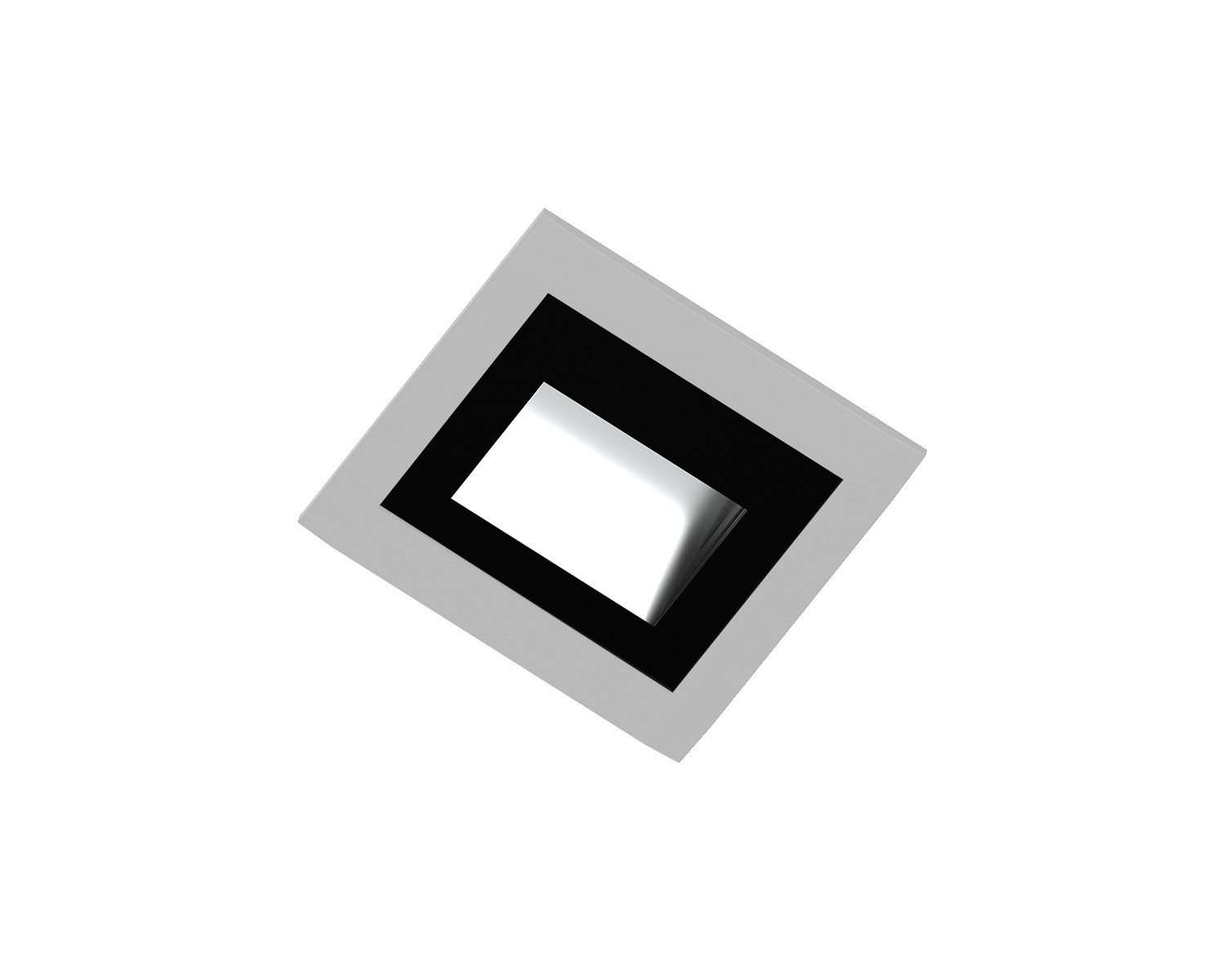

  • Grey (Light Grey)
  • White
    Special order only
  • Black
    Special order only
  • Corten
    Special order only
  • Bronze
    Special order only
  • Sand
    Special order only
  • Blue
    Special order only

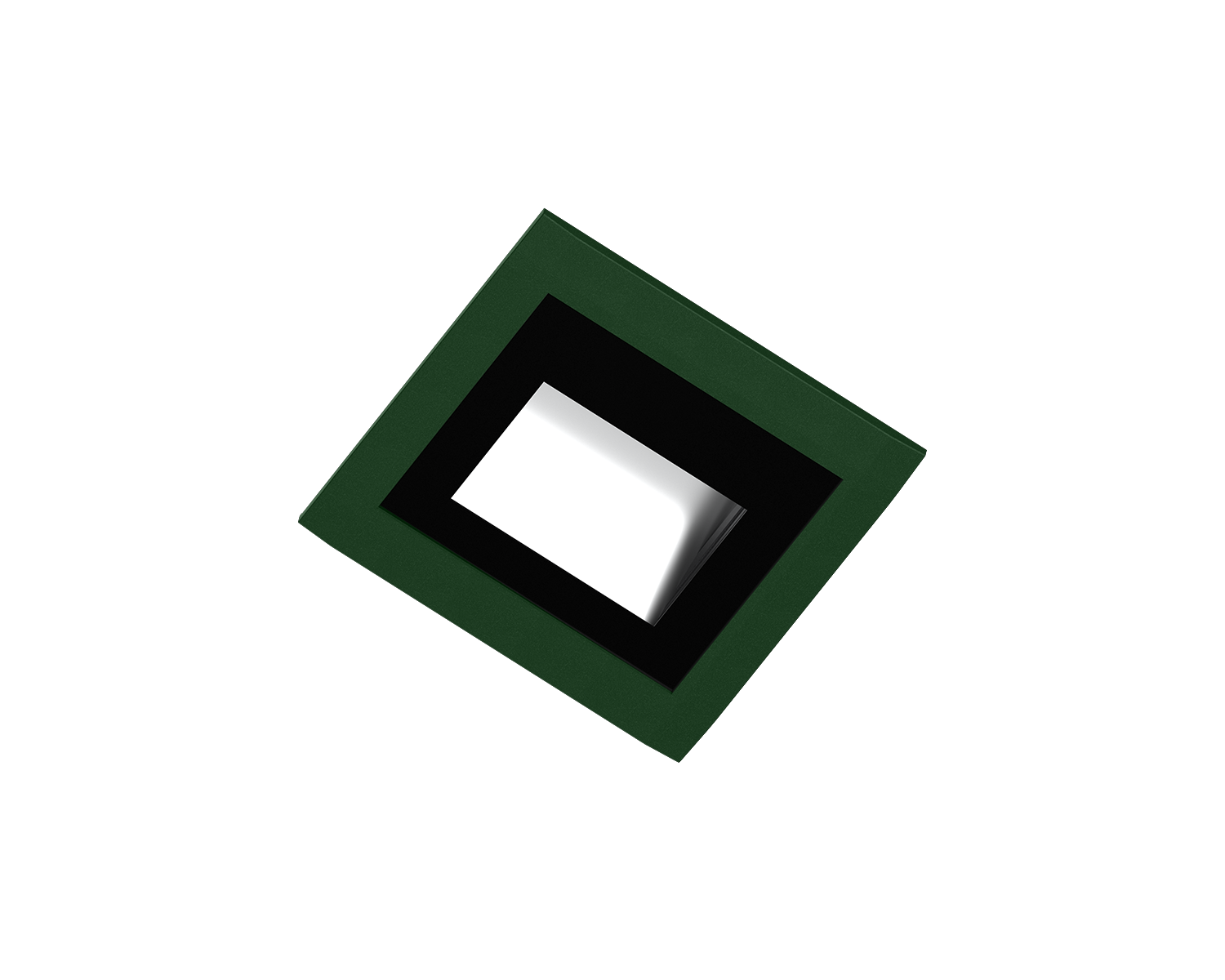

  • Green
    Special order only
  • Body: Extruded Aluminium
    High oxidation resistant
  • Diffuser: Tempered glass
    3mm

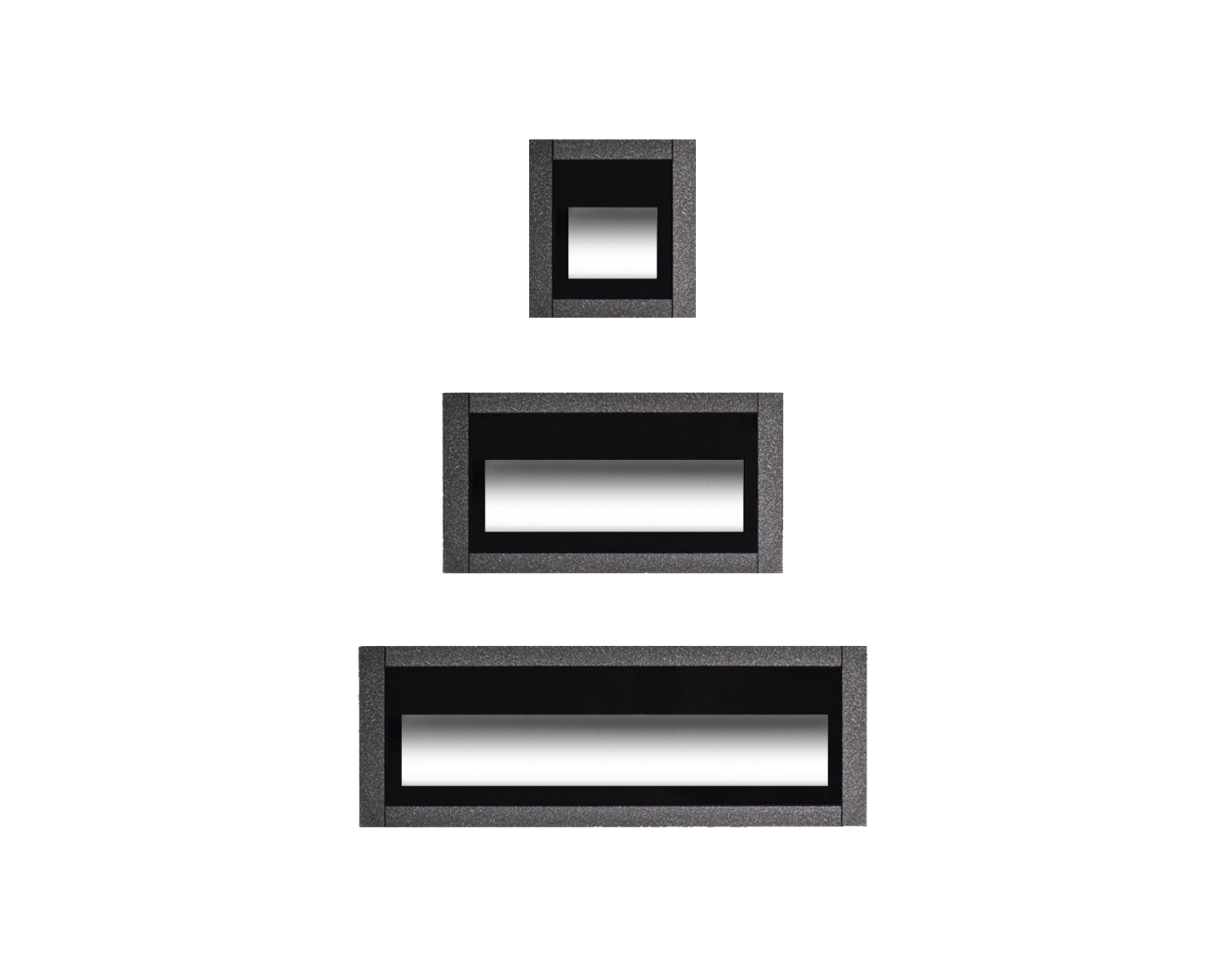

Sizes

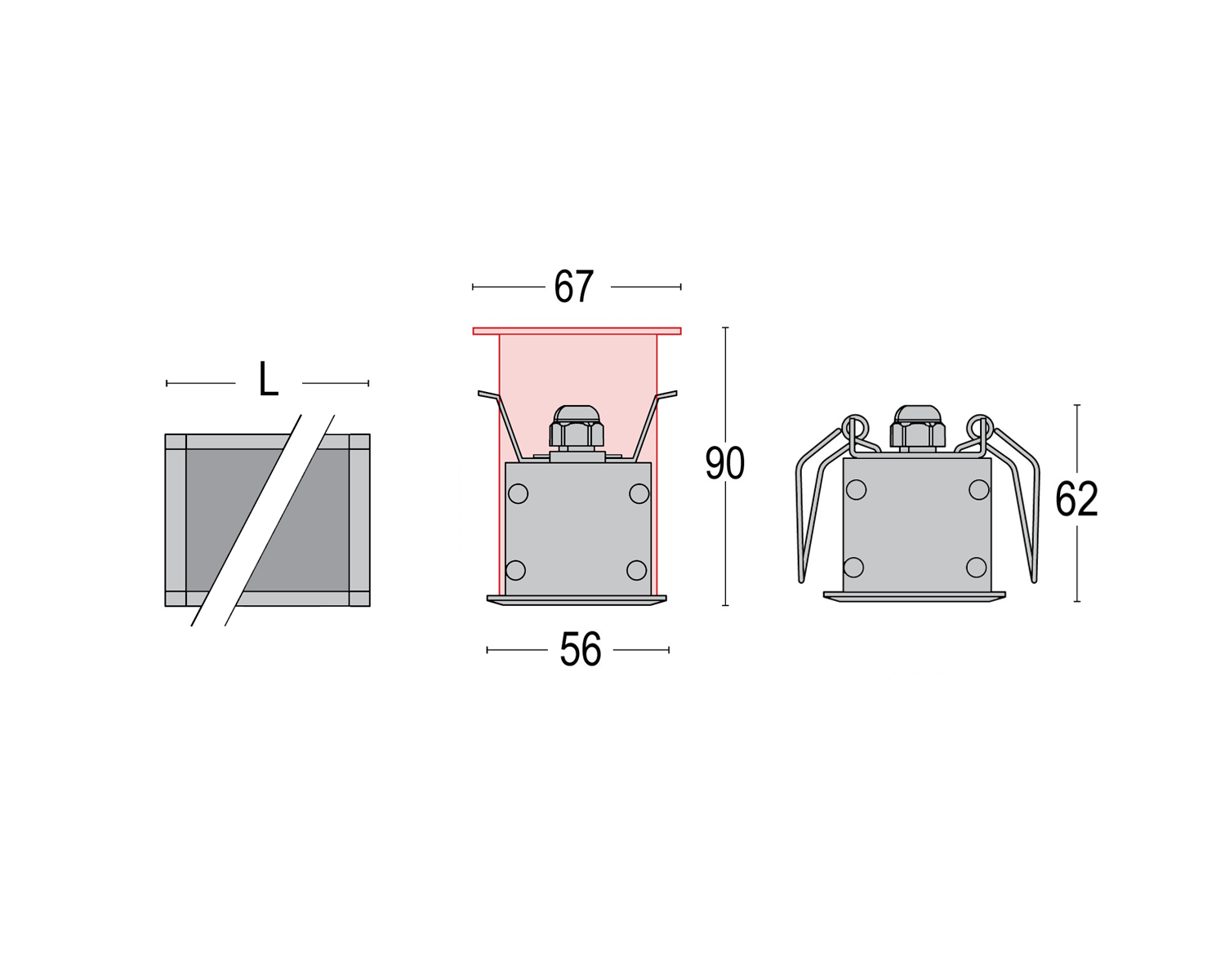

  • 56 (L) x 56 (W) x 62 (H) x 90 (D) mm
    54° x 89°
  • 105 (L) x 56 (W) x 62 (H) x 90 (D) mm
    119° x 101°
  • 158 (L) x 56 (W) x 62 (H) x 90 (D) mm
    138° x 102°
  • Source Info Tier 1 LED
  • Lumens (delivered) 20Lm, 66Lm, 111Lm
  • Circuit Watts 1cW, 2cW, 3cW
  • Efficacy up to 37Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80

Options.

Fixing Option

  • Rough-in Housing

    Concealed Fix - includes First Fix Box

  • Spring Clips

    Spring clip mounted - For dry wall applications

Additional Information.

Series of recessed wall luminaires with reduced recessed depth. They are designed for lighting of paths, stairs and passages with diffused light. The construction of the body, in aluminium alloy with high resistance to oxidation, treated with nano-bonderite and protected with polyester powder-coating , make the product resistant to atmospheric agents and UV rays, guaranteeing maximum protection over the years. The silicone gaskets ensure maximum sealing in all operating and temperature conditions. The diffuser in tempered sodium calcium glass finished with silk-screen printing and beveled edge gives a touch of class to the fixture. The product is installed with stainless steel rough-in housing and is suitable for both concrete and conventional walls or plasterboard.
