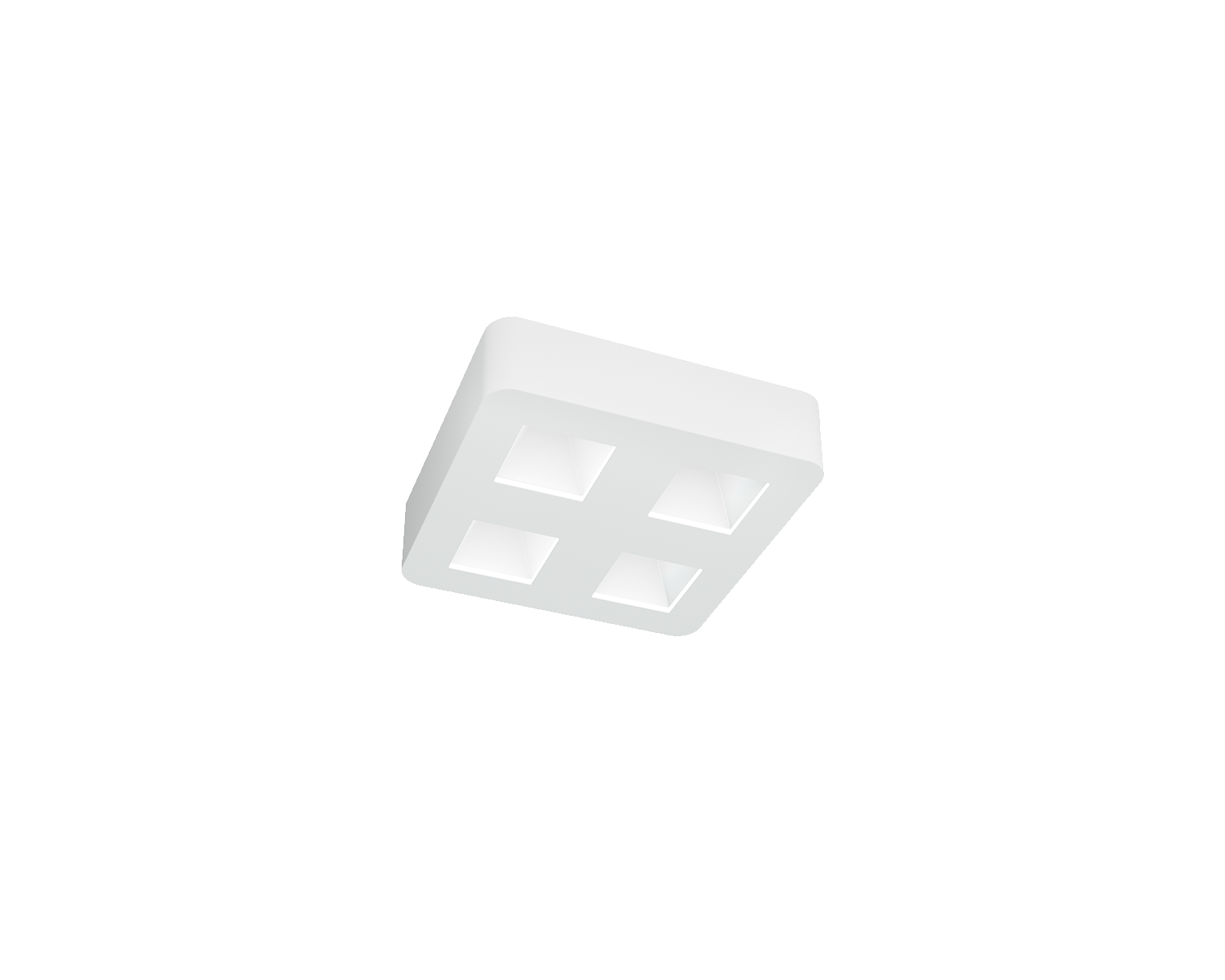

Dimples Mini

Multipurpose commercial luminaire with individual microcells

Product Overview

✔ Unique aesthetic with individual microcells

✔ Optics for both low glare office lighting and general applications

✔ Slimline body of just 38mm

✔ Family of products to suit many project types

✔ Dimmable and emergency versions available

✔ White finish RAL 9003

✔ Suitable for Hospitality, Office, Retail, Gallery/Museum

Material
  • Body: Plastic / Aluminium
    Satin ABS White RAL 9003
  • Diffuser: Polycarbonate
  • Bracketry: Aluminium
Sizes

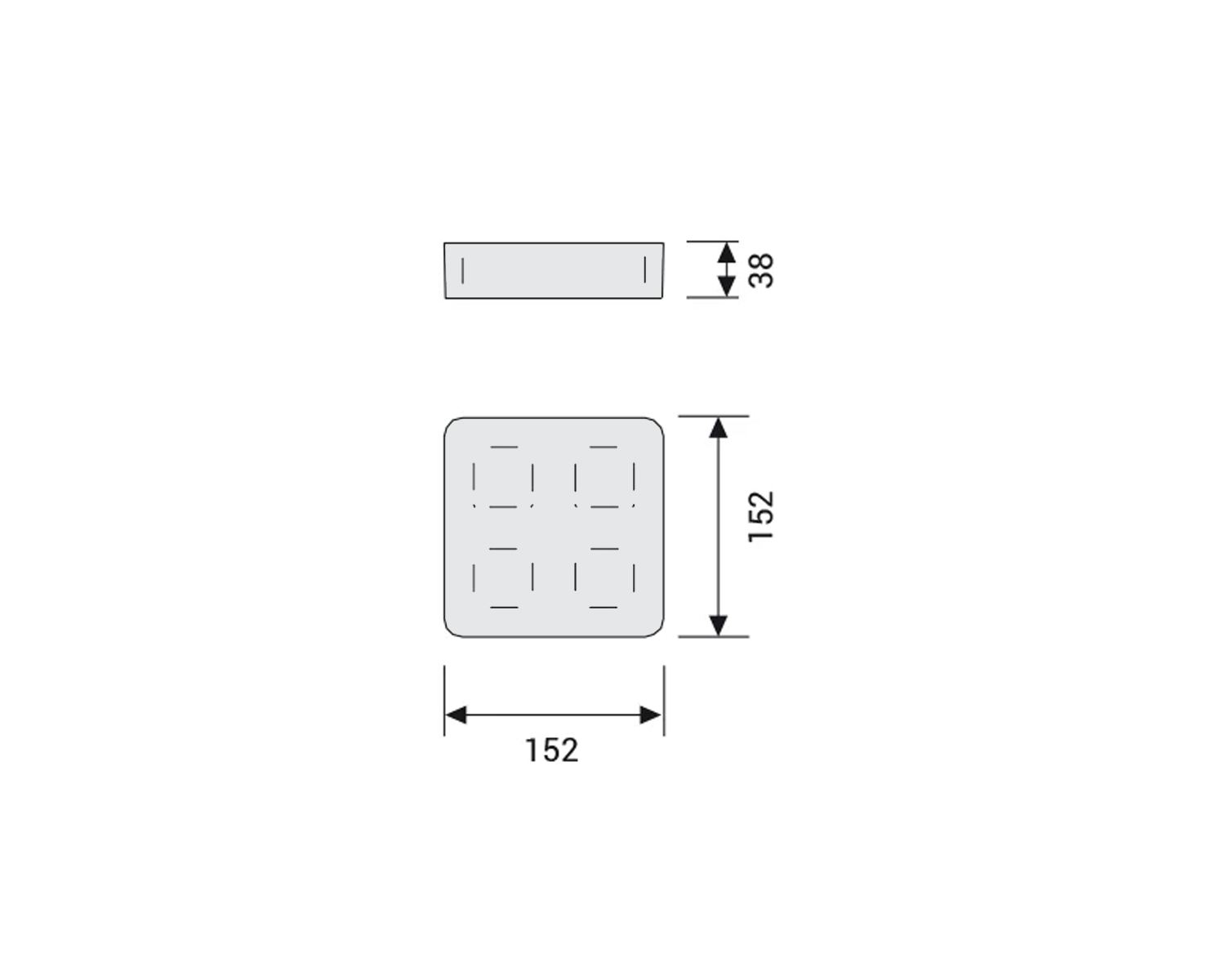

  • 152 (L) x 152 (W) x 38 (H) mm
  • Source Info Tier 1 LED
  • Lumens (delivered) 1144Lm, 1487Lm
  • Circuit Watts 10cW, 13cW
  • Efficacy up to 114Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI90

Options.

Enhanced UGR (optional)

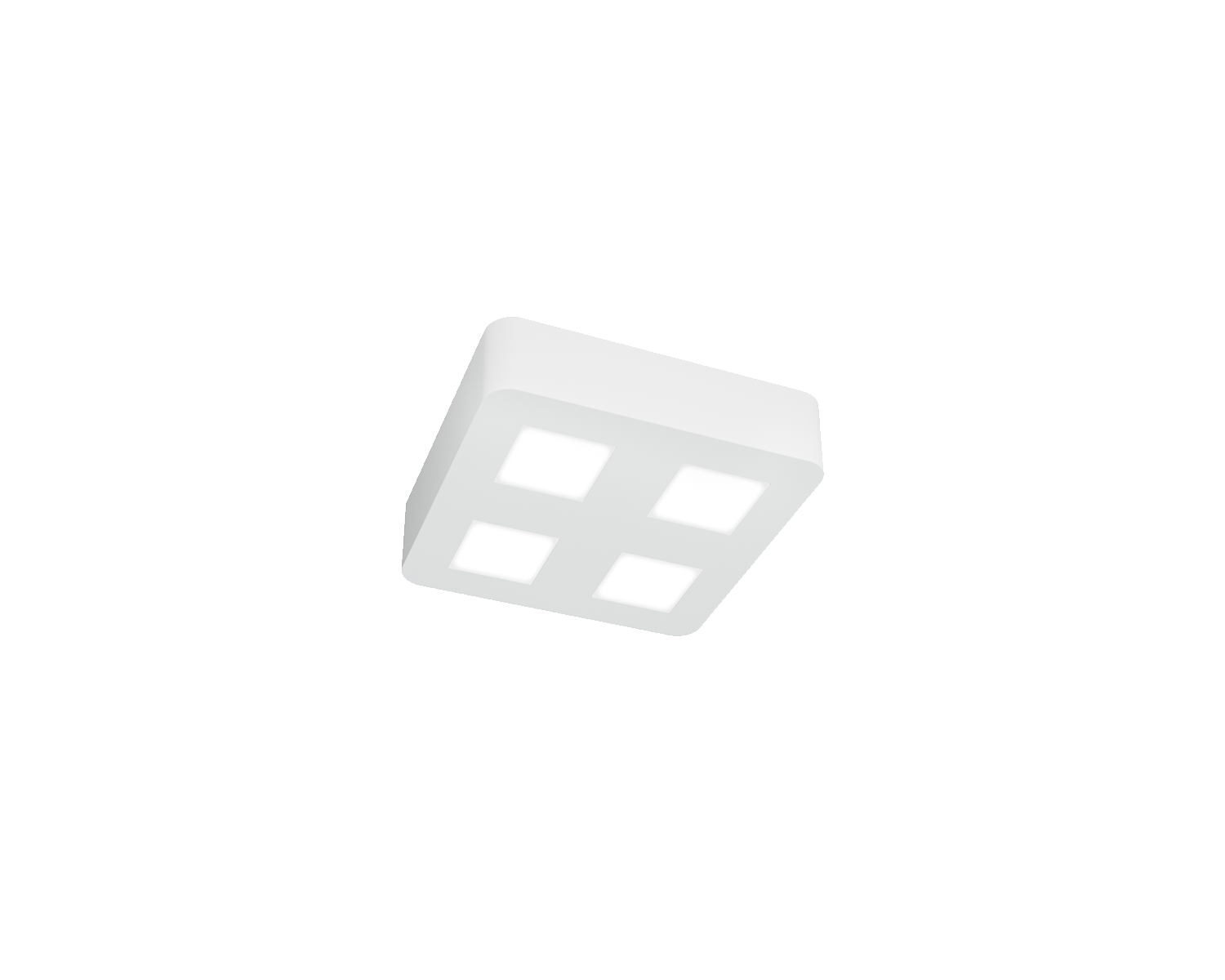

  • Frosted Cover

    UGR <22

Suspensions (optional)

  • Suspension wire kit (1.5m)
  • Suspension wire kit (3m)

Additional Information.

DIMPLES is a recessed, suspended and ceiling mounted installations fixture. Characterized by its very shallow profile height of just 38mm, integrated drivers and unique aesthetics. The individual microcells contain optics that can either be specified for Offices applications requiring low glare, or general lighting applications with broad lateral light distribution for core areas, including meeting rooms and break-out spaces. DIMPLES is offered in a wide range of outputs and sizes, for direct only or bi-directional light distribution, making it an extremely versatile lighting collection and a huge step beyond the conventional edge lit lighting panels.
