B-Line 7.8

High efficiency linear luminaire made from extruded aluminium

Product Overview

✔ Available in direct only or indirect/direct light distribution

✔ Dimming and emergency options available

✔ Available in multiple sizes

✔ Easy installation and low maintenance

✔ LG7 Complaint, UGR<19 (when used with microprism diffuser)

✔ Can be suspended, surface mounted or recessed

✔ Available in multiple different RAL finishes

✔ Suitable for Corridor lighting, Commercial, Education, Hospitality, Office, Retail, Residential, Gallery/Museum

Finishes / Material

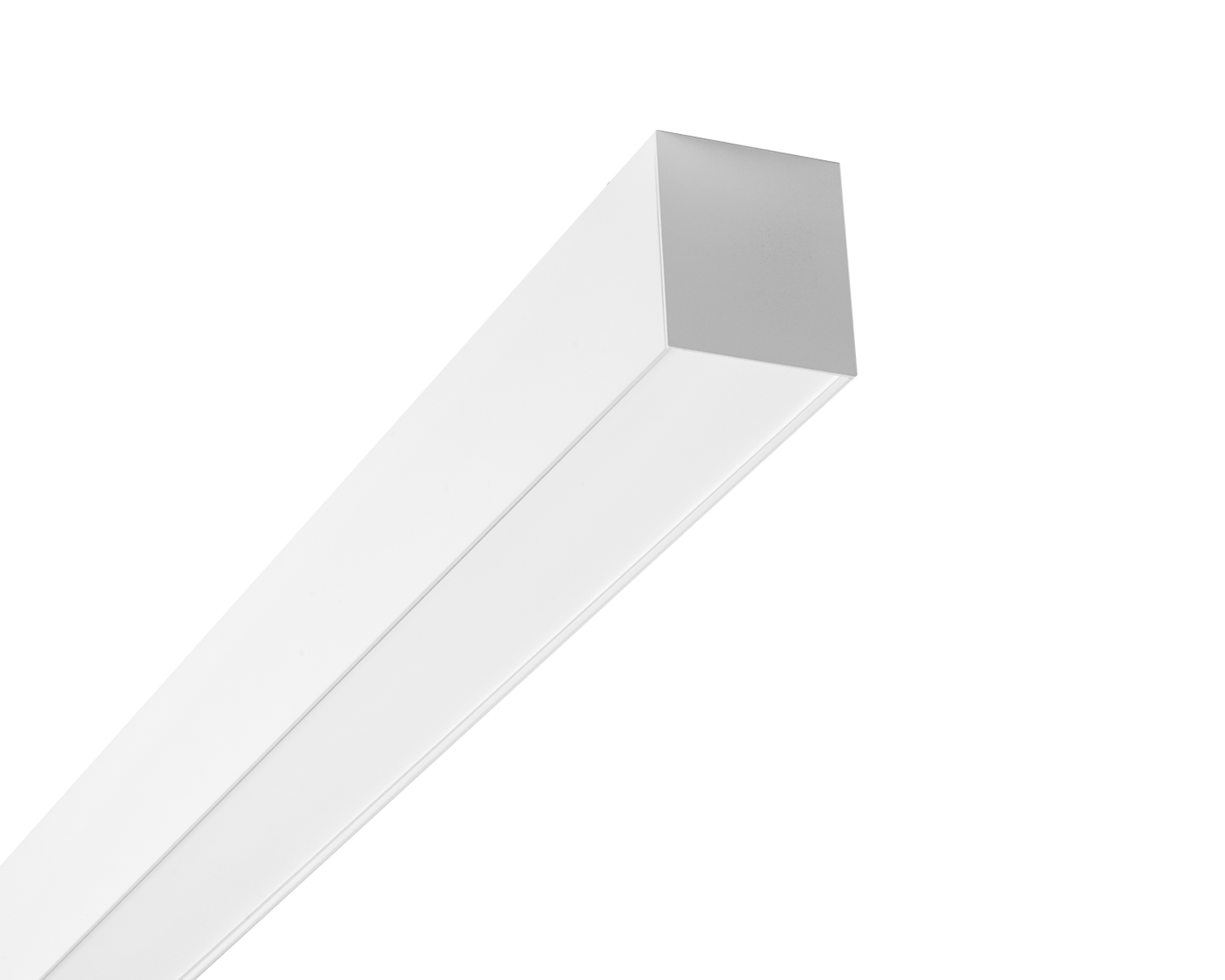

  • White (Traffic) RAL 9016

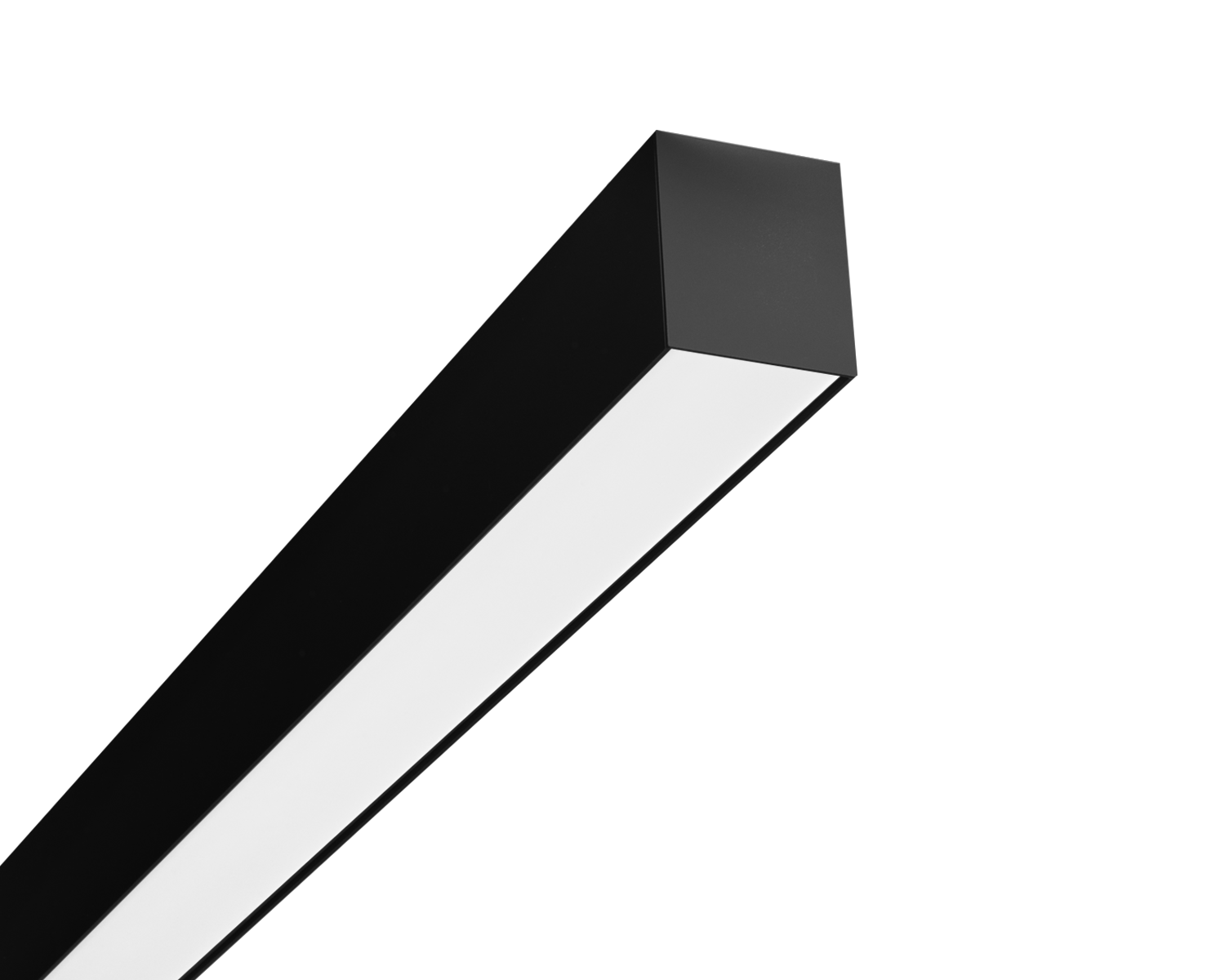

  • Black (Matt) RAL 9005

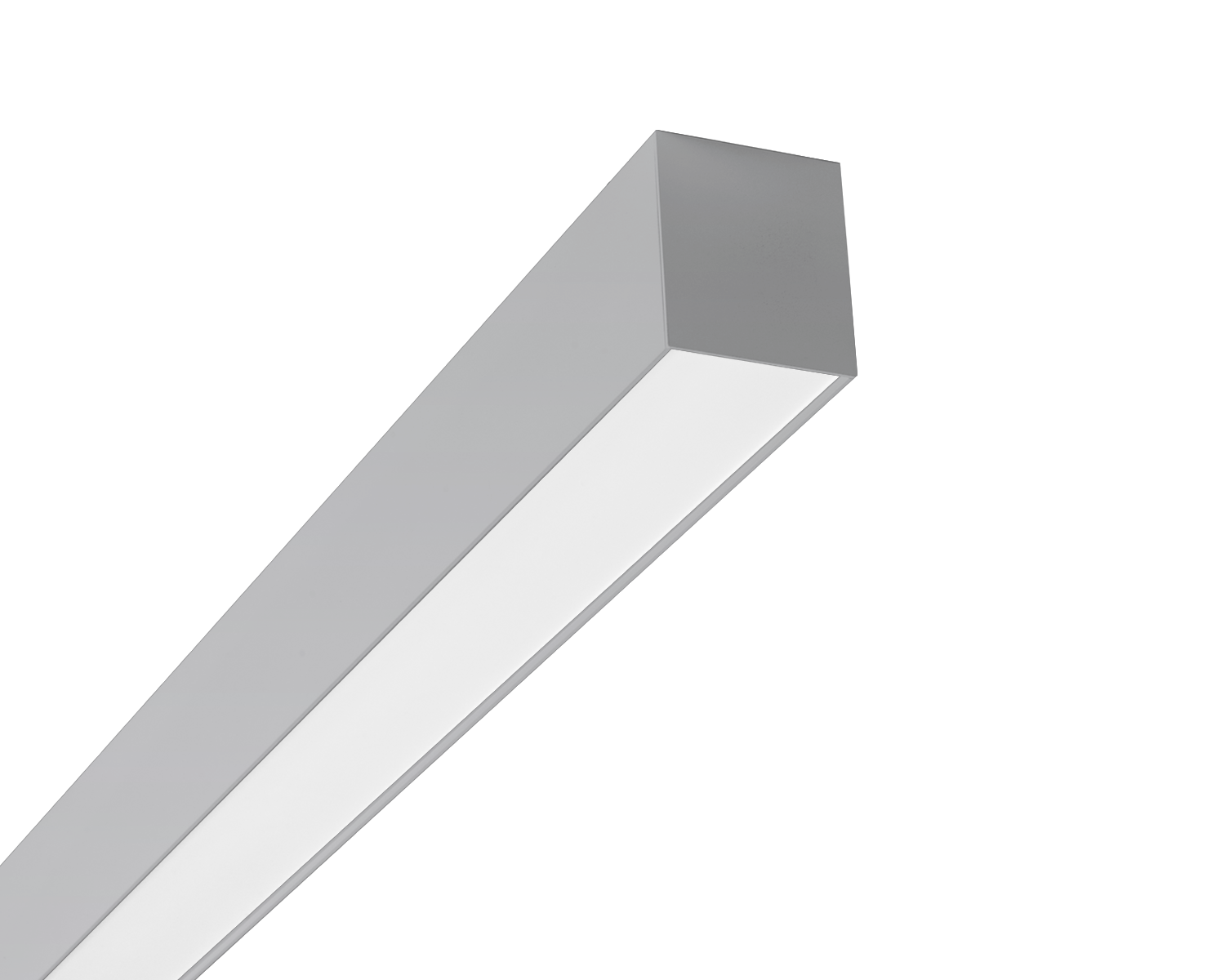

  • Silver (White Aluminium) RAL 9006
  • Custom
  • Body: Extruded Aluminium
  • Diffuser: Polycarbonate
Sizes
  • 870 (L) x 73 (W) x 85 (H) mm
  • 1150 (L) x 73 (W) x 85 (H) mm
  • 1430 (L) x 73 (W) x 85 (H) mm
  • 1710 (L) x 73 (W) x 85 (H) mm
  • 1990 (L) x 73 (W) x 85 (H) mm
  • 2270 (L) x 73 (W) x 85 (H) mm
  • 2550 (L) x 73 (W) x 85 (H) mm
  • 2970 (L) x 73 (W) x 85 (H) mm
  • >2970 (L) mm
    For longer lengths please contact sales
  • M2M (L) mm
    Made to measure length

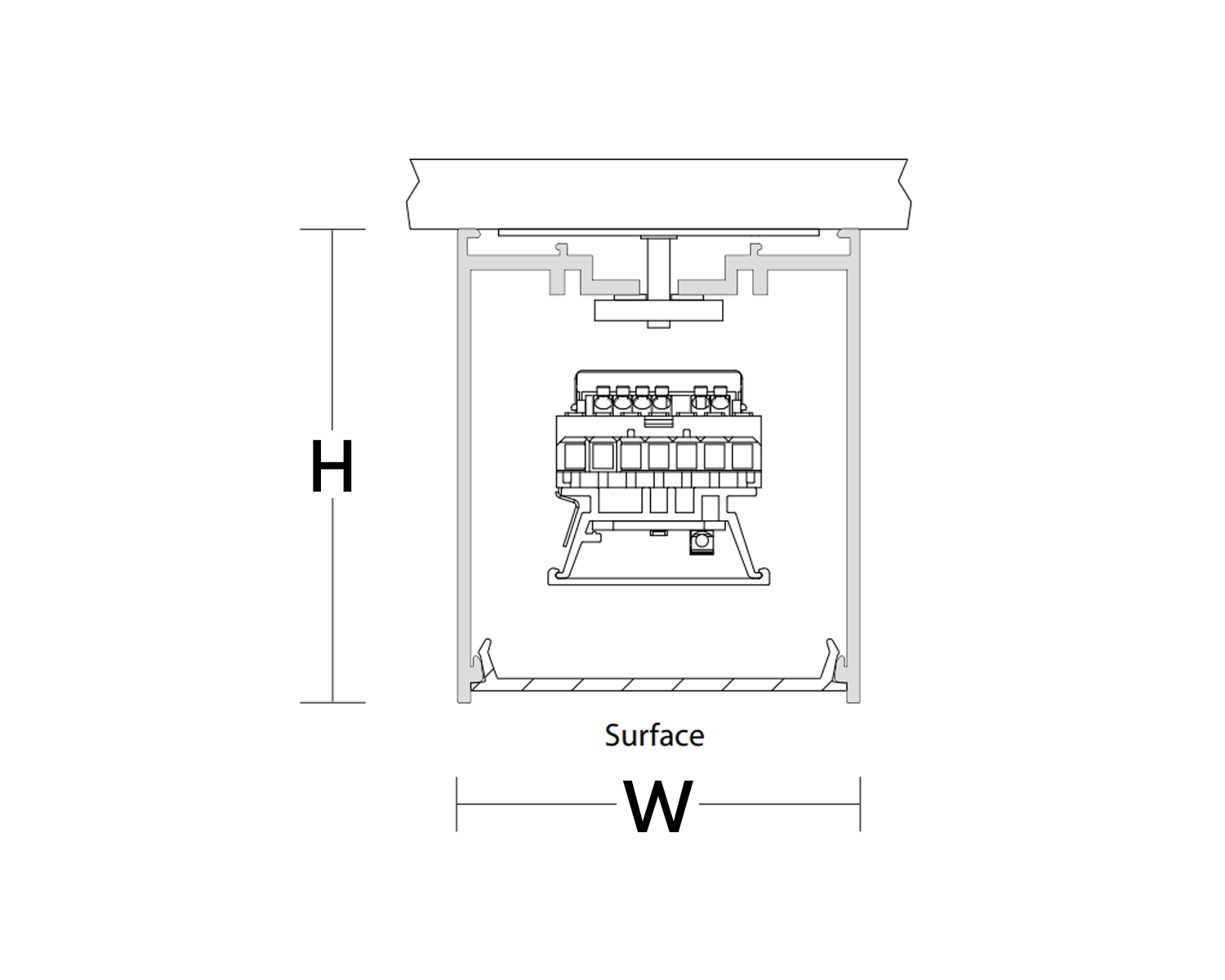

Technical Drawing
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 1305Lm - 18213Lm
  • Circuit Watts 12cW - 145cW
  • Efficacy up to 126Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K / Tuneable White (2700K-5700K)
  • Colour Rendering CRI80

Options.

Diffuser (optional)

  • Opal Cover
  • Microprismatic Cover

    UGR<19

Mount (optional)

  • Suspension wire kit (2m)
  • Trimless Installation Kit
