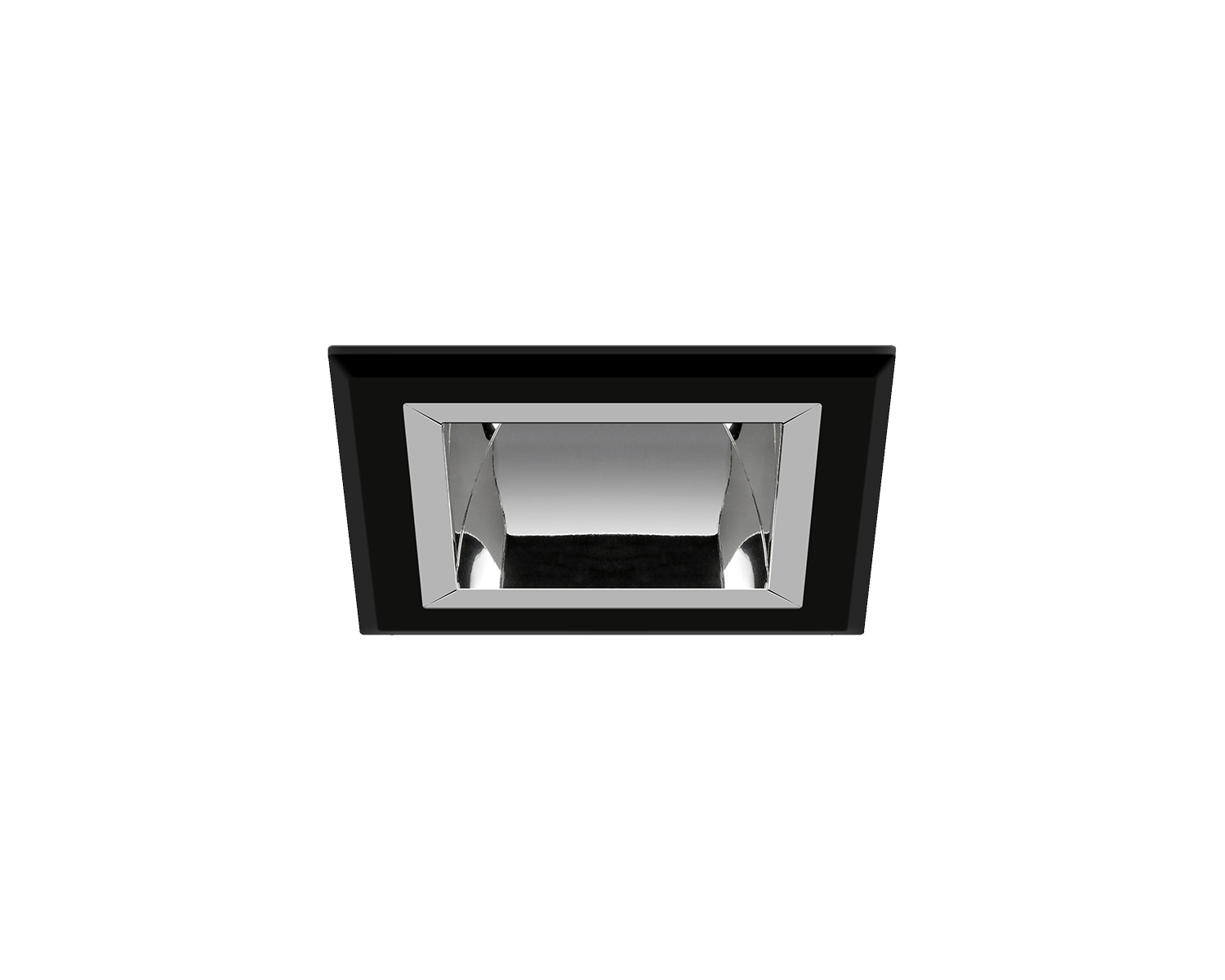

Arlo H13

Ceiling recessed square downlight

Product Overview

✔ Highly specular reflector with an outstanding efficiency of 96%

✔ Rear Zintec halo plate for installation within the void

✔ Can accommodate ceiling thickness of up to 40mm

✔ Tuneable white version available - please contact sales

✔ Short circuit, overload and temperature protection

✔ Comes with 500 mm supply lead

✔ Dimming and emergency versions available

✔ Suitable for Corridor lighting, Education, Healthcare, Residential

Finishes / Material

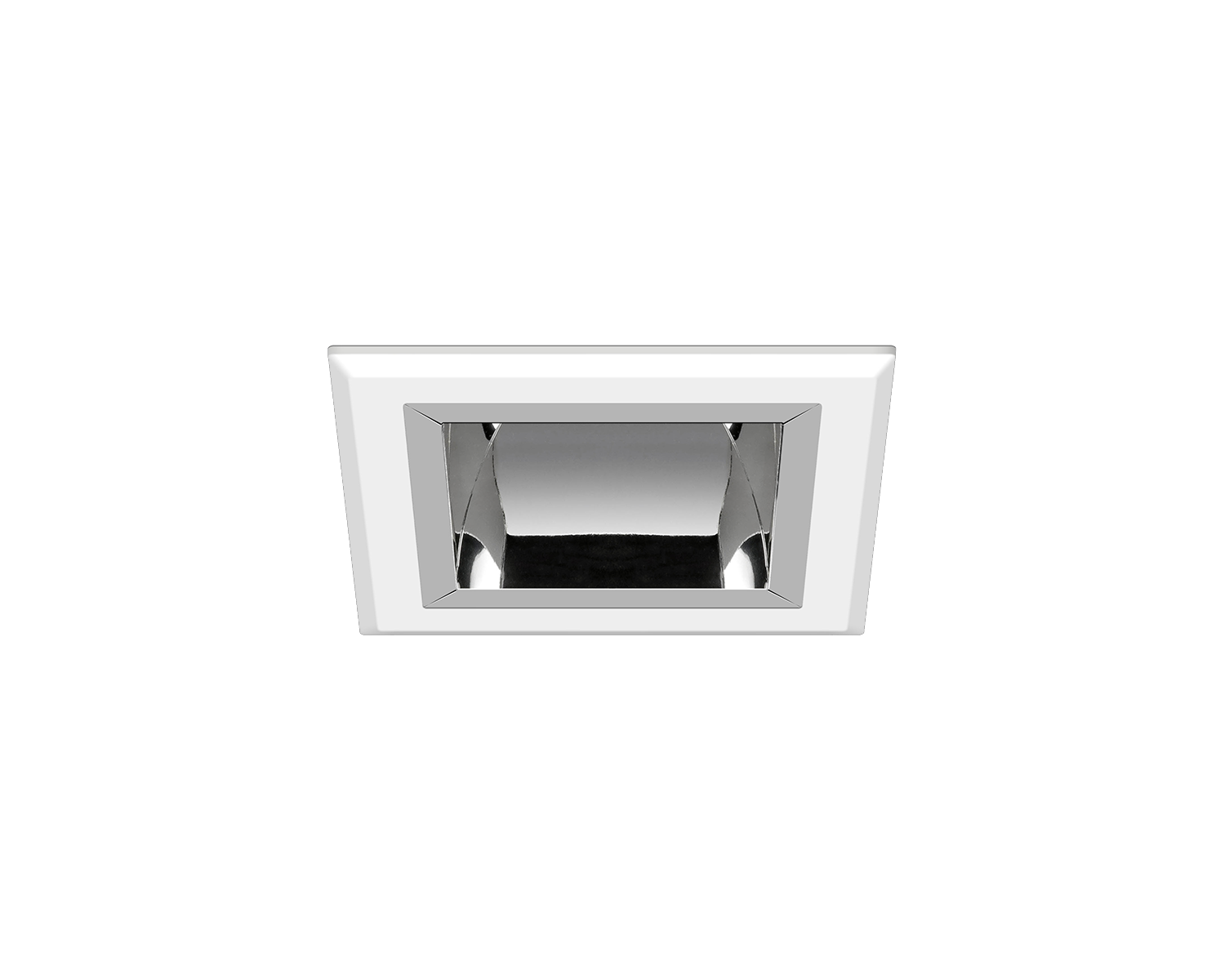

  • White (Traffic) RAL 9016
  • Black (Matt) RAL 9005
  • Custom
  • Bezel: Die Cast Aluminium
  • Diffuser: Acrylic
Sizes
  • 170 (L) x 170 (W) x 112 (D) mm
    Cutout: 140 X 140 mm, Weight: 1.8kg

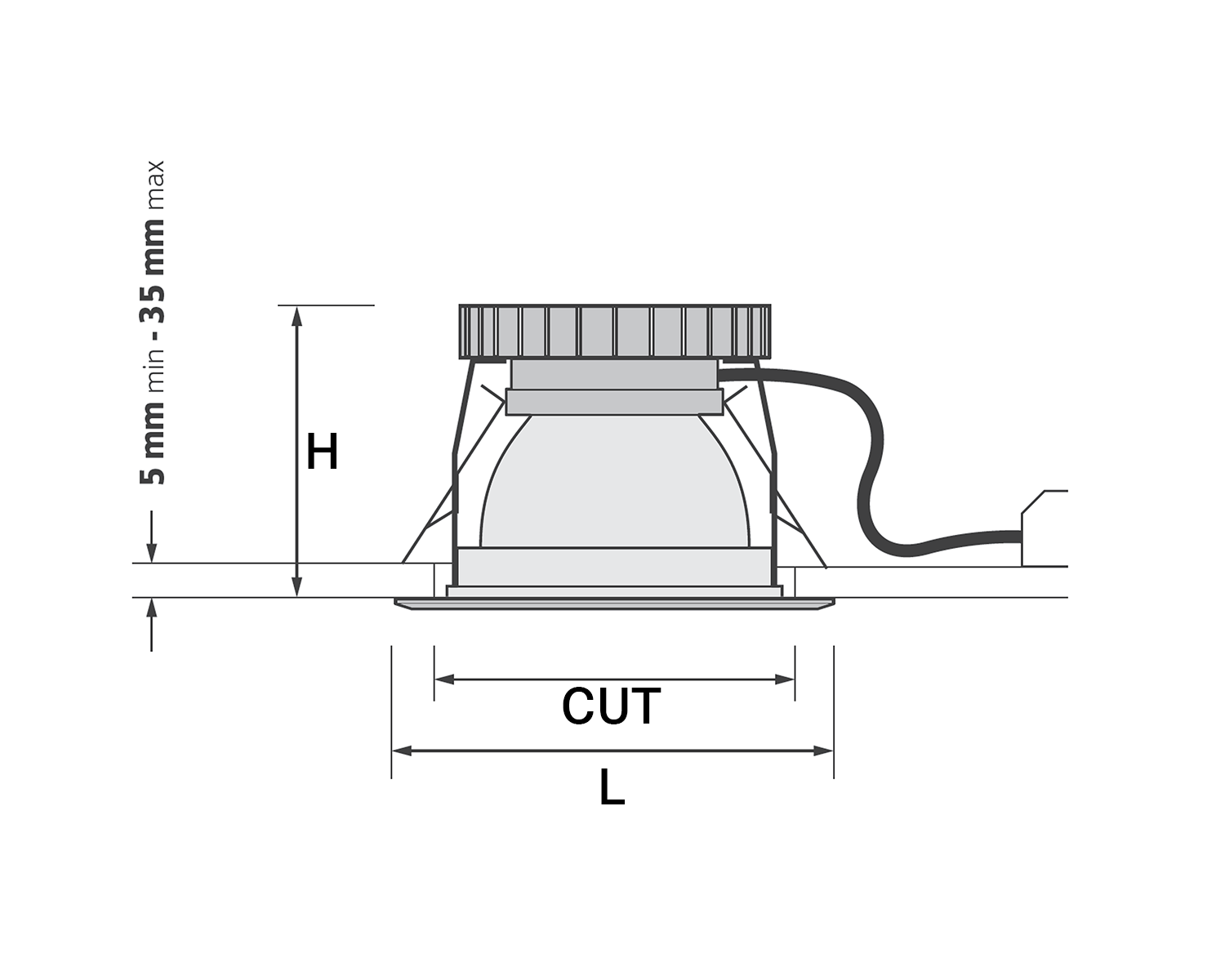

Technical Drawing
  • Source Info Tier 1 Tridonic LED
  • Lumens (delivered) 1161Lm, 2051Lm, 3111Lm
  • Circuit Watts 10cW, 18cW, 26cW
  • Efficacy up to 119Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K / Tuneable White (18W version only supplied between 2700K-6500K)
  • Colour Rendering CRI80

Options.

Decorative Bezel (optional)

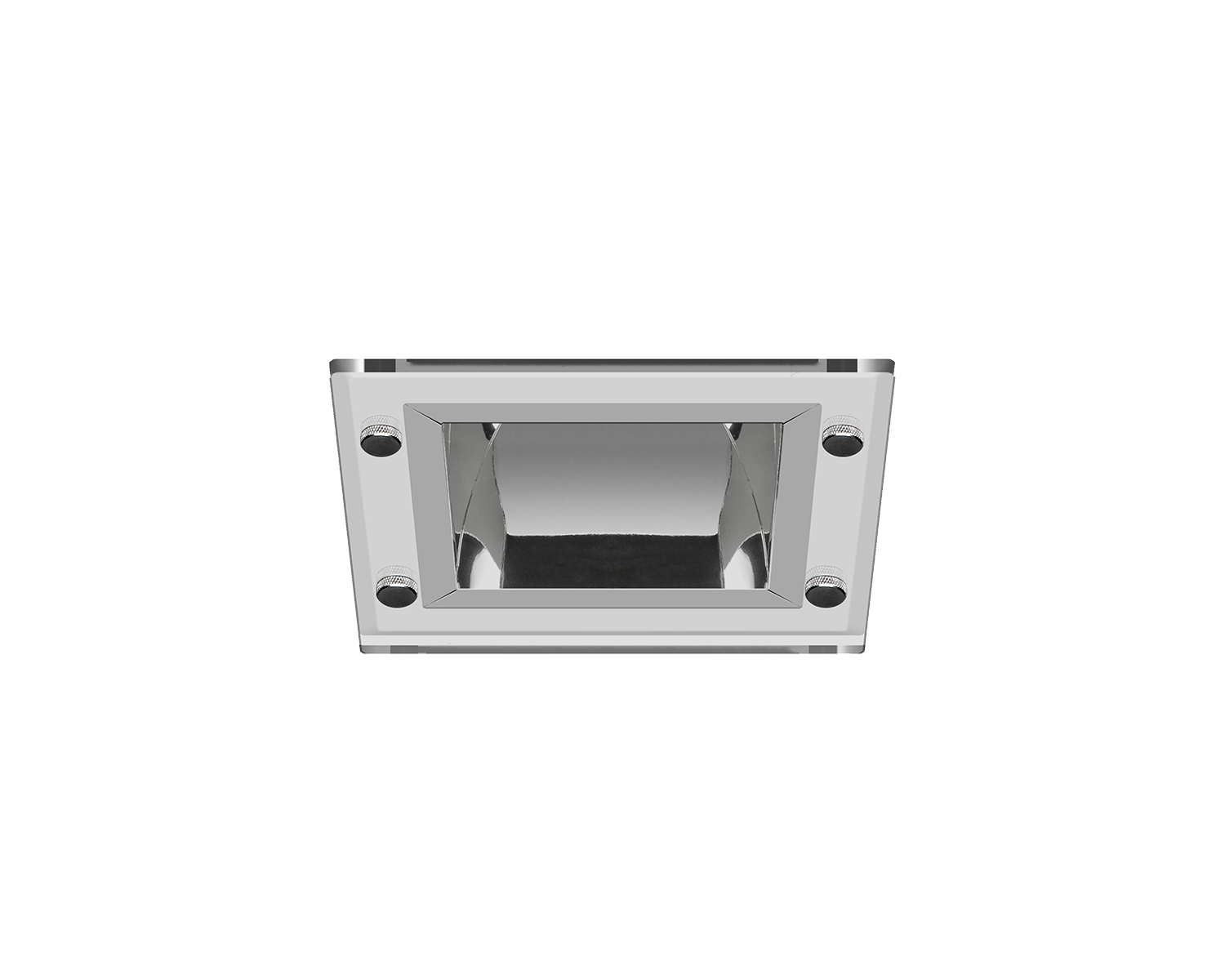

  • Clear Cover

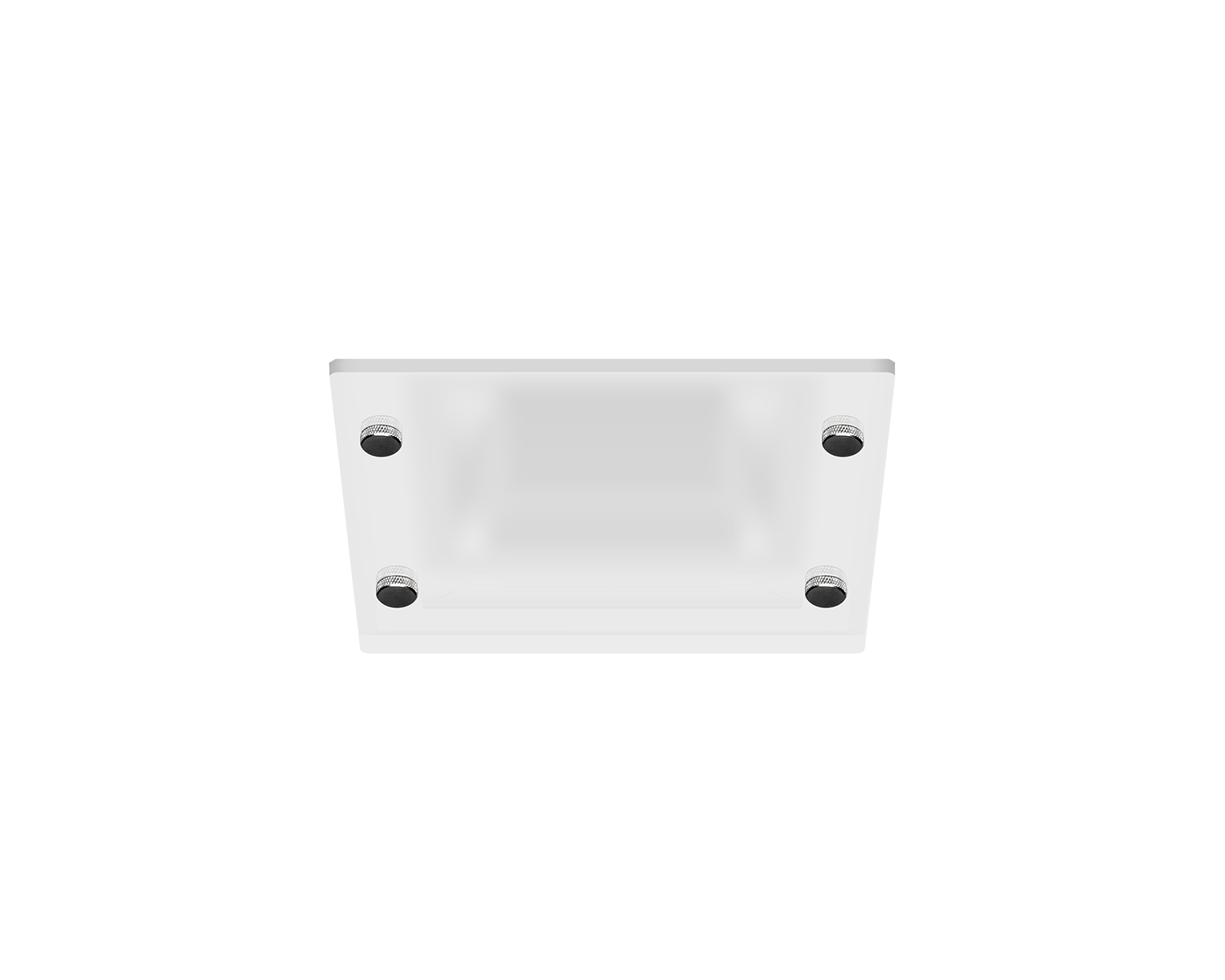

  • Opal Cover

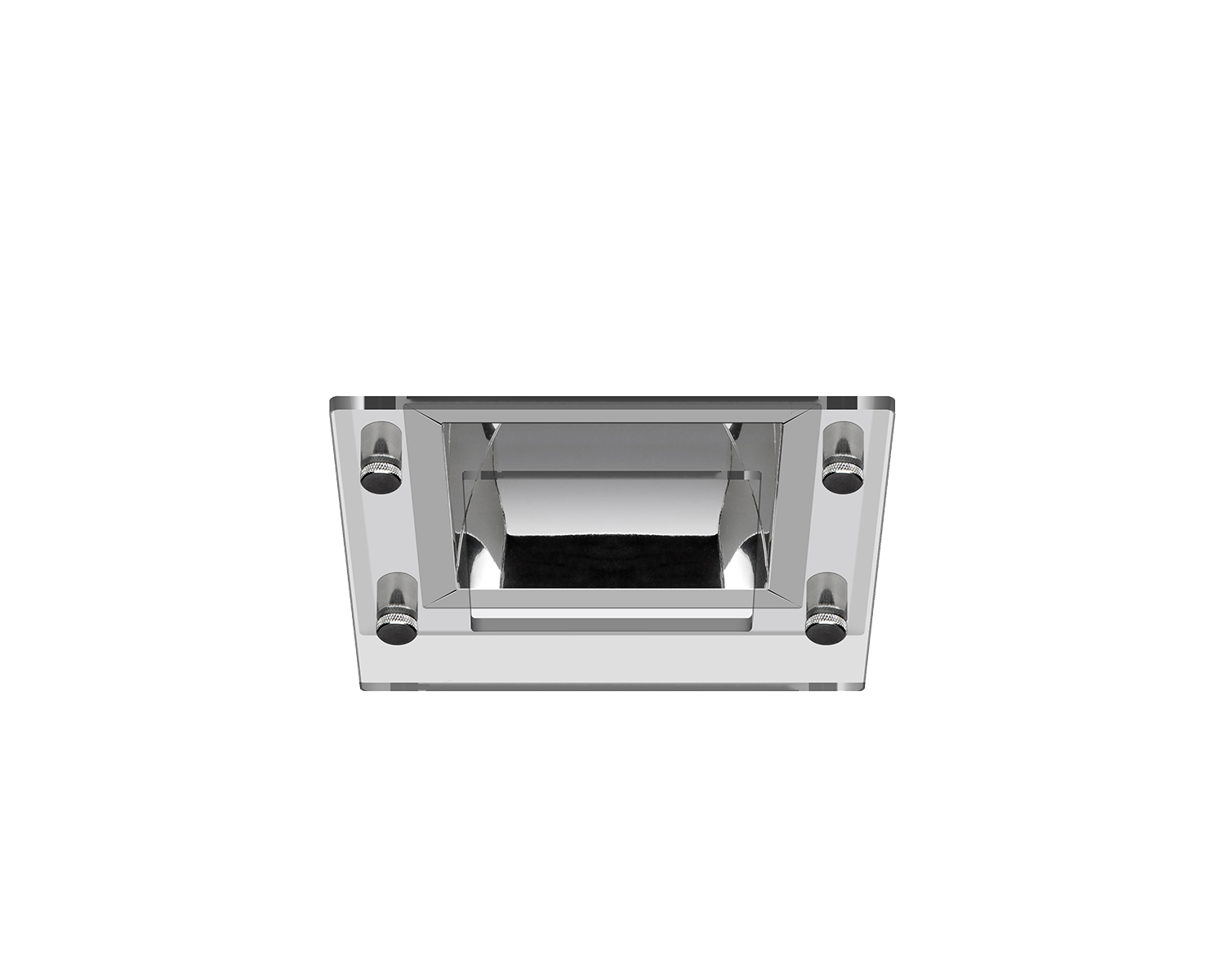

  • Acrylic Halo (Clear)

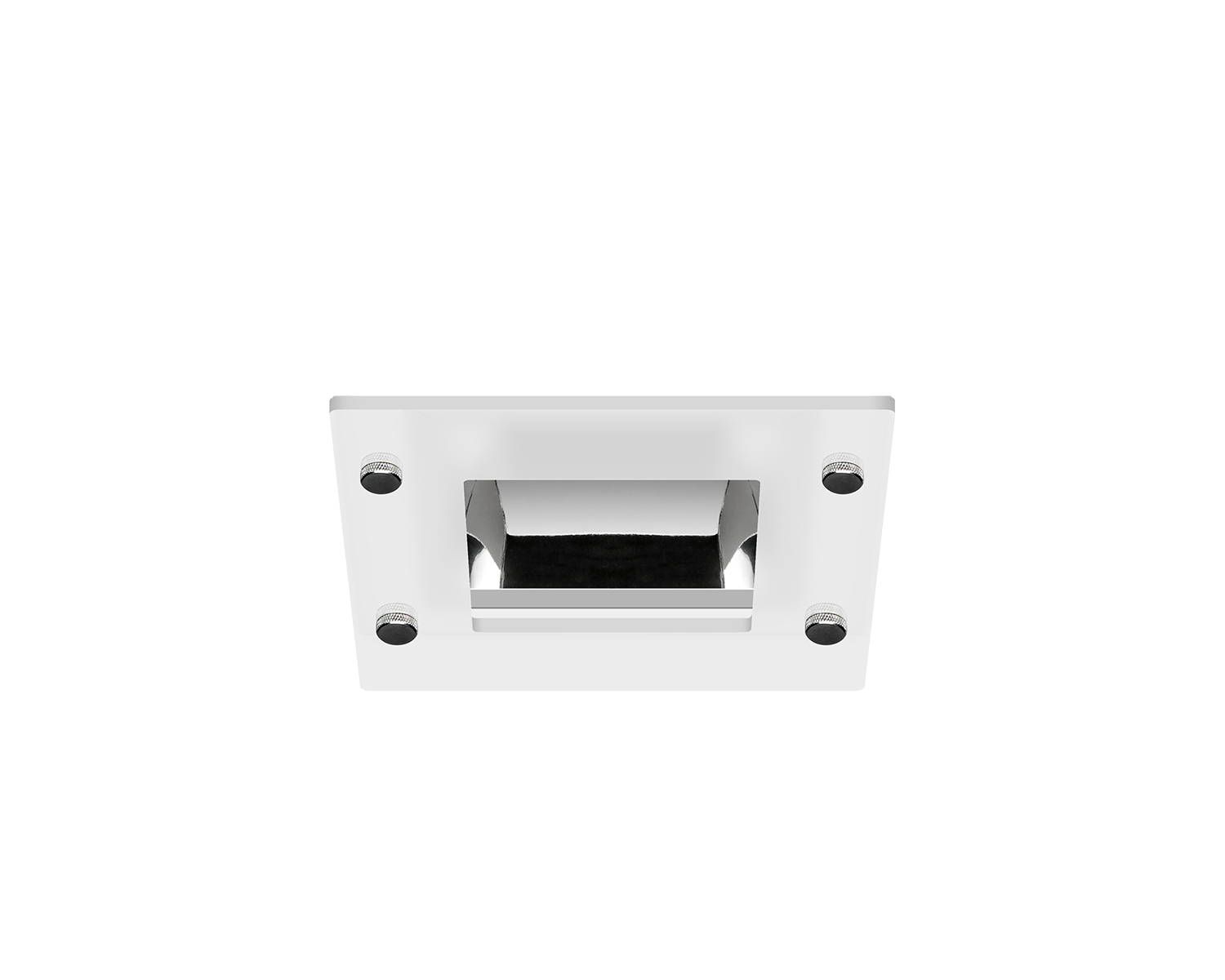

  • Acrylic Halo (Frosted)
