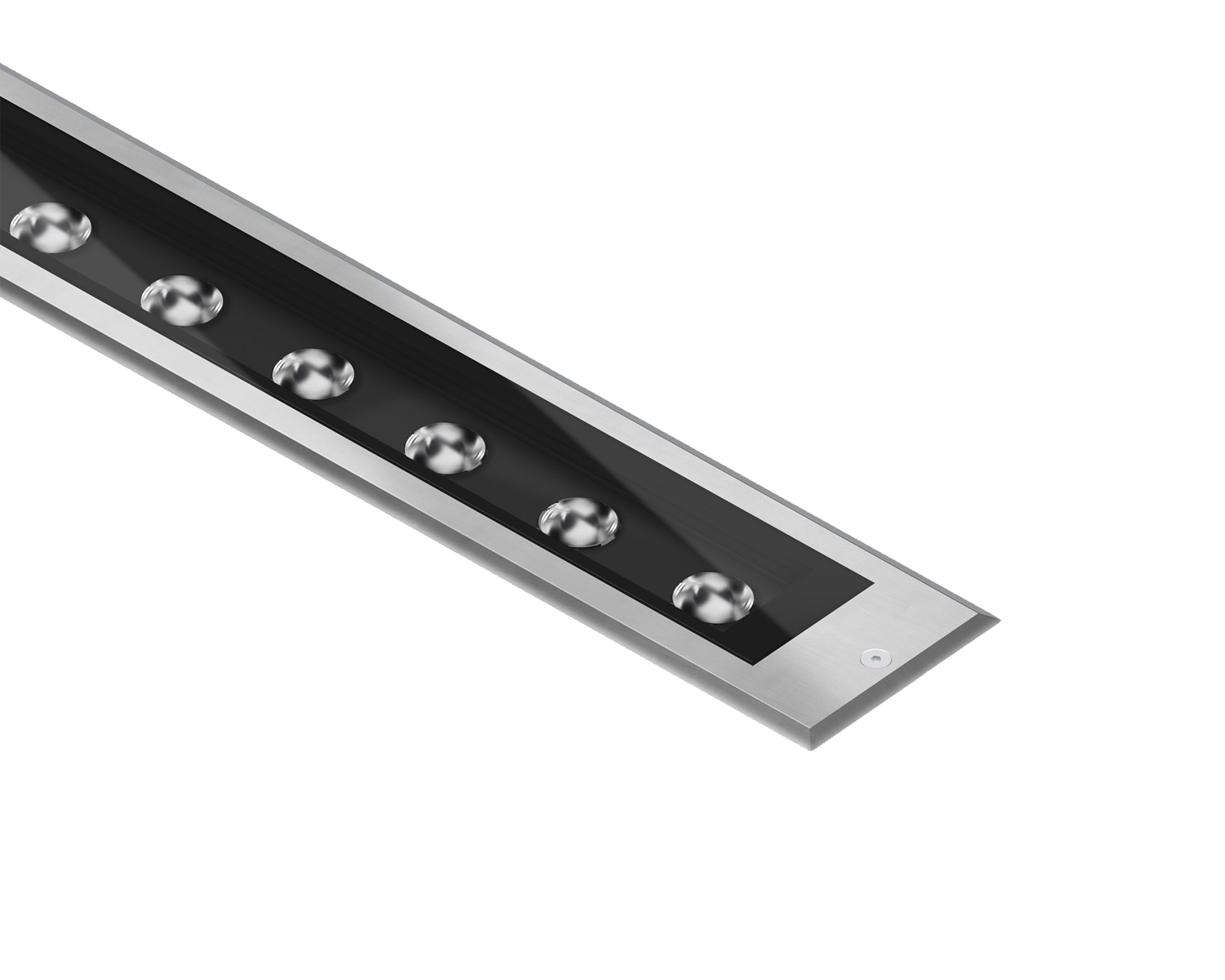

Confine Mini

Recessed floor linear wall graze luminaire

Product Overview

✔ Resistant to atmospheric agents and UV rays finished in aluminium alloy treated with nano-bonderite

✔ Equipt with a water-lock system preventing condensation from affecting product performance

✔ Wide choice of optics available

✔ Silicone gaskets ensure maximum sealing and operation in all weather conditions

✔ 2700K available on special request - contact sales

✔ Suitable for Hospitality, Office, Retail, Residential, Wall Washing, Exterior Facades, Gallery/Museum, Leisure, Monuments & statues, Walkways

Material
  • Body: Die Cast Aluminium
    High resistance to oxidation
  • Diffuser: Tempered glass
    8mm
Sizes
  • 380 (L) x 75 (W) x 90 (D) mm
    Cutout: 430 x 71 mm, RL: 430 x RW: 120mm
  • 640 (L) x 75 (W) x 90 (D) mm
    Cutout: 690 x 71 mm, RL: 690 x RW: 120mm
  • 930 (L) x 75 (W) x 90 (D) mm
    Cutout: 980 x 71 mm, RL: 980 x RW: 120mm
  • 1230 (L) x 75 (W) x 90 (D) mm
    Cutout: 1280 x 71 mm, RL: 1280 x RW: 120mm

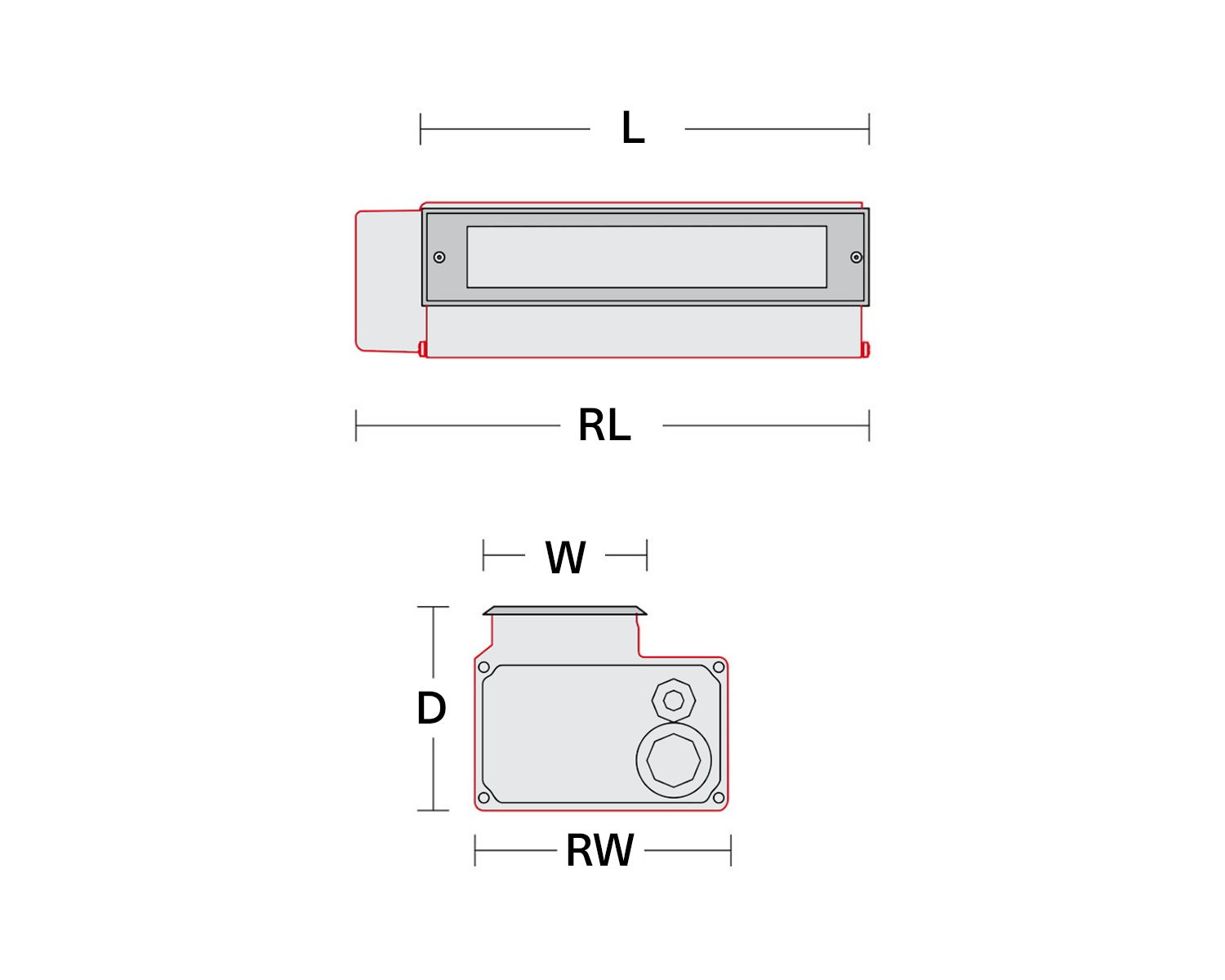

Technical Drawing
  • Source Info Tier 1 LED components
  • Lumens (delivered) 806Lm - 3223Lm
  • Circuit Watts 11cW - 41cW
  • Efficacy up to 78Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI90

Options.

Beam Angle

  • 12° Beam Angle
  • 25° Beam Angle
  • 50° Beam Angle
  • 14x47 ° Beam Angle
  • Ellipsoidal Distribution

    78x47°

Housing (optional)

  • Rough-in Housing

Connector (optional)

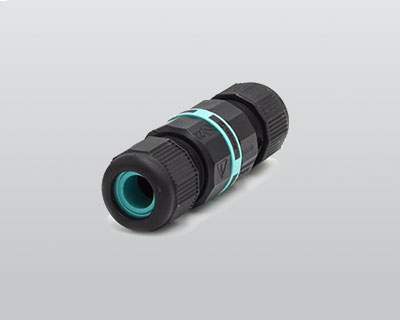

  • GH204 - IP68 Fast connector
