Passo

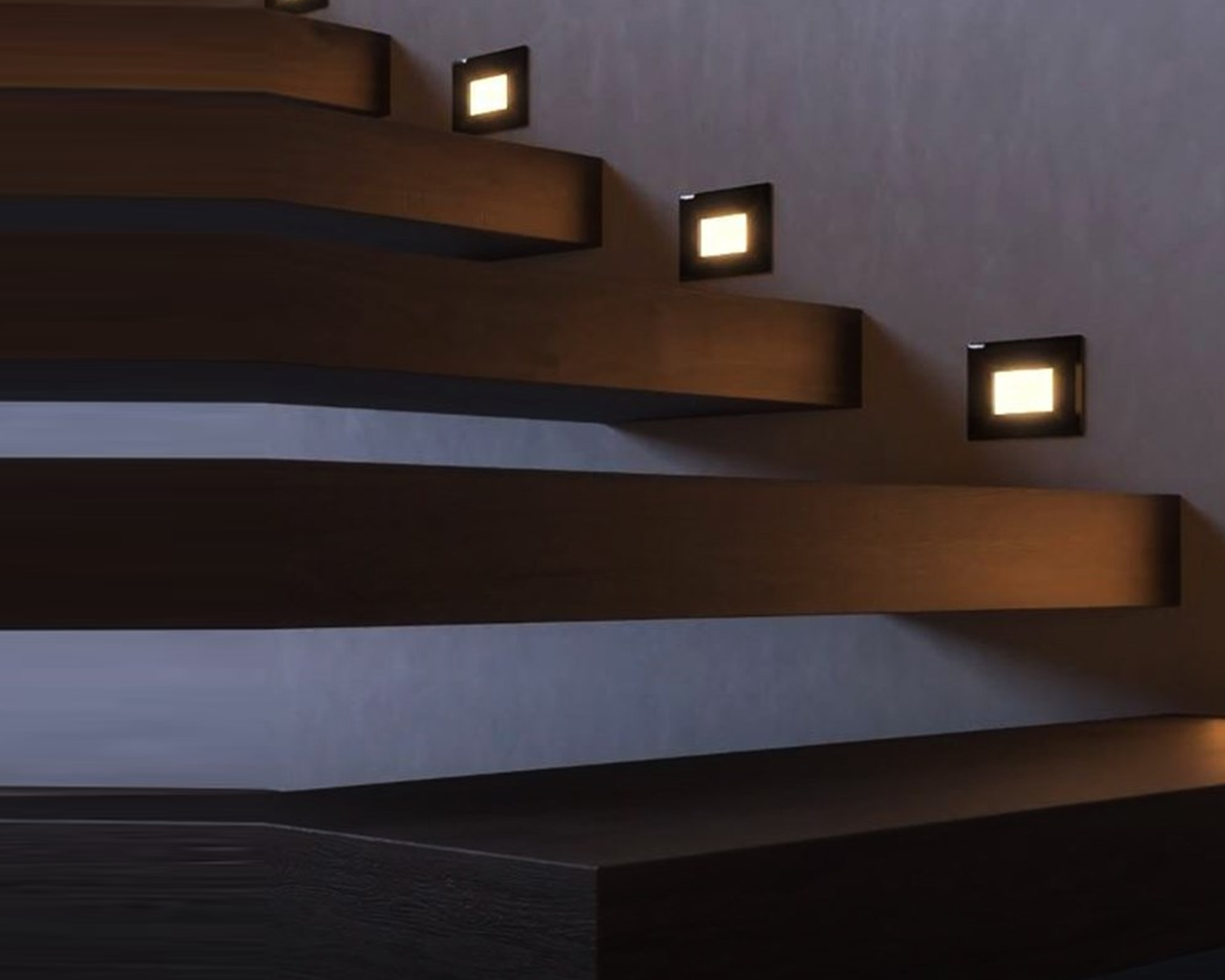

Discrete rectangular exterior wall light fixture for low level lighting of pathways and steps

Product Overview

✔ Suitable for both concrete and conventional walls

✔ Supplied with silicone gaskets ensuring maximum protection in all weather conditions

✔ Resistant to atmospheric agents and UV rays finished in aluminium alloy treated with nano-bonderite

✔ Tempered sodium calcium glass diffuser

✔ Multiple colour options available

✔ 2700K available on special request - contact sales

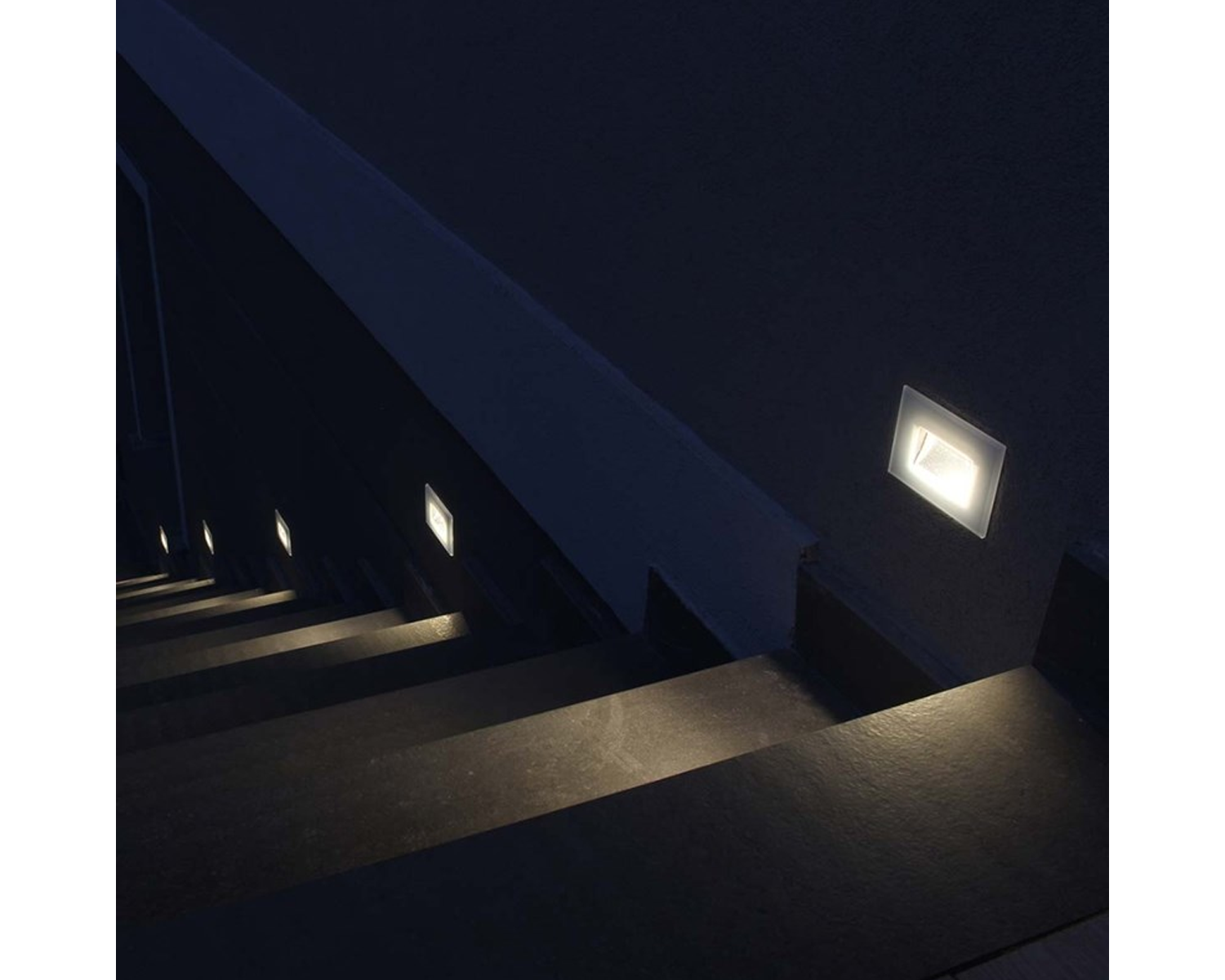

✔ Suitable for Exterior Facades, Stairs, Walkways, Driveways

Finishes / Material

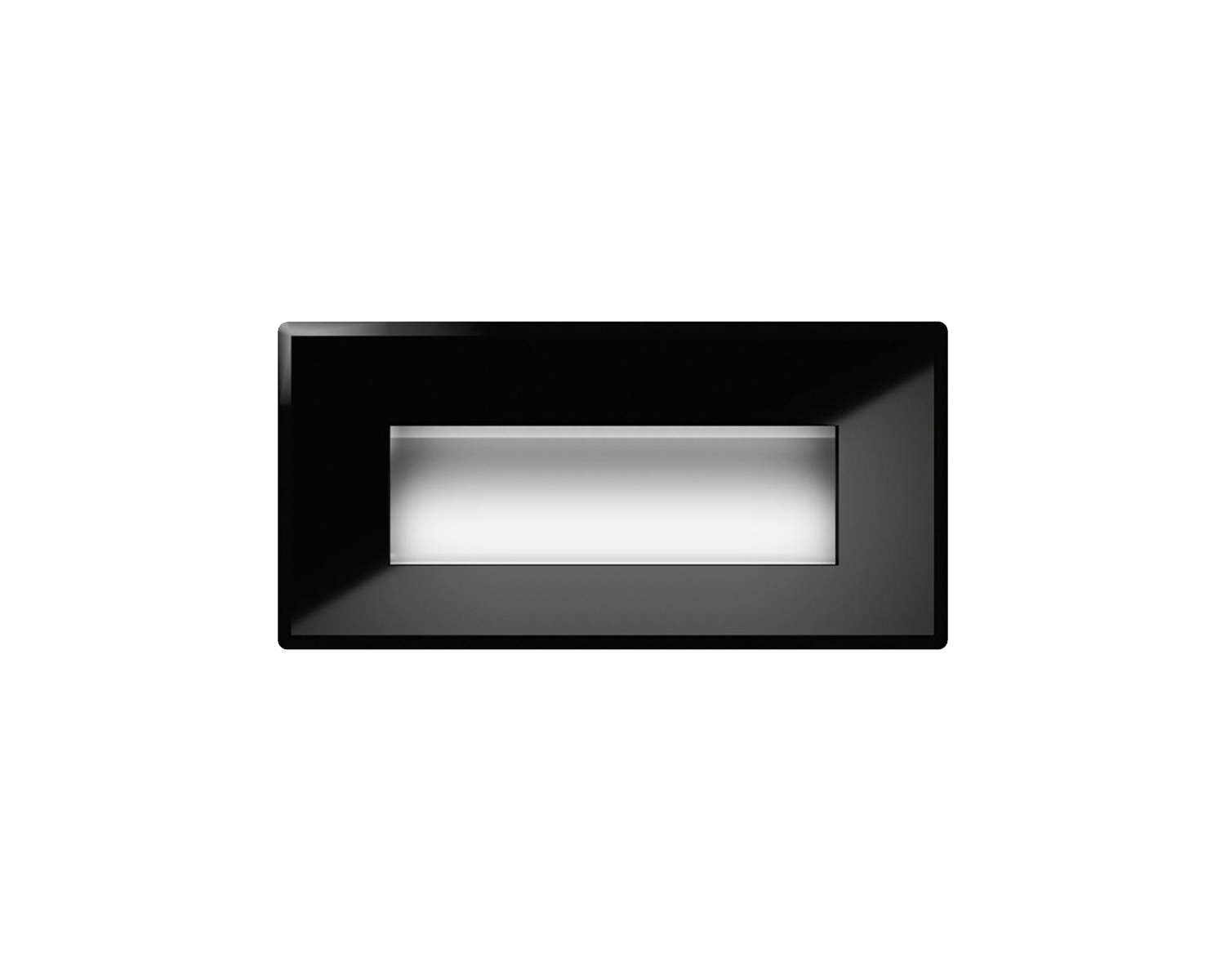

  • Black
    Glass
  • White
    Glass

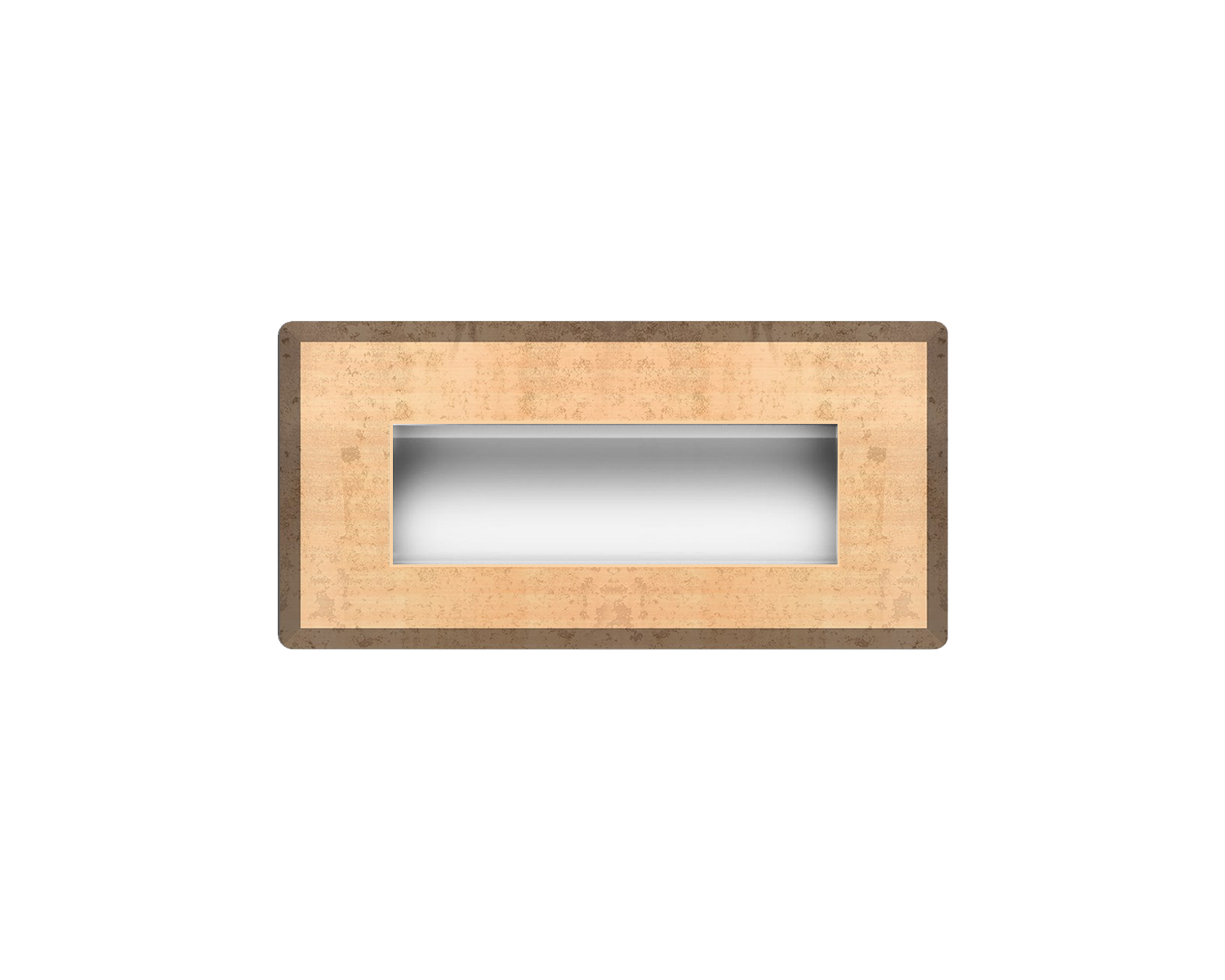

  • Bronze
    Natural

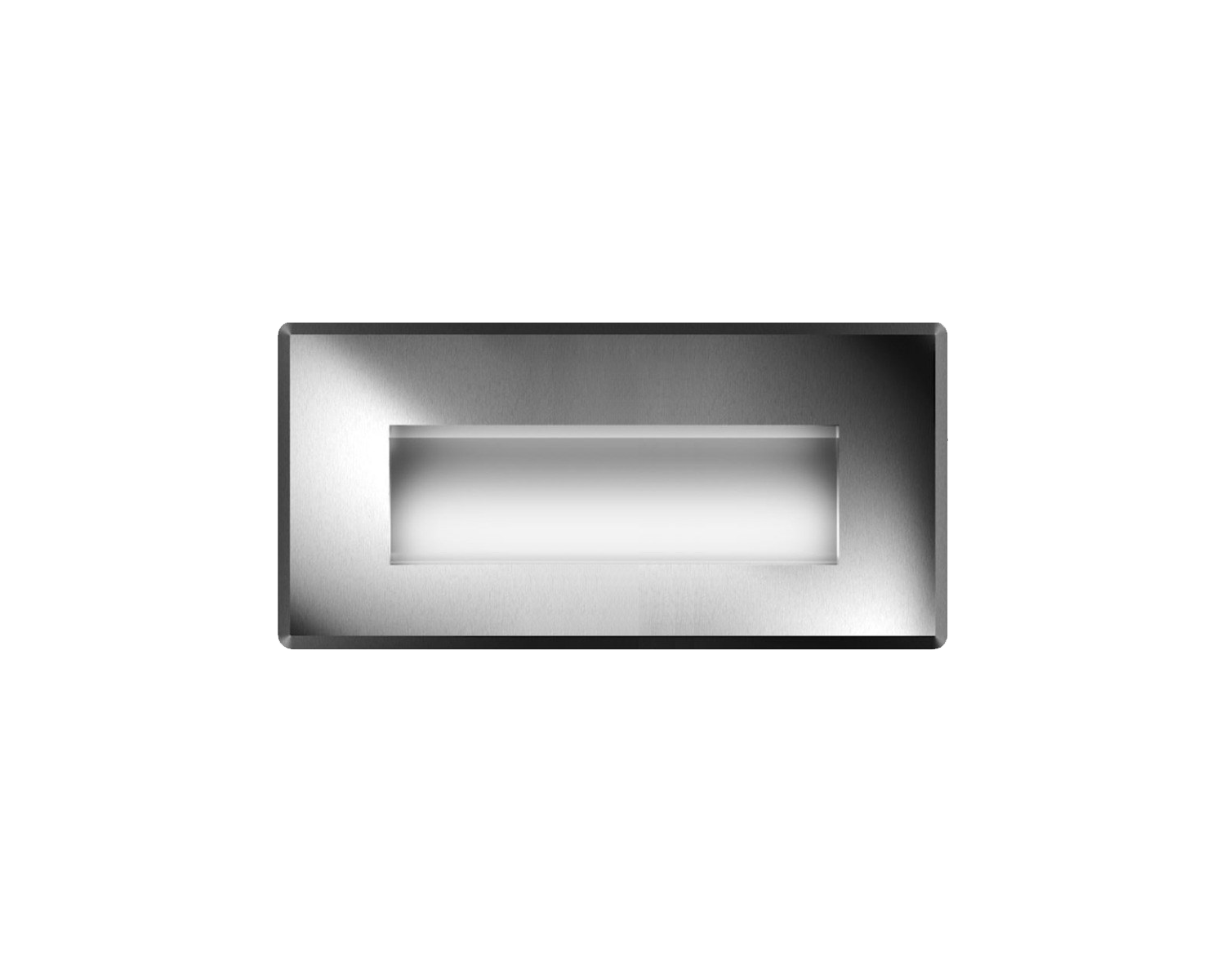

  • Stainless Steel
  • Body: Die Cast Aluminium
  • Diffuser: Tempered glass

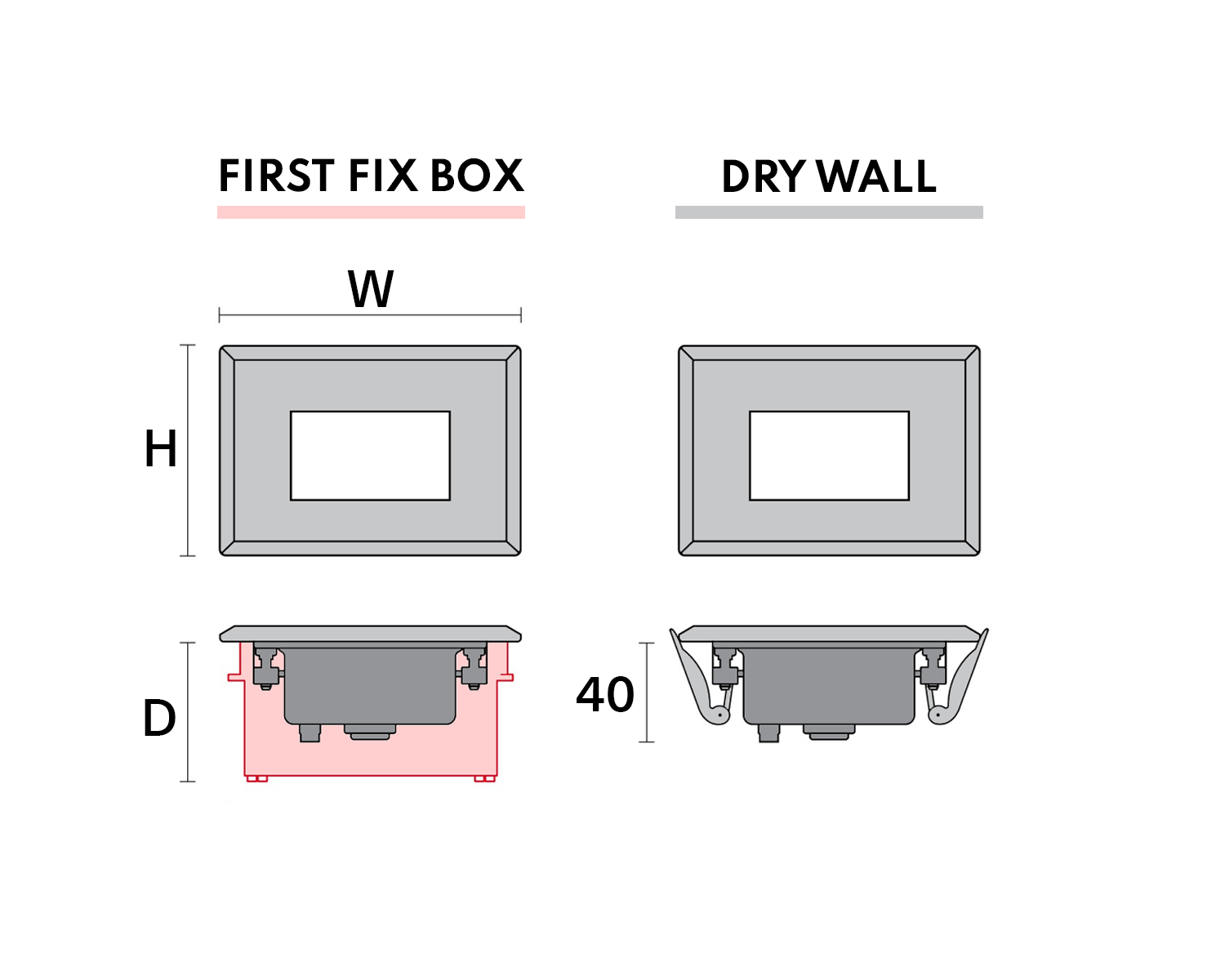

Sizes
  • 115 (W) x 80 (H) x 50 (D) mm
    First Fix Box AC503: 50x90mm
  • 165 (W) x 80 (H) x 55 (D) mm
    First Fix Box AC503: 55x140mm
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 208Lm, 417Lm, 563Lm
  • Circuit Watts 3cW, 5cW, 7cW
  • Efficacy up to 83Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI90

Options.

Fixing Option

  • (A)

    Concealed Fix - includes First Fix Box - AC503

  • (B)

    Spring clip mounted - For dry wall applications

  • (C)

    With visible screws - includes First Fix Box - AC503

  • (D)

    With visible Anti-Tamper screws - includes First Fix Box - AC503

Additional Information.

Series of recessed wall luminaires with reduced recessed depth. They are designed for lighting of paths, stairs and passages with diffused light. The construction of the body, in aluminium alloy with high resistance to oxidation, treated with nano-bonderite and protected with polyester powder-coating , make the product resistant to atmospheric agents and UV rays, guaranteeing maximum protection over the years. The silicone gaskets ensure maximum sealing in all operating and temperature conditions. The diffuser in tempered sodium calcium glass finished with silk-screen printing and beveled edge gives a touch of class to the fixture. The product is installed with a standard polystyrene rough-in housing and is suitable for both concrete and conventional walls. The drywall version is easy to install with harmonic steel springs.
