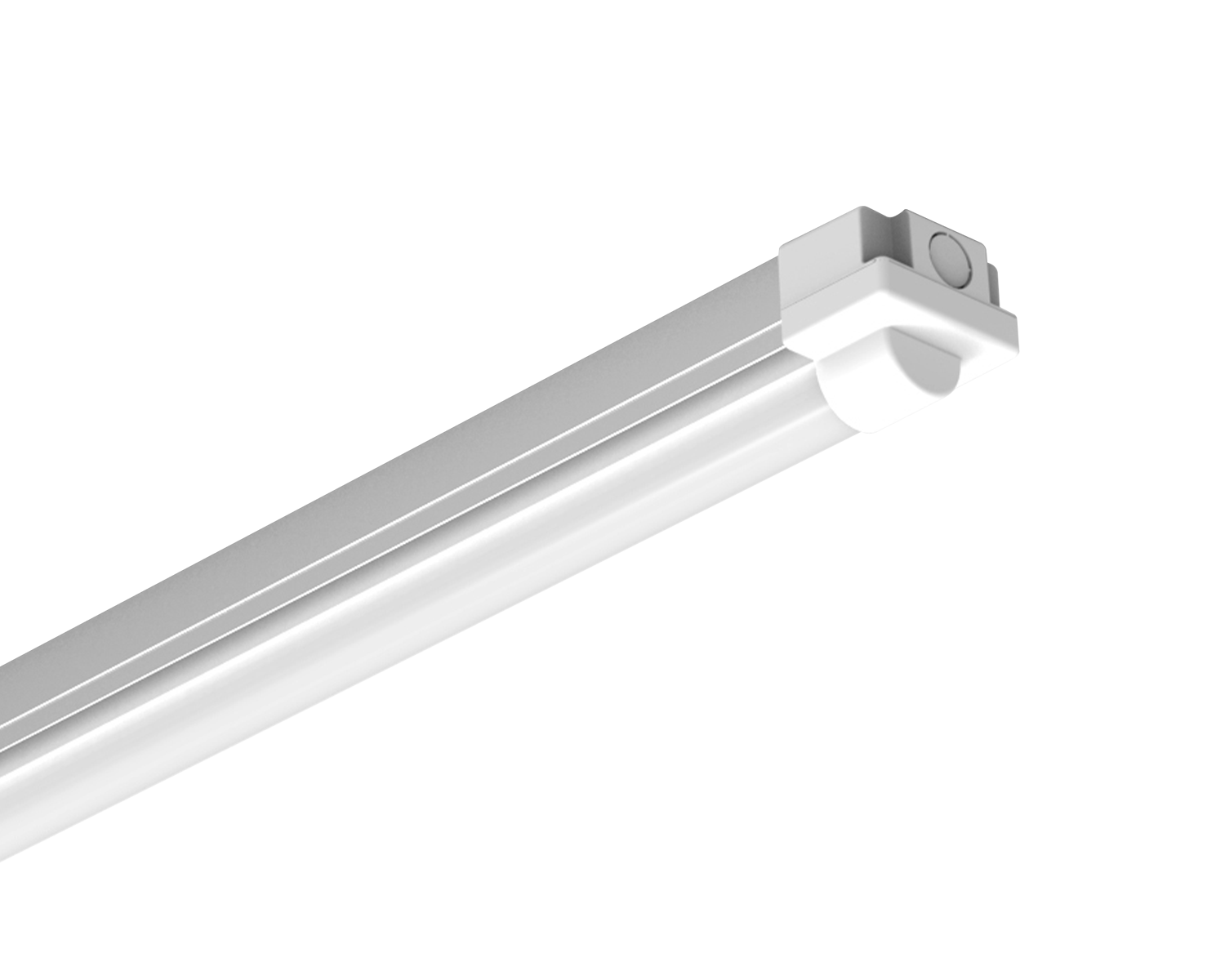

V-Line

Slim IP20 batten luminaire for multi-purpose applications

Product Overview

✔ Push-fit terminals and clip-in gear tray for fast installation

✔ Tridonic control gear

✔ High efficiency >100Lm/W

✔ Dimming and multiple emergency options available

✔ 20mm conduit entry points each end

✔ White finish

✔ Suitable for Corridor lighting, Commercial, Education, Healthcare, Office, Residential, Industrial

Material
  • Body: Steel
    White
  • Diffuser: Polycarbonate
    Opal
Sizes
  • 1218 (L) x 65 (W) x 57 (H) mm
    Weight: 1.65*or 1.68*kg
  • 1518 (L) x 65 (W) x 57 (H) mm
    Weight: 2.05*or 2.16*kg

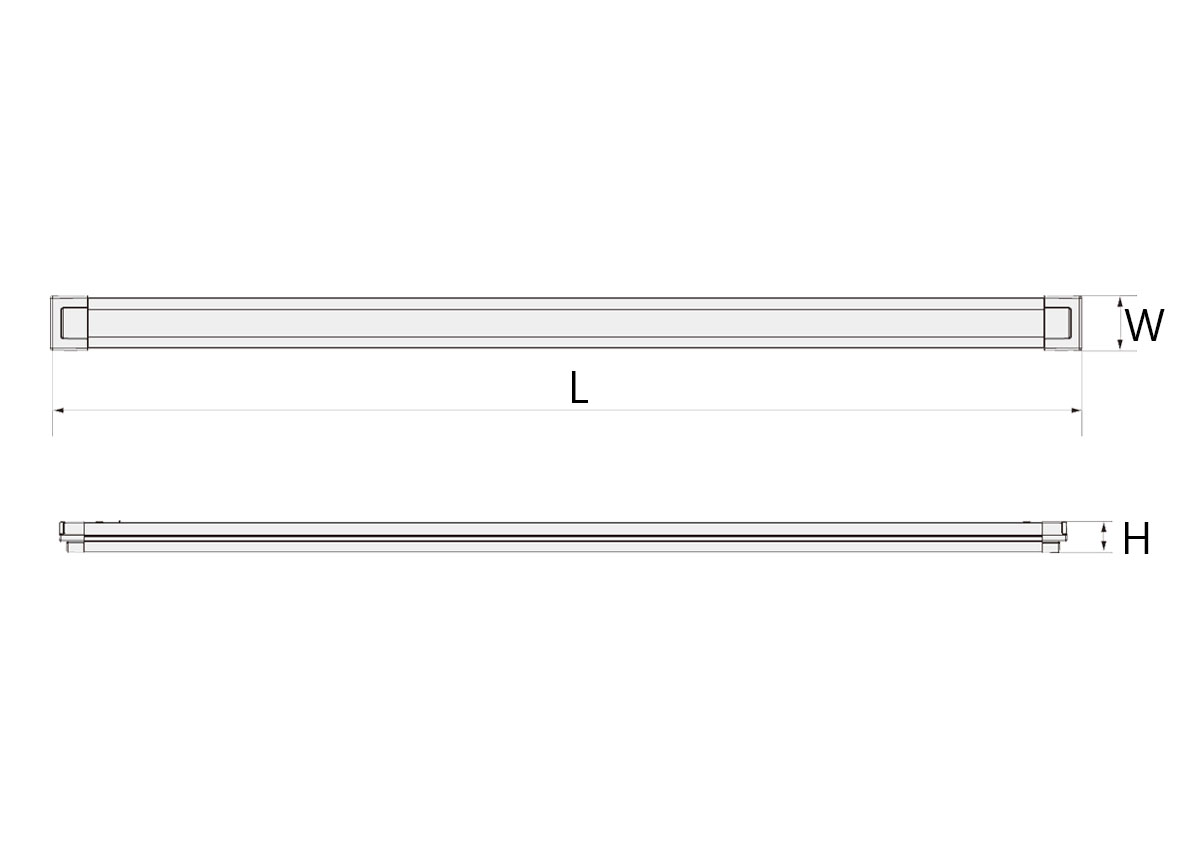

Technical Drawing
  • Source Info Tier 1 LED Tridonic components
  • Lumens (delivered) 2423Lm - 5711Lm
  • Circuit Watts 18cW - 39cW
  • Efficacy up to 152Lm/cW
  • MacAdams 6 SDCM
  • Colour Temperature 4000K
  • Colour Rendering CRI80

*Please Note: Product is supplied with switchable power;

Options.

Sensor (optional)

  • Microwave Sensor

High Output Emergency Upgrade (optional)

  • High Output Emergency Upgrade

Additional Information.
