Balance SAS

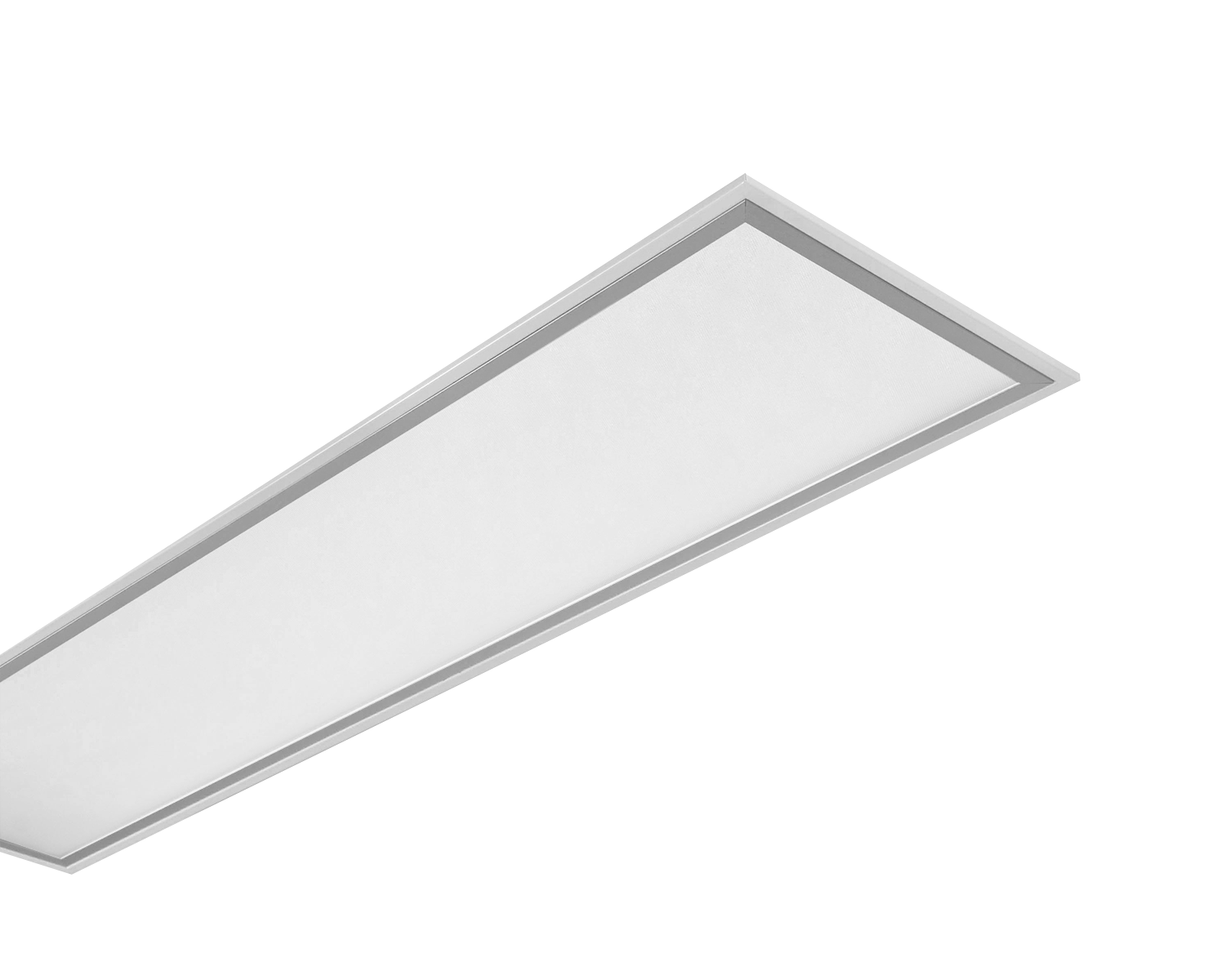

Ceiling Recessed Backlit LED Panel Luminaire

Product Overview

✔ Suitable for SAS System 330

✔ Designed for full tile replacement

✔ Professional backlit LED panel with proven output and longevity

✔ Pressed steel body, welded and dressed prior to finishing

✔ Choice of optics including UGR compliant

✔ Choice of colour temperature

✔ Dimming and emergency options available

✔ Options for sizes and other metal-pan ceiling systems - please enquire

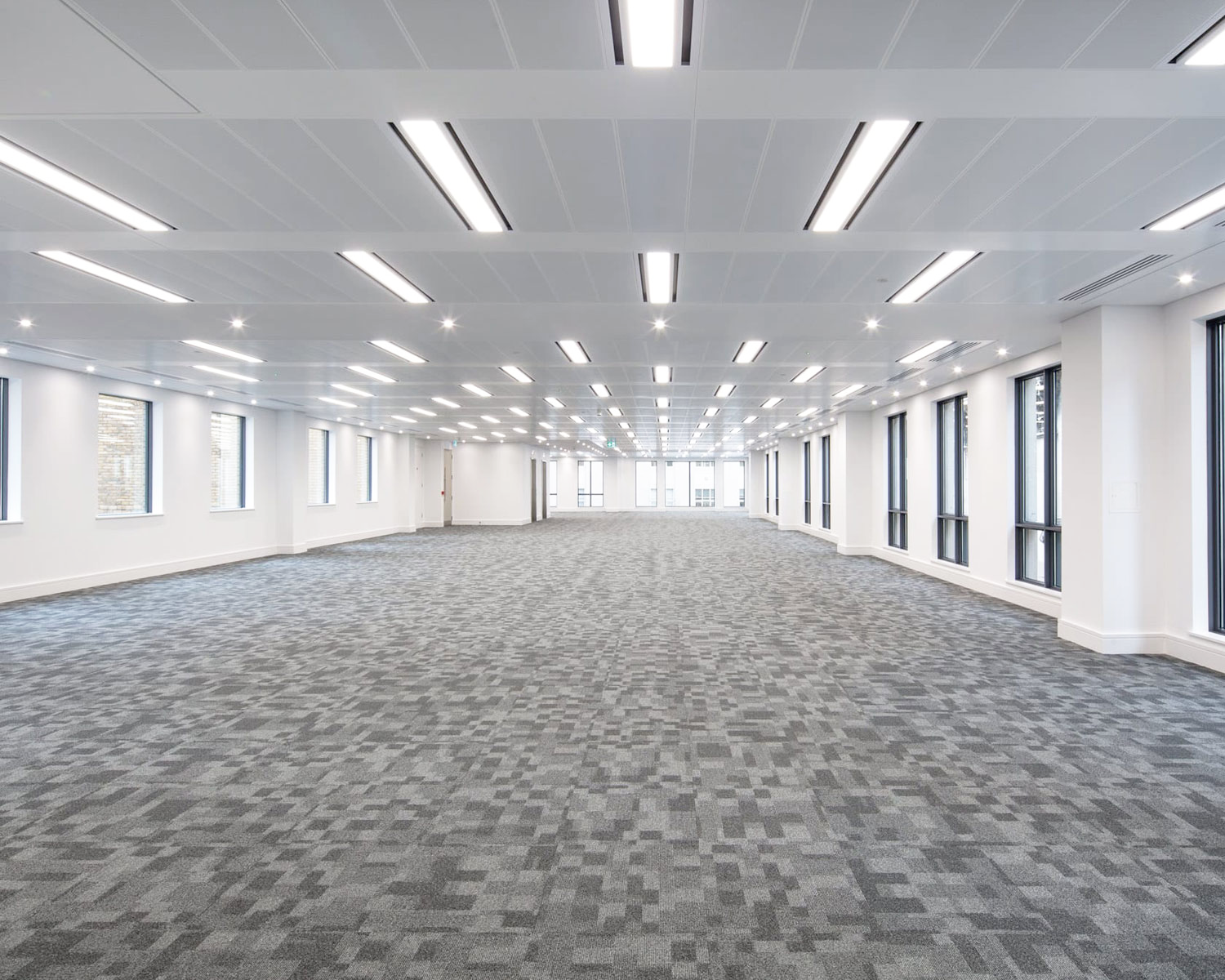

✔ Suitable for Corridor lighting, Commercial, Education, Office, Retail

Finishes / Material
  • White (Cream) RAL 9010
  • White (Traffic) RAL 9016
  • White (Signal) RAL 9003
  • Custom
  • Body: Dressed Steel
    Pressed
  • Diffuser: Polycarbonate
    850°C hot wire tested
Sizes
  • 1199 (L) x 299 (W) x 75 (D) mm
  • 1499 (L) x 299 (W) x 75 (D) mm

*Please Note: Other sizes and configurations available on request - contact sales

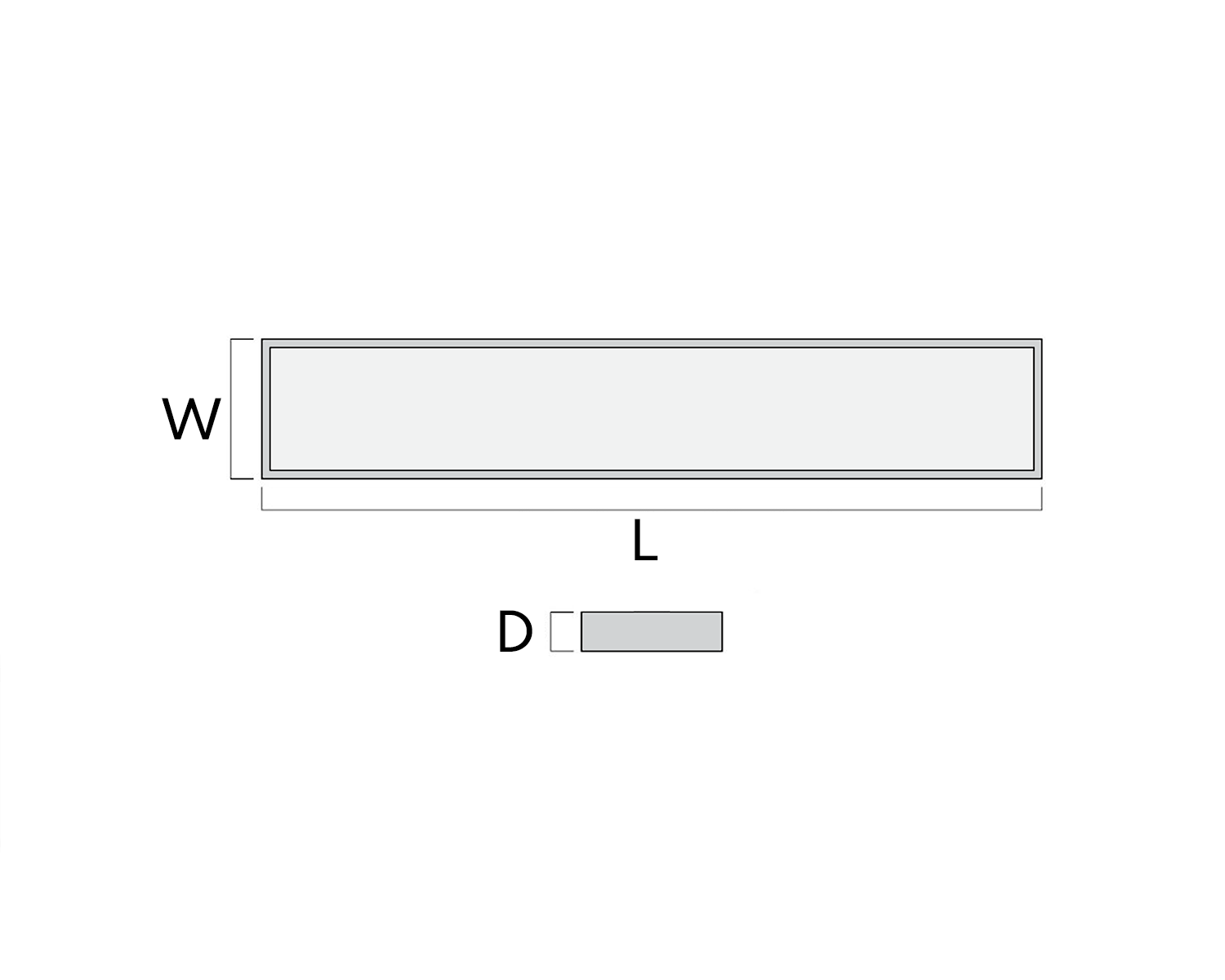

Technical Drawing
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 1909Lm - 5009Lm
  • Circuit Watts 15cW - 37cW
  • Efficacy up to 135Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80 / CRI90

Options.

Diffuser

*Please Note: Retained in an extruded and painted aluminium frame
  • Microprismatic Cover
  • Diffused Microprism Cover

    3-layer (UGR>19)

  • Opal Cover

Ceiling Type

*Please Note: State ceiling specification and void depth with order - Please contact sales
  • Metal Pan

    Specify make and model with order

Air Handling (optional)

  • Air Handling

    40L/S

Additional Information.
