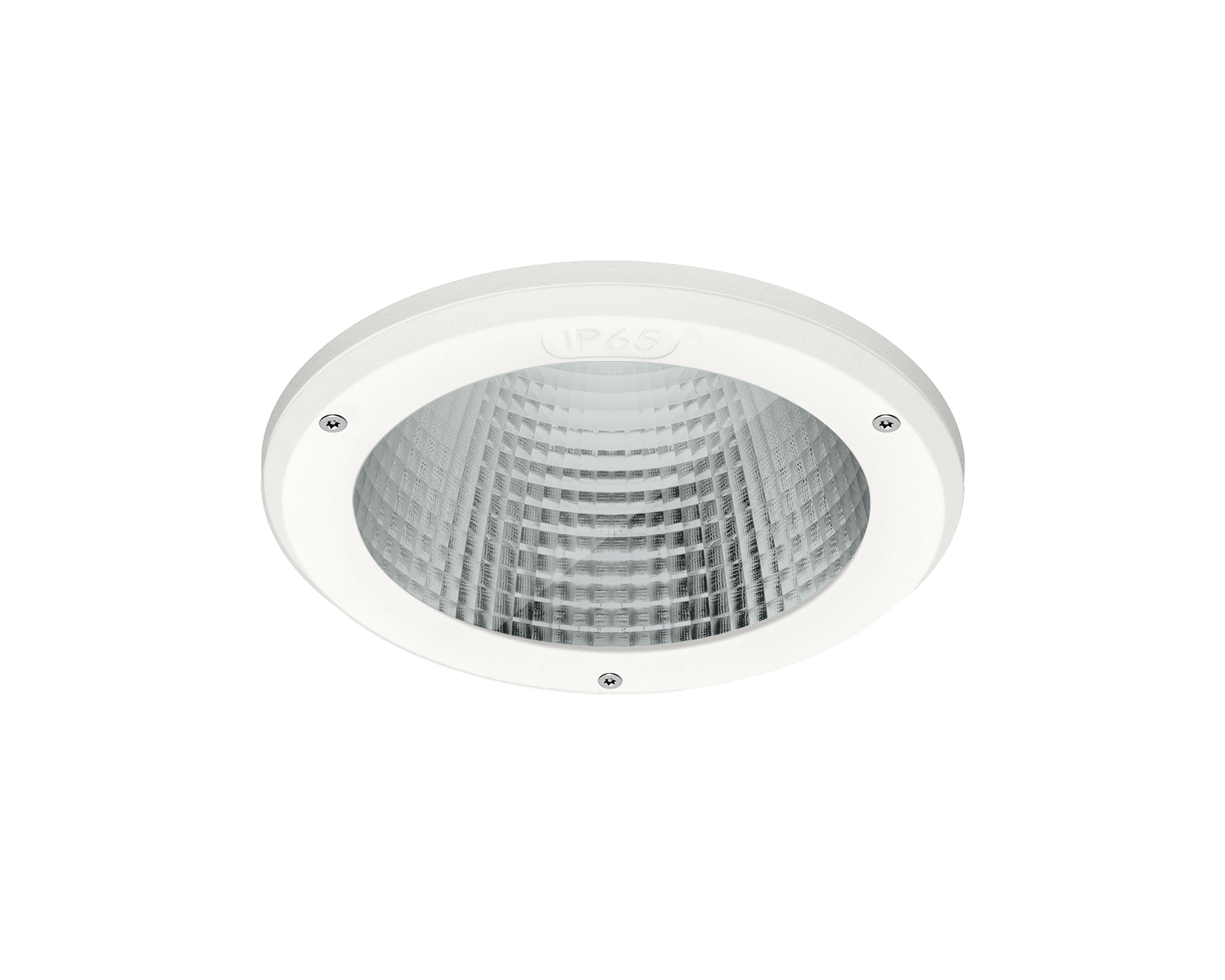

Arlo ELV AL

High performance professional anti-ligature LED downlight

Product Overview

✔ High performance LED downlight with 55° multi-faceted reflector

✔ Rear Zintec halo plate for installation within the void connect to the front bezel with anti-tamper fixings installed from the underside

✔ Wireless options

✔ Can accommodate ceiling thickness of up to 40mm

✔ 98% Recyclable

✔ CIBSE TM66 Assessed

✔ Suitable for Corridor lighting, Education, Healthcare

Finishes / Material
  • White (Cream) RAL 9010
  • White (Traffic) RAL 9016
  • Black (Matt) RAL 9005
  • Custom
  • Body: Die Cast Aluminium
  • Heat Sink: Die Cast Aluminium
Sizes
  • 198 (Ø) x 103/180 (H) mm
    Cutout: 176 mm, Weight: 2.0kg, In excess of 7000Lm height of fitting is 180mm
  • Source Info Tier 1 LED Tridonic components
  • Lumens (delivered) 1092Lm - 9624Lm
  • Circuit Watts 9cW - 95cW
  • Efficacy up to 124Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80 / CRI90
