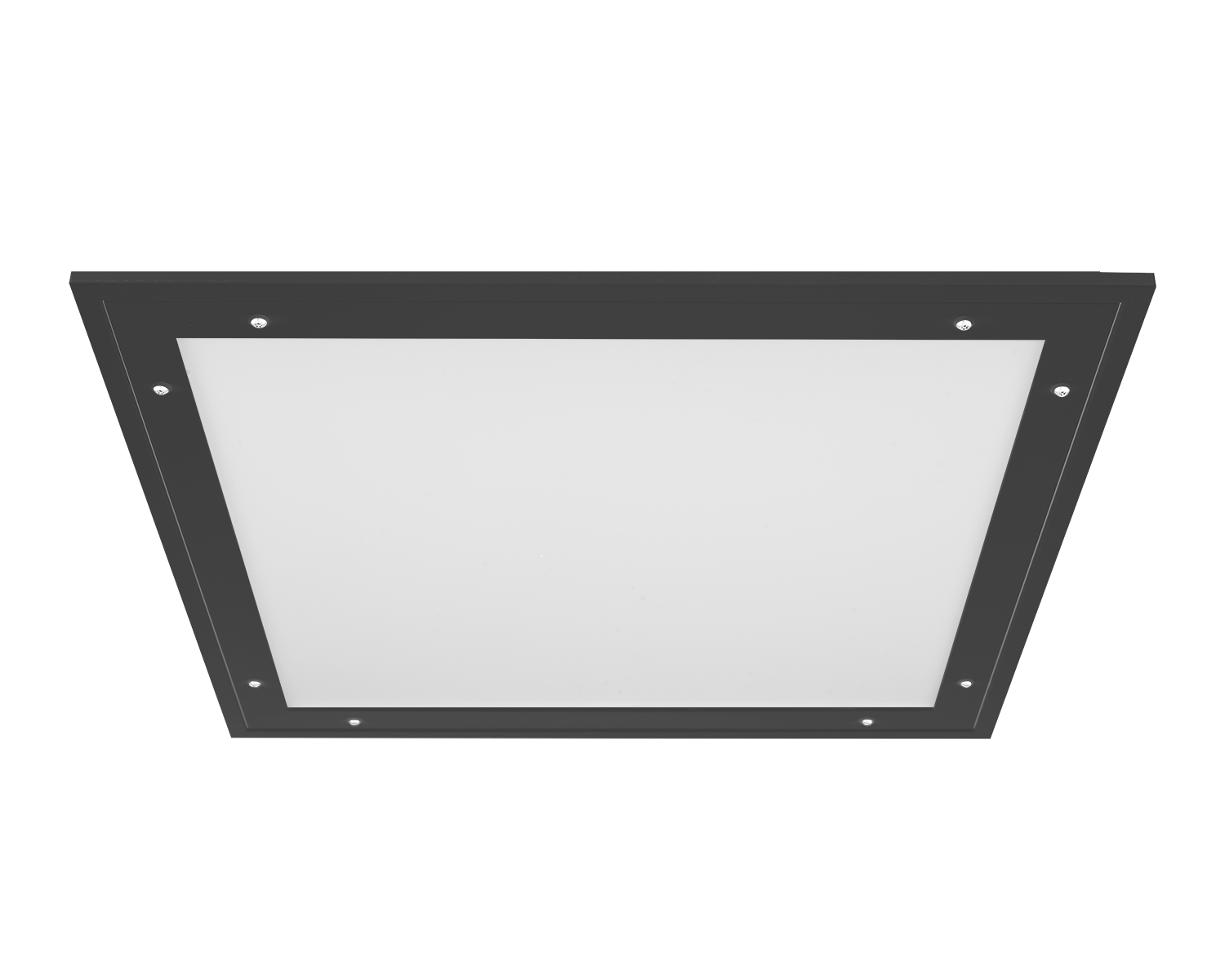

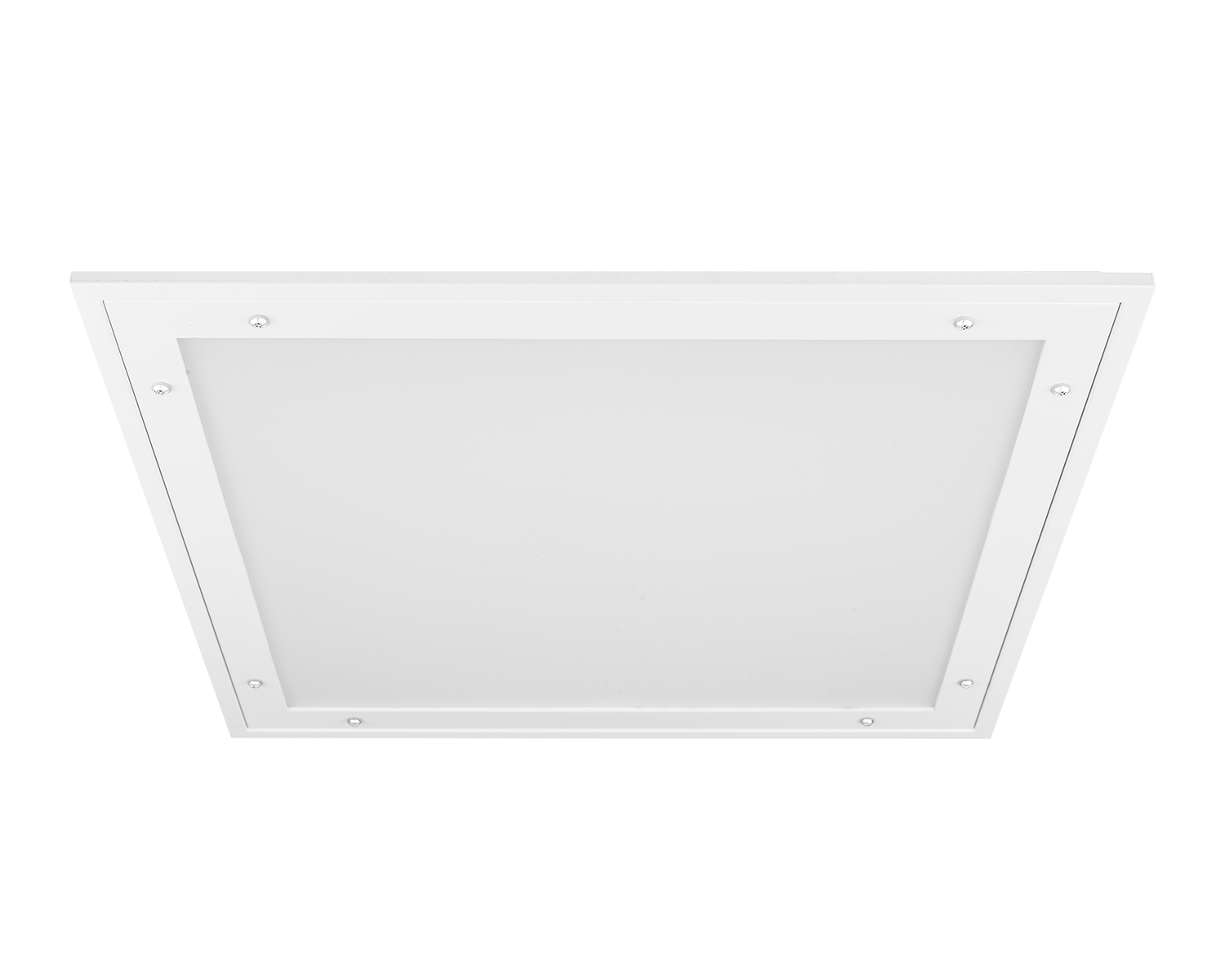

Recessed LED IP65 anti-ligature back lit panel

Level 600 AL

Product Overview

✔ Bevelled edge bezel supplied with countersunk fixings

✔ For applications with solid suspended suspended ceilings, with suitable void Tx25 Torx fixings

✔ LG7 Complaint, UGR<19 (when used with microprismatic cover)

✔ BS EN60598-1:2015 and ISO 9001 Certification

✔ Multiple dimming and emergency options avaiblable

✔ Multiple RAL finishes available

✔ Suitable for Corridor lighting, Hospitality, Healthcare, Residential

Finishes / Material
  • White (Traffic) RAL 9016
  • White (Cream) RAL 9010
  • Black (Matt) RAL 9005
  • Custom
  • Body: Steel
    Sheet
  • Diffuser: Polycarbonate
Sizes
  • 625 (L) x 625 (W) x 92 (H) mm

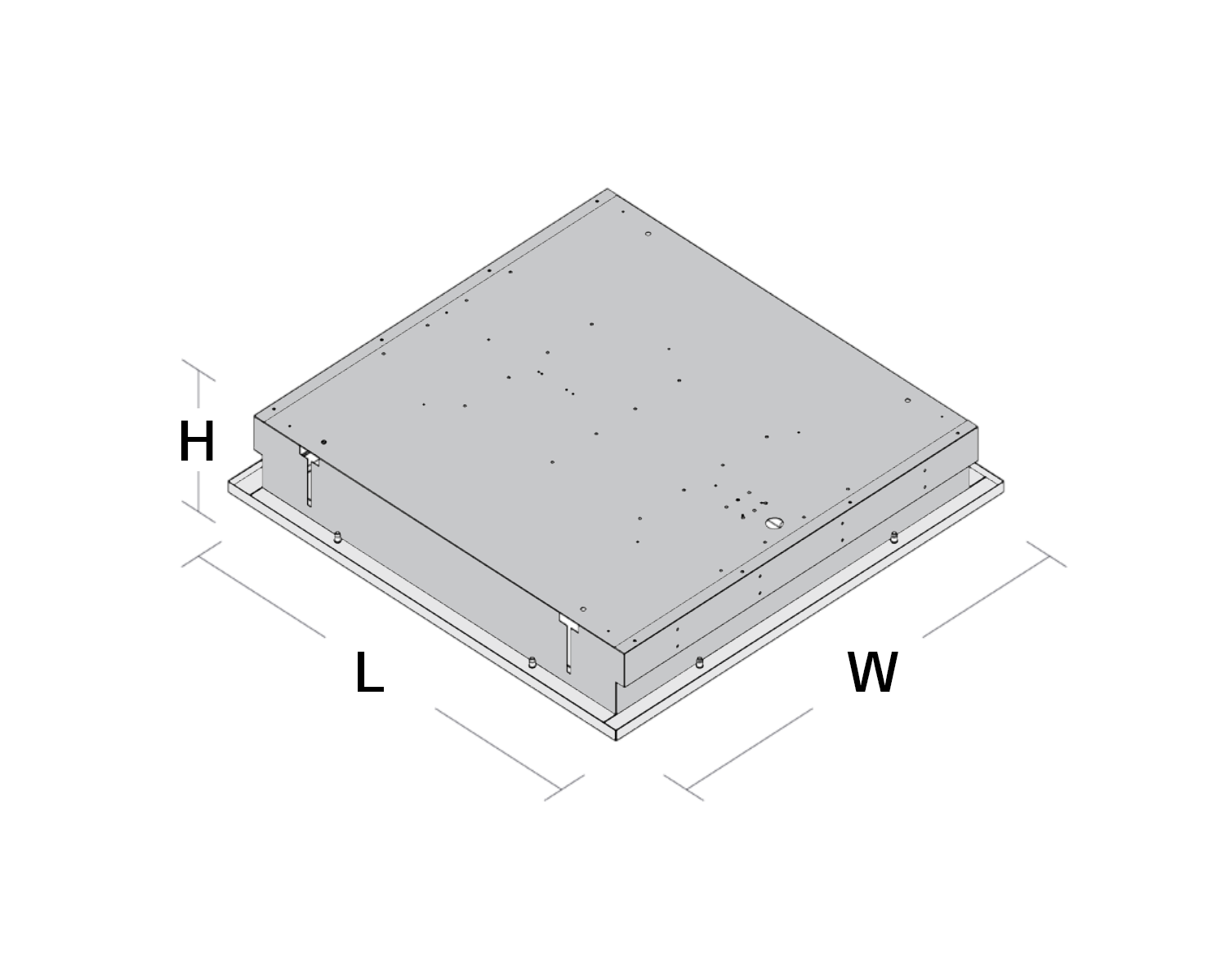

Technical Drawing
  • Source Info Tier 1 LED
  • Lumens (delivered) 3852Lm - 7704Lm
  • Circuit Watts 27cW - 55cW
  • Efficacy up to 142Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80

Options.

Optic

  • Microprismatic Cover

    (UGR<19)

  • Opal Cover

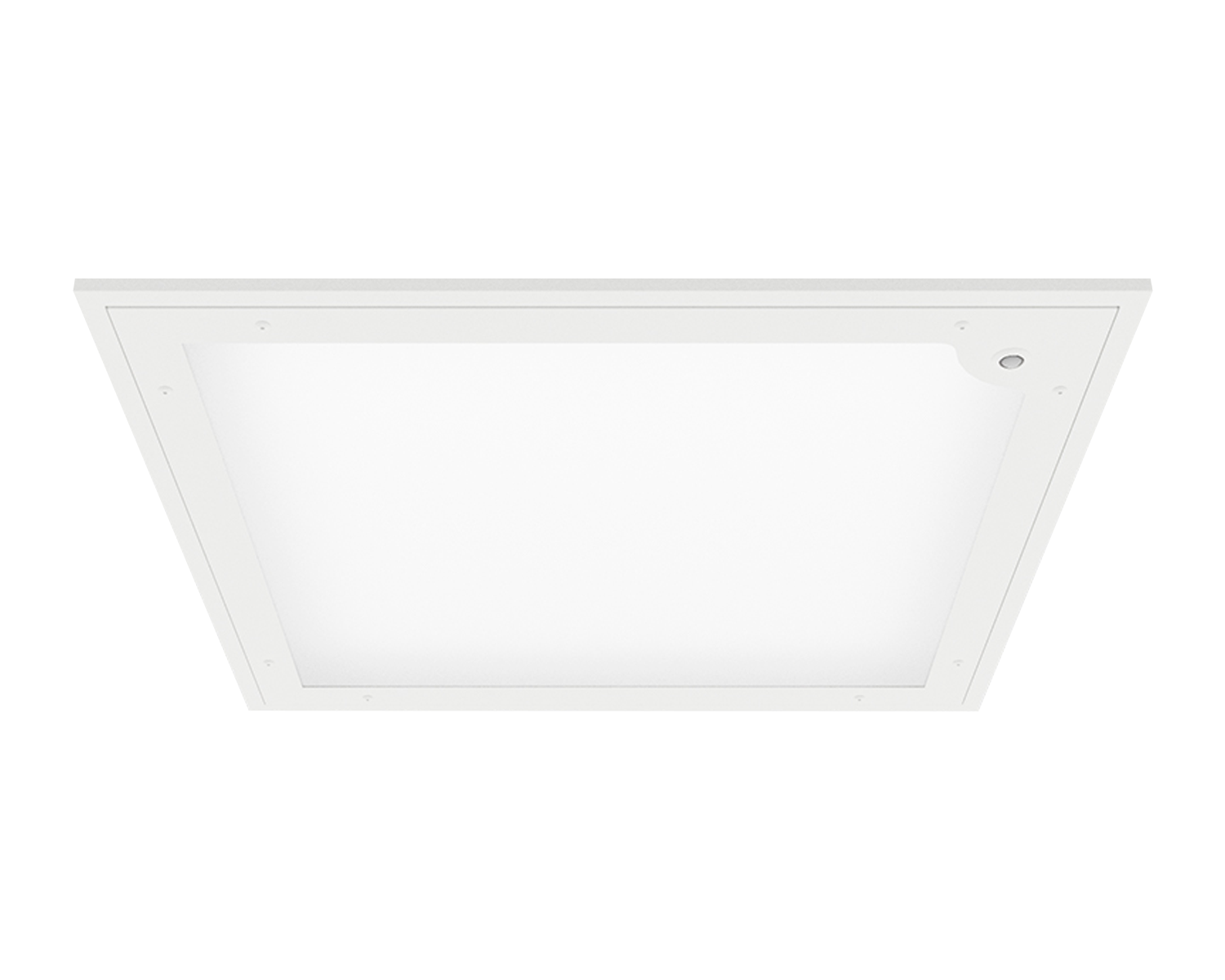

Sensor (optional)

  • PIR Presence (Infrared) Detector

Additional Information.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
