Ward

Surface mounted linear heay duty anti-vadal, anti-ligature luminaire

Product Overview

✔ Heavy duty fabricated steel housing

✔ Anti-vandal and anti-ligature

✔ High impact polycarbonate opal diffuser, secured with anti-tamper screws

✔ Multiple dimming and emergency options available

✔ Available in multiple lengths

✔ Made in the UK

✔ Suitable for Corridor lighting, Healthcare, Residential

Finishes / Material

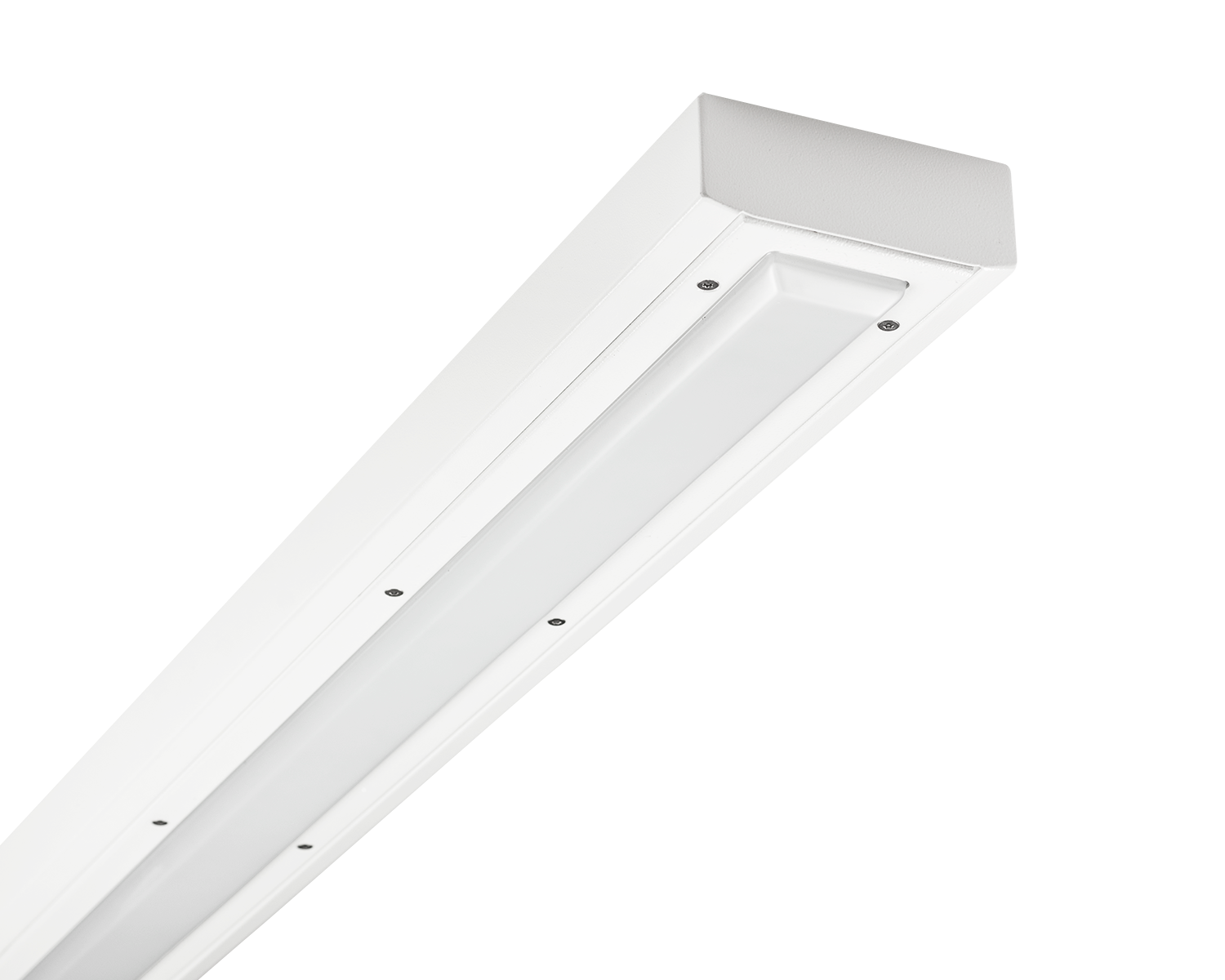

  • White (Traffic) RAL 9016

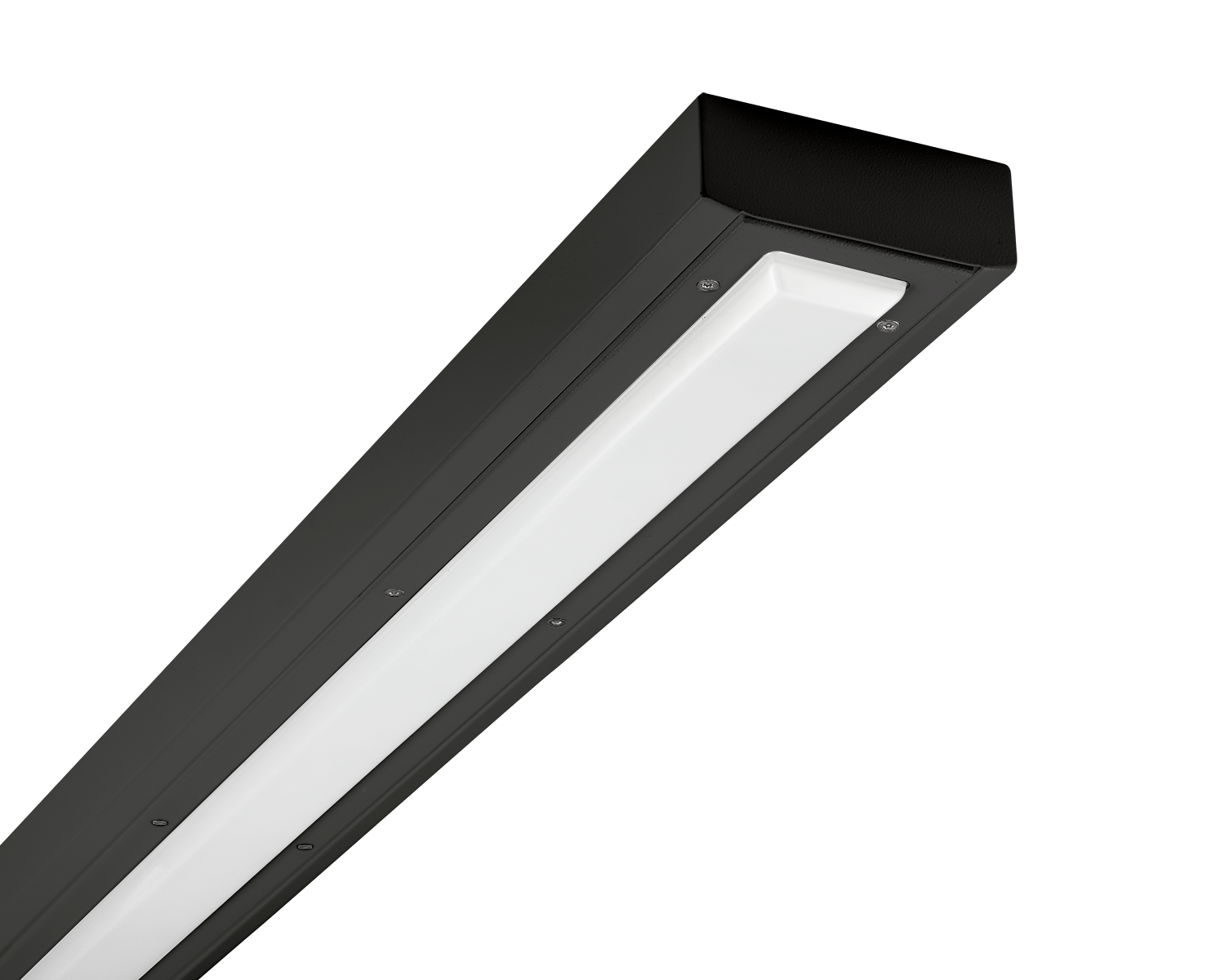

  • Black (Matt) RAL 9005

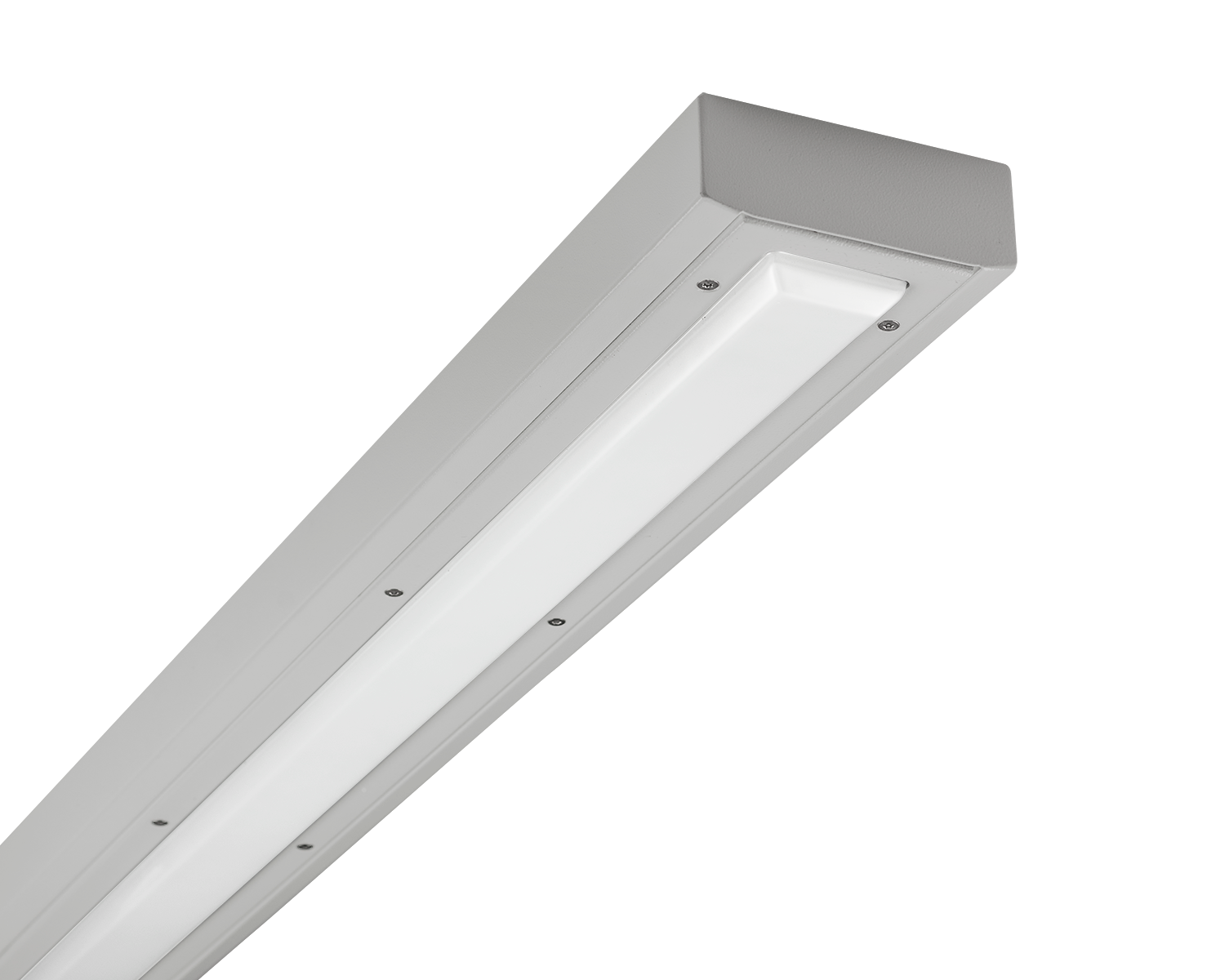

  • Silver (White Aluminium) RAL 9006
  • Custom
  • Body: Steel
  • Diffuser: Polycarbonate
    Opal
Sizes
  • 650 (L) x 160 (W) x 72 (H) mm
  • 1200 (L) x 160 (W) x 72 (H) mm
  • 1500 (L) x 160 (W) x 72 (H) mm

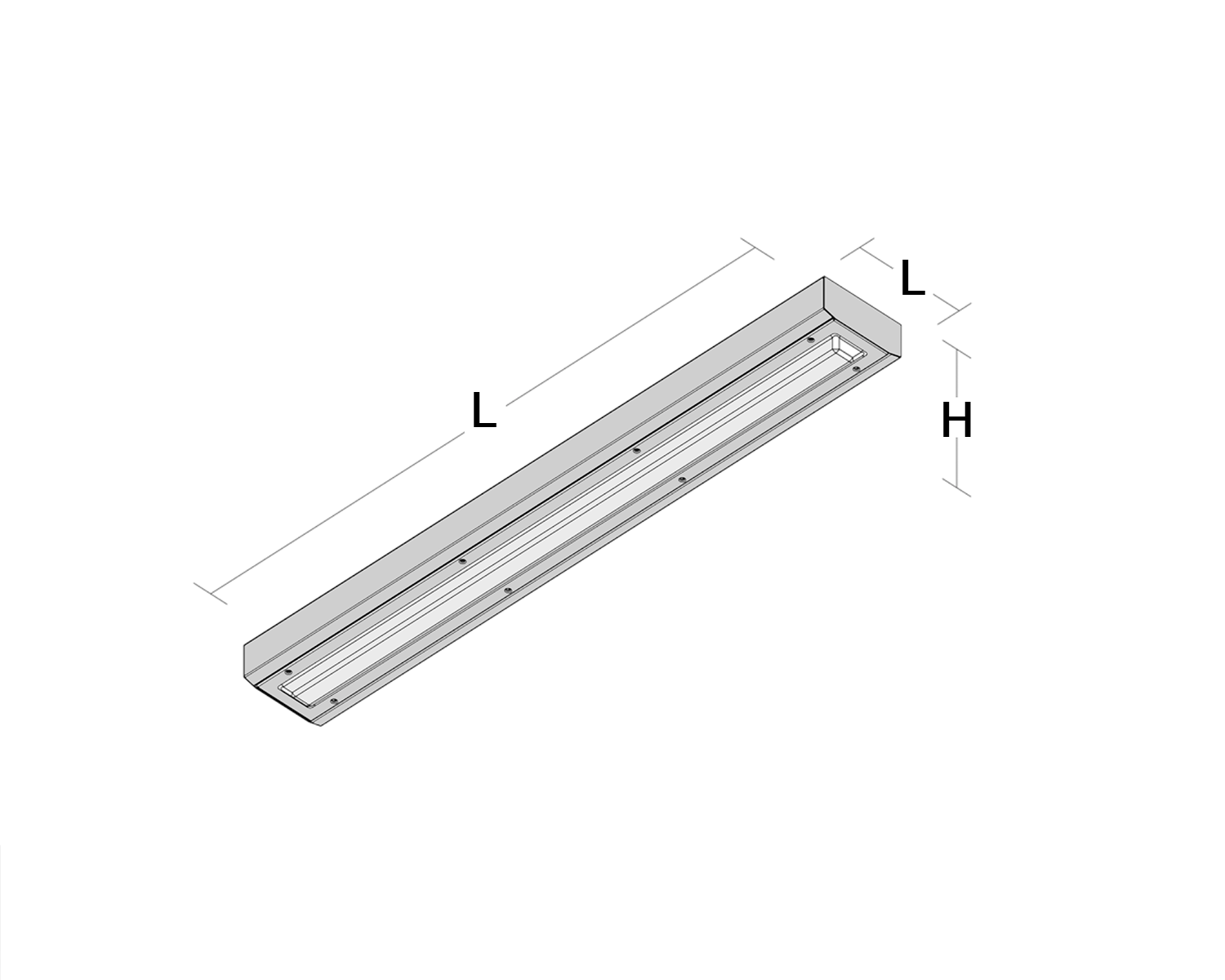

Technical Drawing
  • Lumens (delivered) 1562Lm - 7974Lm
  • Circuit Watts 14cW - 66cW
  • Efficacy up to 130Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80

Options.

IP Rating (optional)

Additional Information.
