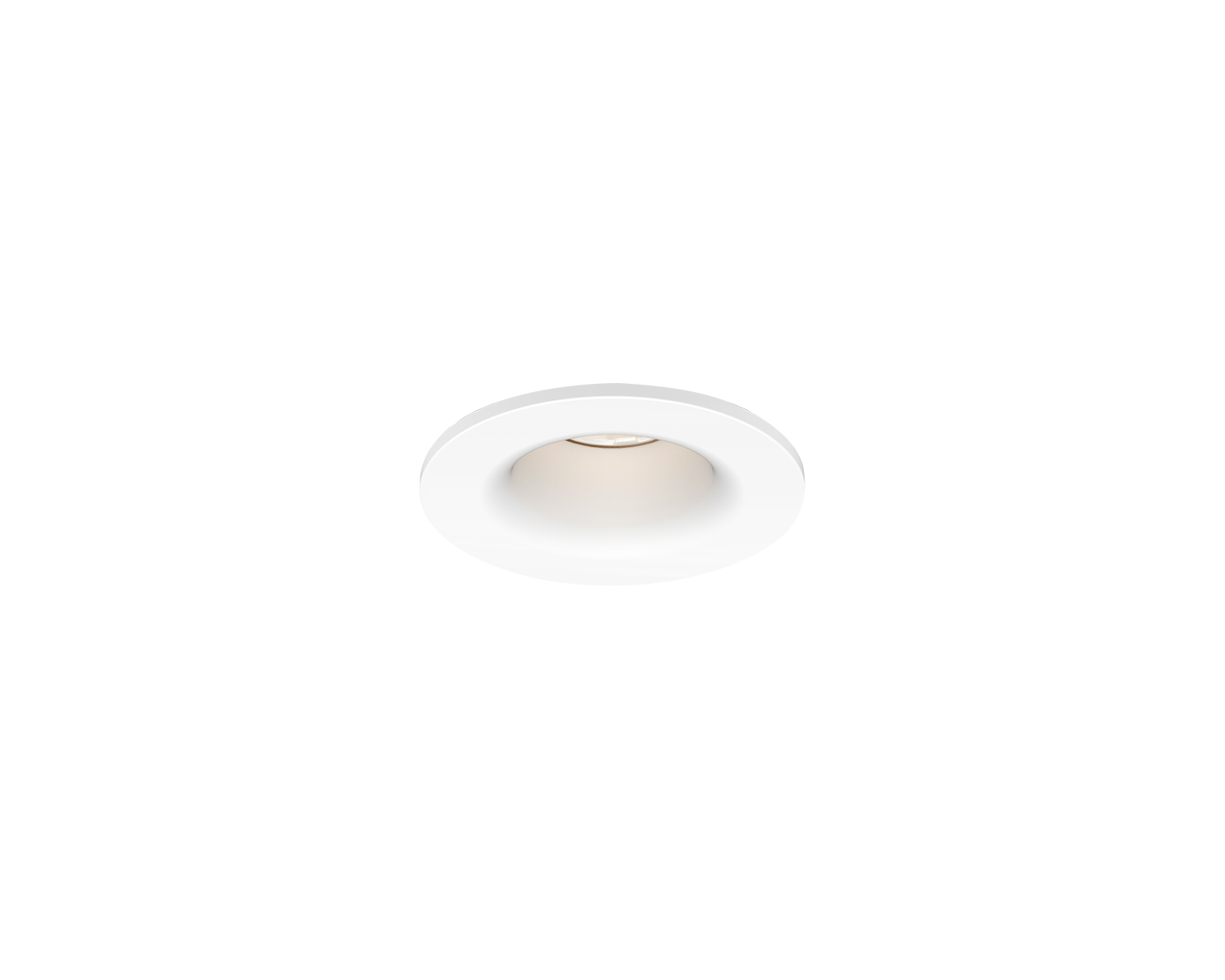

Teeni D72

Miniature LED downlight

Product Overview

✔ Very minimal depth and bezel diameter

✔ Recessed LED position for reduced glare

✔ Latest LED technology with a typical CRI of 93 in warm white.

✔ IP40 as standard, optional IP54 version for wet areas, comes with glass and gasket

✔ Simple and fast installation

✔ Available with Switch, 0-10V, DMX, Dali or Mains dimmable drivers

✔ Different optics available

✔ Suitable for Hospitality, Residential, Wall Washing, Leisure

Finishes / Material
  • White (Traffic) RAL 9016

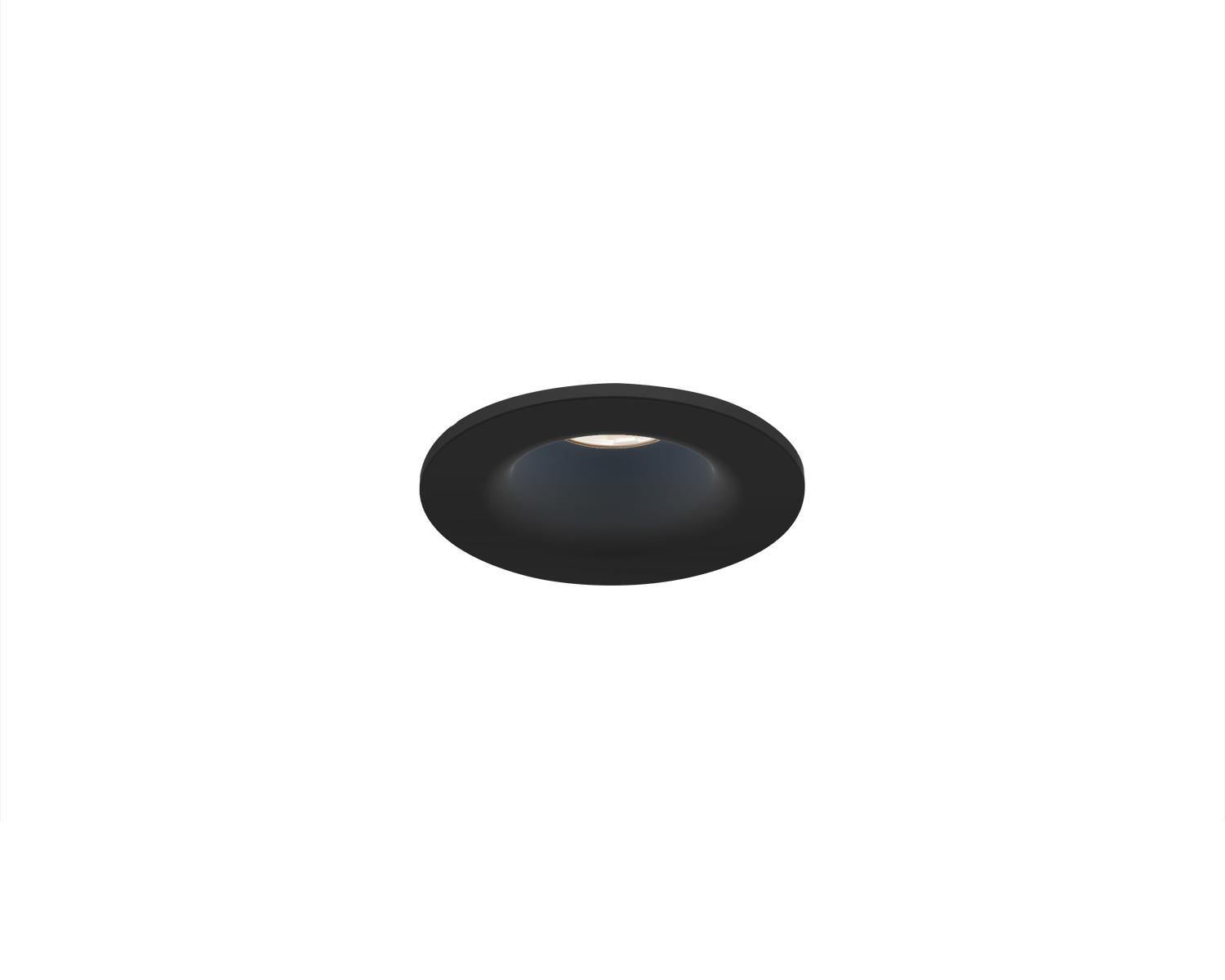

  • Black (Matt) RAL 9005
  • Custom
  • Body: Aluminium
  • Bezel: Aluminium
Sizes
  • 36 (Ø) x 39 (D) mm
    Cutout: 32 mm

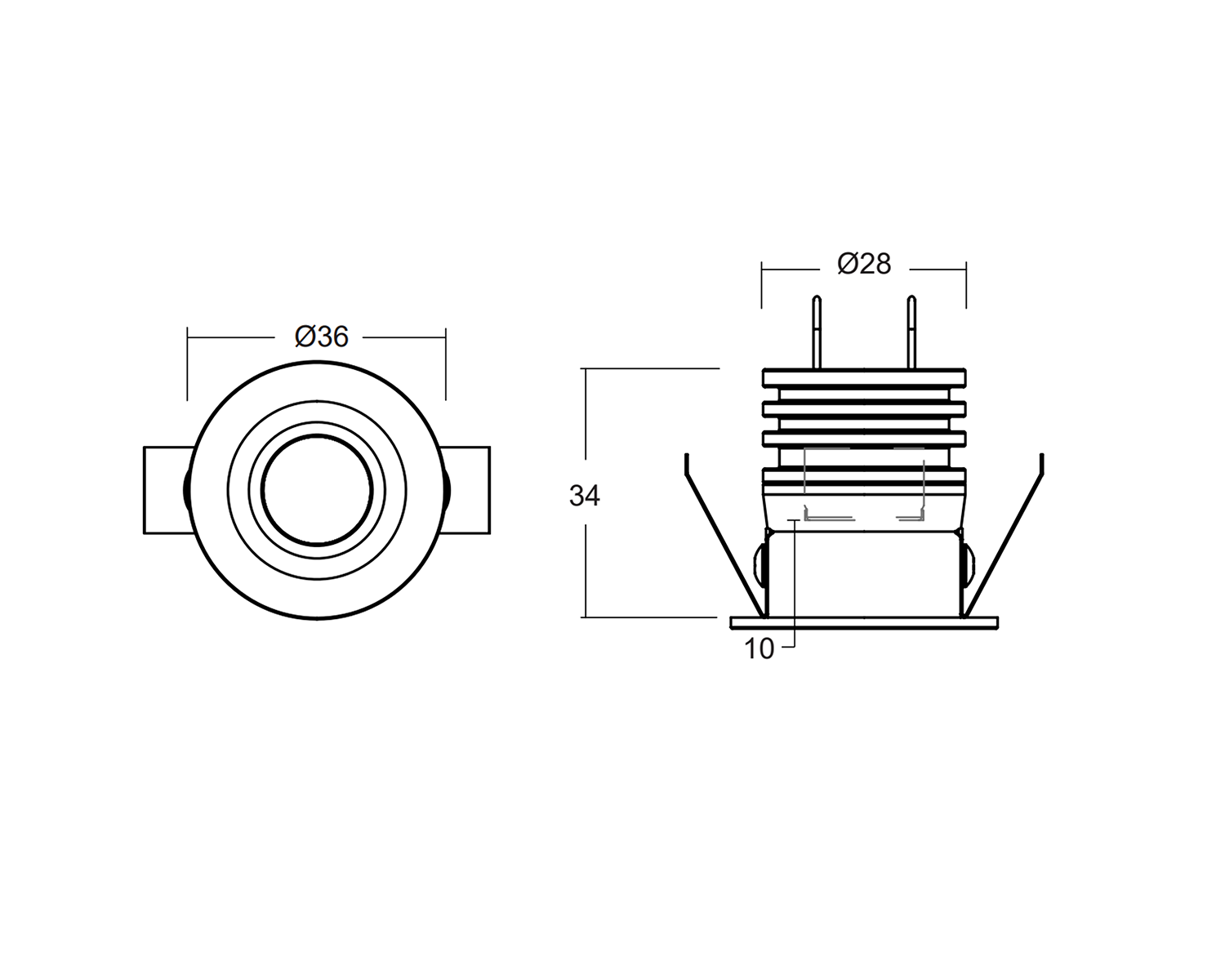

Technical Drawing
  • Source Info NICHIA
  • Lumens (delivered) 113Lm, 147Lm, 197Lm
  • Circuit Watts 1cW, 2cW, 3cW
  • Efficacy up to 113Lm/cW
  • Colour Temperature 2700K / 3000K / 4000K / 5000K
  • Colour Rendering CRI90

Options.

Beam (optional)

  • 12° Beam Angle
  • 31° Beam Angle
  • 48° Beam Angle

IP Rating (optional)

  • IP54

Additional Information.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.

You May Also Like...

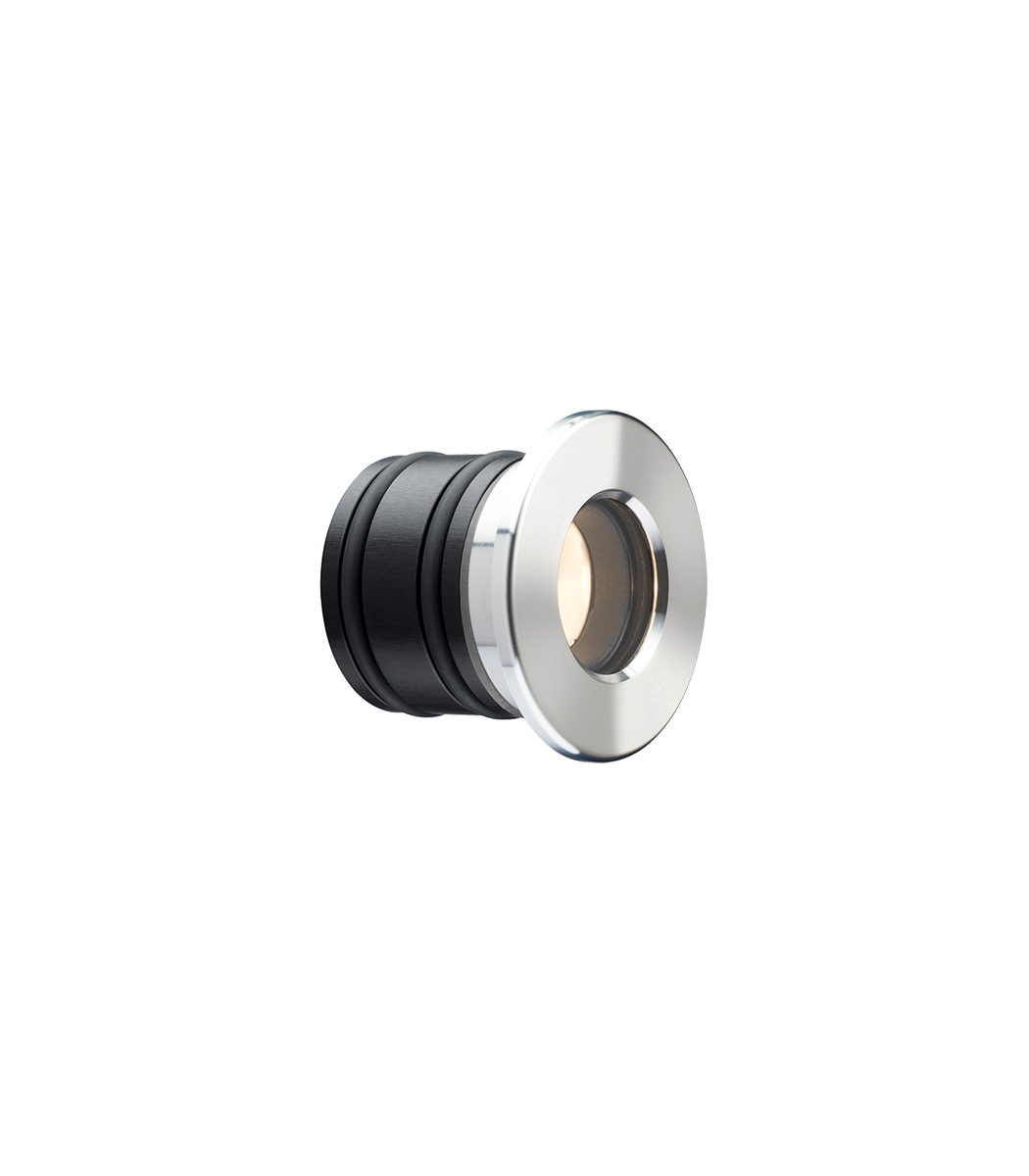

  • Teeni
    W42

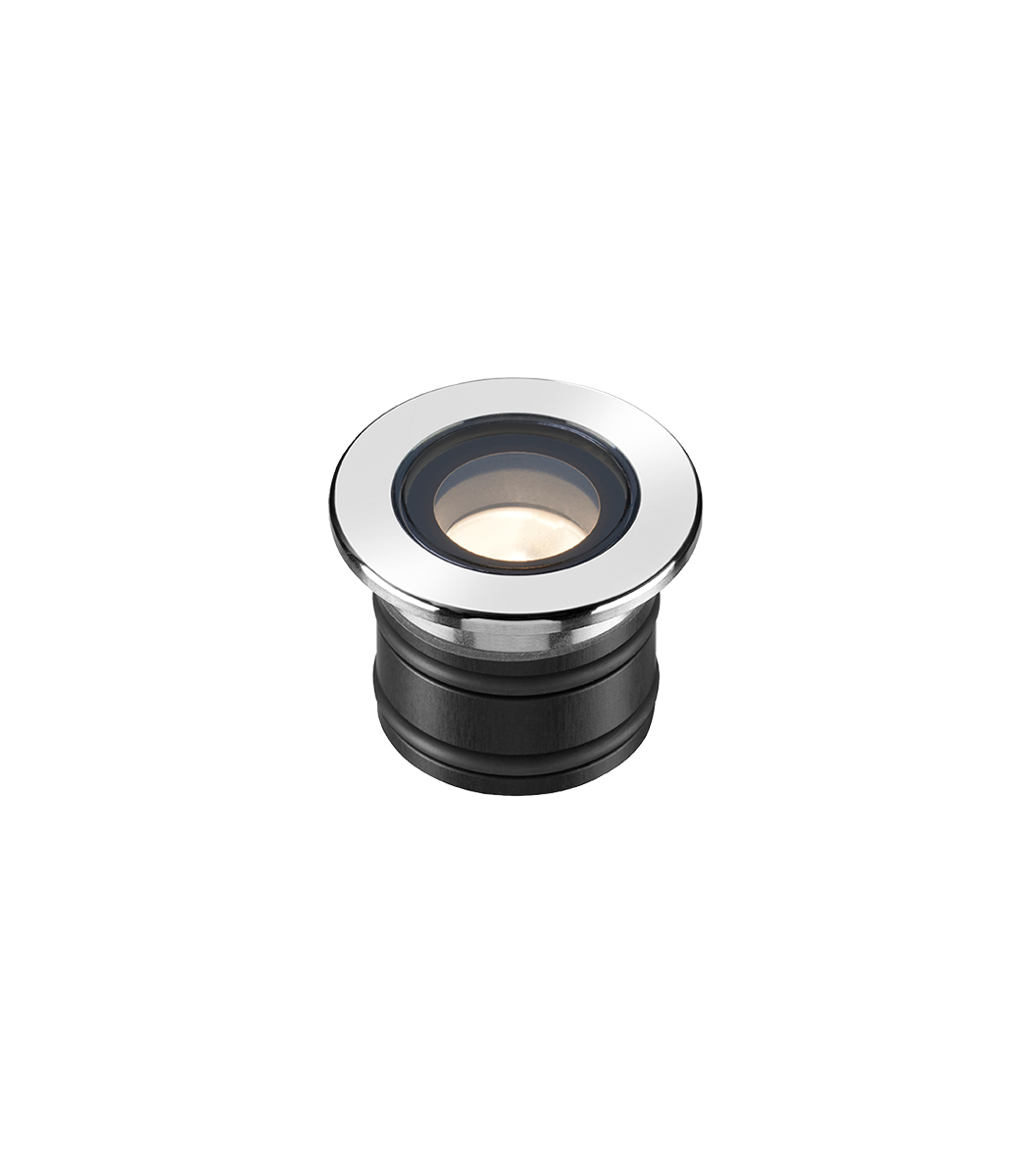

  • Teeni
    F43

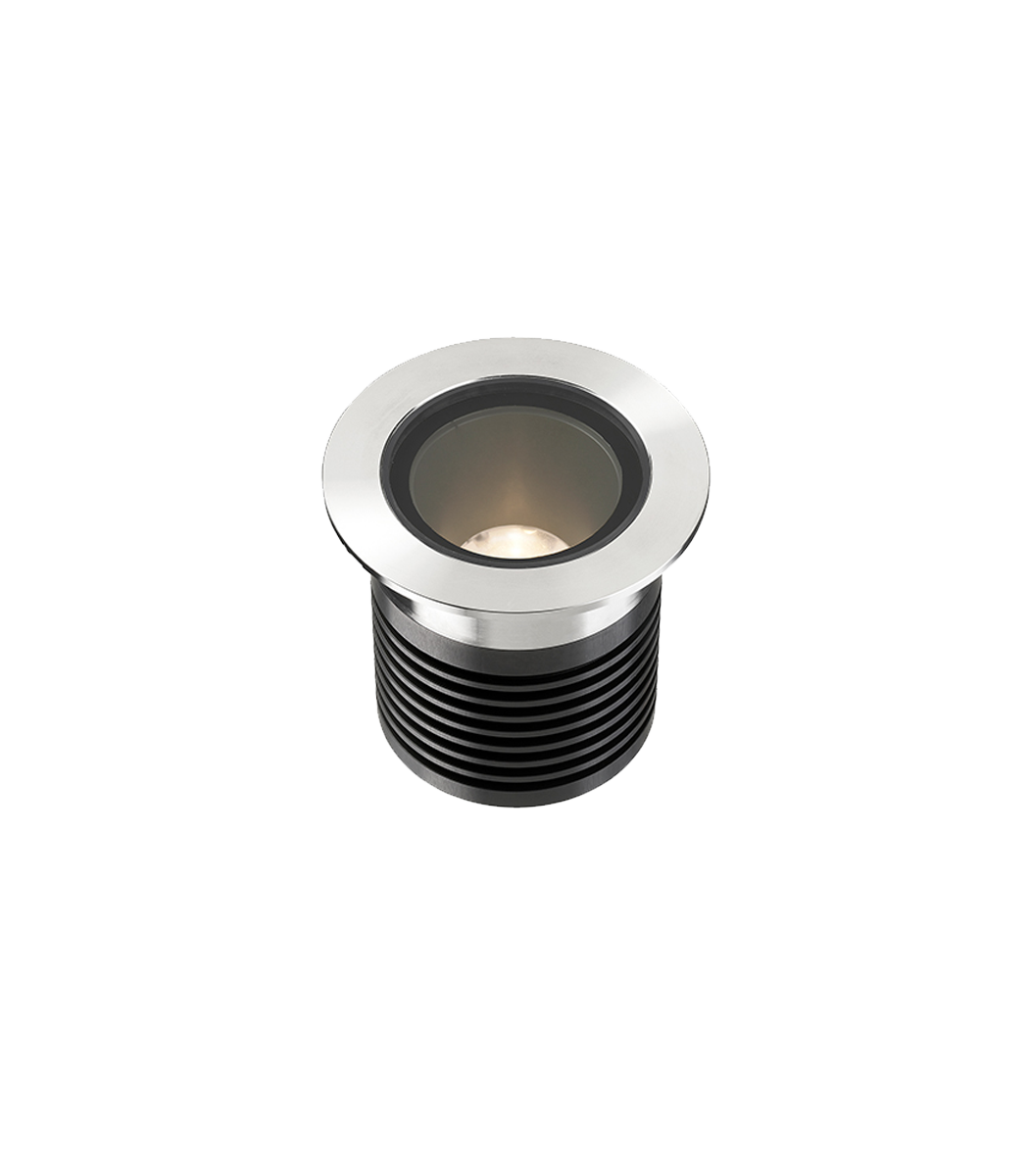

  • Teeni
