Senco

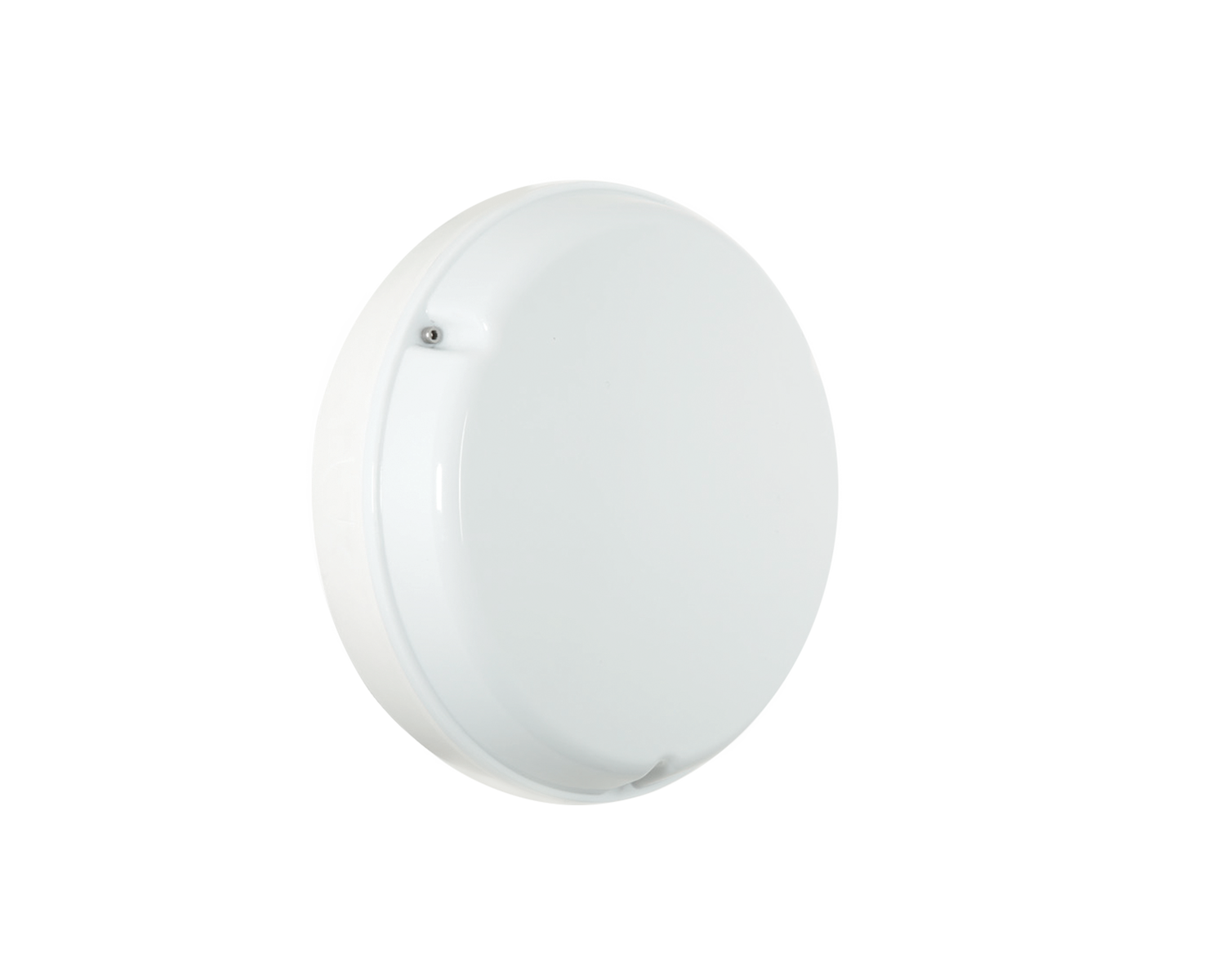

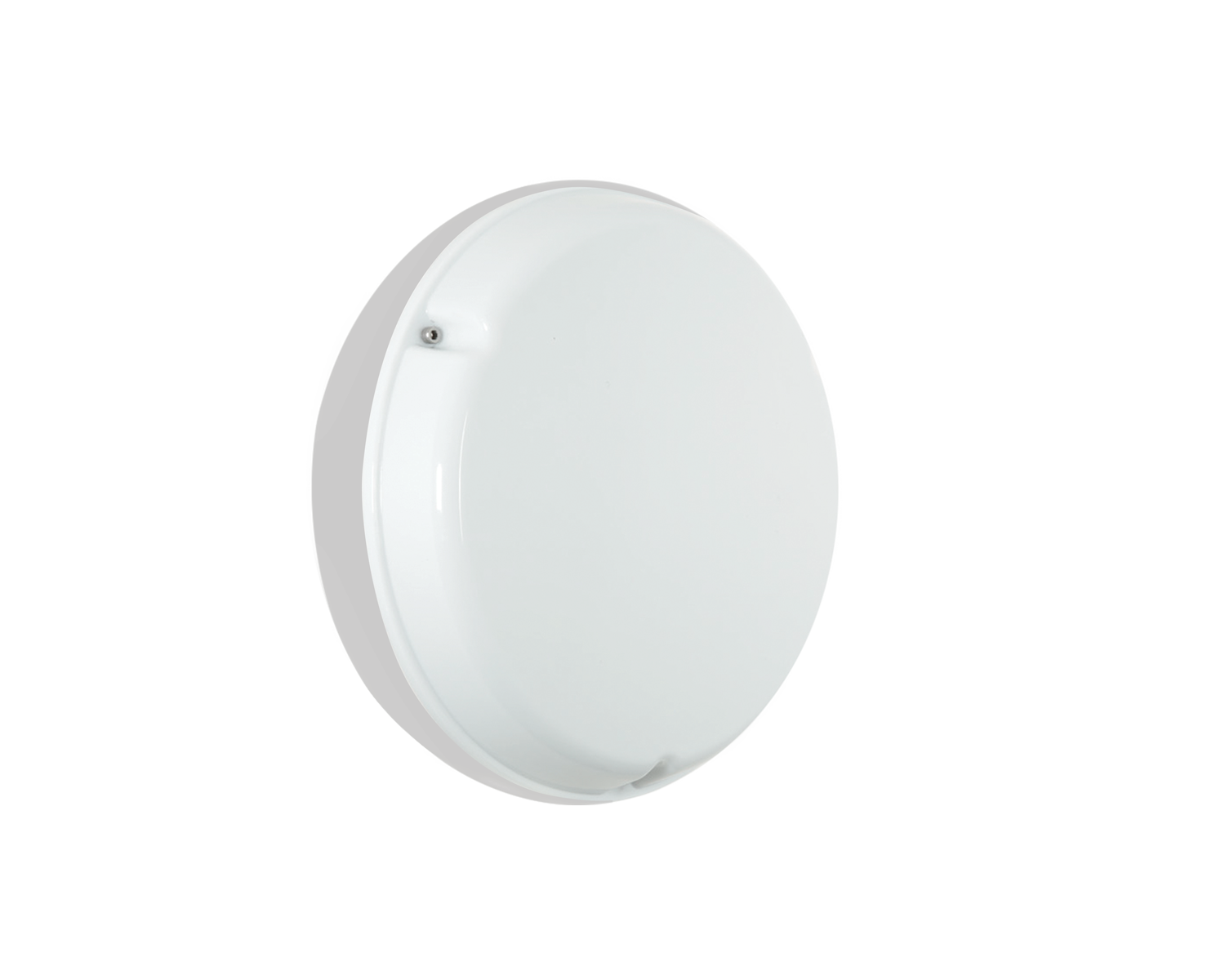

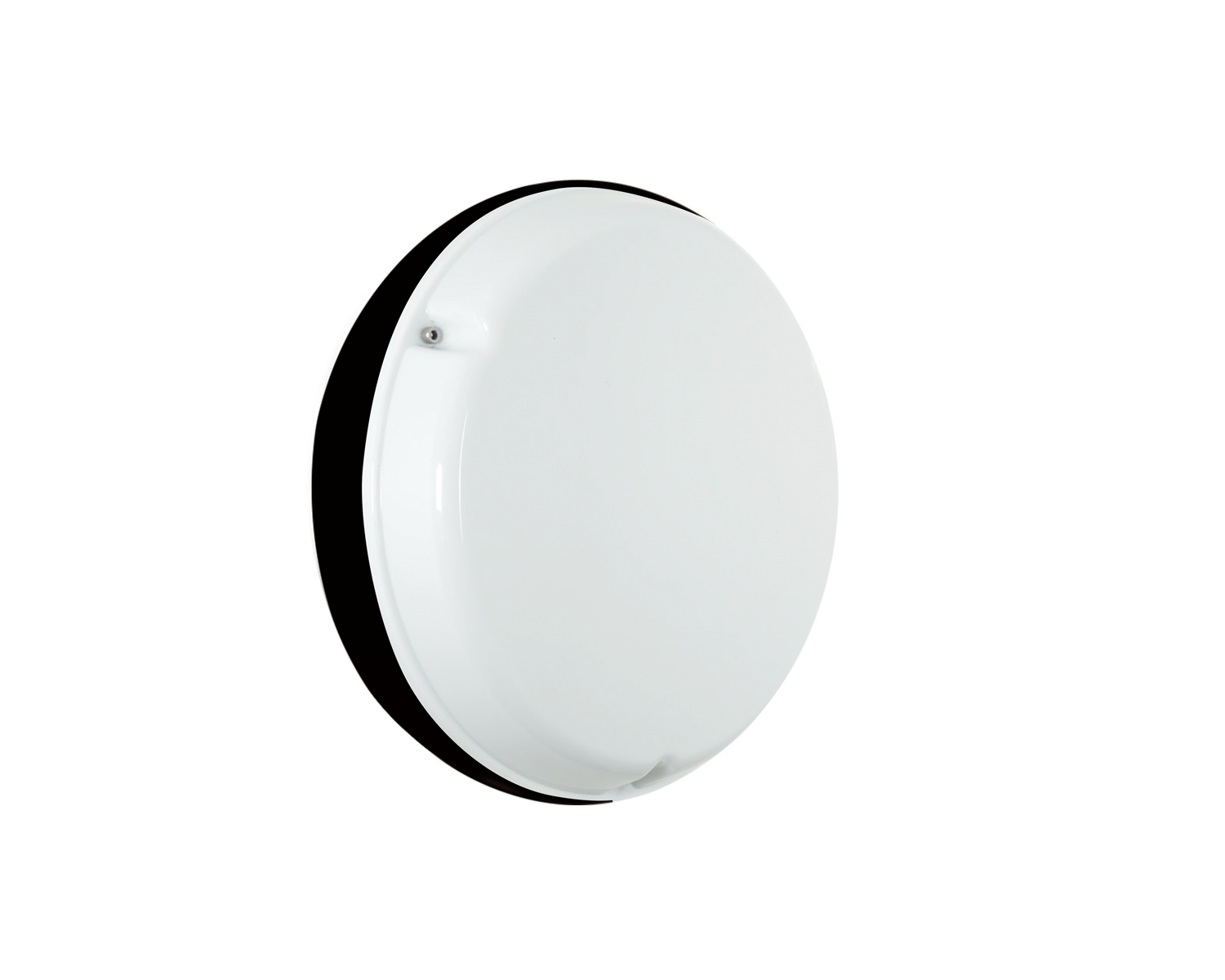

Round utility bulkhead

Product Overview

✔ Durable all-polycarbonate construction

✔ Optional die-cast aluminium base version

✔ Choice of body colour and diffuser type

✔ Optional anti-tamper screws

✔ Options for emergency, integrated presence detector, or photocell

✔ Tridonic LED module and driver

✔ Suitable for Corridor lighting, Commercial, Education, Healthcare, Residential

Finishes / Material
  • Black
    Injection Moulded Polycarbonate Base
  • Black (Matt) RAL 9005
    Die-cast Aluminium Base
  • White
    Injection Moulded Polycarbonate Base
  • White (Traffic) RAL 9016
    Die-cast Aluminium Base
  • Silver (White Aluminium) RAL 9006
    Die-cast Aluminium Base
  • Body: Die Cast Aluminium / Polycarbonate
  • Diffuser: Polycarbonate
Sizes
  • 276 (L) x 276 (W) x 97 (D) mm

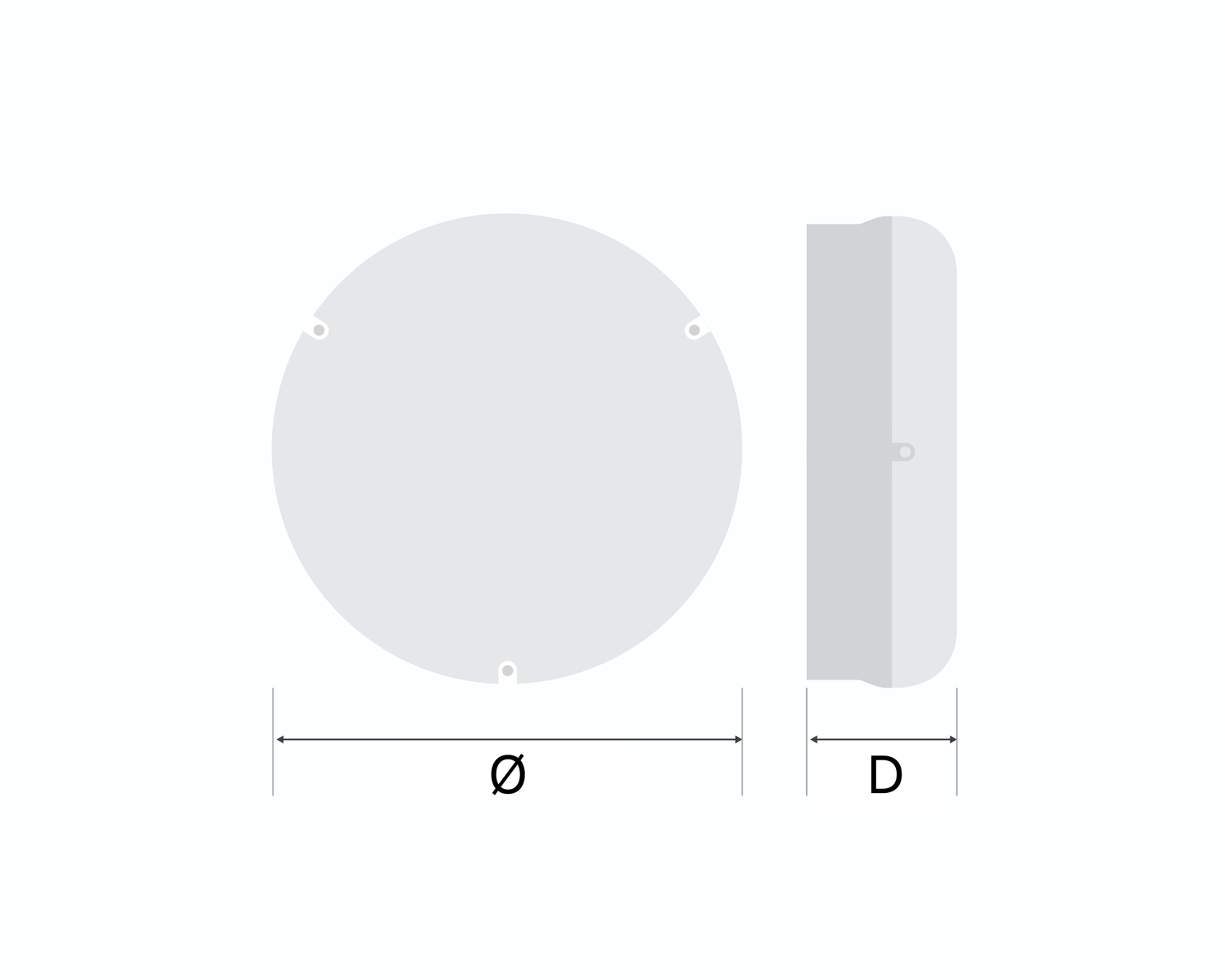

Technical Drawing
  • Source Info Tier 1 LED Tridonic
  • Lumens (delivered) 1368Lm, 1941Lm, 2689Lm
  • Circuit Watts 11cW, 16cW, 23cW
  • Efficacy up to 124Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80

Options.

Cover

  • Opal Cover
  • Prismatic Cover

Fixings (optional)

  • Anti-tamper Fixings

Sensor (optional)

  • Microwave Sensor

Additional Information.
