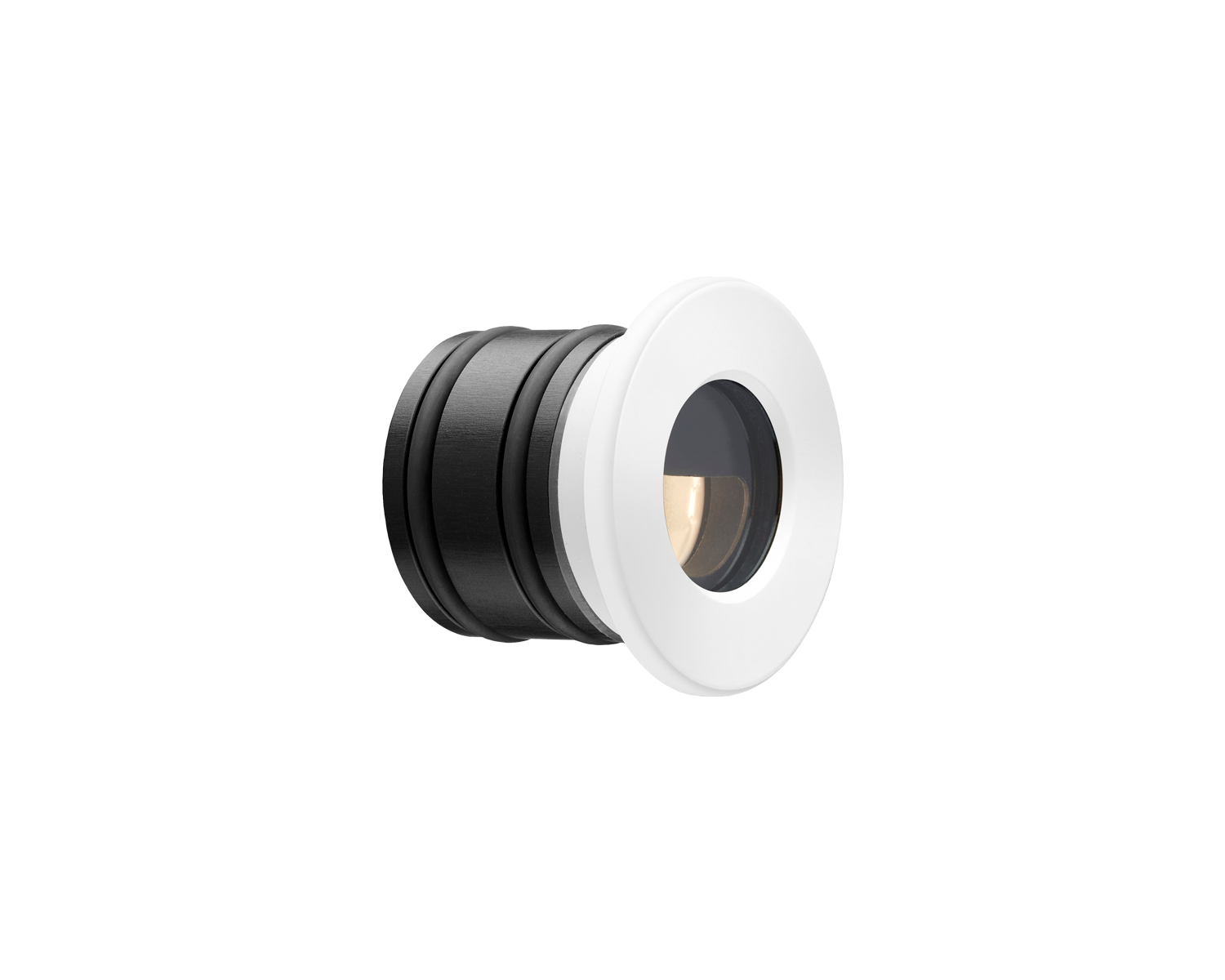

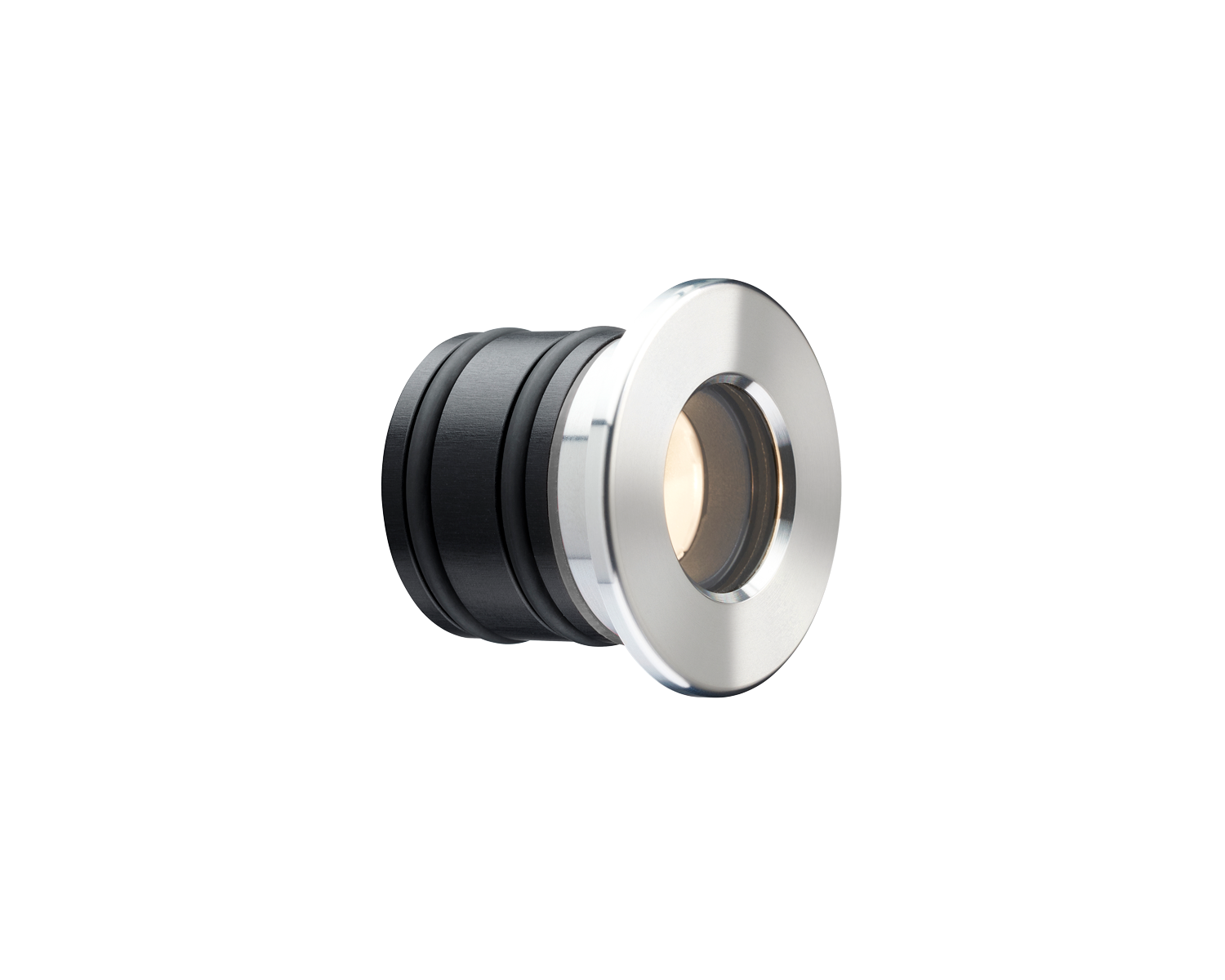

Teeni W42

Miniature recessed LED wall light

Product Overview

✔ High efficiency optics to guarantee excellent beam spread and shape

✔ Recessed LED position for reduced glare

✔ Integral glare shield option

✔ Optional glare shield and 20° tilt lens to angle the light towards the lit surface and further reduce glare

✔ Glass fixed with hidden gasket, so no unsightly glue line

✔ Hidden fixing options include spring clips or O-rings and the /480 first fix sleeve

✔ Suitable for Hospitality, Healthcare, Office, Residential, Exterior Facades, Gallery/Museum, Stairs, Walkways, Driveways

Finishes / Material

Stainless Steel
Stainless Steel (Polished)
Marine Grade 316 Steel
Brass
Solid CZ121 Brass
Bronze
Flamed Solid
Custom
Wet Spray

Bezel: Steel
Stainless Steel
Body: Aluminium
Cover: Glass
3.3m Borosilicate

Sizes

36 (Ø) x 35 (D) mm
Cutout: 32 mm

Source Info Tier 1 LED
Lumens (delivered) 104Lm, 135Lm
Circuit Watts 1cW, 2cW
Efficacy up to 104Lm/cW
MacAdams 2 SDCM
Colour Temperature 2700K / 3000K / 4000K (On request) / 5000K
Colour Rendering CRI90

Mounting Wall Recessed
Dimming Non-dimmable, DALI, Casambi Bluetooth, Dim to Mains, Switch Dimmable, 1-10V Analogue
Emergency Non-emergency
Base IP Rating IP68
UGR Rating <18
Drive Current 350mA, 500mA
Temp Range -20° - 45°
Lifetime 90,000Hrs (L90/B5)

Datasheet (Custom)
Configure to Download
Images
Download
Photometry
Download

Options.

Beam Angle

12° Beam Angle
31° Beam Angle
48° Beam Angle
Ellipsoidal Distribution

12x36º

Glare Shield (optional)

*Please Note: Not available with oval 12x36deg beam

(A)

Half-moon internal shield
(B)

Half-moon internal shield with integrated 20º tilt lens

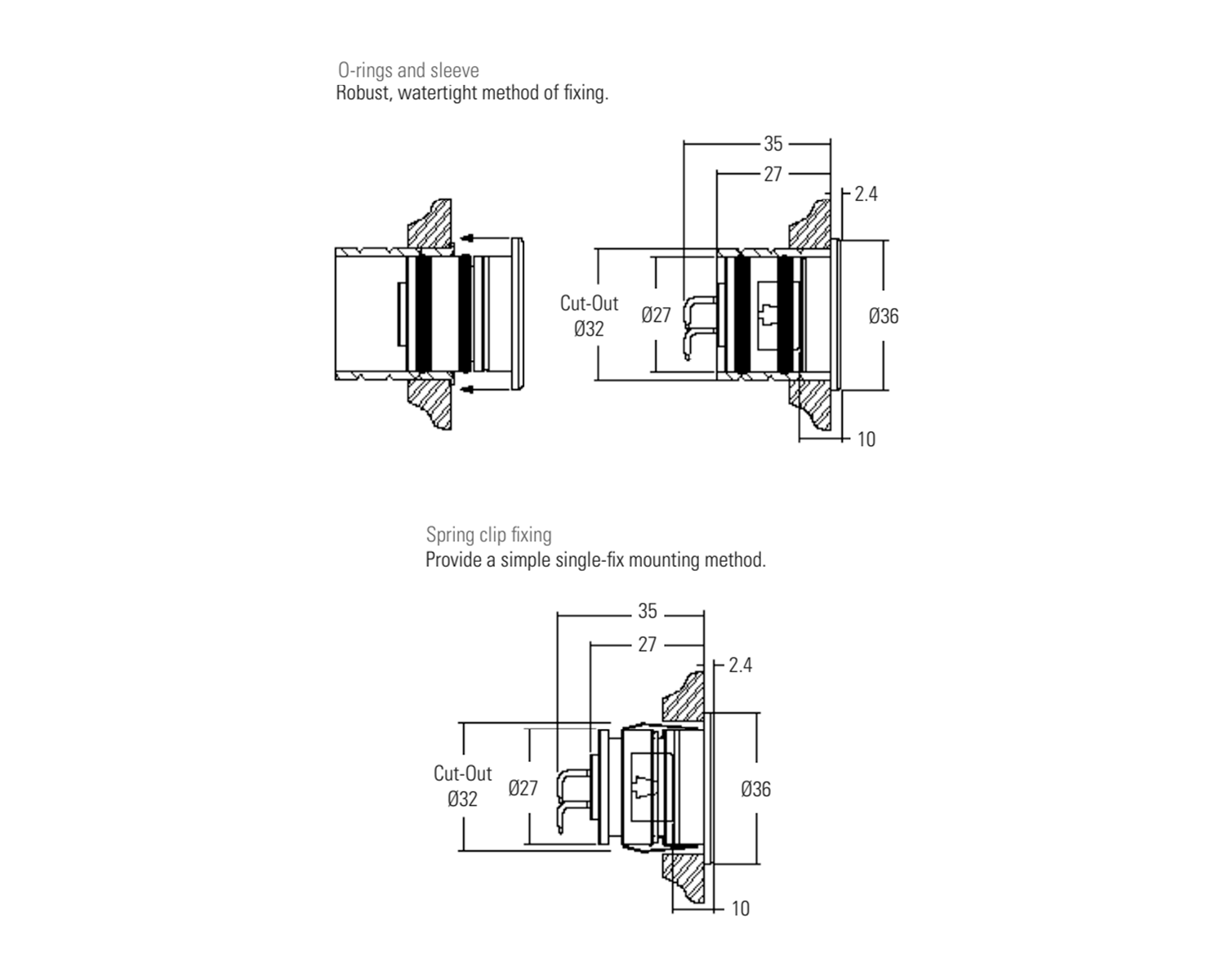

Fixing

Spring Clips

Interior applications
'O' Rings & Sleeve

Exterior Applications
