Tetriss H65

Miniature low glare linear downlight for high contrast lighting

Product Overview

✔ Ultra-low glare miniature linear LED downlight

✔ Ideal for high contrast lighting applications

✔ Available in x5, x10 formations

✔ Injection moulded low glare baffle

✔ Ultra-slim aluminium bezel for minimal clean aesthetic

✔ IP44 as standard

✔ Choice of finishes as well as a wide range of optics and dimming options

✔ Optimum thermal management for prolonged life

✔ Excellent colour quality

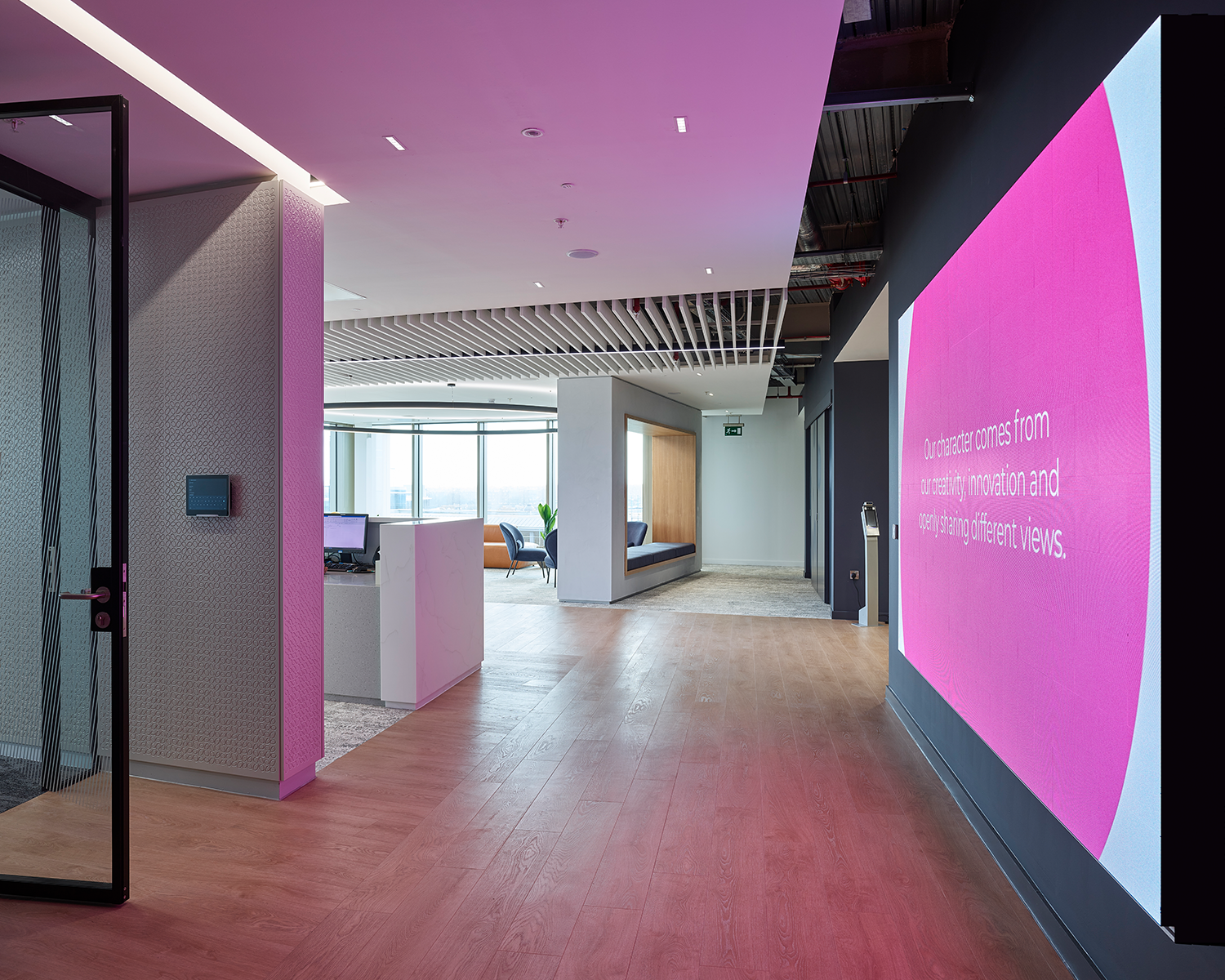

✔ Suitable for Corridor lighting, Office, Retail, Residential, Wall Washing, Gallery/Museum, Leisure

Finishes / Material

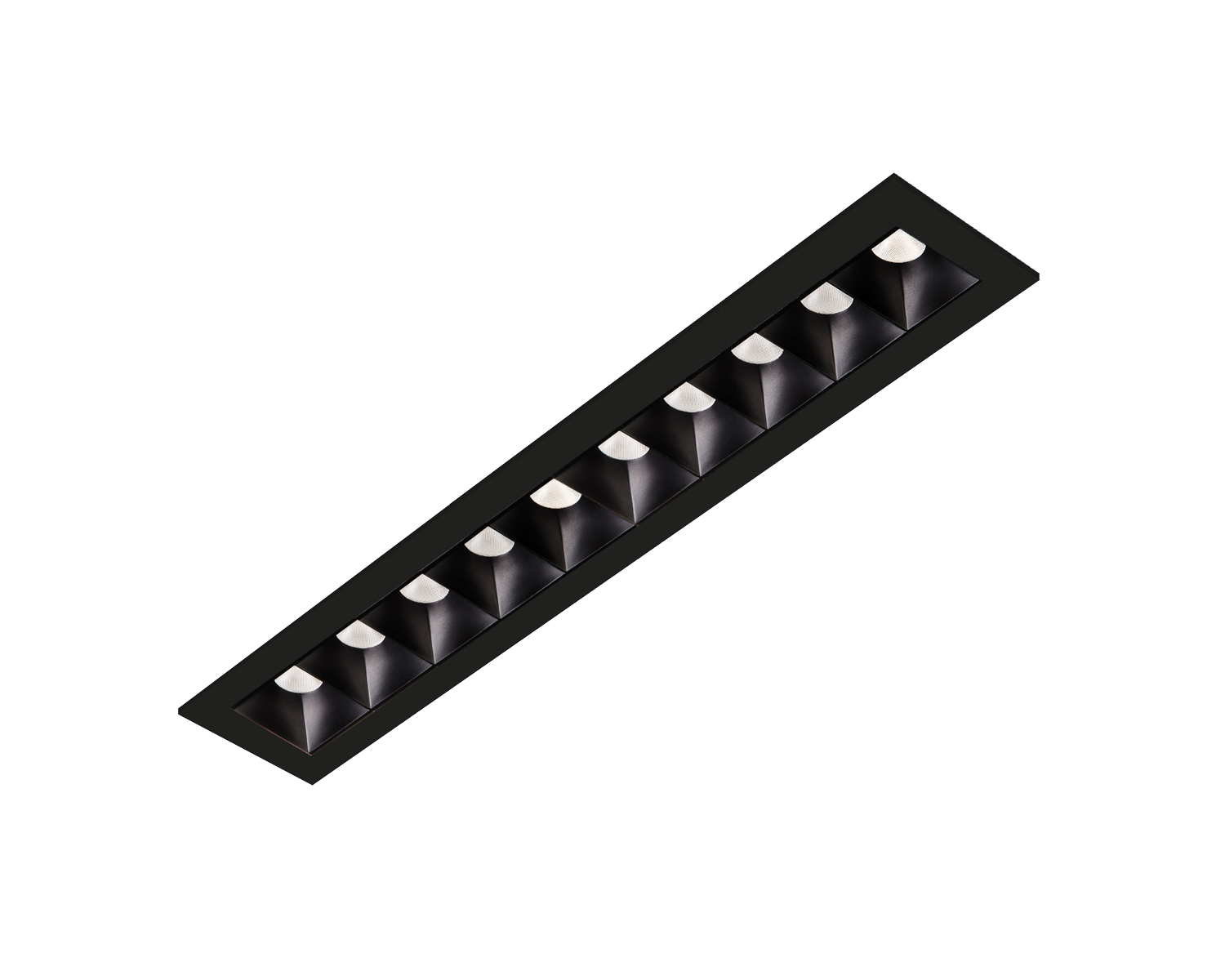

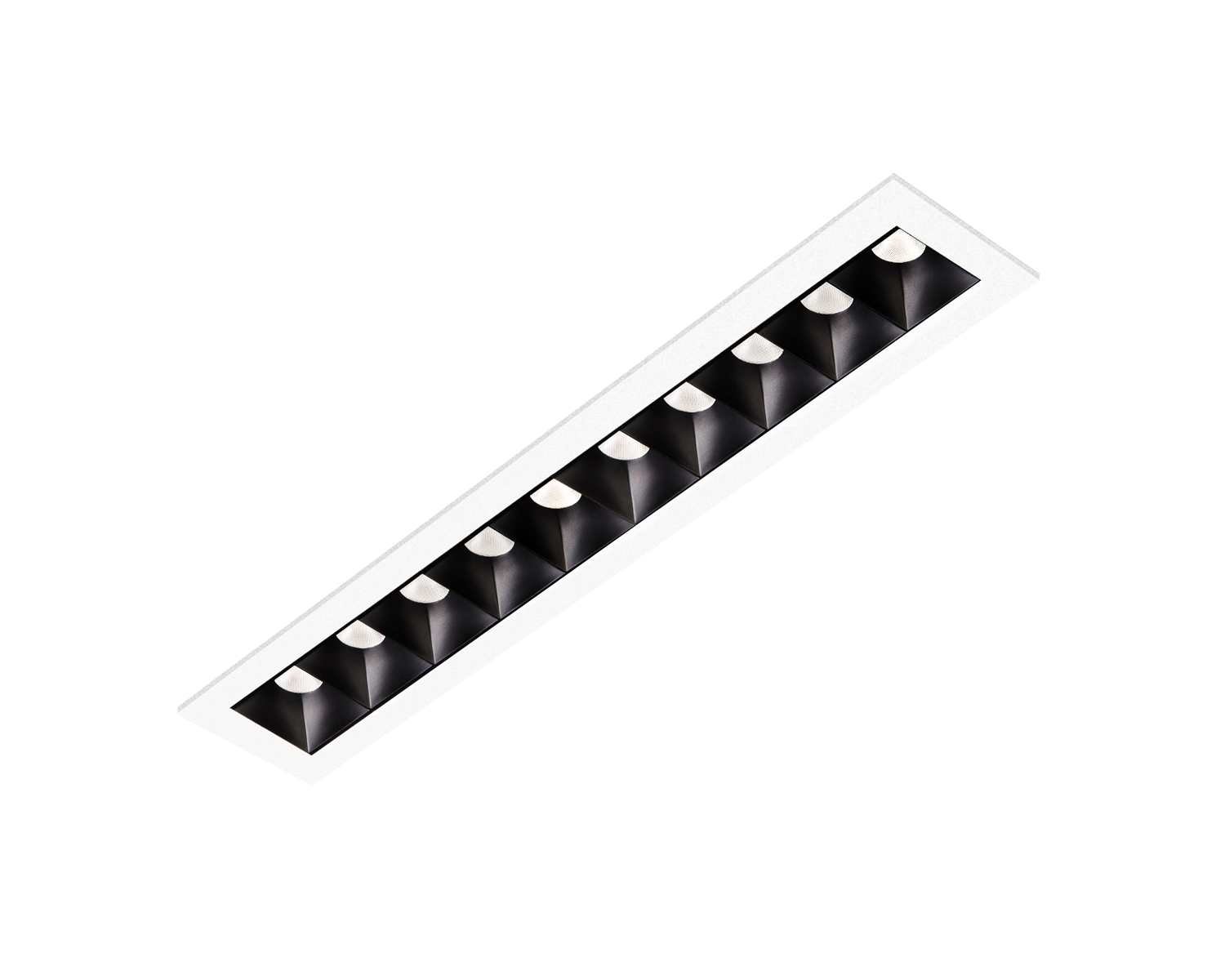

  • White (Traffic) RAL 9016
  • Black (Matt) RAL 9005

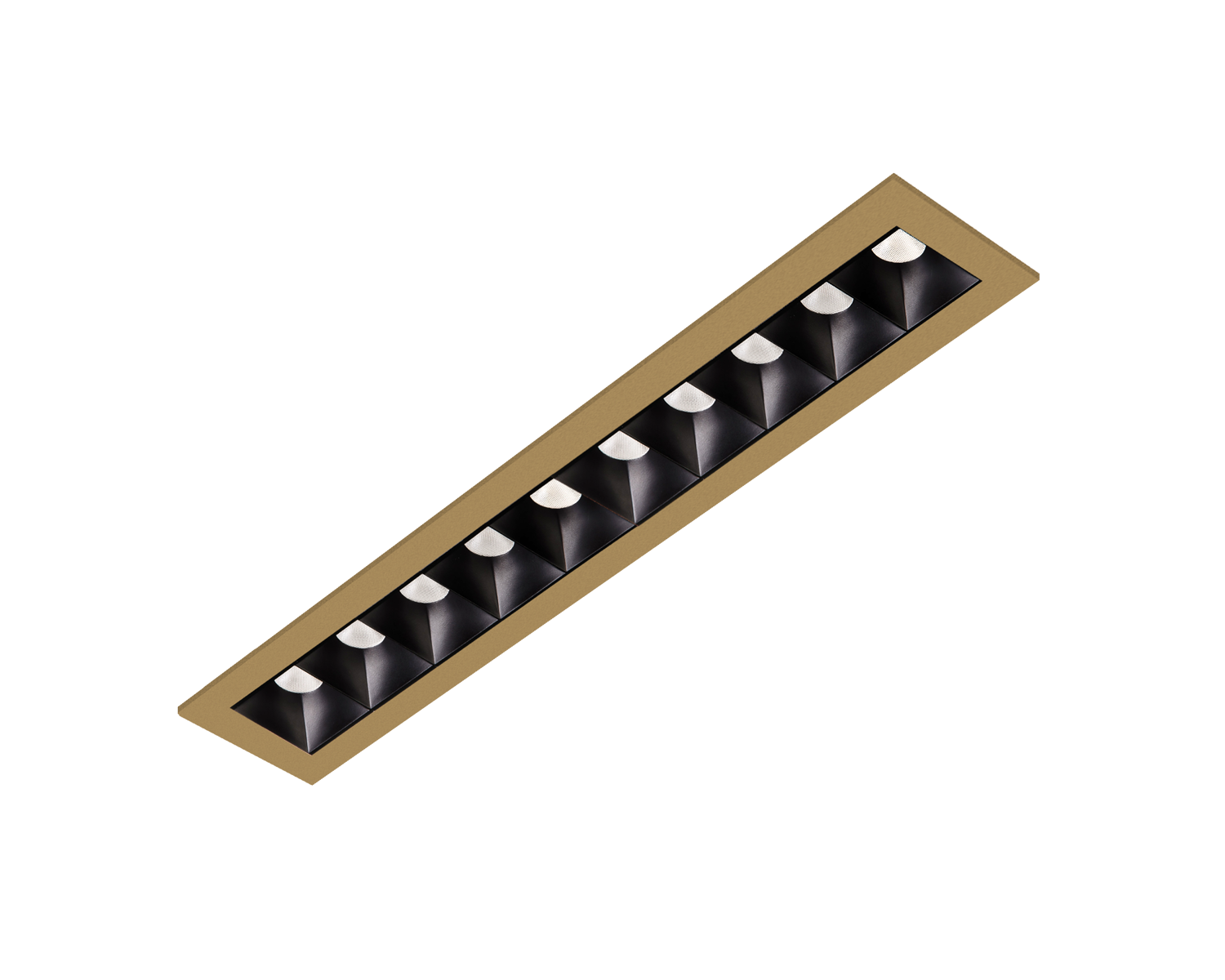

  • Gold

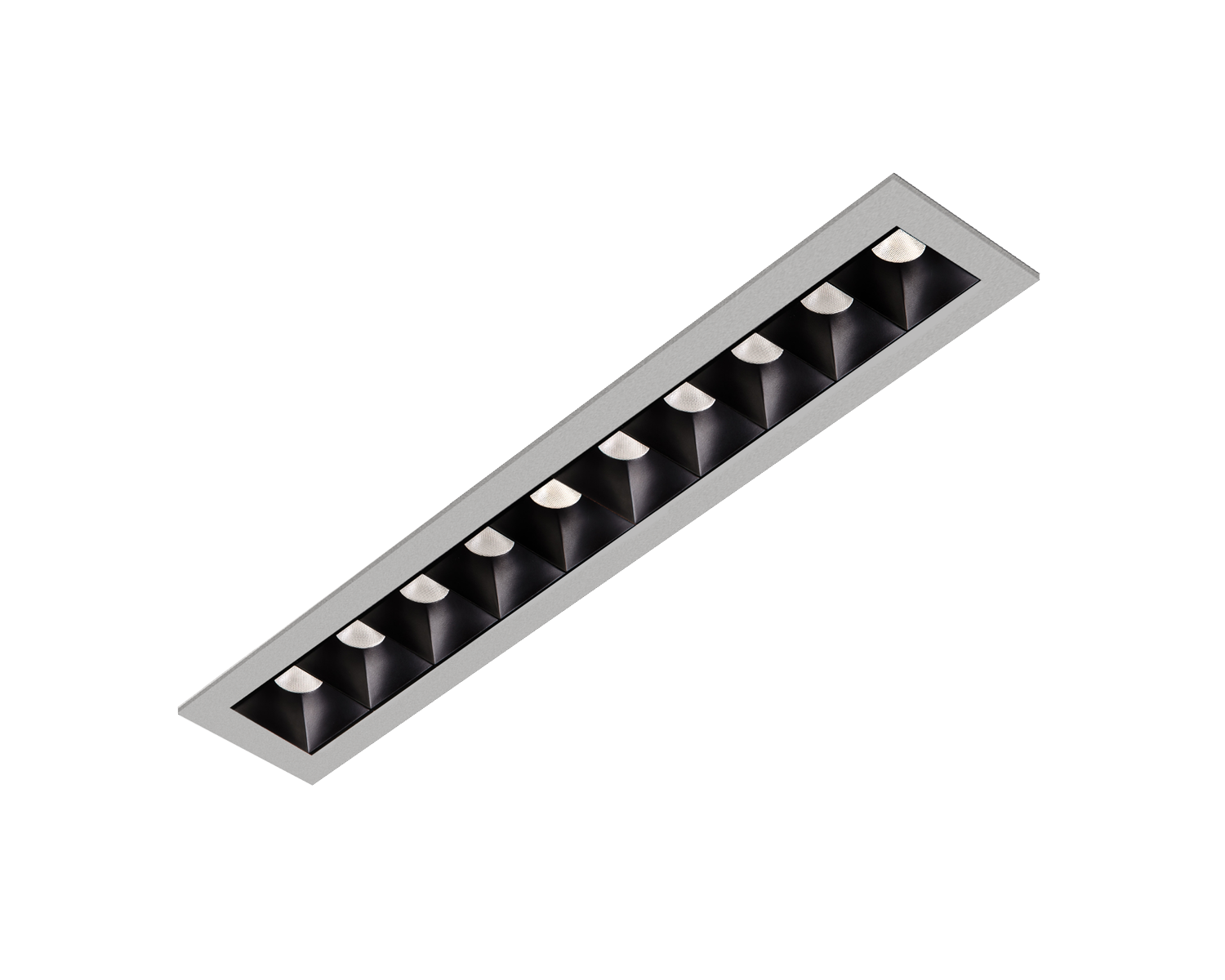

  • Grey
  • Custom

*Please Note: Custom bezel finishes available - contact sales

  • Bezel: Die Cast Aluminium
  • Heat Sink: Extruded Aluminium
  • Reflector: Plastic
Sizes
  • 175 (L) x 50 (W) x 62 (D) mm
    Cutout: 166 x 41 mm, Weight: 0.4kg, X5 LED heads
  • 330 (L) x 50 (W) x 62 (D) mm
    Cutout: 323 x 41 mm, Weight: 0.7kg, X10 LED heads

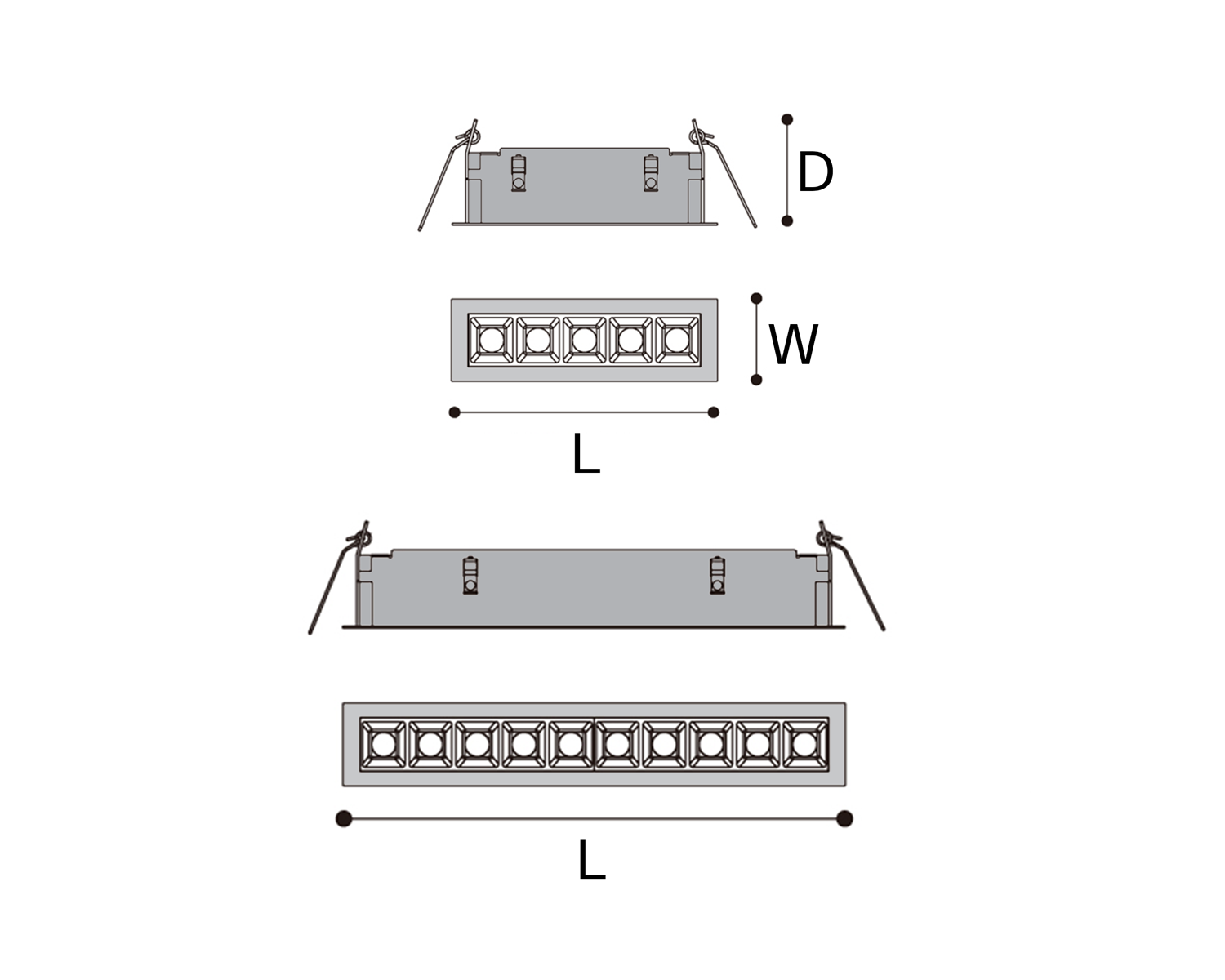

Technical Drawing
  • Source Info Samsung high power, high efficiency LED's
  • Lumens (delivered) 525Lm, 1049Lm, 2099Lm
  • Circuit Watts 7cW, 14cW, 23cW
  • Efficacy up to 91Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI90

Options.

Baffle

  • White
  • Black
  • Gold
  • Custom RAL

Beam Angle

  • 10° Beam Angle
  • 15° Beam Angle
  • 35° Beam Angle
  • 50° Beam Angle

IP Rating (optional)

  • IP65

    Only available in X5 LED heads
