Lexi

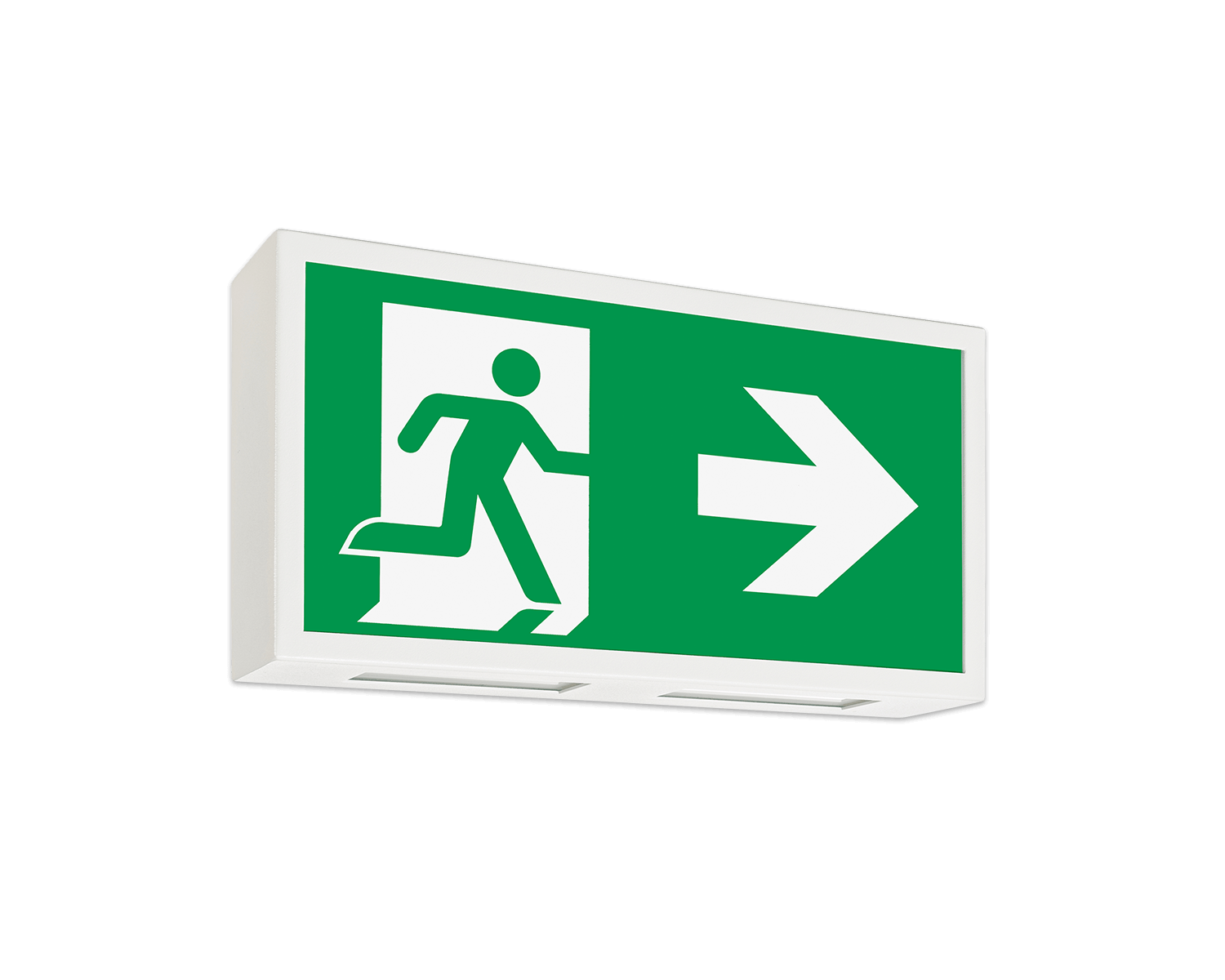

Small box exit sign for surface mounting

Product Overview

✔ Robust emergency Exit sign for commercial applications

✔ Ideal for back of house areas

✔ Sheet steel, housing, powder coated white

✔ Many accessories available including wall bracket, wire guard, cable sets, chain suspension set or central pendulum in a choice of lengths

✔ In compliance with DIN EN 60598-1/2-22 and DIN EN 1838

✔ DALI option to special order

✔ Suitable for Corridor lighting, Commercial, Education, Hospitality, Office, Retail, Leisure, Stairs

Finishes / Material
  • Black (Matt) RAL 9005
  • White (Traffic) RAL 9016
  • Custom
  • Body: Steel
    Sheet Steel
  • Pane: Acrylic
Sizes
  • 265 (W) x 143 (H) x 60 (D) mm
    Viewing Distance: 23m
  • 334 (W) x 177 (H) x 60 (D) mm
    Viewing Distance: 30m

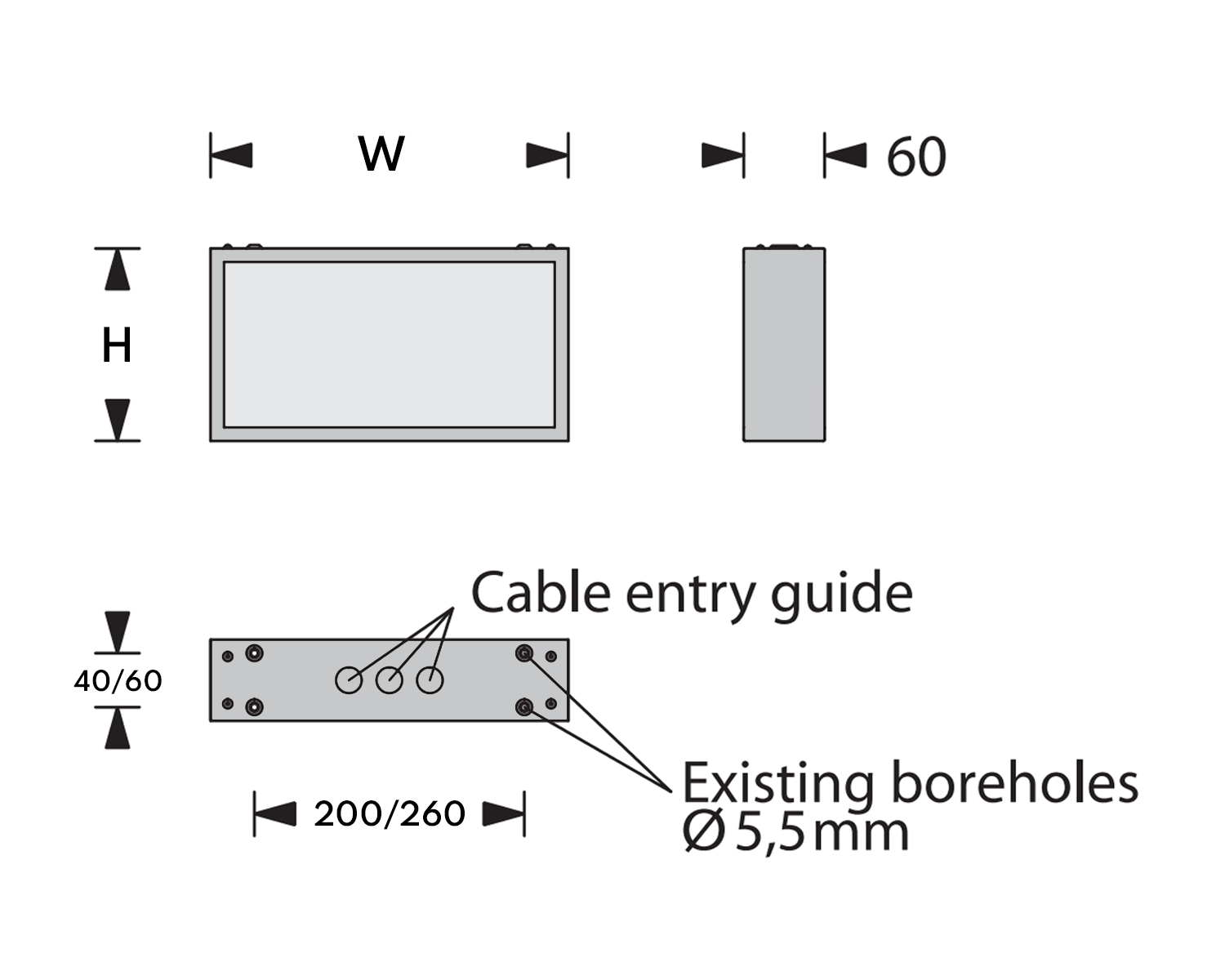

Technical Drawing
  • Source Info Tier 1 LED
  • Lumens (delivered) 260Lm, 350Lm
  • Circuit Watts 2cW, 3cW
  • Efficacy up to 130Lm/cW

Options.

Emergency Type

  • Maintained / Non-Maintained (Self Contained)
  • Self -Test (Self Contained)
  • DALI (Self Contained)

    To special order

Mount Type

  • Wall Mounted
  • Ceiling Mounted
  • Suspension wire (2.5m)
  • Suspension wire (7.5m)
  • Rod Mount Kit (1m)
  • Rod Mount Kit (0.3m)
  • Rod Mount Kit (0.5m)

Exit Legend

  • Exit Legend (Left)
  • Exit Legend (Right)
  • Exit Legend (Up)
  • Exit Legend (Down)

Additional Legend (optional)

*Please Note: For applications where the back is visable
  • Exit Legend (Left)
  • Exit Legend (Right)
  • Exit Legend (Up)
  • Exit Legend (Down)
  • Exit Legend (Blind)

Additional Information.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
