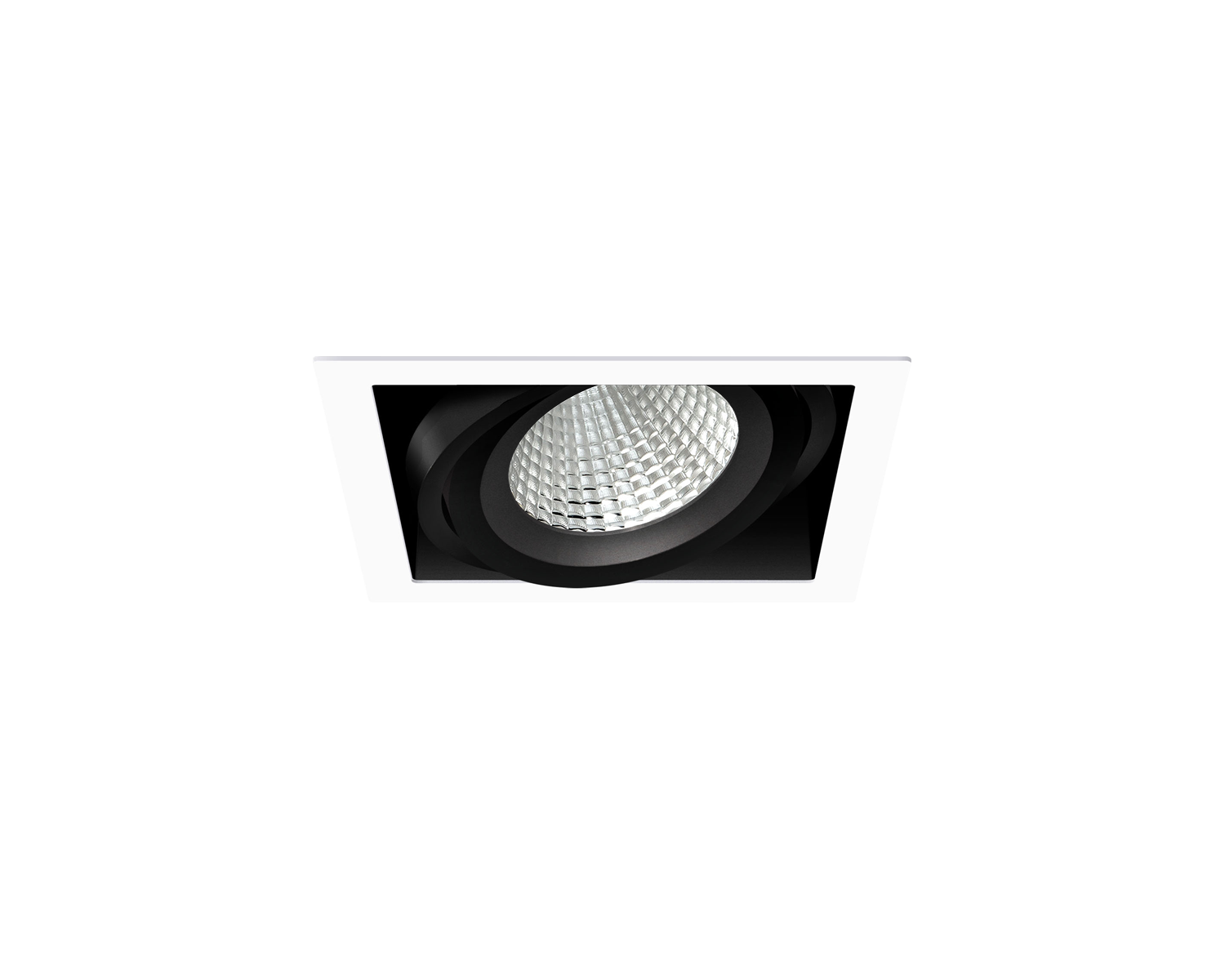

Arlo H21

Adjustable architectural square darklight downlight

Product Overview

✔ High performance, energy efficient LED gimbal spotlight

✔ Designed specifically for retail, gallery and leisure applications

✔ Fully adjustable double gimbal rings for precise aiming

✔ A choice of reflectors and lumen outputs can be specified

✔ Discreet minimal bezel, available in a choice of colours

✔ Gimbal rings can be body coloured or matt black for a more discreet aesthetic

✔ Deep seated Tridonic Chip-on-board LED module for optimum longevity and low glare

✔ CRI90+ option available for Gallery and high-end retail applications

✔ Tridonic driver - dimmable versions available including Bluetooth

✔ Emergency options possible

✔ Twin, triple and trimless versions complete the range

✔ Suitable for Commercial, Hospitality, Office, Retail, Gallery/Museum, Leisure

Finishes / Material
  • White (Signal) RAL 9003
  • Black (Matt) RAL 9005
  • Custom
    On special request
  • Body: Die Cast Aluminium
  • Bezel: Die Cast Aluminium
Sizes

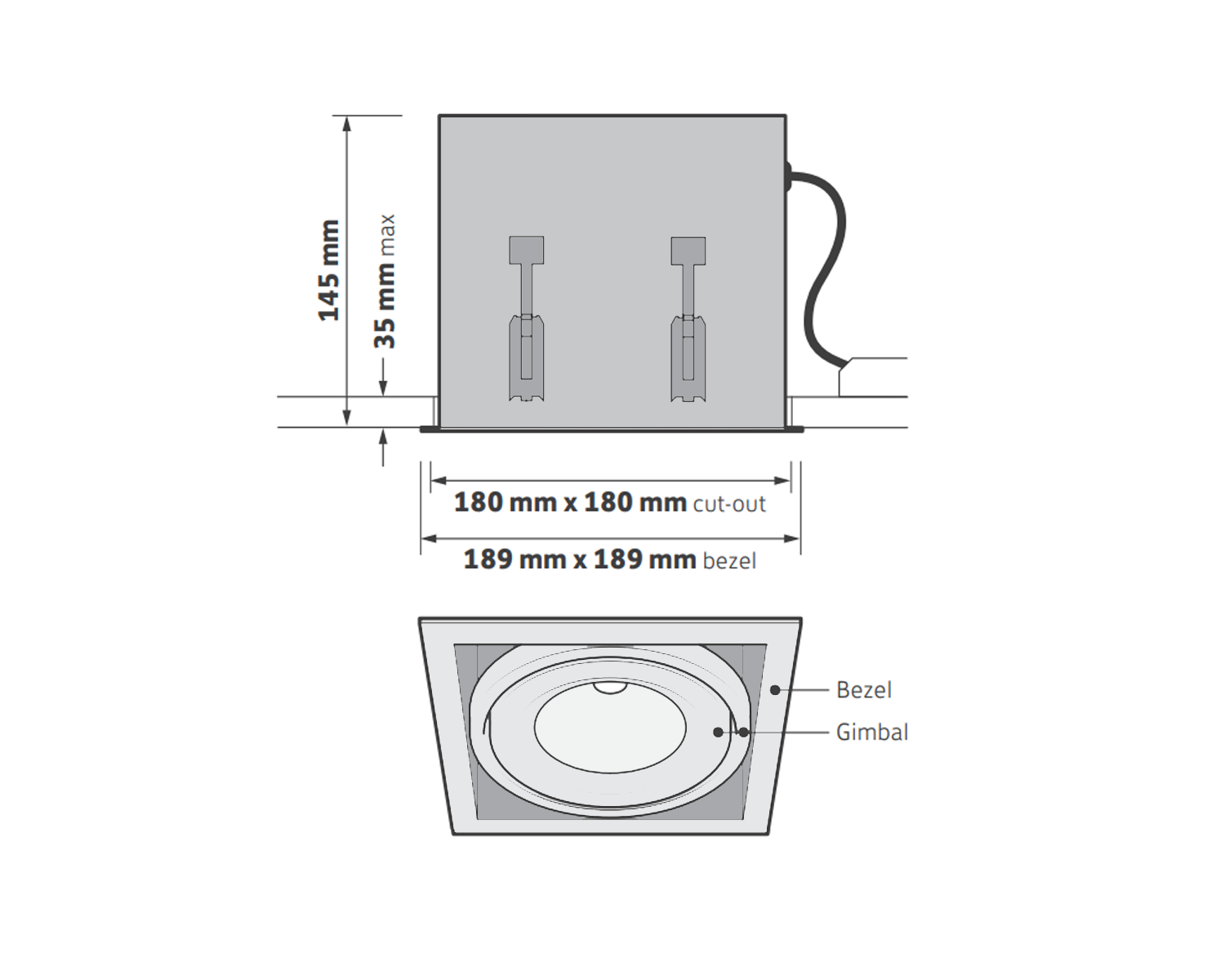

  • 189 (L) x 189 (W) x 145 (D) mm
    Cutout: 180 x 180 mm, Weight: 1.2kg
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 1055Lm - 3252Lm
  • Circuit Watts 8cW - 28cW
  • Efficacy up to 131Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80 / CRI90

Options.

Gimbal Finish

  • Black
  • White
  • Custom Finish (RAL TBC)

    On special request

Beam Angle

  • 25° Beam Angle

    Multi-faceted reflector

  • 40° Beam Angle

    Multi-faceted reflector

  • 40° Beam Angle

    Specular reflector

  • 50° Beam Angle

    Satin reflector

  • 60° Beam Angle

    Multi-faceted reflector

Snoot (optional)

  • Snoot

    Black

Additional Information.
