Ribbon Horizontal Bend

High Efficacy, horizontal bend IP rated, miniature flexible tape light

Product Overview

✔ Miniature solution, ideal for direct lighting (i.e. bends and curves)

✔ High efficacy version available

✔ Constant Current for long length applications up to 20m

✔ Homogeneous light distribution

✔ Resistant to salt water & solvents

✔ Injection moulded end caps

✔ UV Protection

✔ LM80 Standard

✔ IP67 as standard

✔ Fixing and mounting profiles available

✔ Suitable for Hospitality, Retail, Commercial, Gallery/Museum, Residential, Parks & Gardens

Material
  • Body: Silicone
Sizes
  • (L) XM
    12mm width
  • (L) XM
    16mm width

*Please Note: Made to measure lengths - Contact sales to order

  • Source Info Tier 1 LED
  • Cut points 50mm
  • Lumens (delivered per metre) 310Lm - 1050Lm
  • Wattage (per Metre) 5W, 10W, 15W
  • Efficacy up to 76Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 2700K / 3000K / 4000K / 6000K
  • Colour Rendering CRI90

Options.

Cable Entry

  • Cable entry: Front

    Injection moulded end caps

  • Cable entry: Bottom

    Injection moulded end caps

  • Cable entry: Side

    Injection moulded end caps

Cable Length

  • Power cable length (0.3m)

    Standard

  • Power cable length (2m)

    Cut on site

Additional Information.

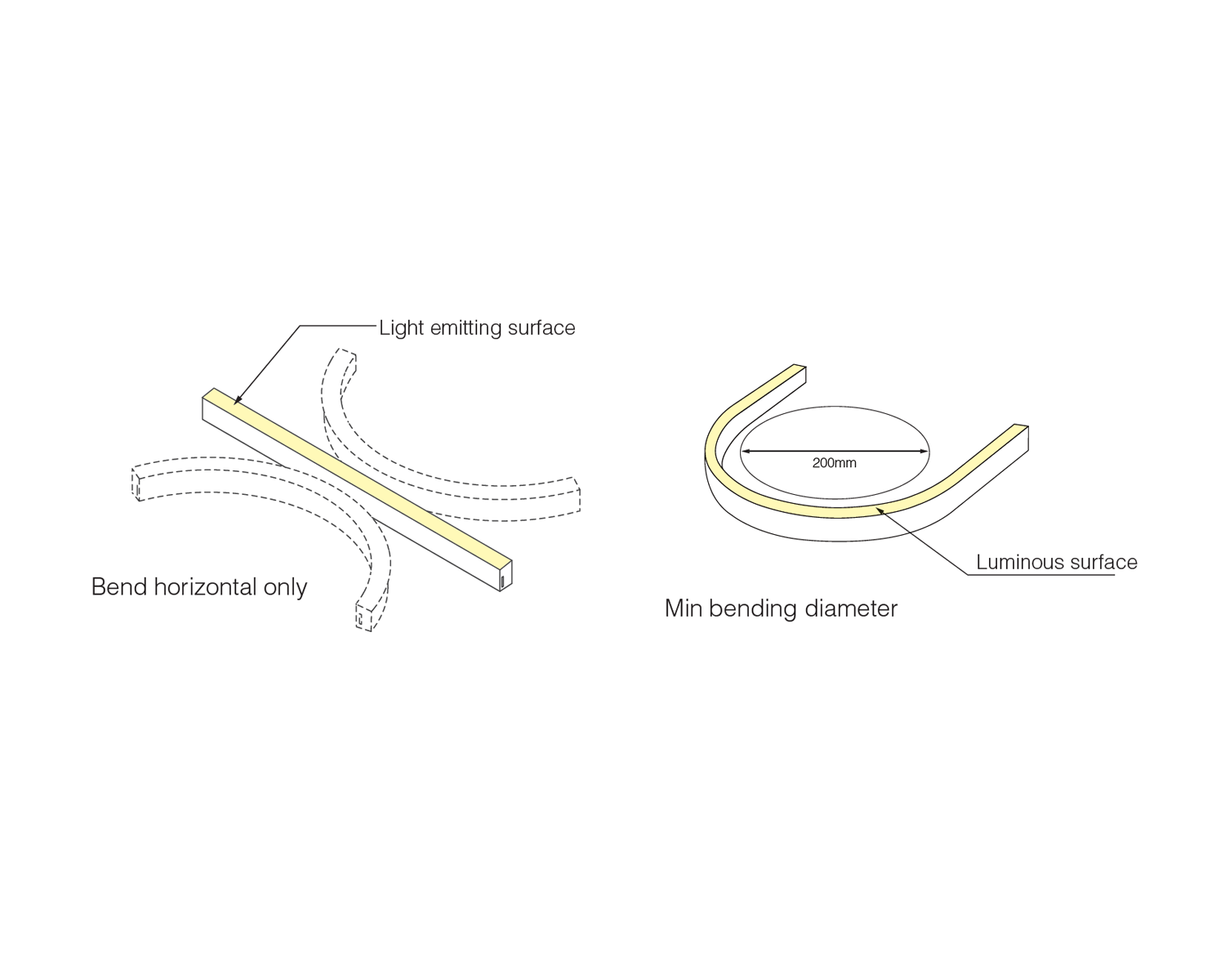

Ribbon HB is a type of side view bendy, waterproof flexible LED tape light which is far more flexible that traditional LED strip lighting. Ribbon HB is a silicone IP67 rated LED tape light which bends horizontally. This waterproof tape light can be used on buildings outdoors for high quality architectural outdoor feature lighting.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
