Amara U - Universal Ceiling / Wall universal mount cylinder exit sign

Amara Ceiling / Wall

Architectural cylindrical exit sign for ceiling or wall mounting

Product Overview

✔ Universal Exit sign fixing for ceiling or wall mounting by simply rotating the upper body

✔ High quality architectural exit sign with minimal dimensions

✔ Constructed of silver anodised extruded aluminium

✔ Includes 10mm polished edge acrylic pane

✔ In compliance with BS EN 60598-1/2-22 and BS EN 1838

✔ Complimentary pendant version available

✔ Suitable for Corridor lighting, Commercial, Hospitality, Office, Retail, Gallery/Museum, Leisure, Stairs

Material

Body: Extruded Aluminium
Silver Anodized
Pane: Acrylic

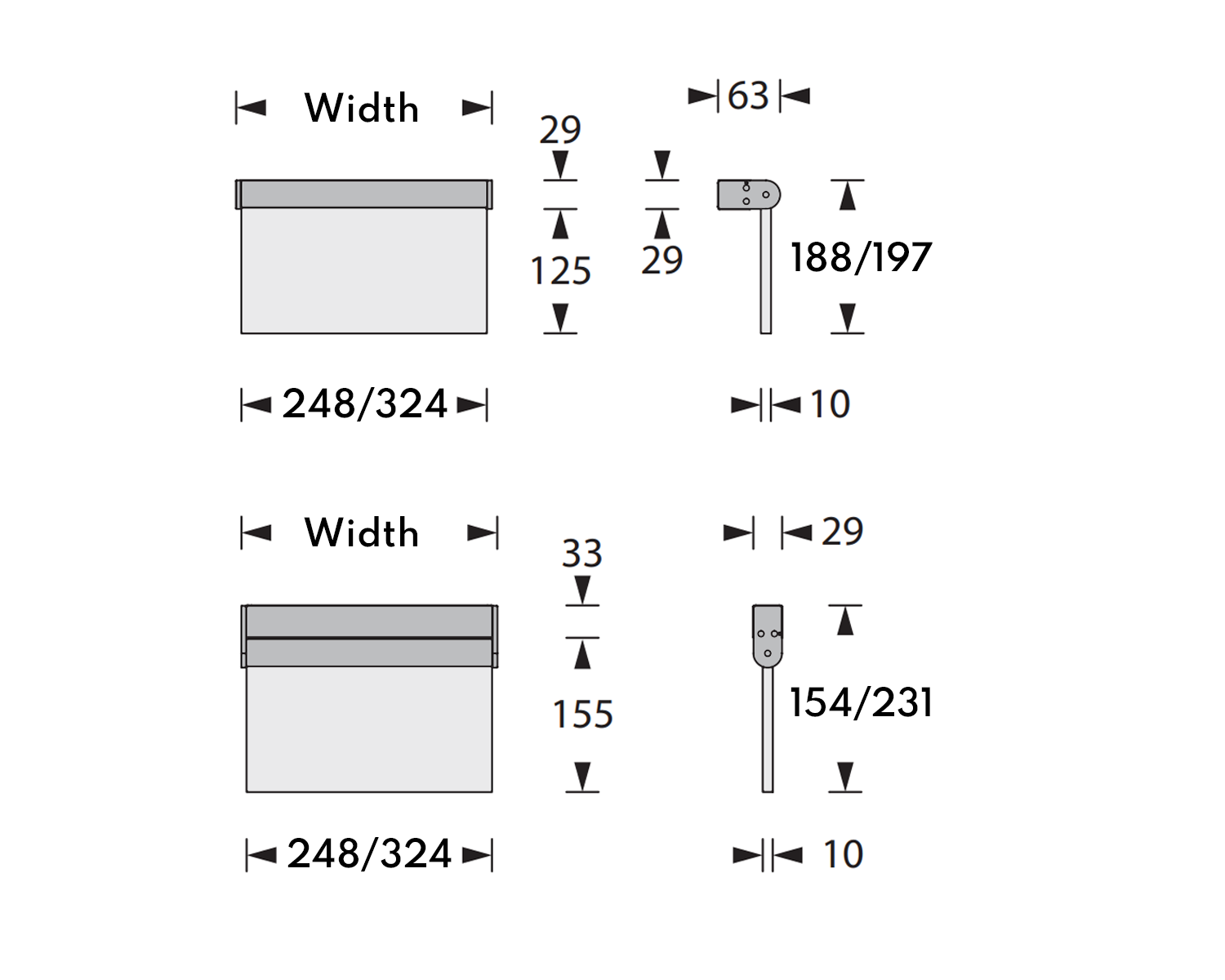

Sizes

258 (W) mm
Viewing Distance: 23m, Height and Depth varies on mounting
334 (W) mm
Viewing Distance: 30m, Height and Depth varies on mounting

Source Info Tier 1 LED-Bar
Lumens (delivered) 260Lm, 350Lm
Watts 2W, 3W
Efficacy up to 130Lm/cW

Emergency Duration 3 Hours
Mounting Ceiling / Wall
Base IP Rating IP40
Safety Class I
Voltage 230V, 50/60Hz
Power Factor 0.6
Temp Range -05°C to +30°C (Maintained Mode)
Connecting Terminals 3 x 2,5 mm2 for double assignment
Lifetime 50,000hr (L70/B10)
Warranty 3 years (Battery life excluded from product warranty)
Compliance DIN EN 60598-1/2-22 and DIN EN 1838
Additional 5.5VA Power consumption

Datasheet (Custom)
Configure to Download
Images
Download

Options.

Emergency Type

Maintained / Non-Maintained (Self Contained)
Self -Test (Self Contained)
DALI (Self Contained)

Legend

Exit Legend Kit

Left, Right, Down, Blind
Exit Legend (Up)

Additional Legend (optional)

*Please Note: For double sided applications or spares

Exit Legend (Right)
Exit Legend (Left)
Exit Legend (Down)
Exit Legend (Up)

Additional Information.

Amara is a high quality ceiling or wall mounted cylindrical exit sign. This modern exit sign with anodised silver aluminium tube is perfect for hotel or retail emergency lighting where aesthetics are important. Amara is a collection of high end, high quality Architectural Emergency Lights with a cylindrical look. If you are looking for a ceiling or wall mounted cylinder architectural exit sign then this silver anodized exit sign would be a great choice.
