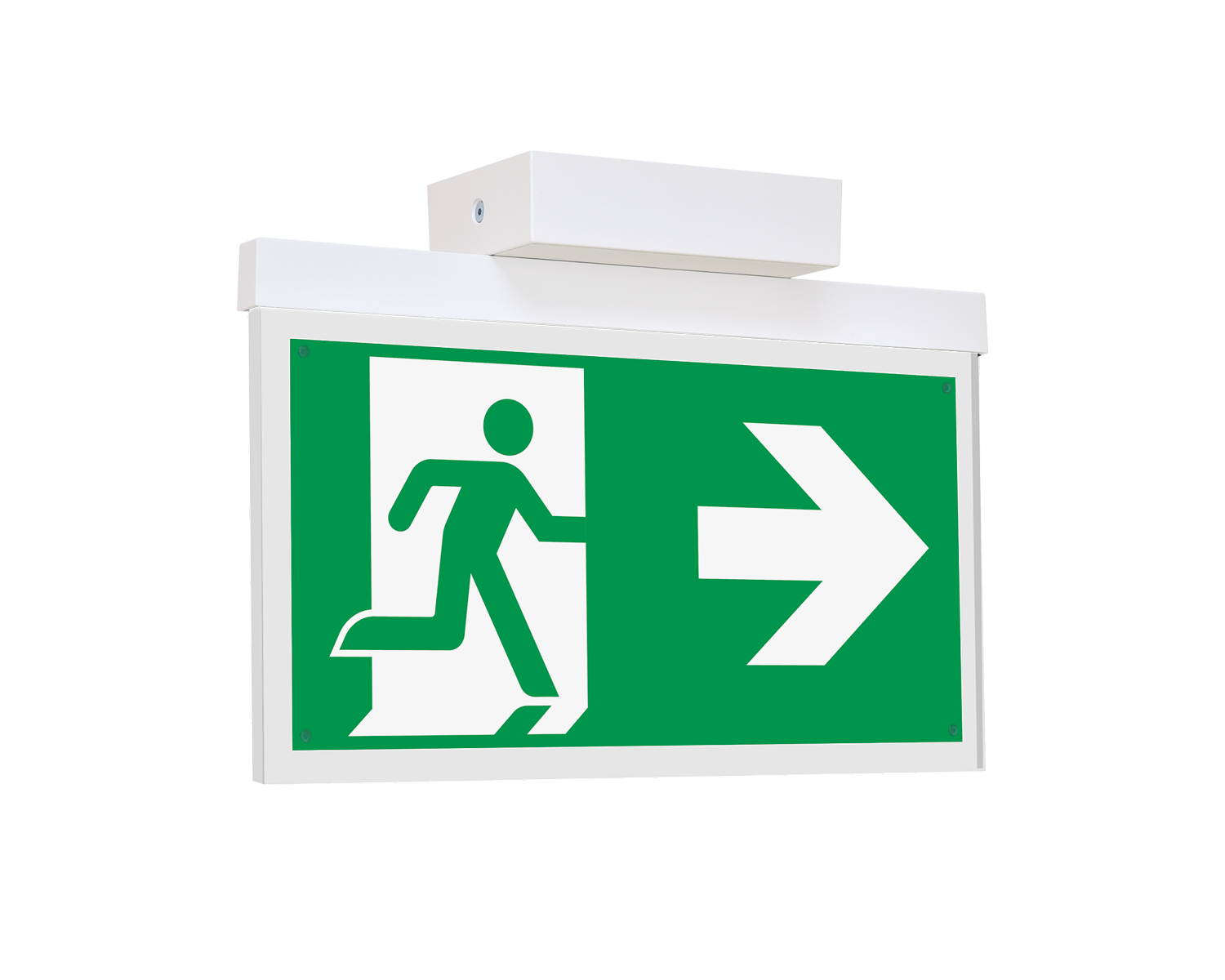

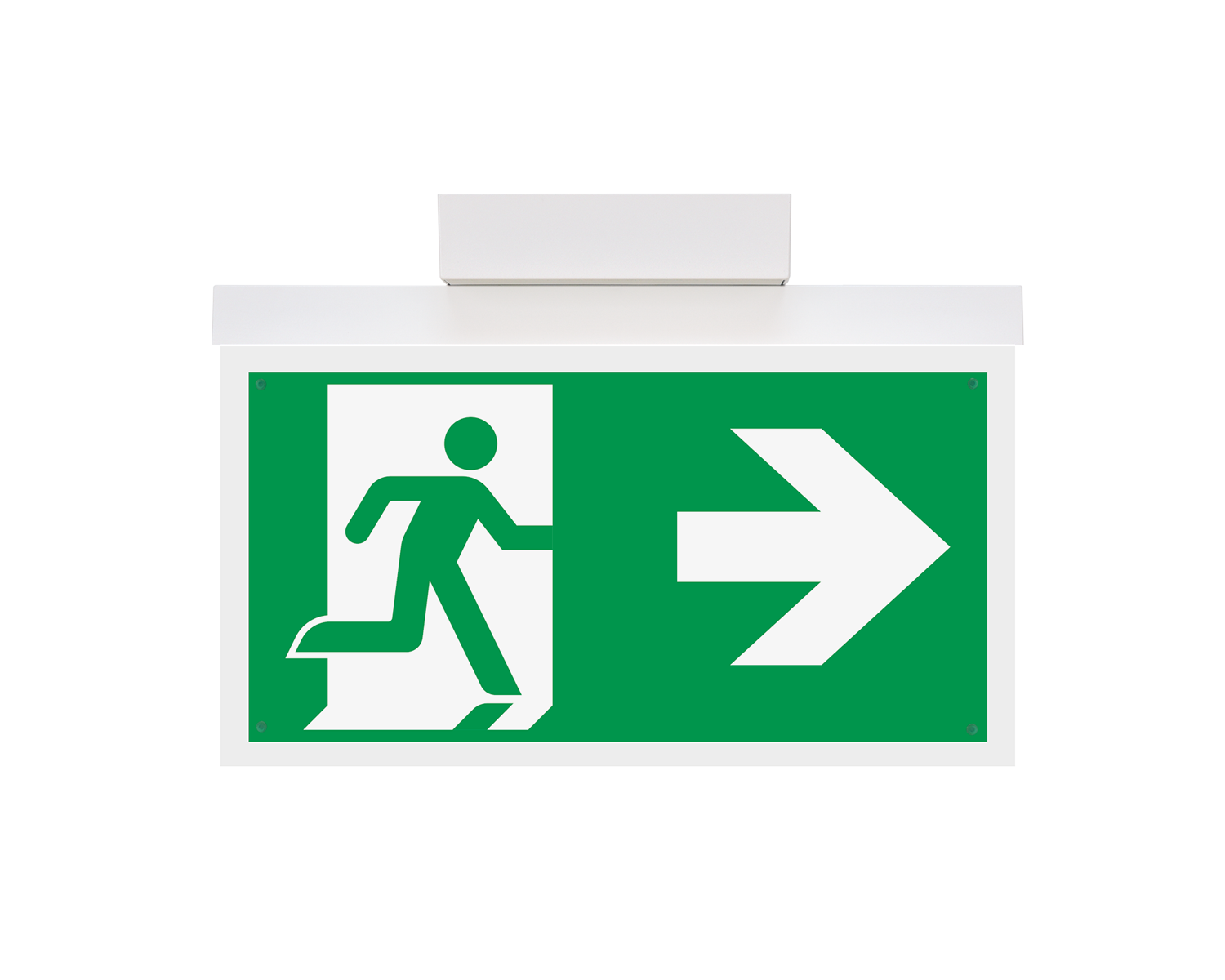

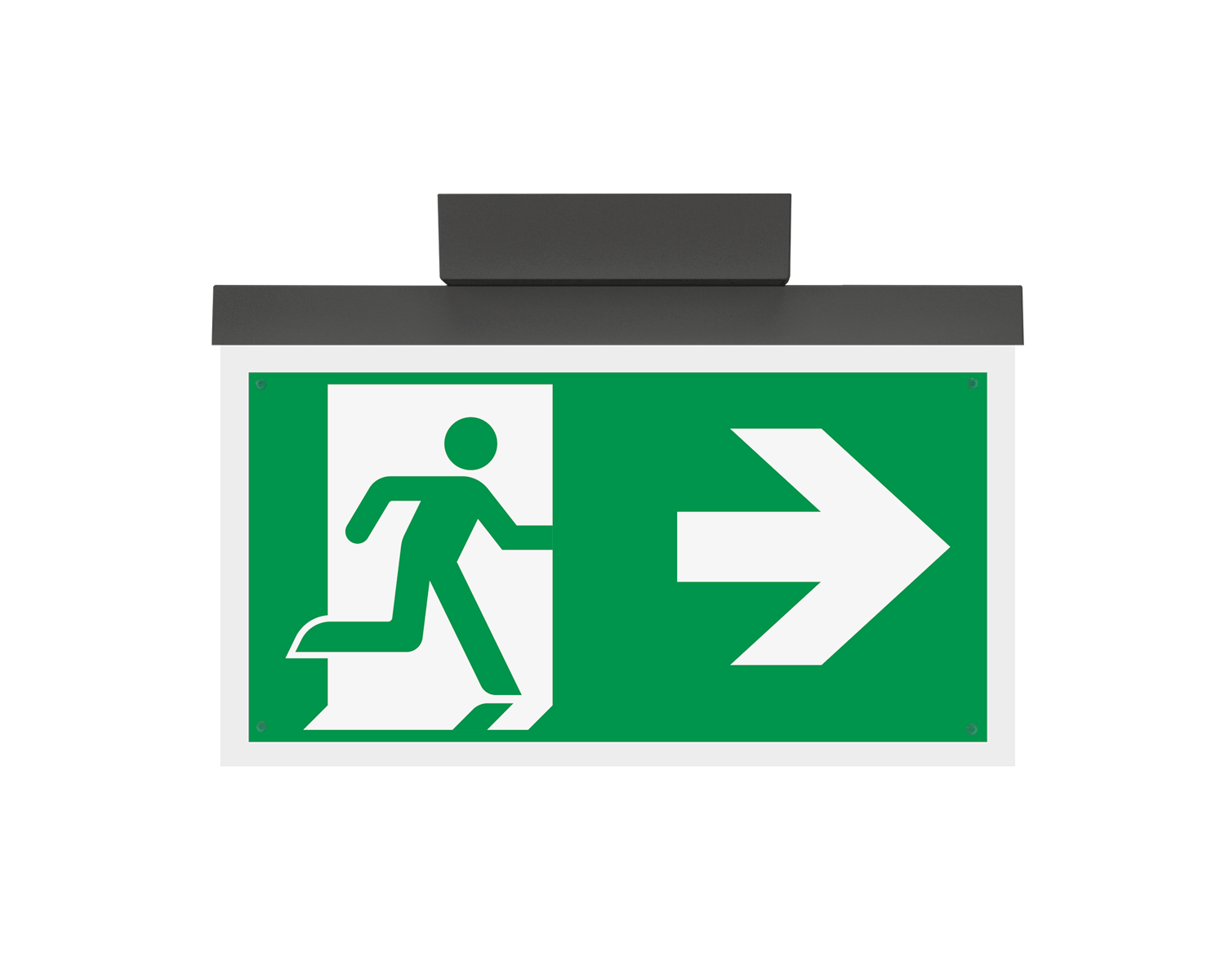

Ezra U30

Universal slim architectural exit sign suitable for ceiling or wall surface mounting

Product Overview

✔ Elegant and modern exit sign with narrow body and slim design

✔ Universal mount design - simply remount the spine for ceiling or wall mounting

✔ Produced from die-cast aluminium

✔ Black, White or special finishes available

✔ 10mm acrylic pane illuminated with a 1 watt LED-bar

✔ In compliance with DIN EN 60598-1/2-22 and DIN EN 1838

✔ Suitable for Corridor lighting, Commercial, Hospitality, Office, Retail, Gallery/Museum, Leisure, Stairs

Finishes / Material

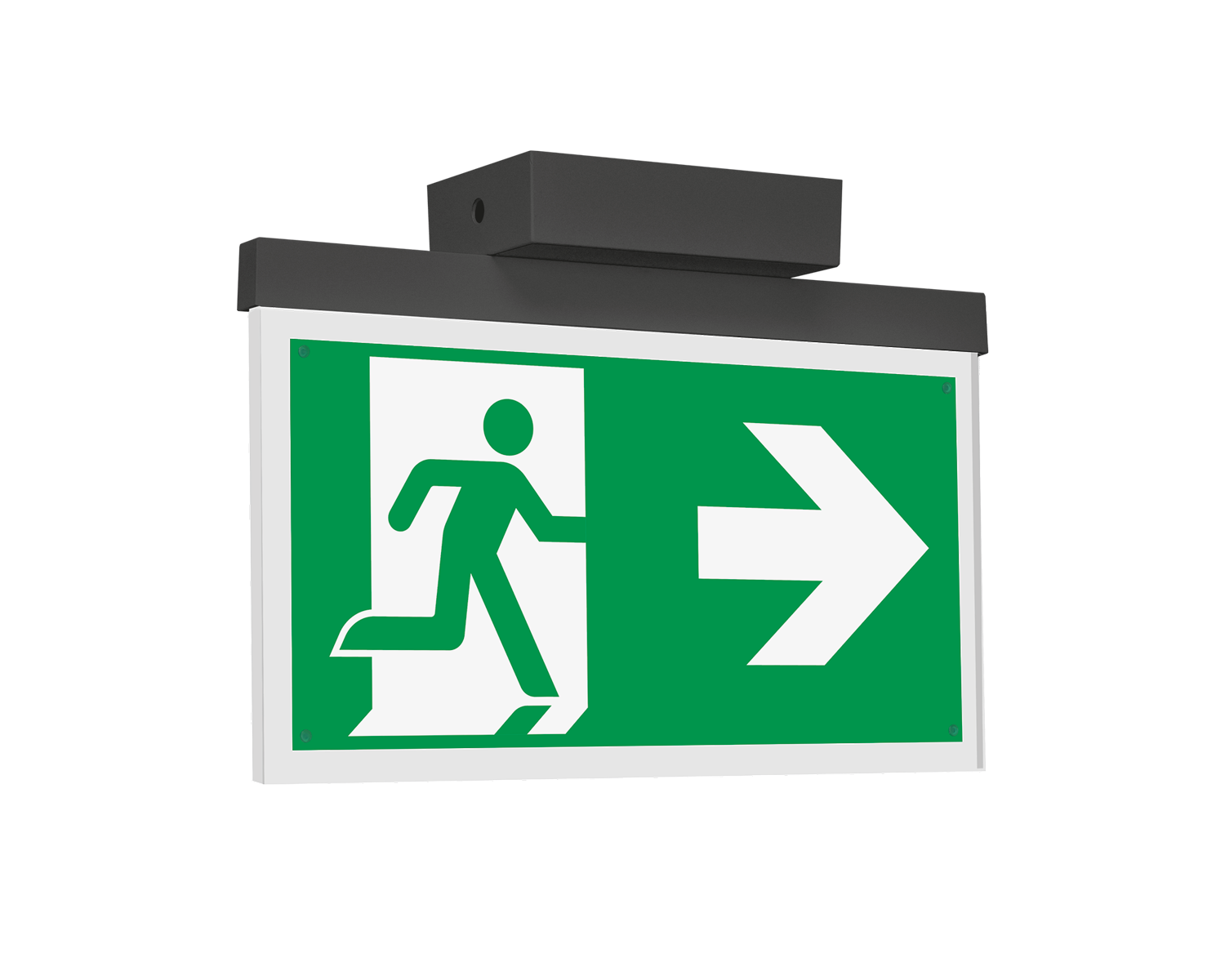

  • Black (Matt) RAL 9005
  • White (Traffic) RAL 9016
  • Custom
  • Body: Die Cast Aluminium
  • Pane: Acrylic
Sizes

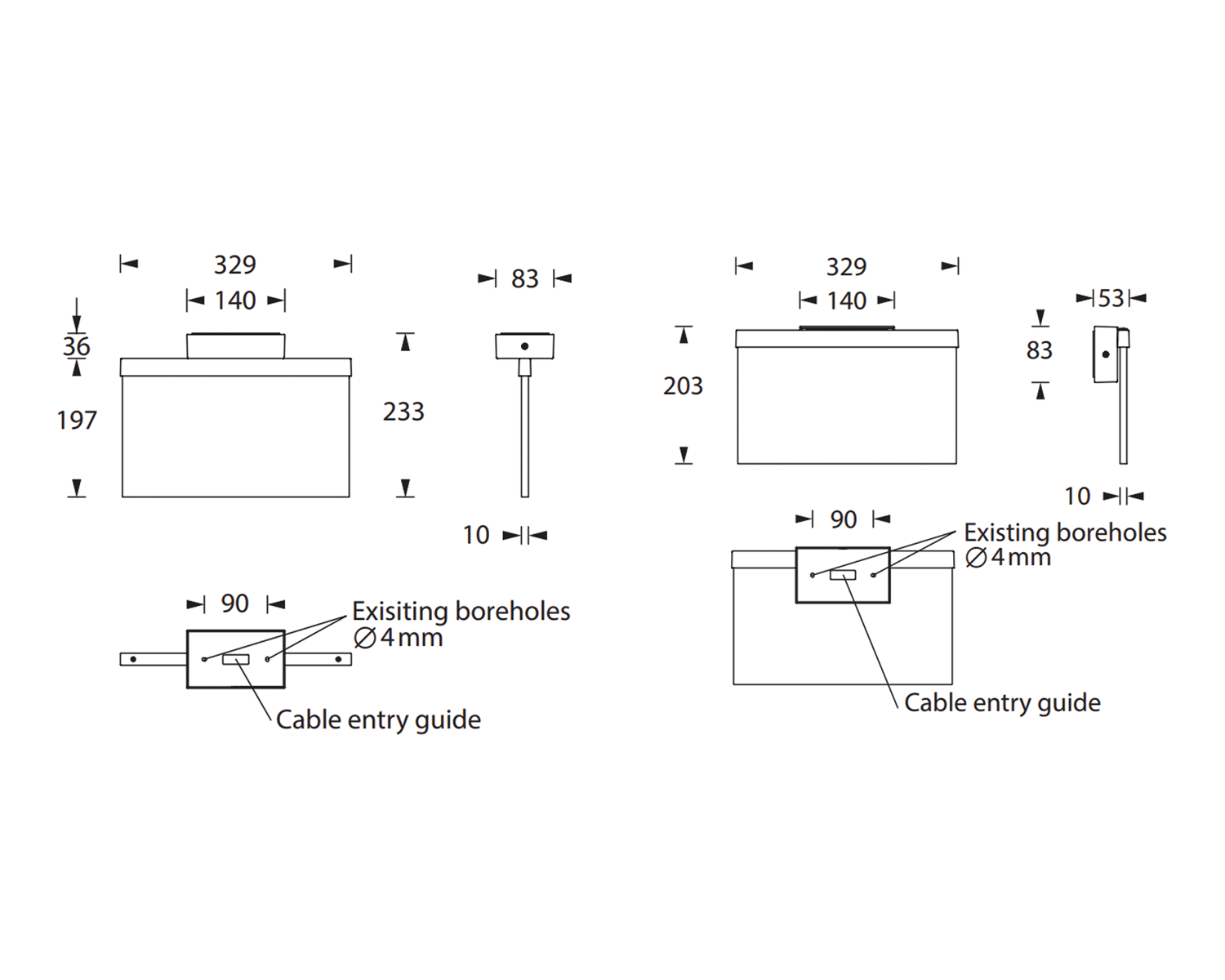

  • 329 (W) x 197 (H) x 83 (D) mm
    Viewing Distance: 30m, Height and Depth varies on mounting
  • Source Info Tier 1 LED
  • Lumens (delivered) 190Lm
  • Circuit Watts 1.5cW

Options.

Emergency Type

  • Maintained / Non-Maintained (Self Contained)
  • Self -Test (Self Contained)

Legend

  • Exit Legend Kit

    Left, Right, Down, Blind

  • Exit Legend (Up)
  • Exit Legend Kit (Vertical)

Additional Legend (optional)

*Please Note: For double sided applications or spares
  • Exit Legend (Right)
  • Exit Legend (Left)
  • Exit Legend (Down)
  • Exit Legend (Up)
  • Exit Legend Kit (Vertical)

Suspension Type (optional)

  • Suspension wire kit (1.5m)
  • Suspension wire kit (5m)
  • Suspension wire kit (10m)
  • Pattress - For surface conduit applications

    mini trunking applications

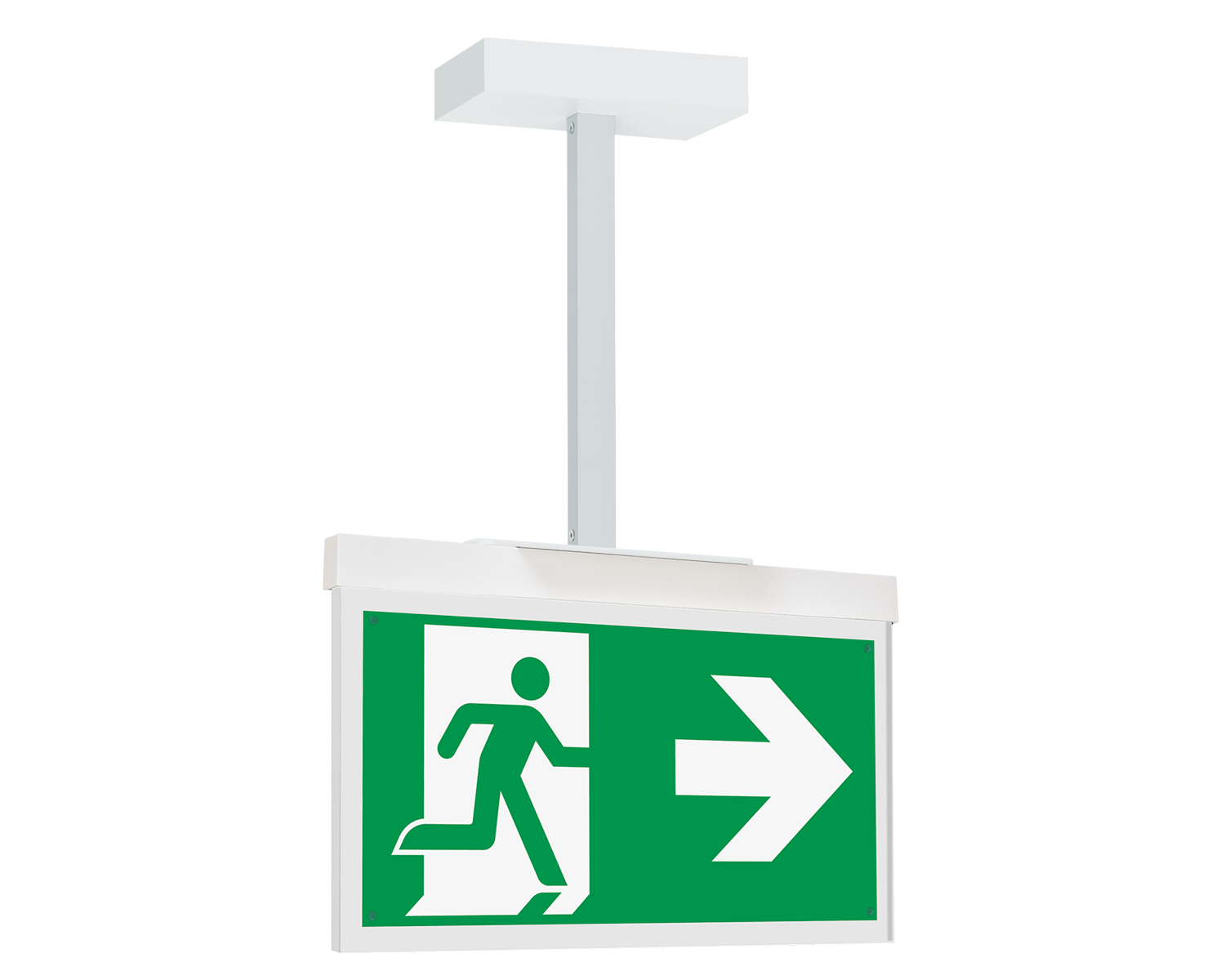

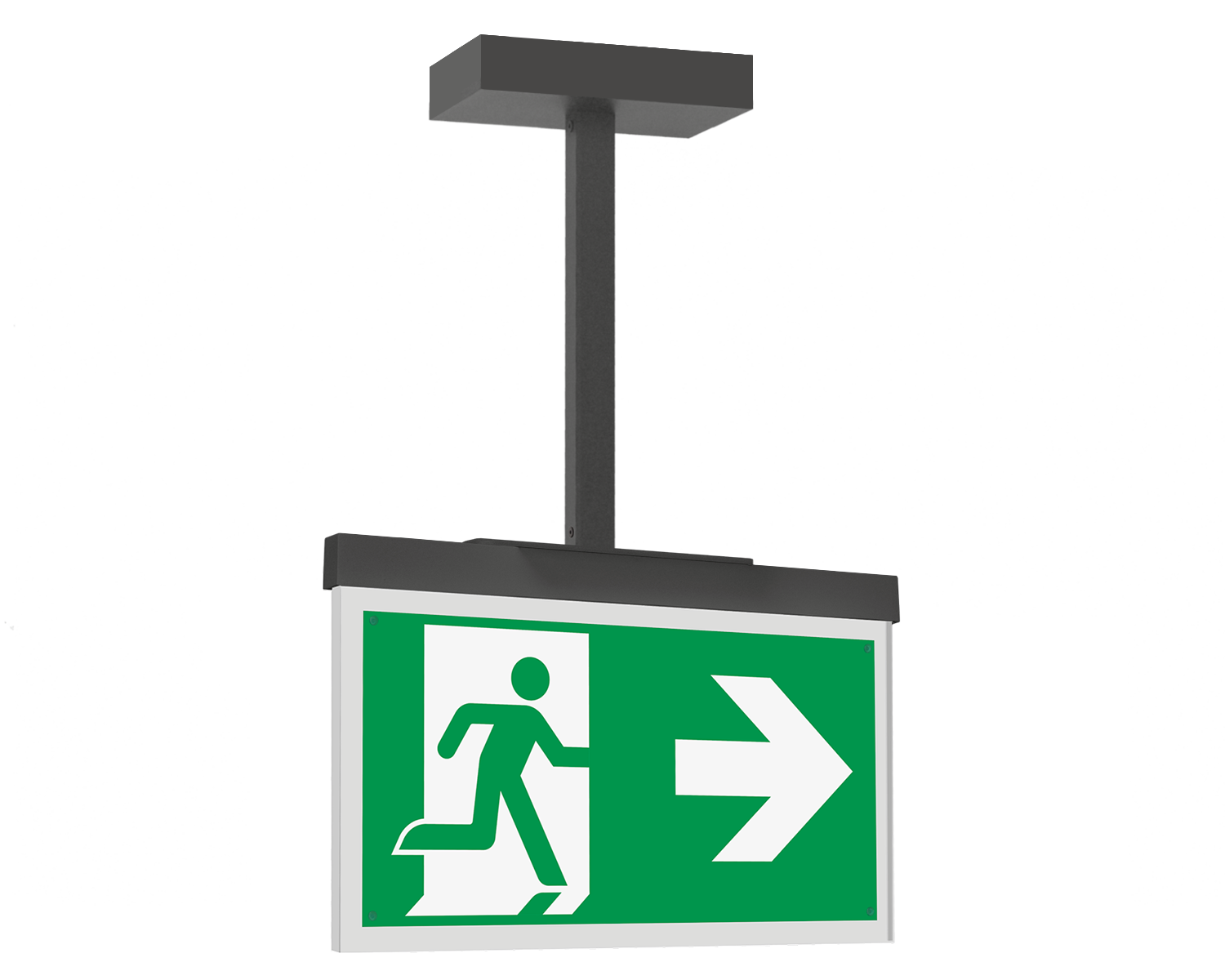

  • Rod Mount Kit (1m)
  • Rod Mount Kit (0.3m)
  • Rod Mount Kit (0.5m)
  • Rod Mount Kit (0.1m)

Additional Information.
