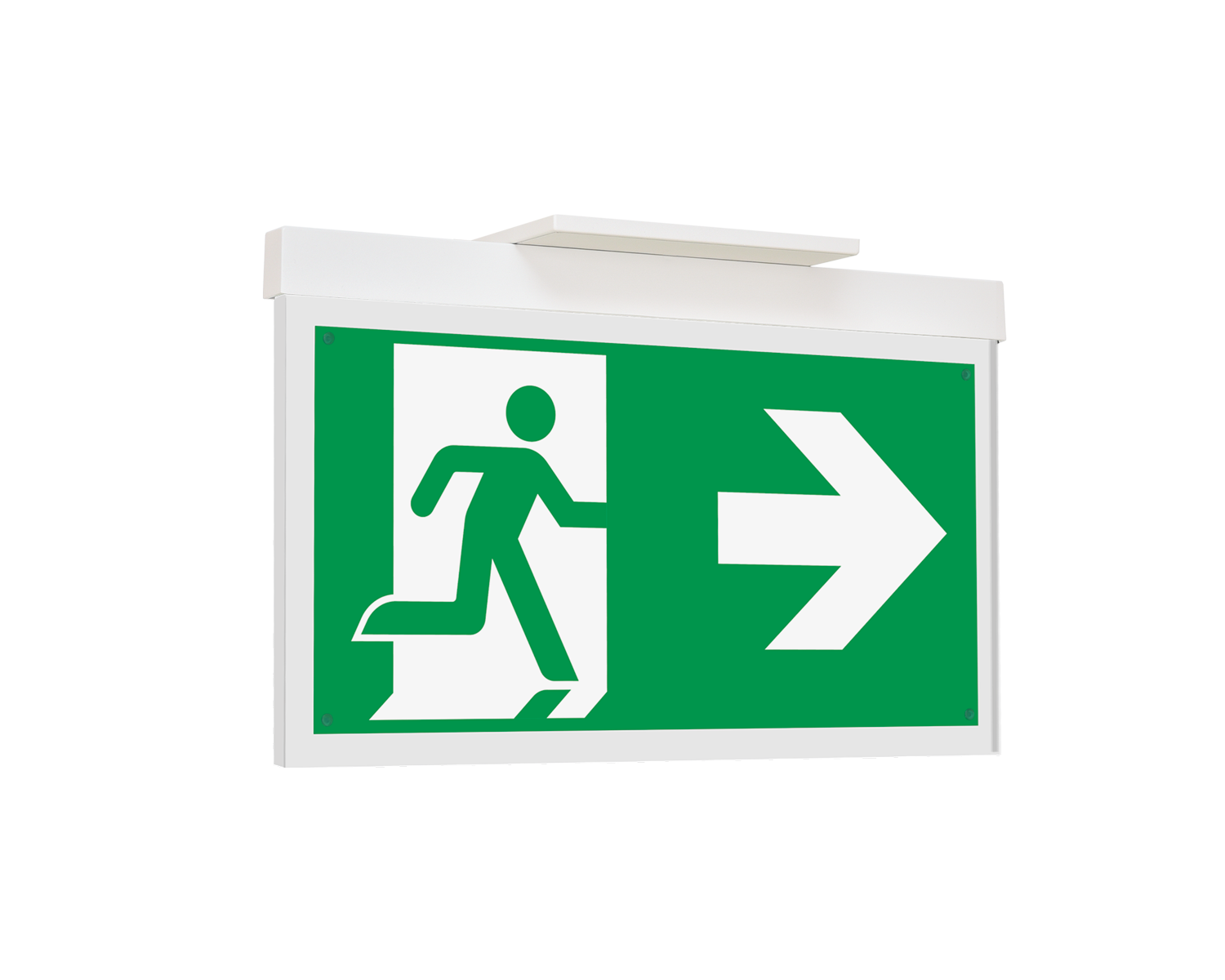

Ezra CR30

Ceiling recessed slim architectural exit sign

Product Overview

✔ Elegant and modern exit sign with narrow body and slim design

✔ Suitable for recessed ceiling mounting

✔ Produced from die-cast aluminium

✔ Black, White or special finishes available

✔ 10mm acrylic pane illuminated with a 1 watt LED-bar

✔ In compliance with DIN EN 60598-1/2-22 and DIN EN 1838

✔ Suitable for Corridor lighting, Commercial, Hospitality, Office, Retail, Gallery/Museum, Leisure, Stairs

Finishes / Material

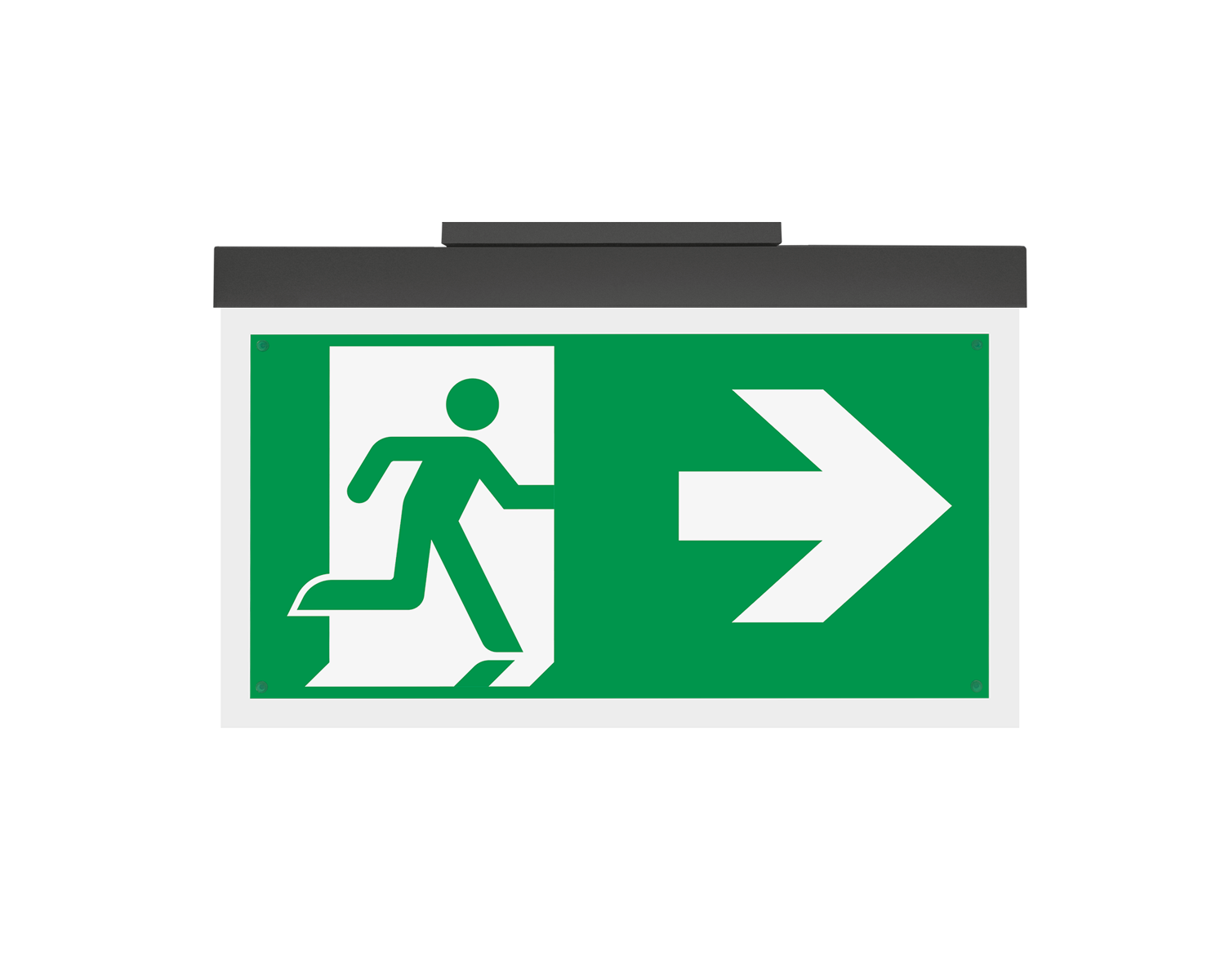

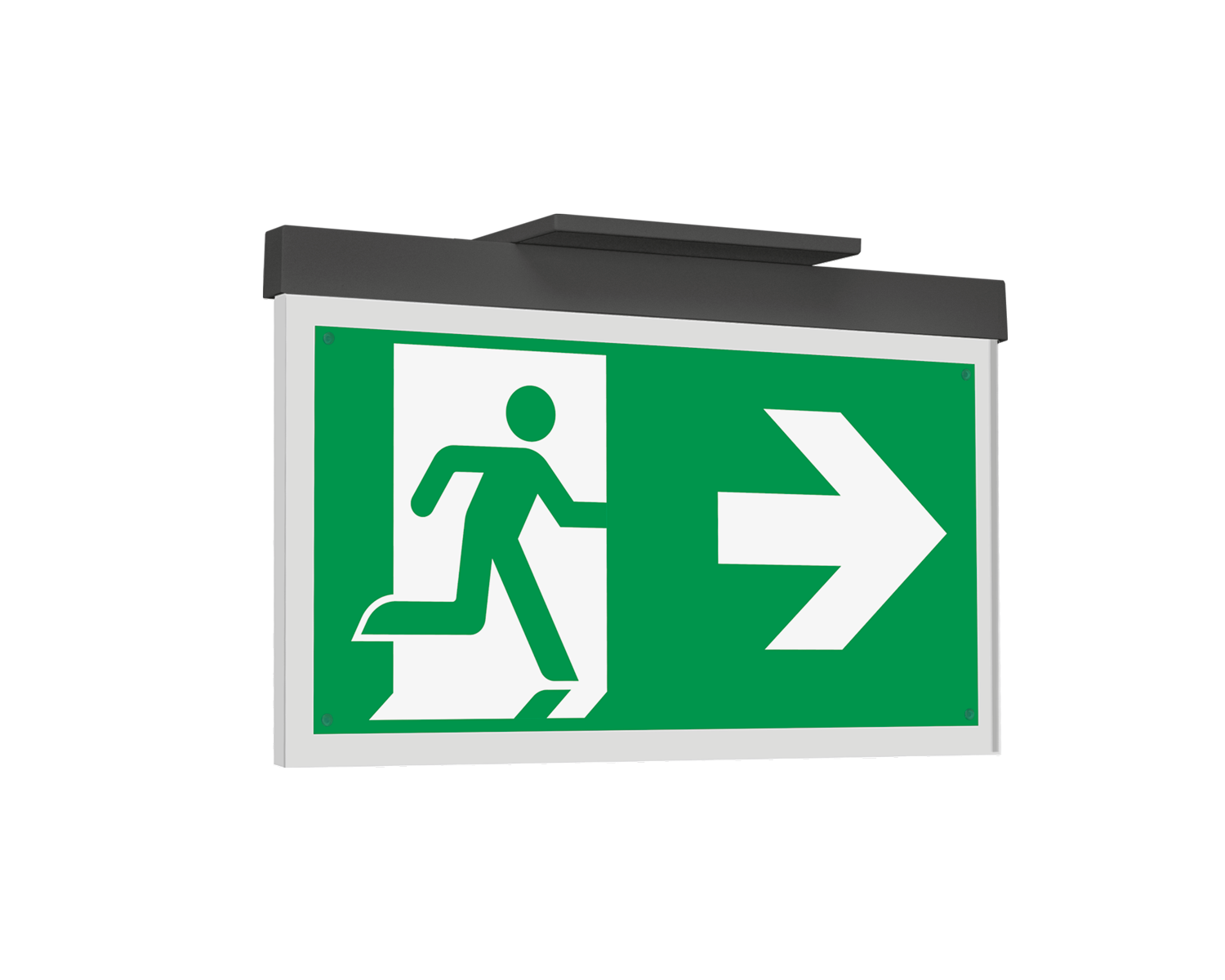

  • Black (Matt) RAL 9005

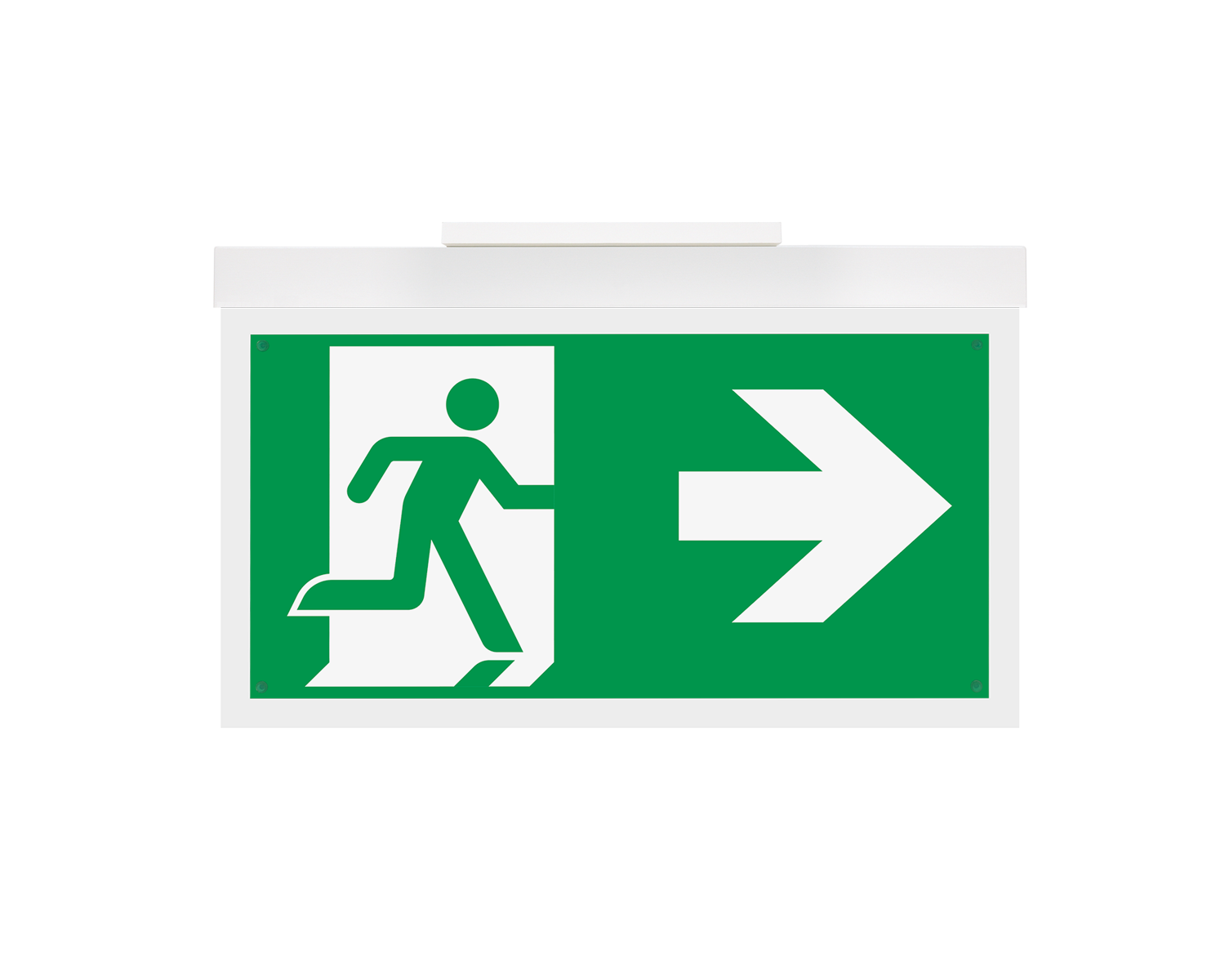

  • White (Traffic) RAL 9016
  • Custom
  • Body: Die Cast Aluminium
  • Pane: Acrylic
Sizes

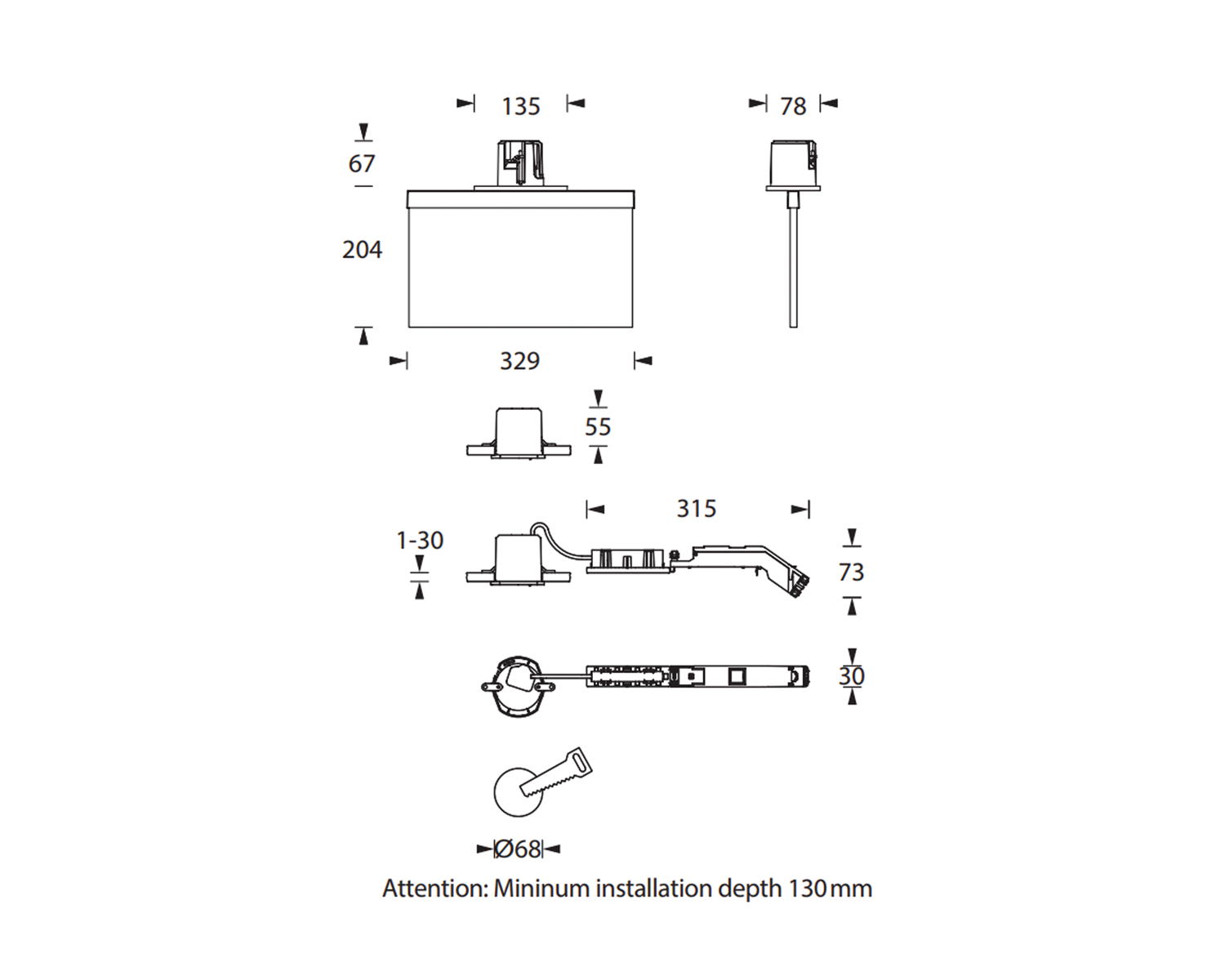

  • 329 (W) x 204 (H) x 78 (D) mm
    Cutout: 68 mm, Viewing Distance: 30m, Minimum installation depth 130mm
  • Source Info Tier 1 LED
  • Lumens (delivered) 190Lm
  • Circuit Watts 1.5cW

Options.

Emergency Type

  • Maintained / Non-Maintained (Self Contained)
  • Self -Test (Self Contained)

Legend

  • Exit Legend Kit

    Left, Right, Down, Blind

  • Exit Legend (Up)
  • Exit Legend Kit (Vertical)

Additional Legend (optional)

*Please Note: For double sided applications or spares
  • Exit Legend (Right)
  • Exit Legend (Left)
  • Exit Legend (Down)
  • Exit Legend (Up)
  • Exit Legend Kit (Vertical)

Suspension Type (optional)

  • Suspension wire kit (1.5m)
  • Suspension wire kit (5m)
  • Suspension wire kit (10m)

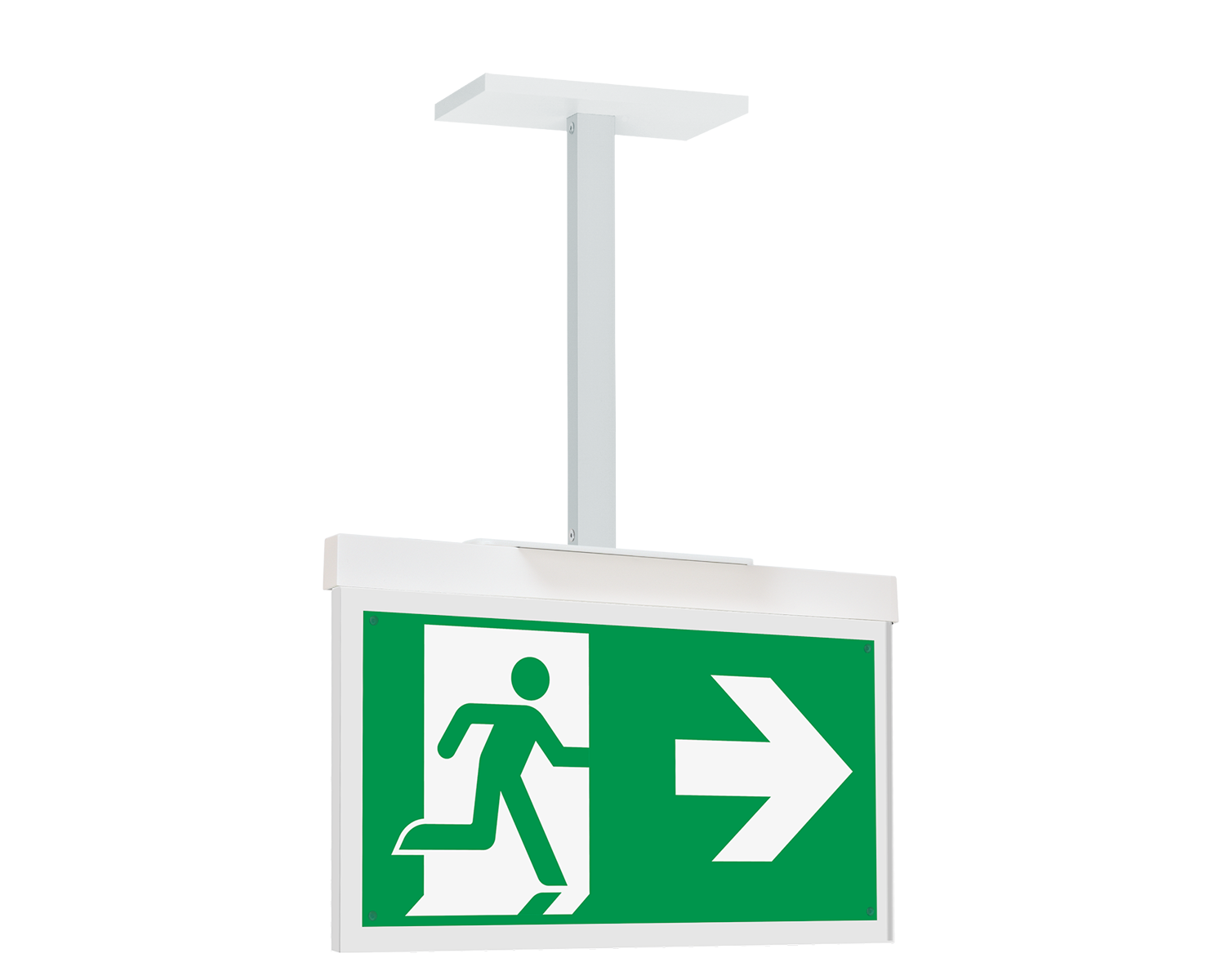

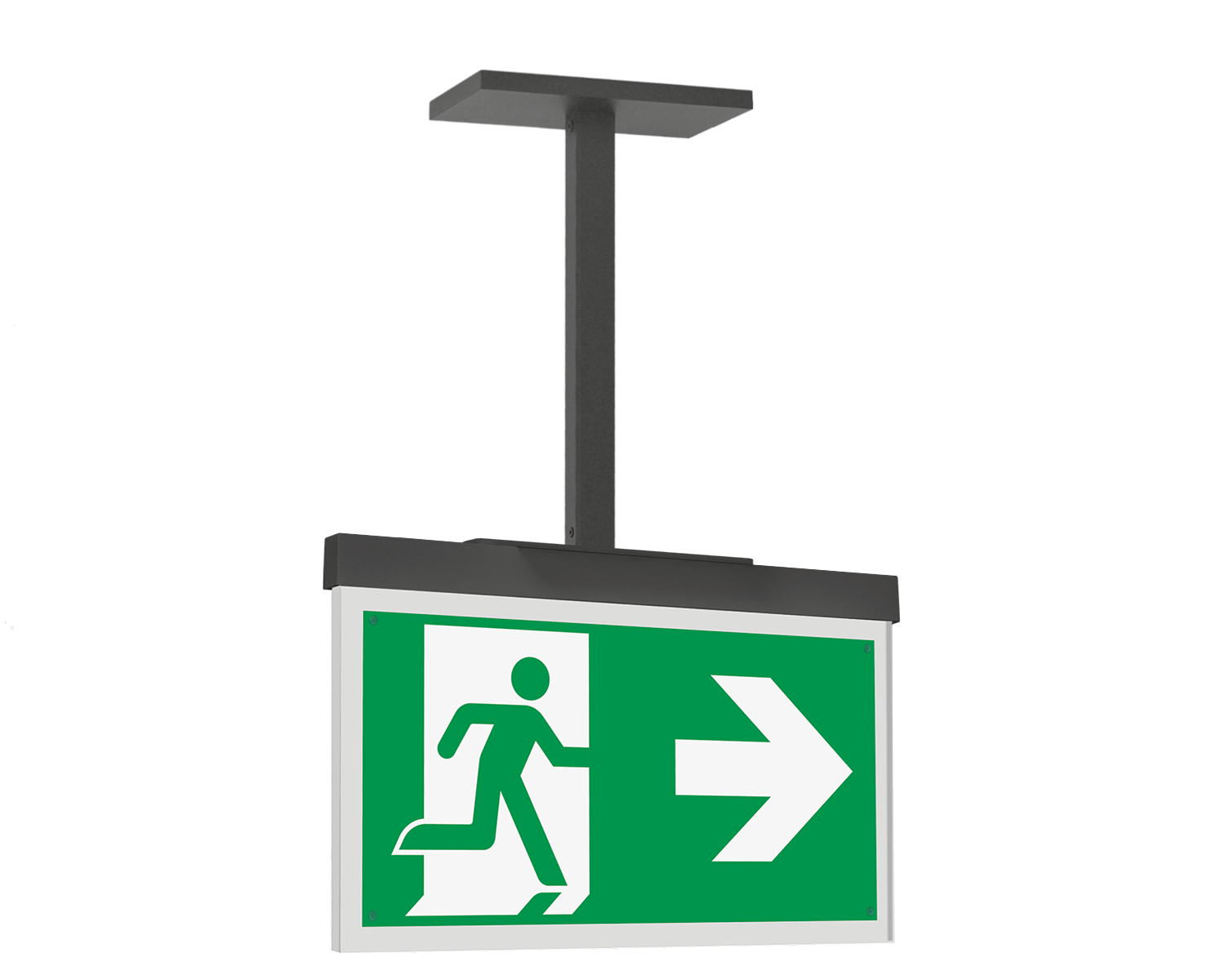

  • Rod Mount Kit (1m)
  • Rod Mount Kit (0.3m)
  • Rod Mount Kit (0.5m)
  • Rod Mount Kit (0.1m)
