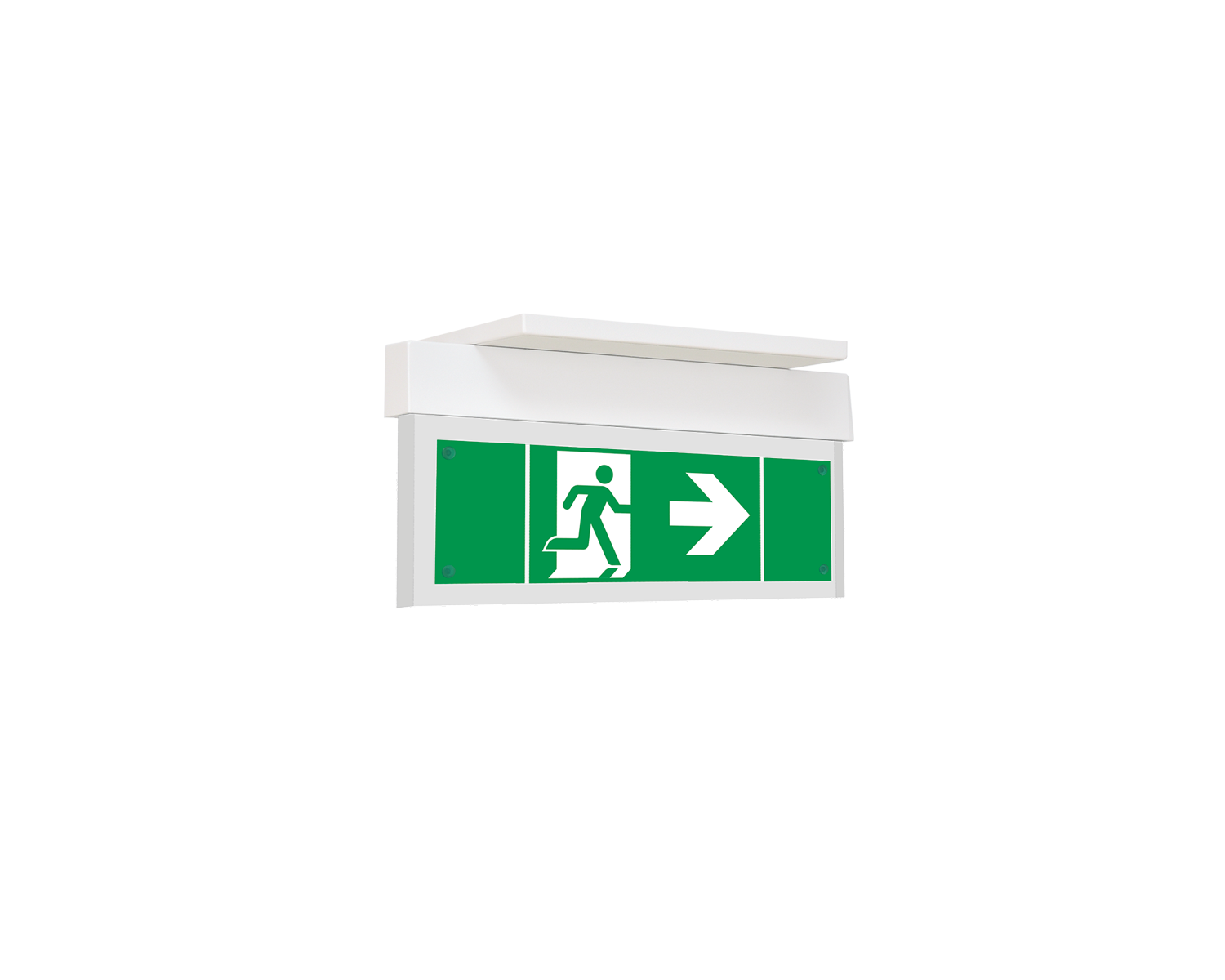

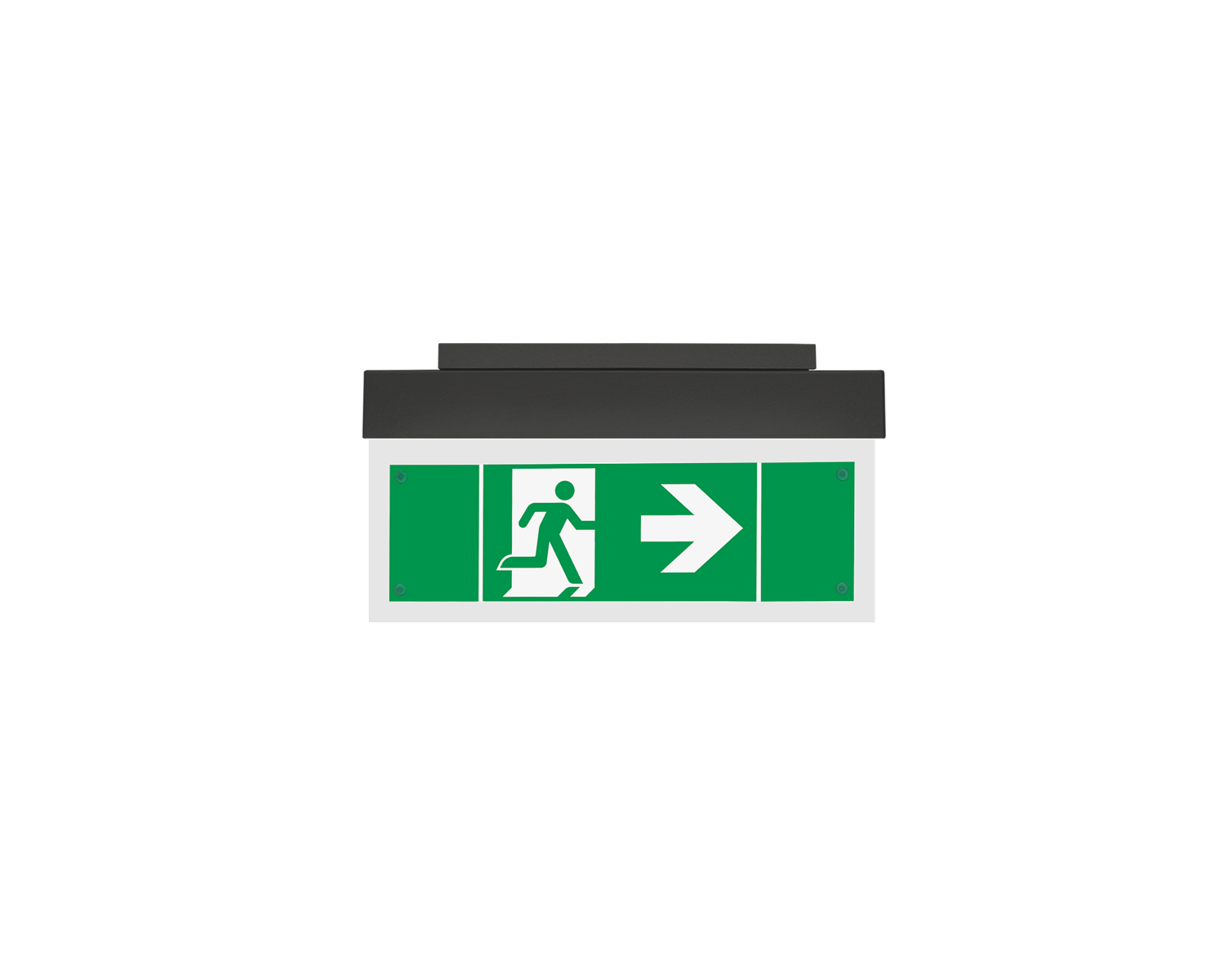

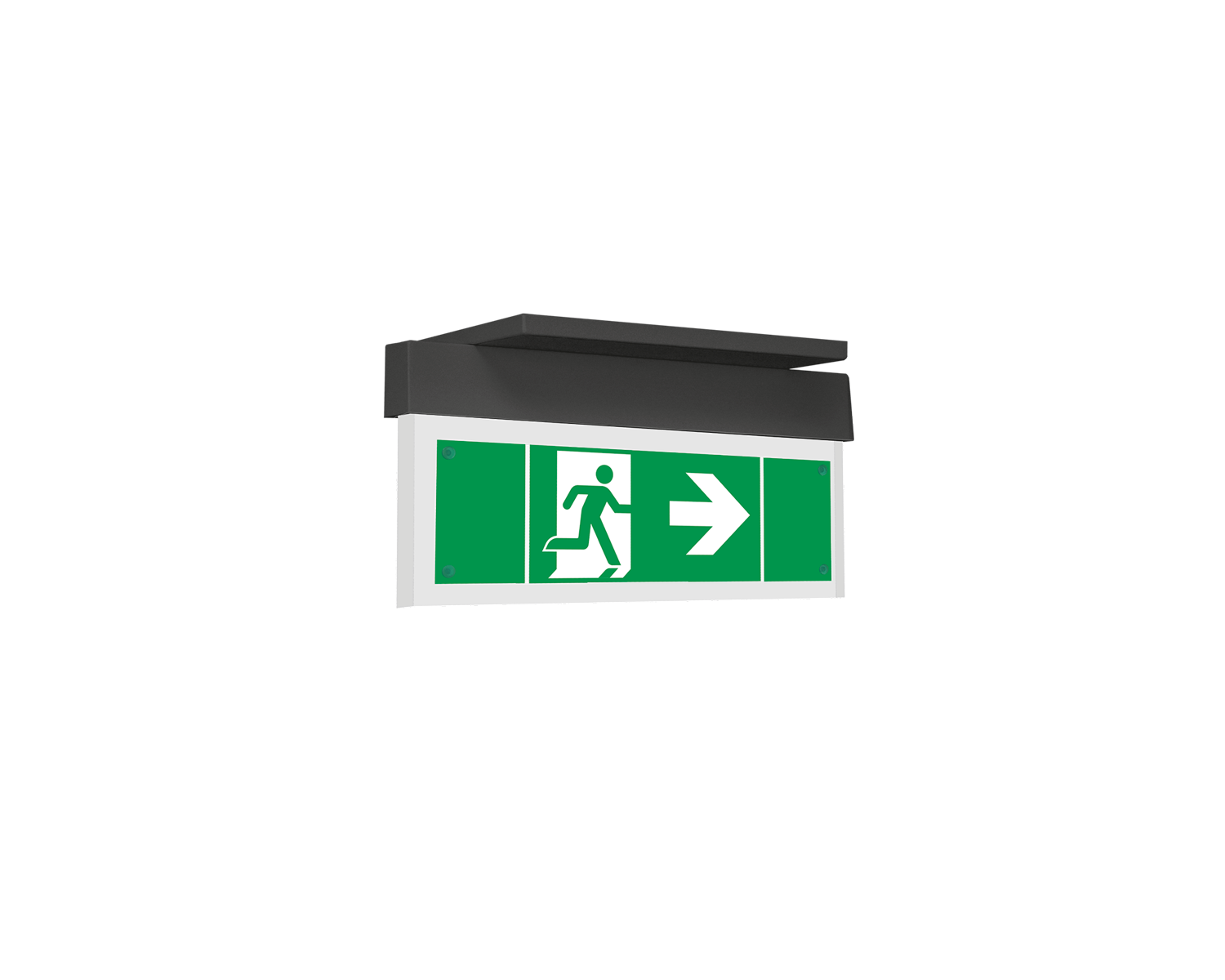

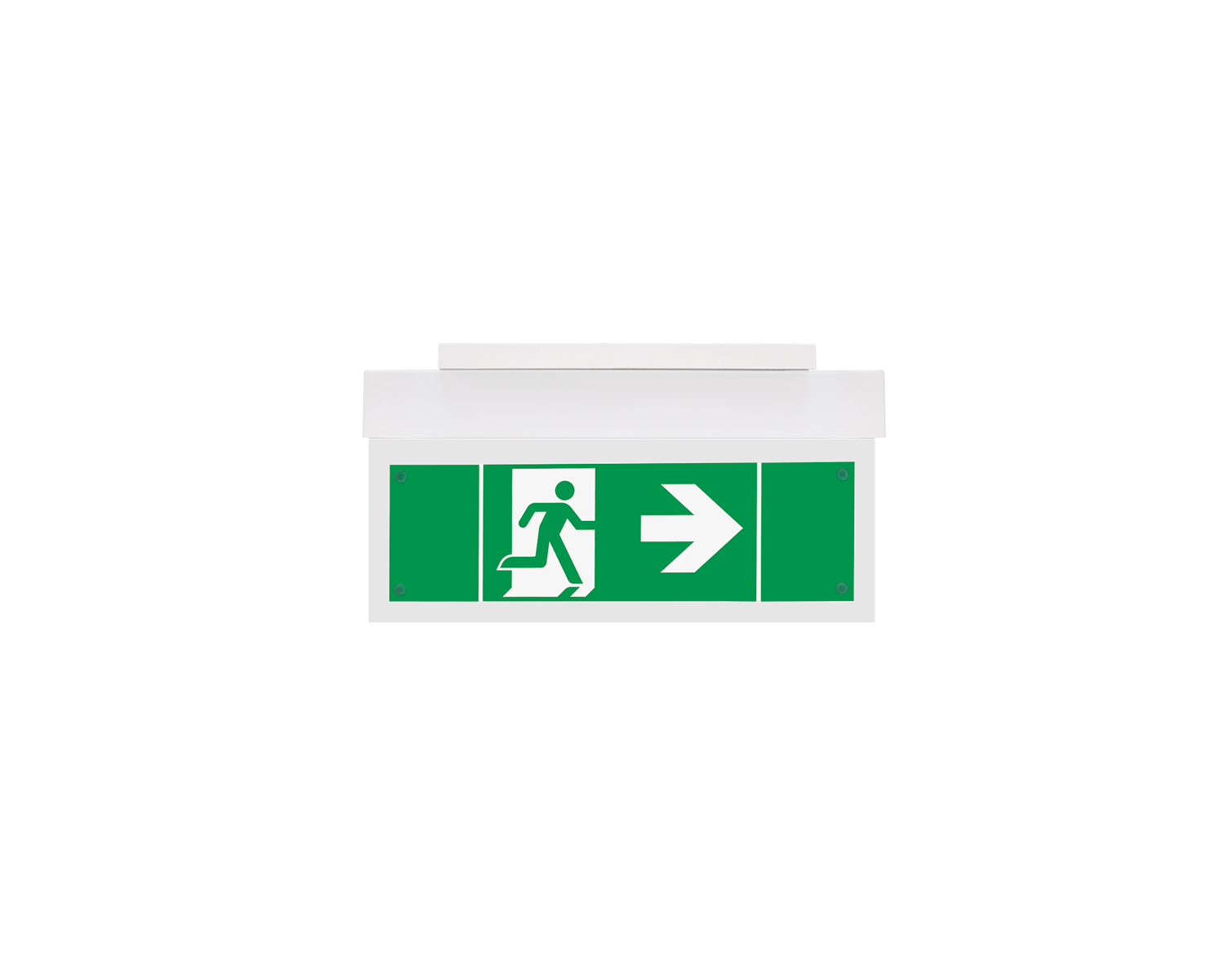

Ezra CR10
Ceiling recessed small, slim architectural exit sign
Product Overview
✔ Elegant and modern exit sign with narrow body and slim design
✔ Suitable for recessed ceiling mounting
✔ Produced from die-cast aluminium
✔ Black, White or special finishes available
✔ 10mm acrylic pane illuminated with a 1 watt LED-bar
✔ In compliance with DIN EN 60598-1/2-22 and DIN EN 1838
✔ Suitable for Corridor lighting, Commercial, Hospitality, Office, Retail, Gallery/Museum, Leisure, Stairs
Finishes / Material
-
Black (Matt) RAL 9005 -
White (Traffic) RAL 9016
-
Custom
-
Body: Die Cast Aluminium
-
Pane: Acrylic
Sizes
-

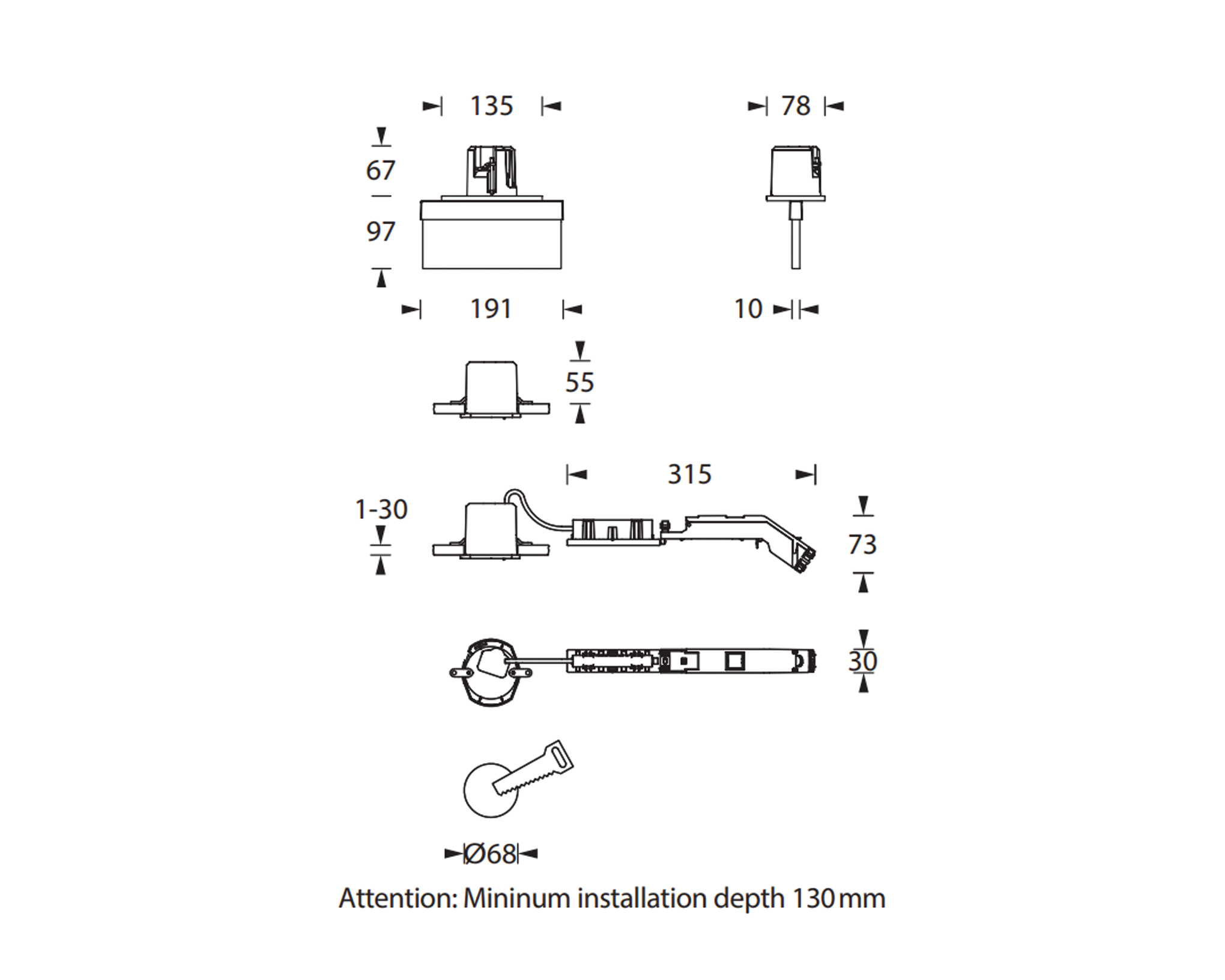

191 (W) x 97 (H) x 78 (D) mmCutout: 68 mm, Viewing Distance: 10m
- Source Info Tier 1 LED
- Lumens (delivered) 130Lm
- Circuit Watts 1cW
- Efficacy up to 130Lm/cW
Options.
Emergency Type
-
Maintained / Non-Maintained (Self Contained)
-
Self -Test (Self Contained)
Legends
-
Exit Legend Kit
Left, Right, Down, Blind
-
Exit Legend (Up)
-

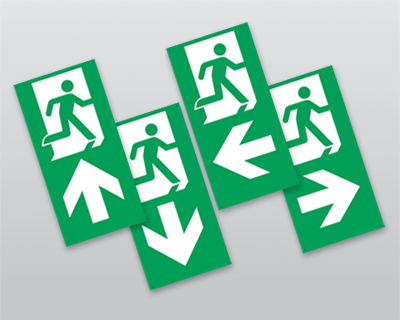

Exit Legend Kit (Vertical)
Additional Legend (optional)
*Please Note: For double sided applications or spares
-
Exit Legend (Right)
-
Exit Legend (Left)
-
Exit Legend (Down)
-
Exit Legend (Up)
-
Exit Legend Kit (Vertical)
Suspension Wires (optional)
-
Rod Mount Kit (0.1m)
-
Rod Mount Kit (0.3m)
-
Rod Mount Kit (0.5m)
-
Rod Mount Kit (1m)
-
Suspension wire kit (1.5m)
-

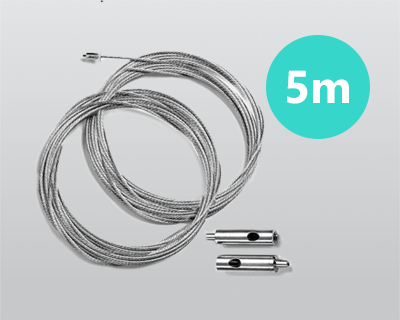

Suspension wire kit (5m)
-

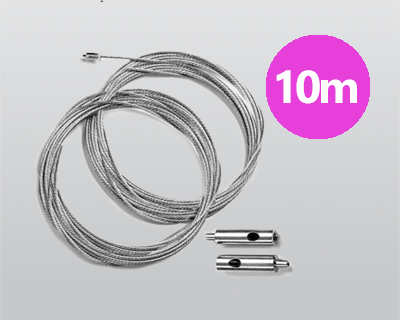

Suspension wire kit (10m)
Additional Information.
Ezra is a very small exit sign. This versatile, stylish, slim exit sign has a rod mounted exit sign variant or can be ceiling recessed. When supplied with a suspension wire kit Ezra is a very small, discreet suspended mounted exit sign. Ezra is the perfect choice for designers and installers looking for a high end, high quality, very small, miniature exit sign.
