  • Ezra 17WR - Wall Recessed - Slim Narrow Exit Sign

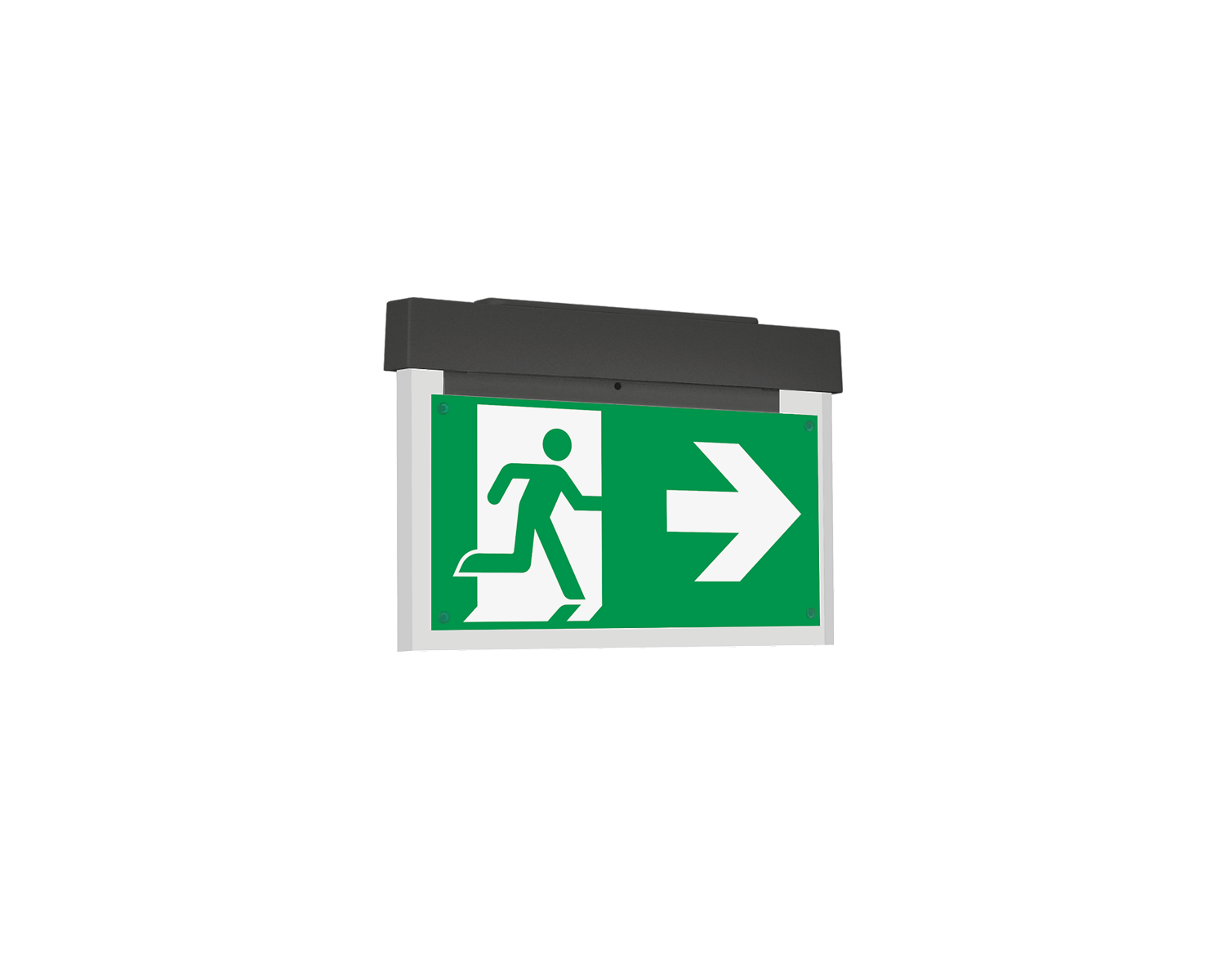

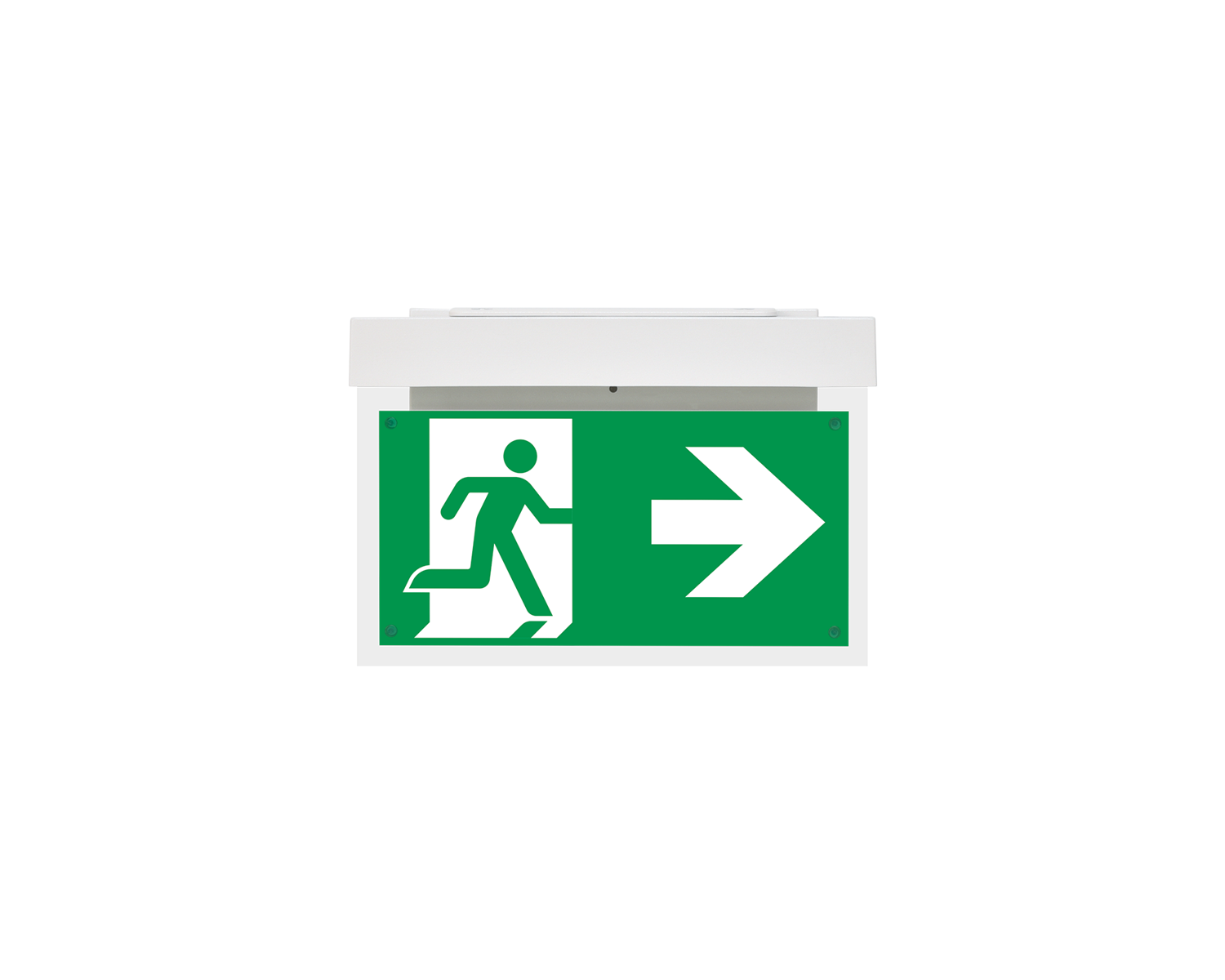

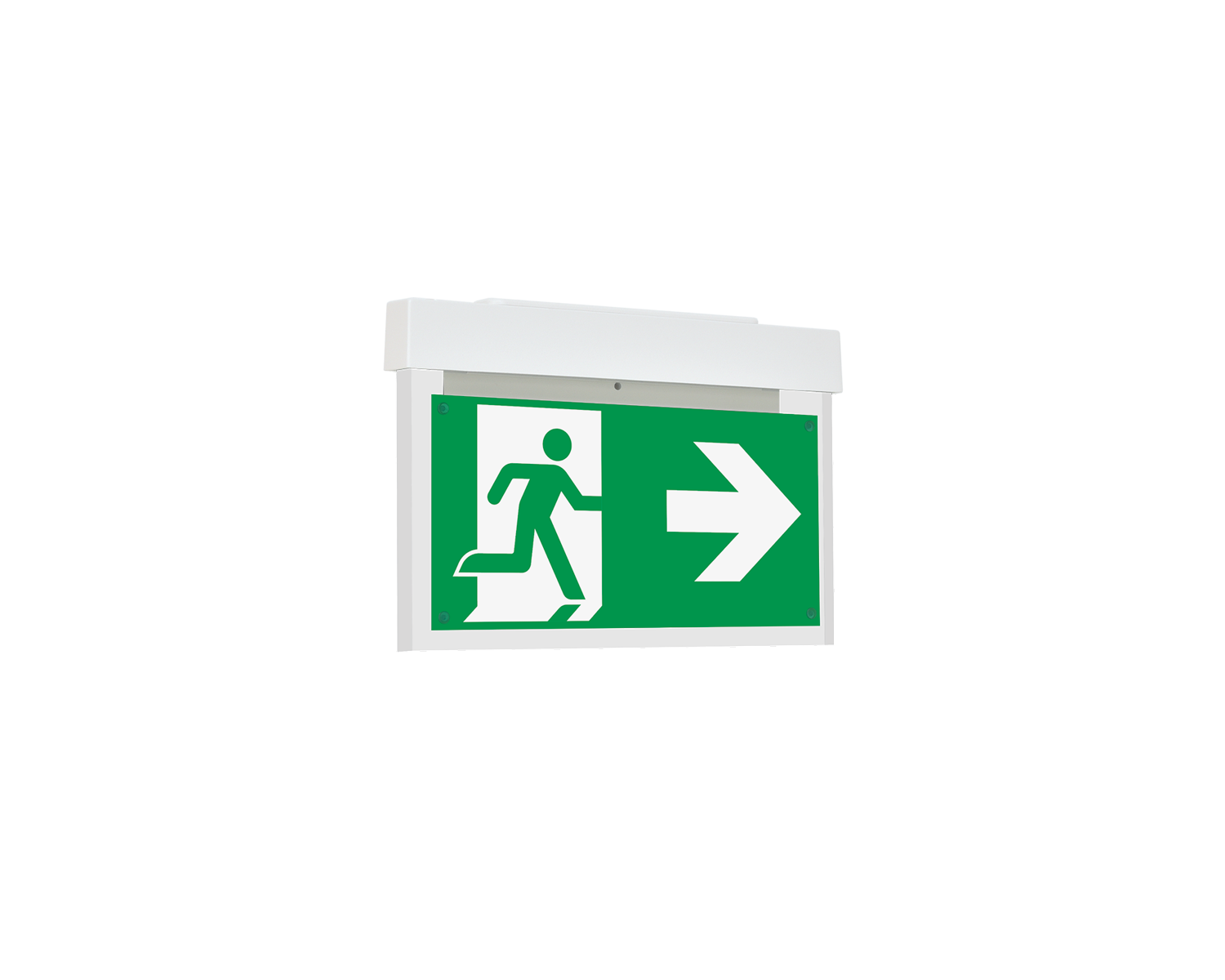

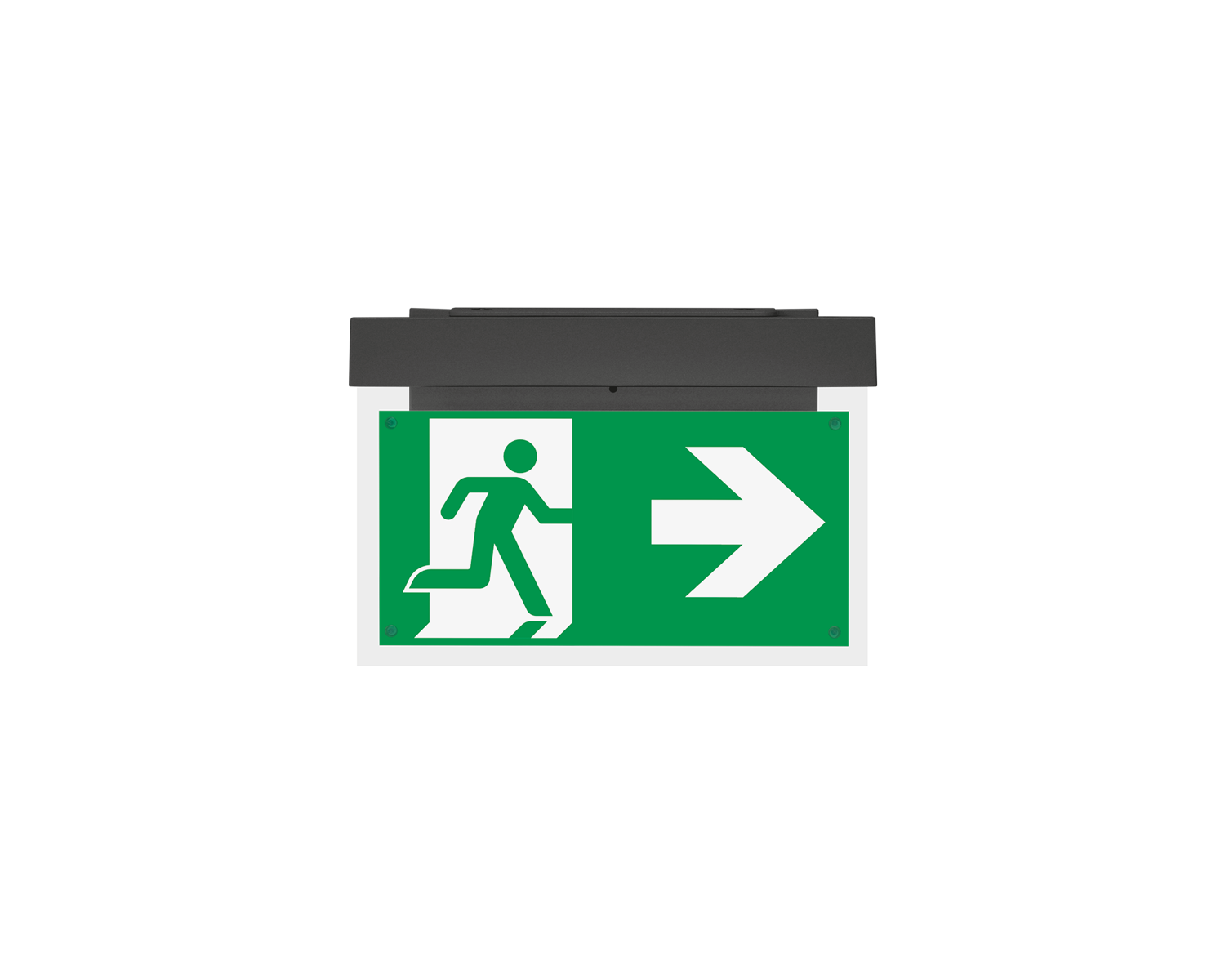

Wall recessed slimline architectural exit sign

Ezra WR17

Product Overview

✔ Elegant and modern exit sign with narrow body and slim design

✔ Suitable for recessed wall mounting

✔ Produced from die-cast aluminium

✔ Black, White or special finishes available

✔ 10mm acrylic pane illuminated with a 1 watt LED-bar

✔ In compliance with DIN EN 60598-1/2-22 and DIN EN 1838

✔ Suitable for Corridor lighting, Commercial, Hospitality, Office, Retail, Gallery/Museum, Leisure, Stairs

Finishes / Material
  • Black (Matt) RAL 9005
  • White (Traffic) RAL 9016
  • Custom
  • Body: Die Cast Aluminium
  • Pane: Acrylic
Sizes
  • 191 (W) x 129 (H) x 27 (D) mm
    Cutout: 68 mm, Viewing Distance: 17m
Technical Drawing
  • Source Info Tier 1 LED
  • Lumens (delivered) 130Lm
  • Circuit Watts 1cW
  • Efficacy up to 130Lm/cW

Options.

Emergency Type

  • Maintained / Non-Maintained (Self Contained)
  • Self -Test (Self Contained)

Legend

  • Exit Legend Kit

    Left, Right, Down, Blind

  • Exit Legend (Up)

Additional Legend (optional)

*Please Note: For double sided applications or spares
  • Exit Legend (Right)
  • Exit Legend (Left)
  • Exit Legend (Down)
  • Exit Legend (Up)

Additional Information.
