Ceiling recessed square downlight for internal architectural applications

Product Overview

✔ Can be installed into circular apertures meaning misalignment is almost impossible

✔ Square, contemporary look with simplistic installation

✔ IP54 as standard

✔ High colour quality as standard - CRI90+

✔ Offered with a broad range of outputs and colour temperatures

✔ Suitable for Corridor lighting, Hospitality, Office, Retail, Residential, Gallery/Museum, Leisure

Finishes / Material

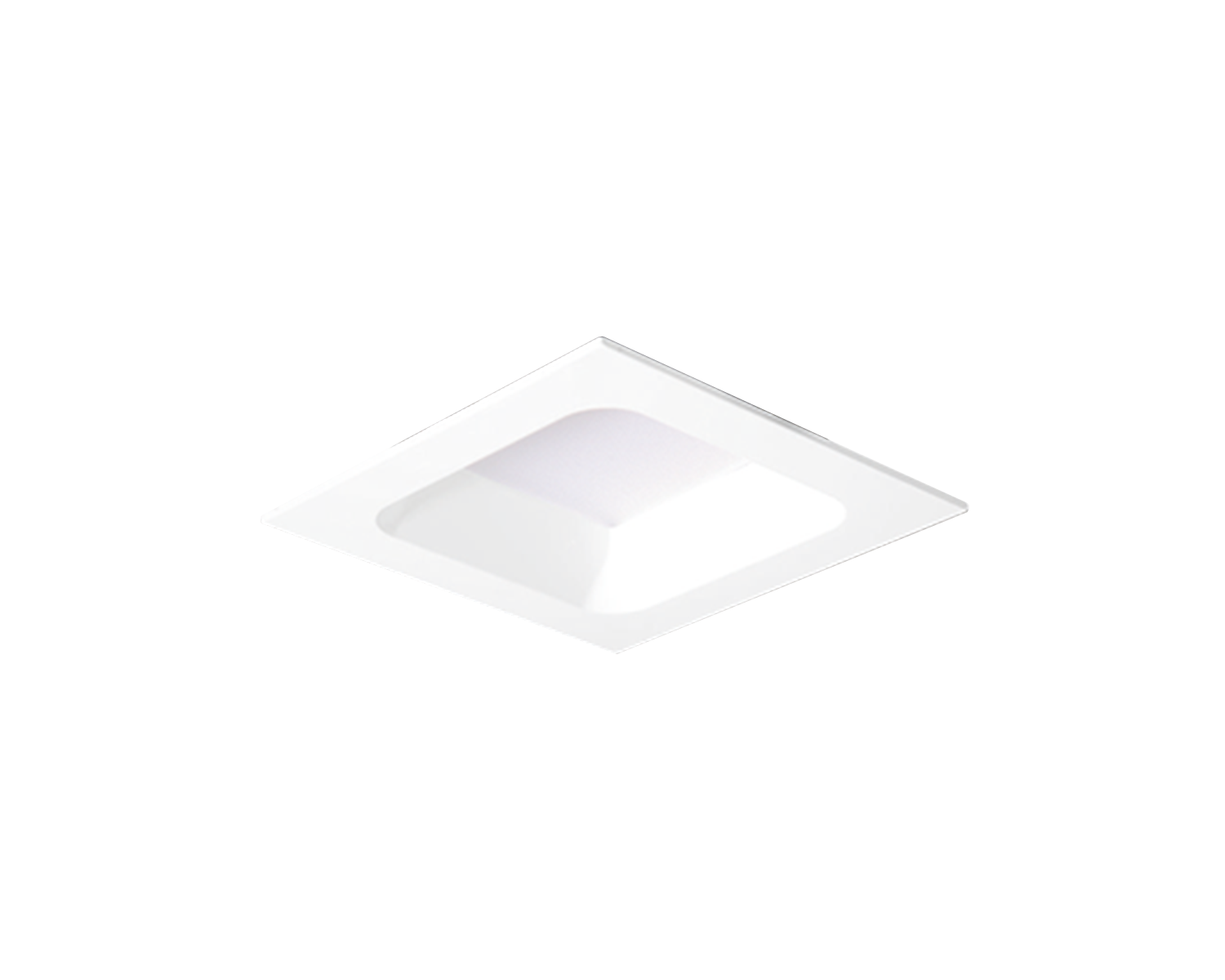

  • White (Cream) RAL 9010

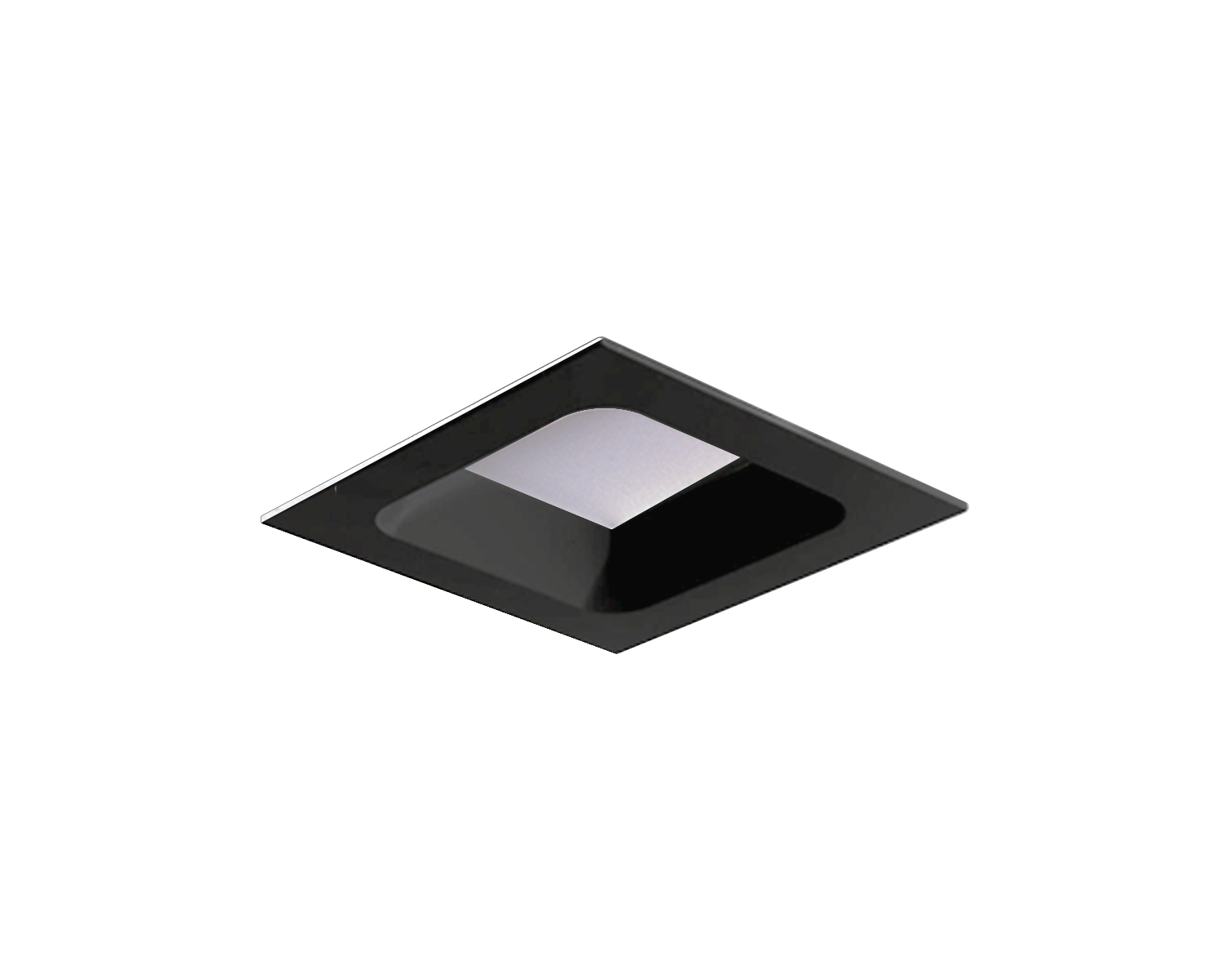

  • Black (Matt) RAL 9005
  • Body: Die Cast Aluminium
    with epoxy powder coating
  • Diffuser: Polycarbonate
    Opal microprism, CUT OFF > 20°

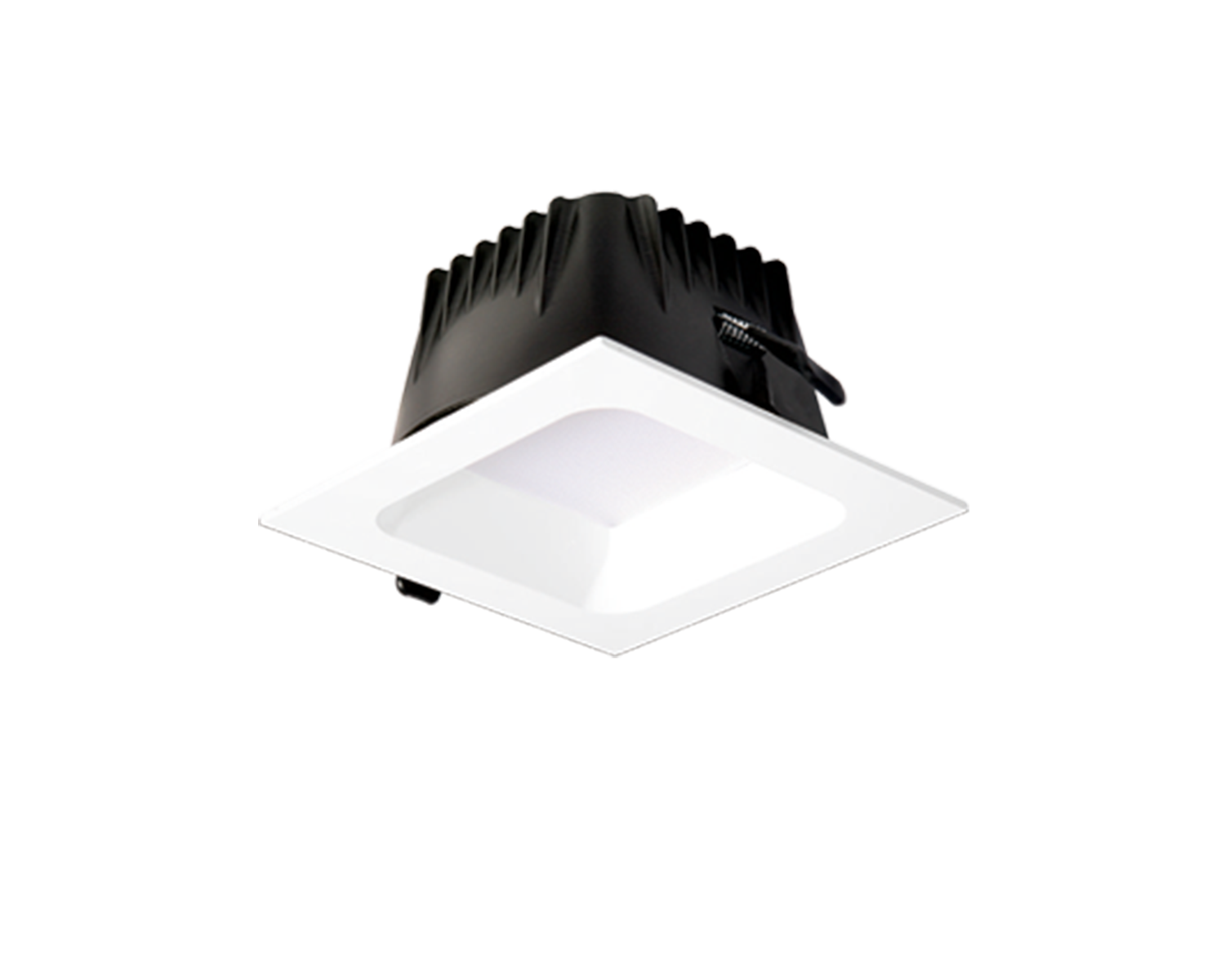

  • Heat Sink: Die Cast Aluminium
  • Reflector: Polycarbonate
Sizes
  • 78 (L) x 78 (W) x 40 (D) mm
    Cutout: 68 mm, Mini
  • 135 (L) x 135 (W) x 70 (D) mm
    Cutout: 125 mm, Small
  • 188 (L) x 188 (W) x 100 (D) mm
    Cutout: 175 mm, Medium

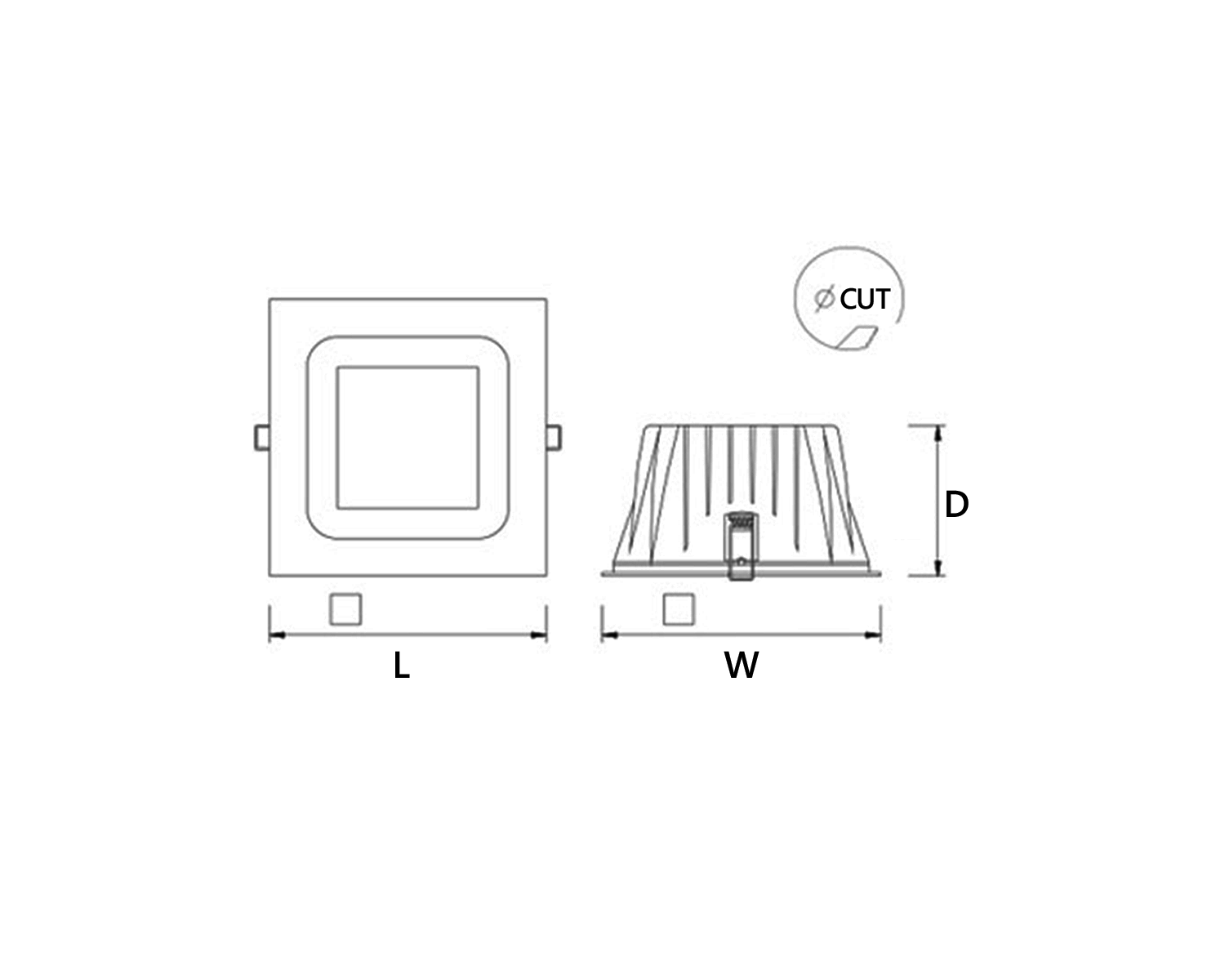

Technical Drawing
  • Source Info Tier 1 LED (Eg. Tridonic / Osram)
  • Lumens (delivered) 705Lm - 4469Lm
  • Circuit Watts 7cW - 48cW
  • Efficacy up to 123Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI90

Additional Information.

Box is a unique product in that it is a square downlight with a round hole cut out.
