Teres (Surface)

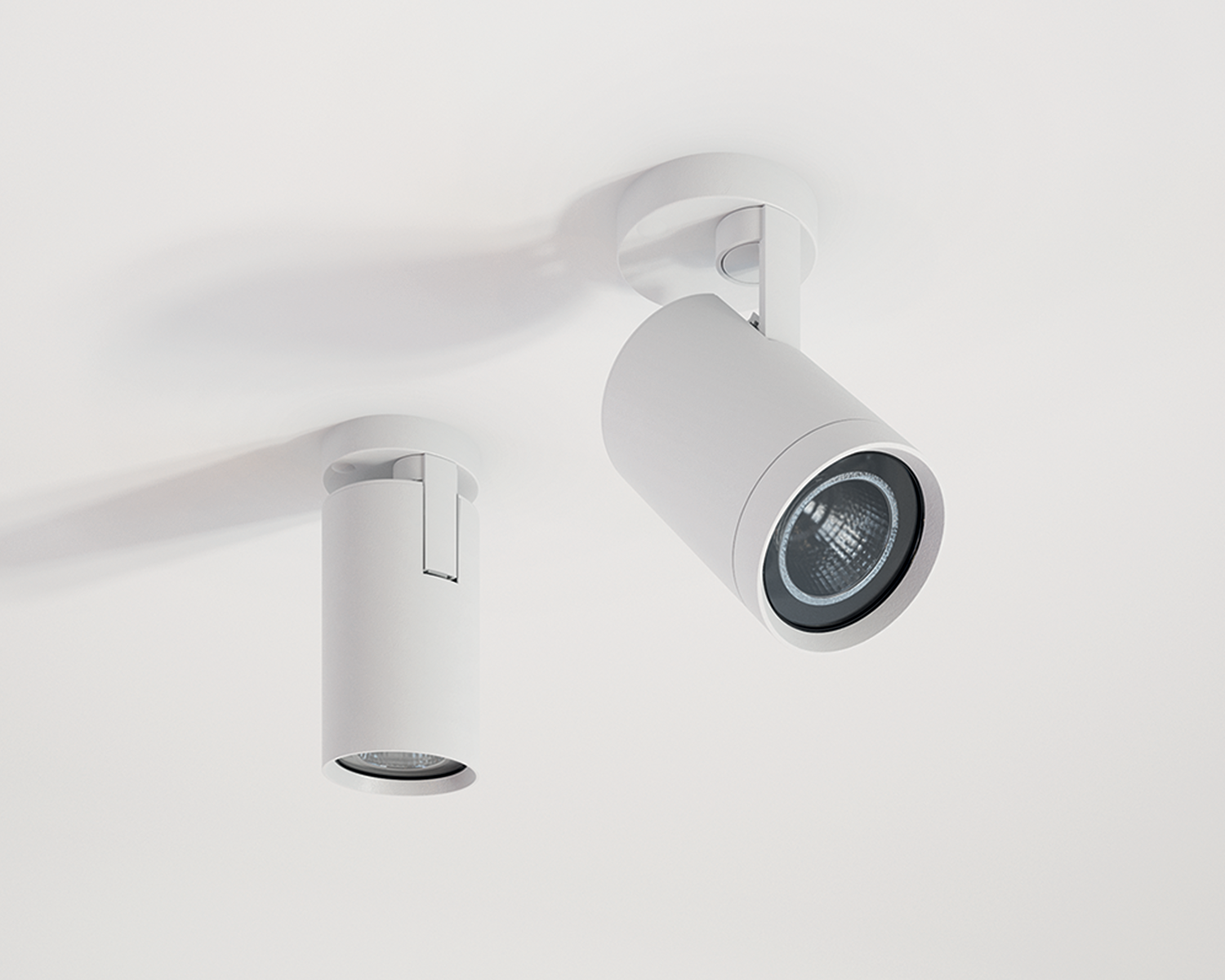

Architectural surface mounted spot light

Product Overview

✔ Modern spotlight built-in driver

✔ Manufactured from pressure die-cast aluminum

✔ Interchangeable aluminium reflectors: 10° 20° 40° 50° & 70° beam options

✔ High CRI versions as standard

✔ Accessories include sculpture lens, frosted glass for all options and honeycomb louvre for the larger version

✔ Also available in track mounted, recessed mounted and surface mounted IP66 versions

✔ Suitable for Commercial, Education, Retail, Gallery/Museum

Finishes / Material

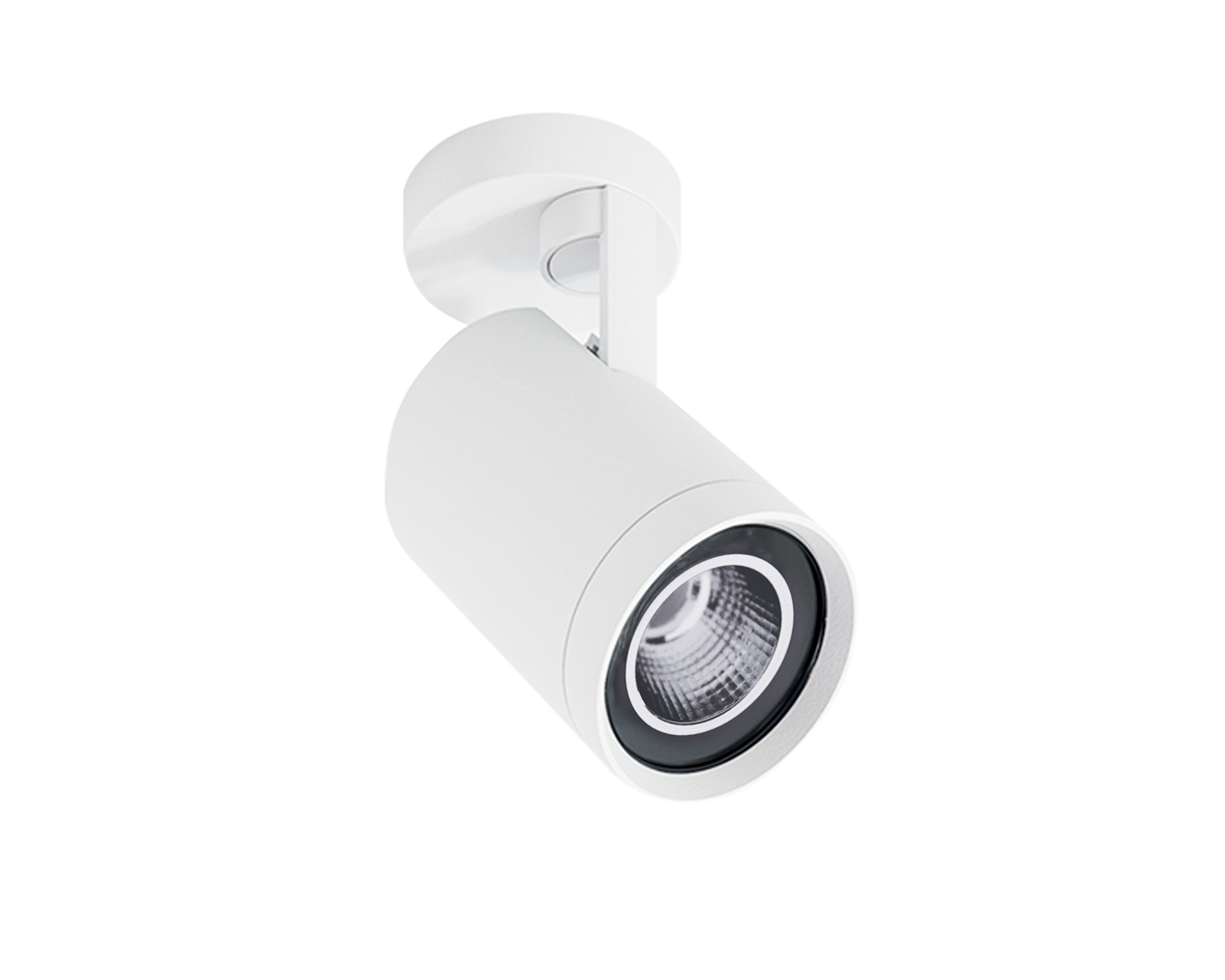

  • White (Signal) RAL 9003
    Wrinkled

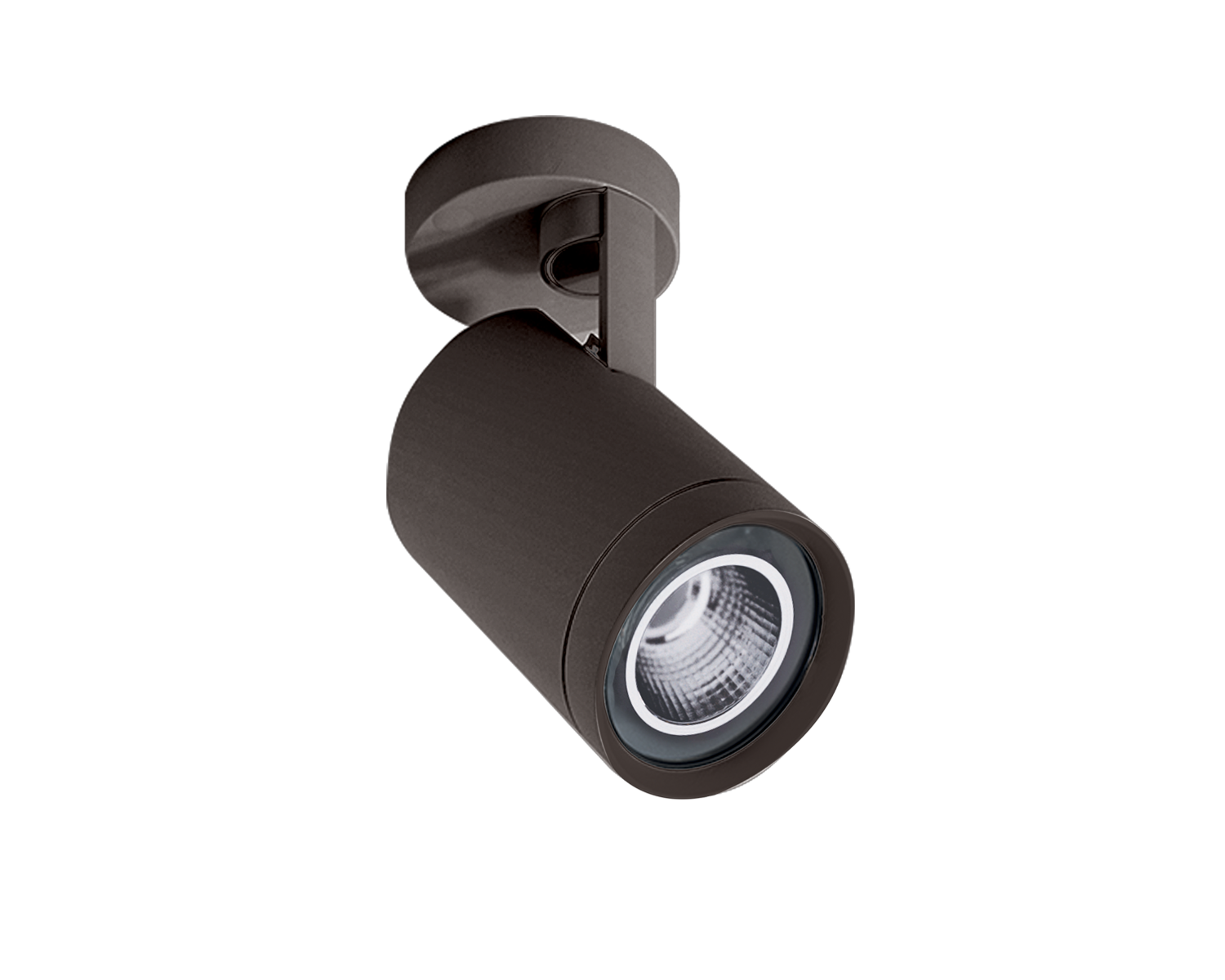

  • Black (Matt) RAL 9005
    Wrinkled
  • Body: Die Cast Aluminium
  • Reflector: Aluminium
Sizes
  • 80 (Ø) x 165 (H) mm
  • 110 (Ø) x 187 (H) mm

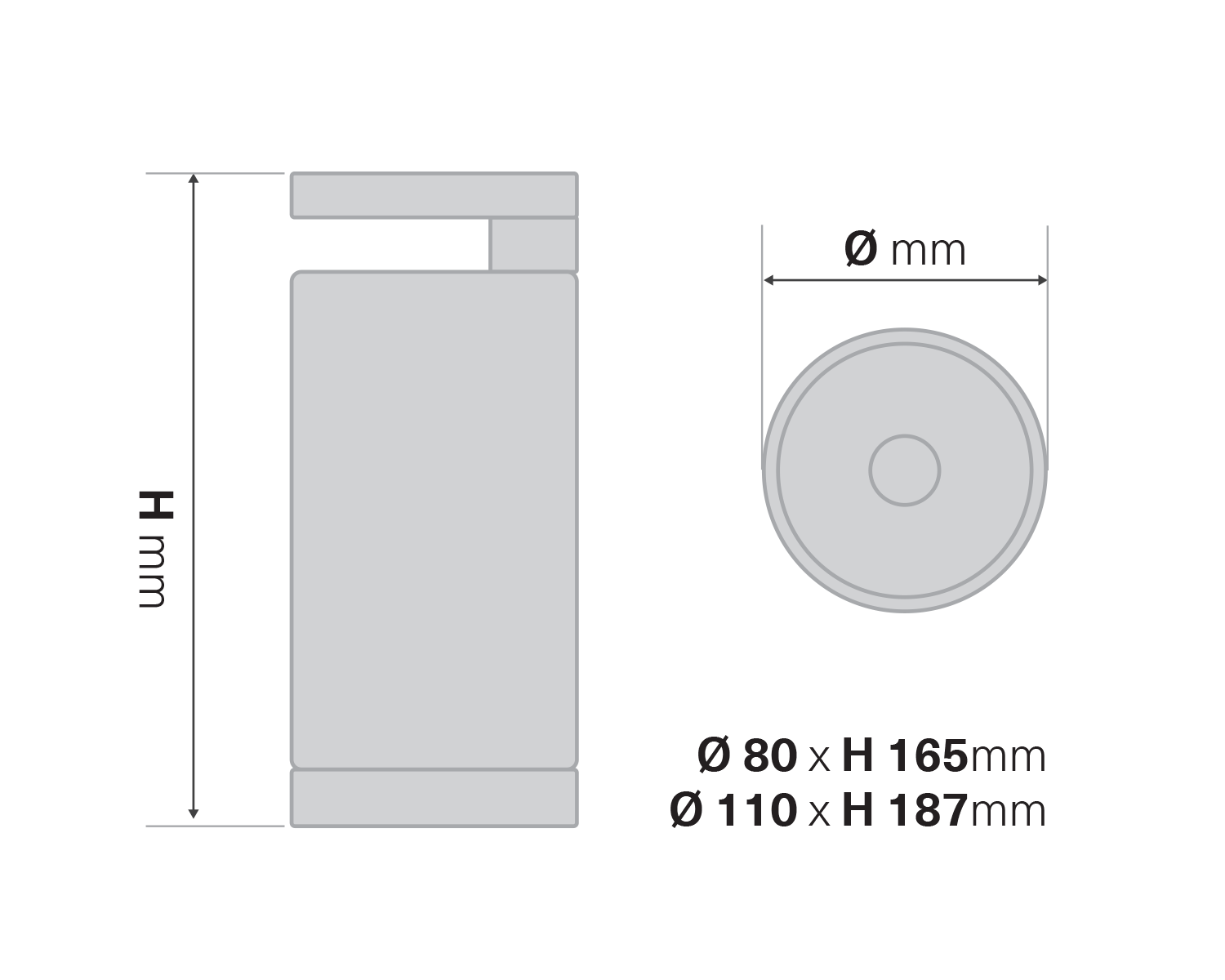

Technical Drawing
  • Source Info Tier 1 LED (Eg. Tridonic / Osram)
  • Lumens (delivered) 1467Lm - 3683Lm
  • Circuit Watts 9cW - 26cW
  • Efficacy up to 165Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 2700K (On Request) / 3000K / 4000K / 5000K (On Request)
  • Colour Rendering CRI90

Options.

Beam Distribution

  • 10° Beam Angle
  • 20° Beam Angle
  • 40° Beam Angle
  • 50° Beam Angle

    ⌀80mm version

  • 70° Beam Angle

    ⌀110mm version

Accessories (optional)

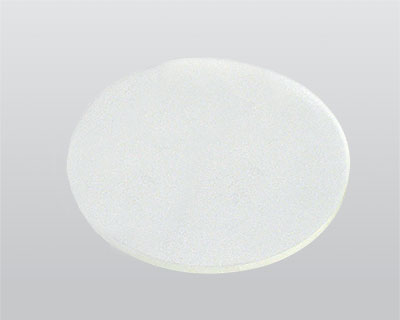

  • Matt Glass Lens

    ⌀80mm & ⌀110mm version only

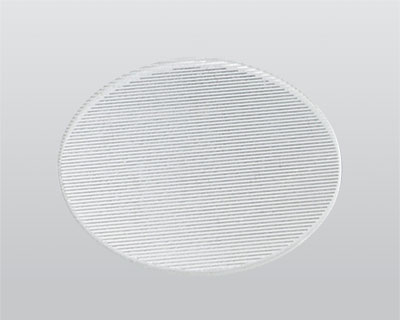

  • Sculpture Lens

    ⌀80mm & ⌀110mm version only

  • Honeycomb Louvre

    ⌀80mm & ⌀110mm version only

Anti-Glare Ring (optional)

*Please Note: Anti-glare rings extend the fitting and allow you to focus the light beam, hiding the light source. Ideal for art galleries, museums & retail areas to add accent lighting without glare issues - UGR<16. Contact sales to specify.
  • White

    Specify Black or White inside

  • Black

    Black Inside

Additional Information.

Born from Teres, TERES EXTE is the innovative spotlight for ceiling and recessed installation. Thanks to the driver hidden in the lamp body, it’s suitable for all situations and catch for its minimalist design and purity of shapes. It can create a perfect harmony between general lighting and fine light accent.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
