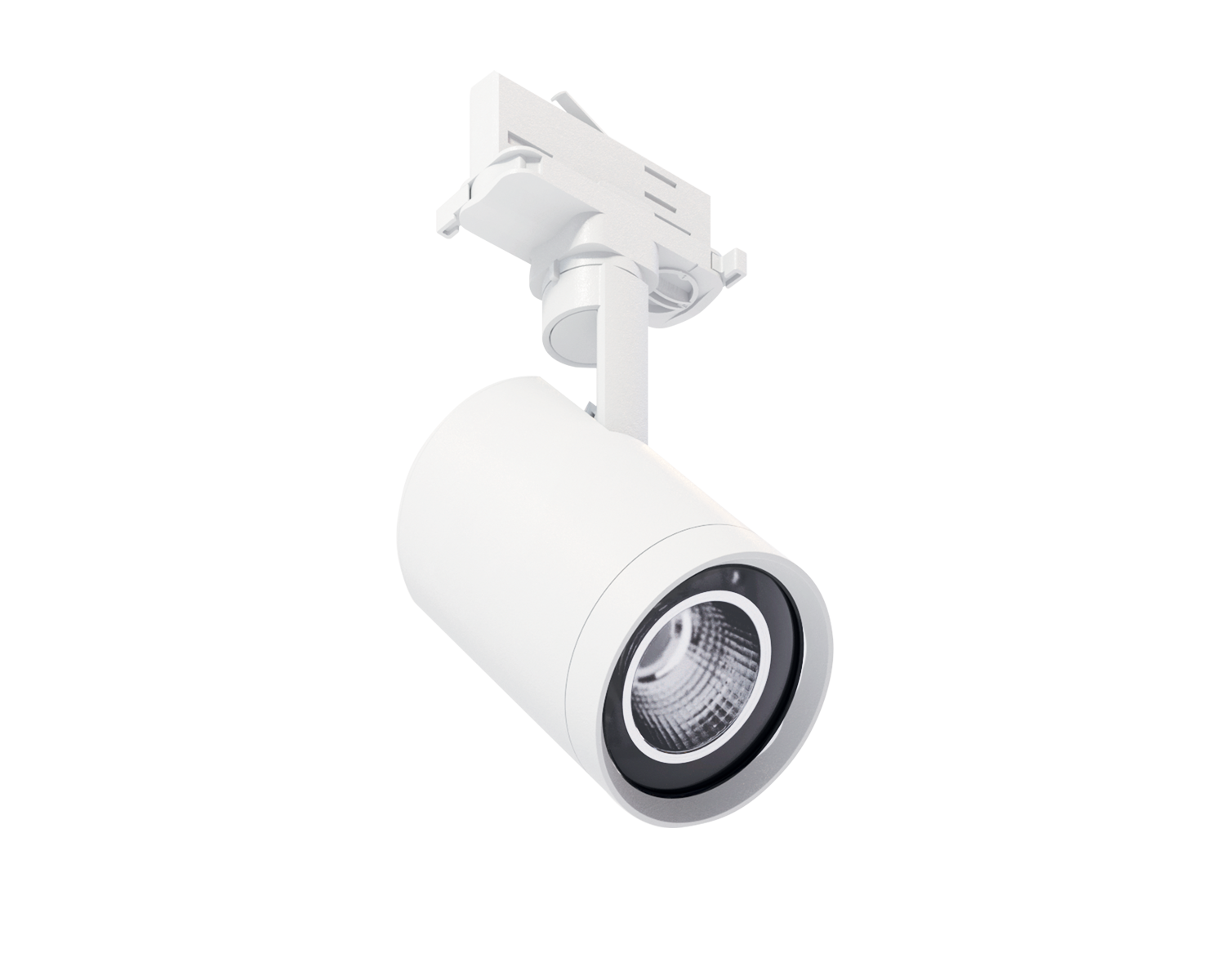

Teres (Track)

Architectural track mounted spot light

Product Overview

✔ Modern spotlight with built-in driver

✔ Manufactured from high quality, pressure die-cast aluminium

✔ Installation on Eurostandard track

✔ Interchangeable aluminium reflectors: different beam options available

✔ High CRI90 as standard

✔ Accessories include sculpture lens, frosted glass and honeycomb louvre

✔ Also available as a non-track, surface mounted version

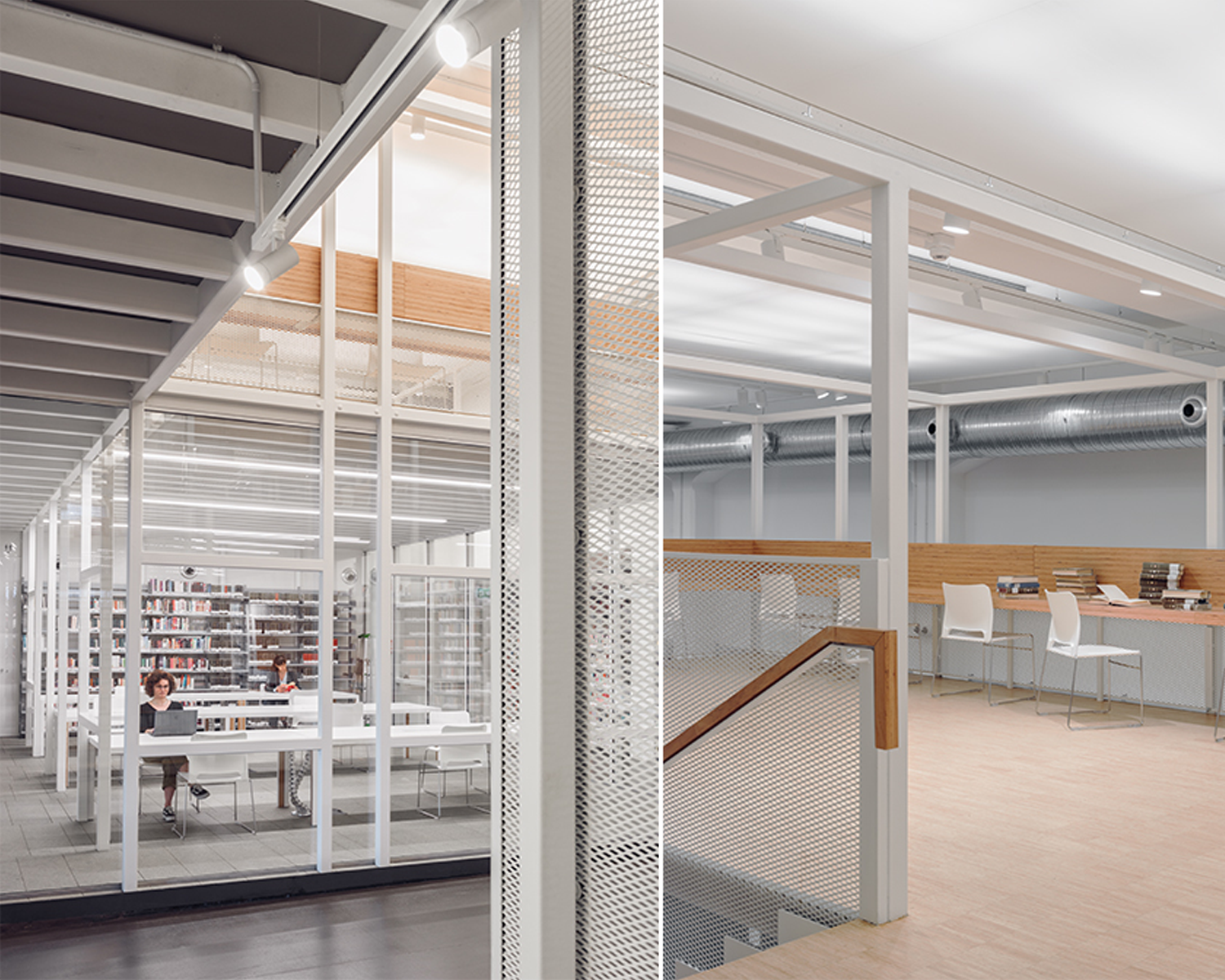

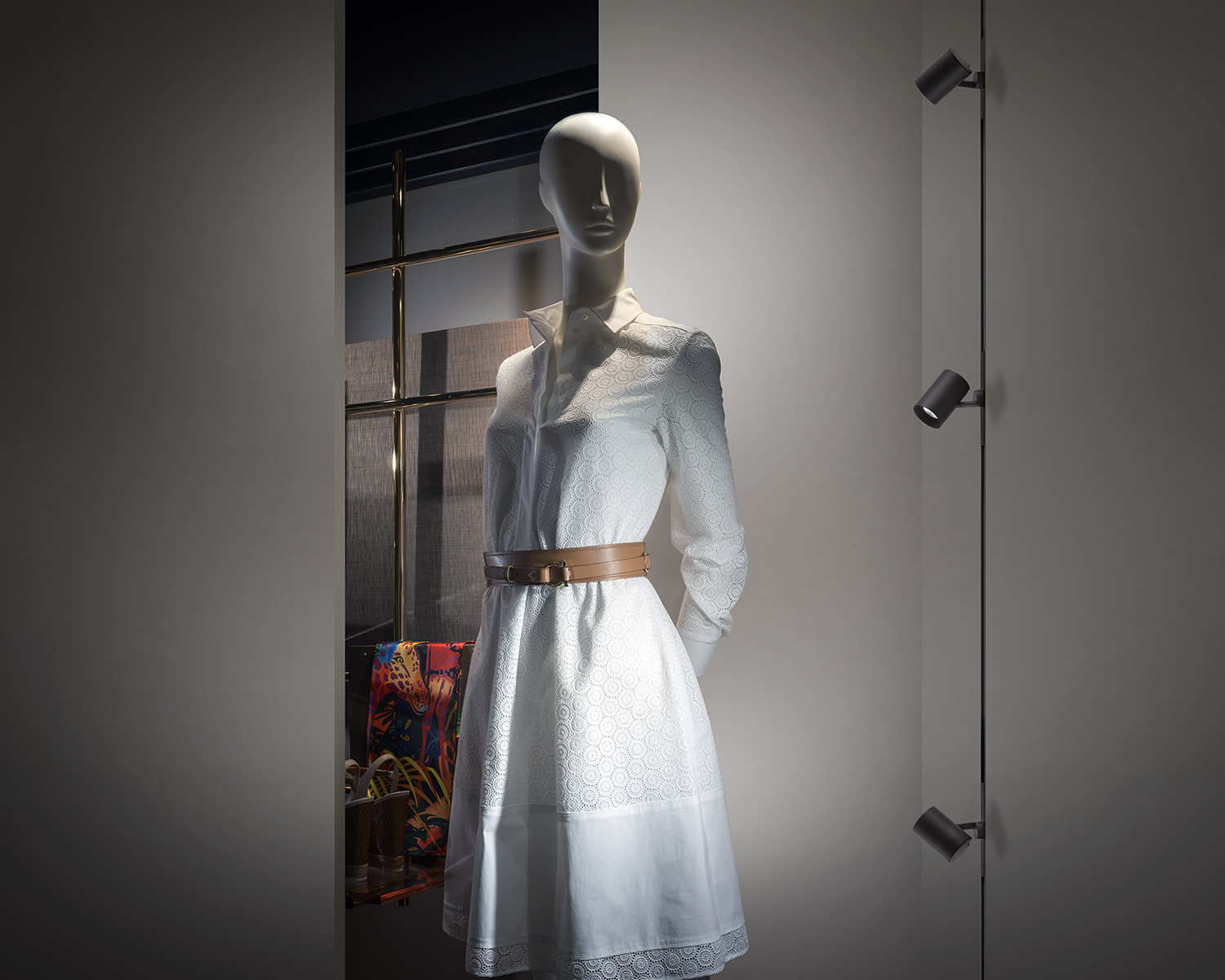

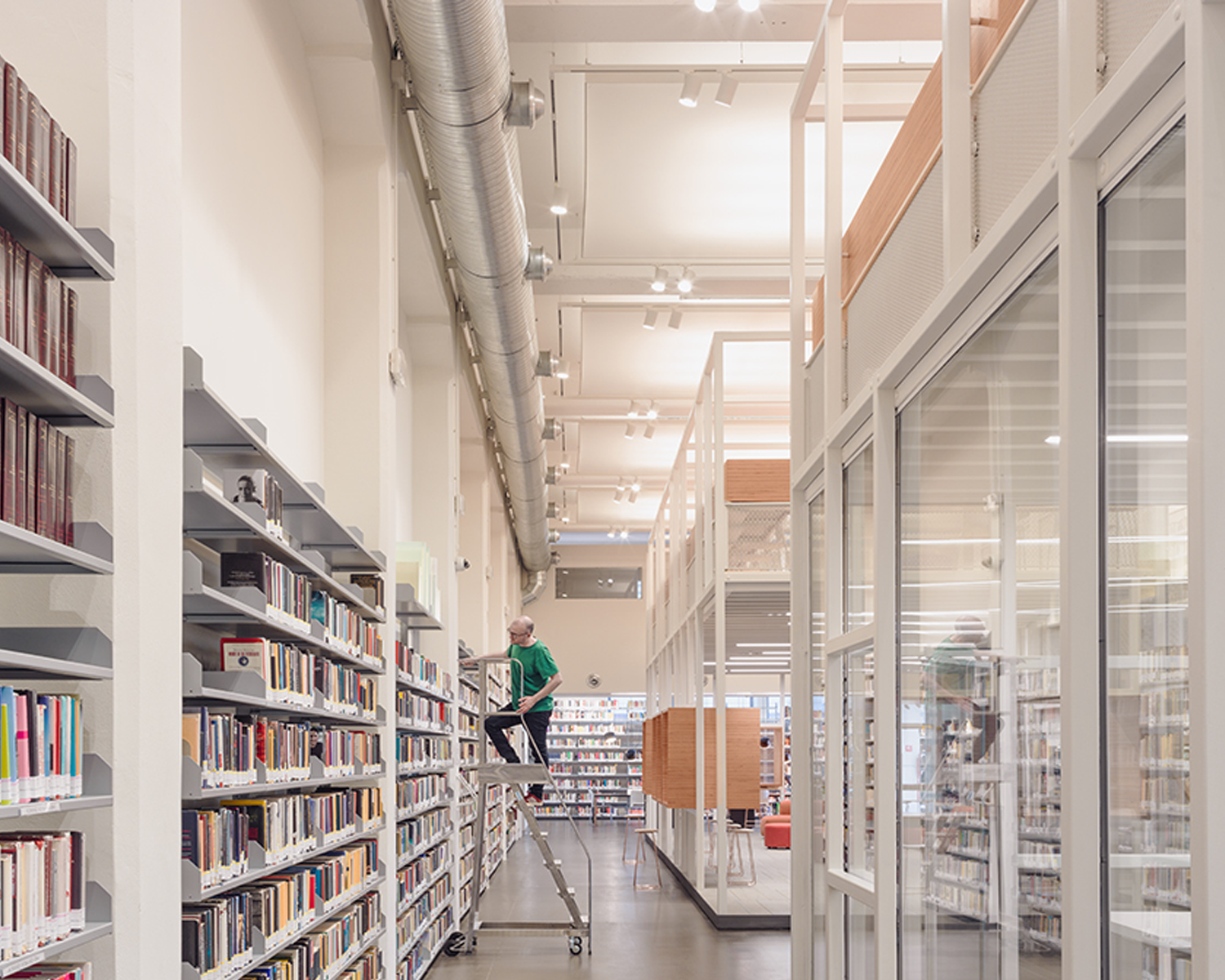

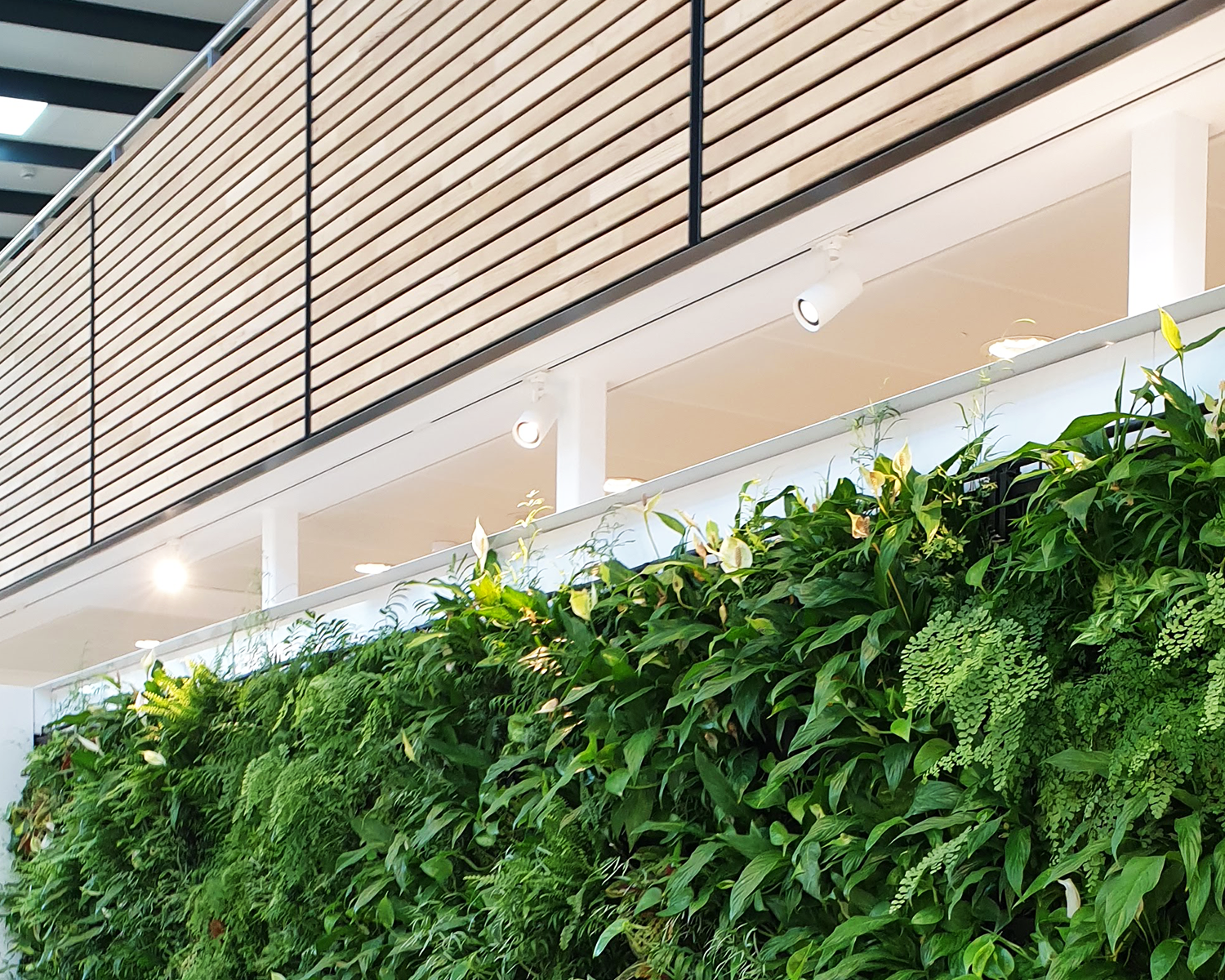

✔ Suitable for Commercial, Education, Retail, Gallery/Museum

Finishes / Material
  • White (Signal) RAL 9003
    Wrinkled
  • Black (Matt) RAL 9005
    Wrinkled
  • Body: Die Cast Aluminium
  • Reflector: Aluminium
Sizes
  • 60 (Ø) x 116 (H) mm
    Mini
  • 80 (Ø) x 133 (H) mm
    Small
  • 110 (Ø) x 156 (H) mm
    Medi

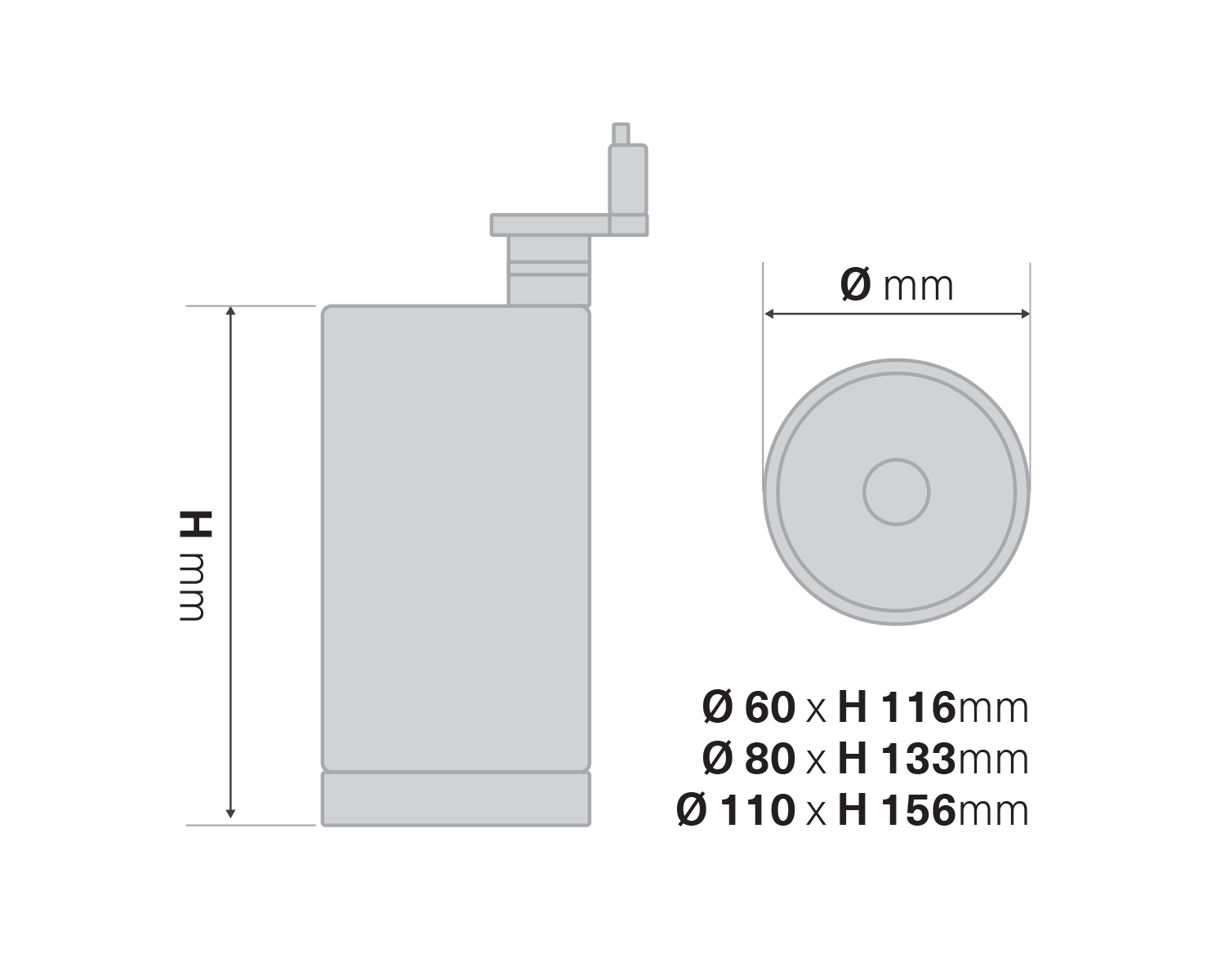

Technical Drawing
  • Source Info Tier 1 LED (Eg. Tridonic / Osram)
  • Lumens (delivered) 1094Lm - 3683Lm
  • Circuit Watts 6cW - 26cW
  • Efficacy up to 182Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 2700K (On Request) / 3000K / 4000K / 5000K (On Request)
  • Colour Rendering CRI90

Options.

Beam Distribution

*Please Note: For precise beam angle value see photometric data
  • Very Narrow Beam Angle
  • Narrow Beam Angle
  • Medium Beam Angle
  • Wide Beam Angle

Accessories (optional)

*Please Note: Anti-glare rings extend the fitting and allow you to focus the light beam, hiding the light source. Ideal for art galleries, museums & retail areas to add accent lighting without glare issues - UGR<16. Contact sales to specify.
  • Matt Glass Lens

    ⌀80mm & ⌀110mm version only

  • Sculpture Lens

    ⌀80mm & ⌀110mm version only

  • Honeycomb Louvre

    ⌀80mm & ⌀110mm version only

  • Anti-Glare Ring - White with White inside(A)
  • Anti-Glare Ring - White with Black inside(B)
  • Anti-Glare Ring - Black with Black inside(C)

Additional Information.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
