Ben

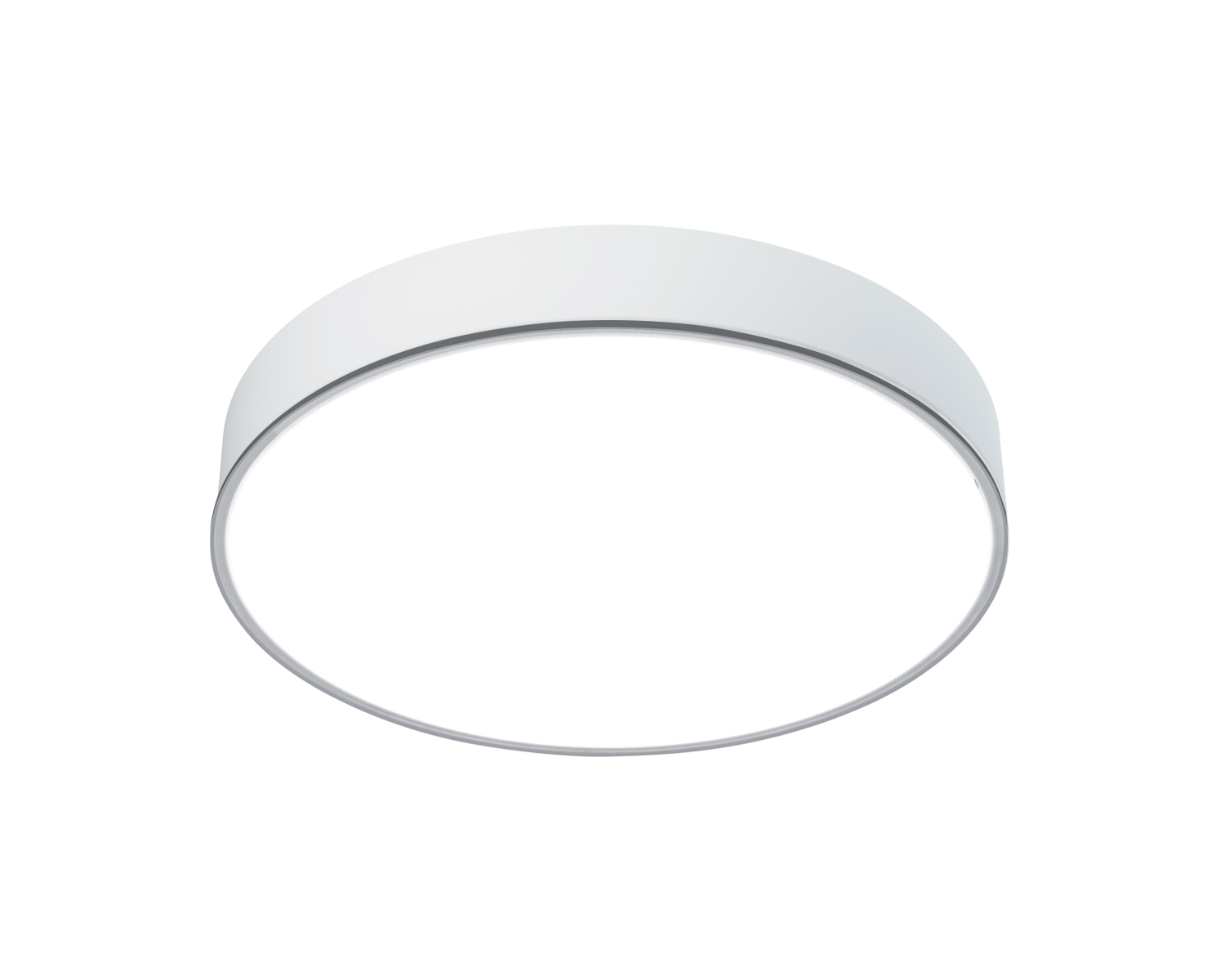

IP rated universal surface mounted architectural ceiling light

Product Overview

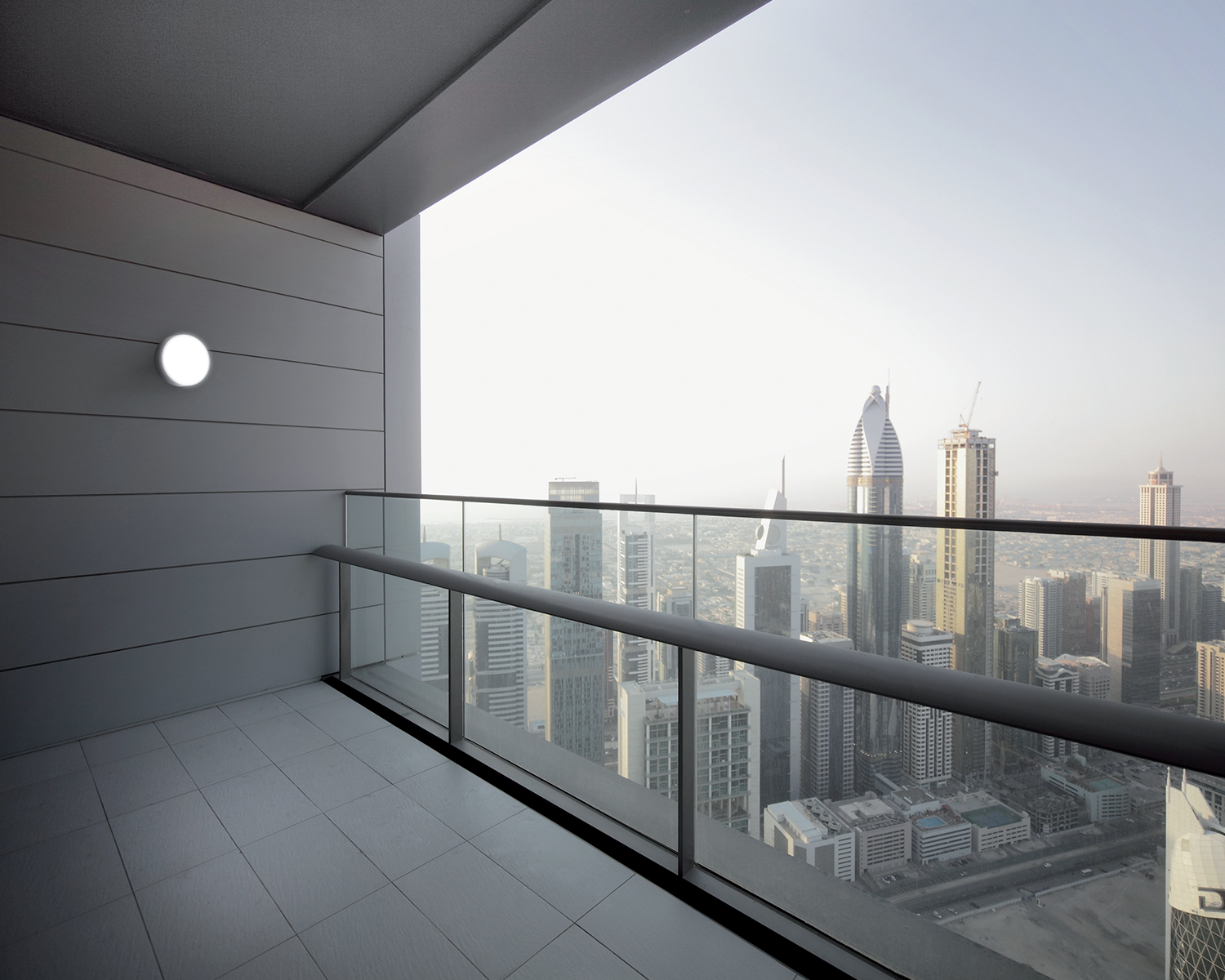

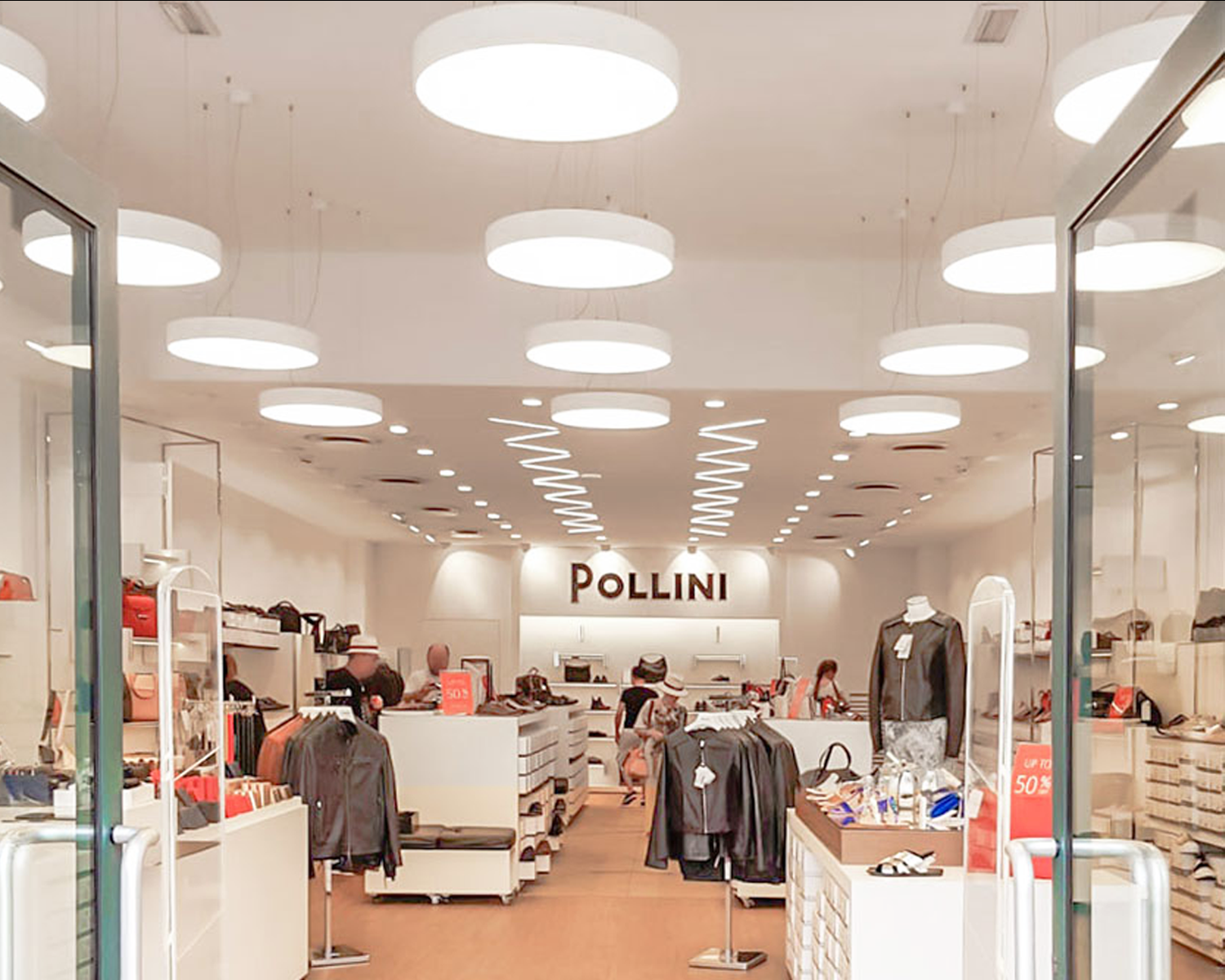

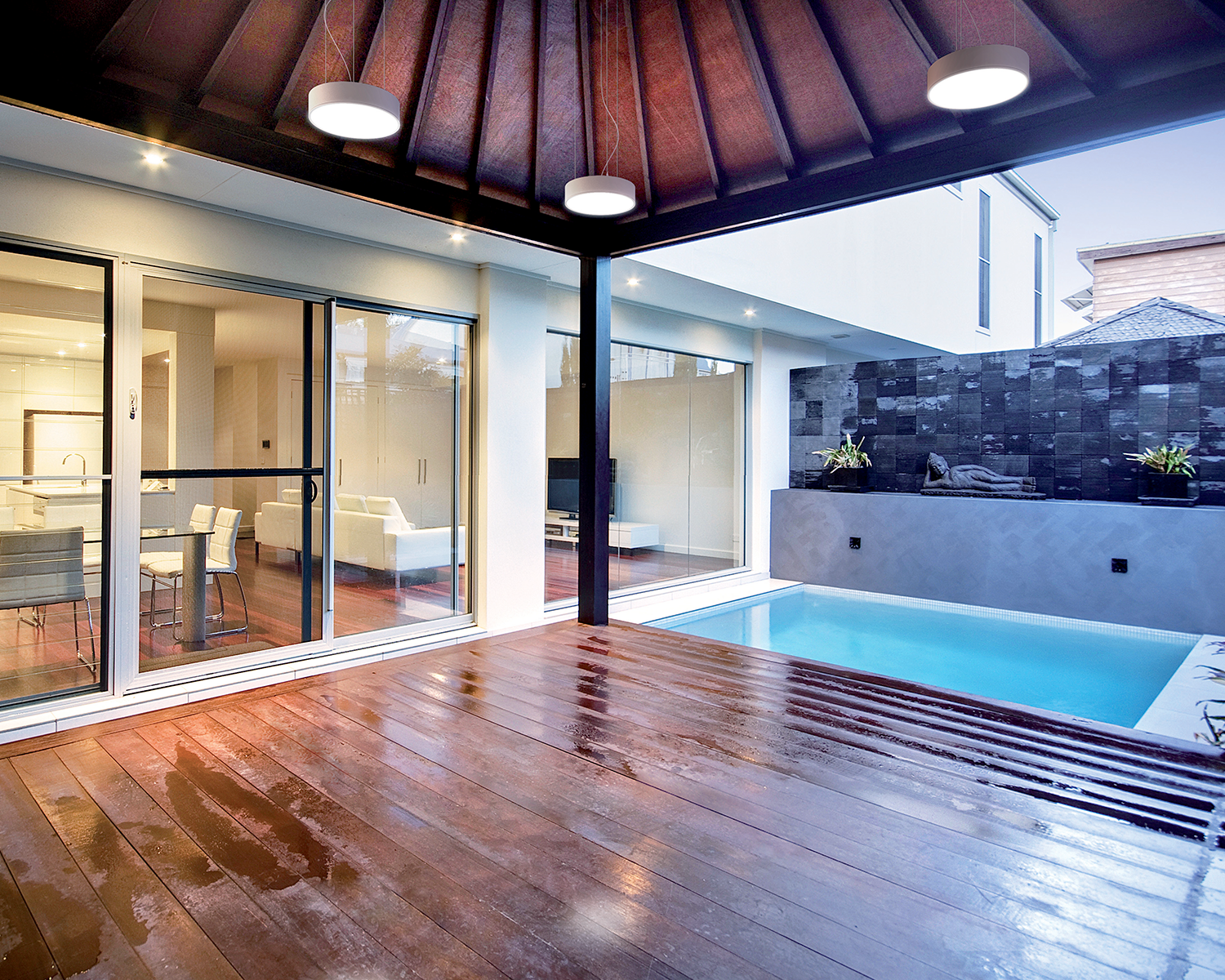

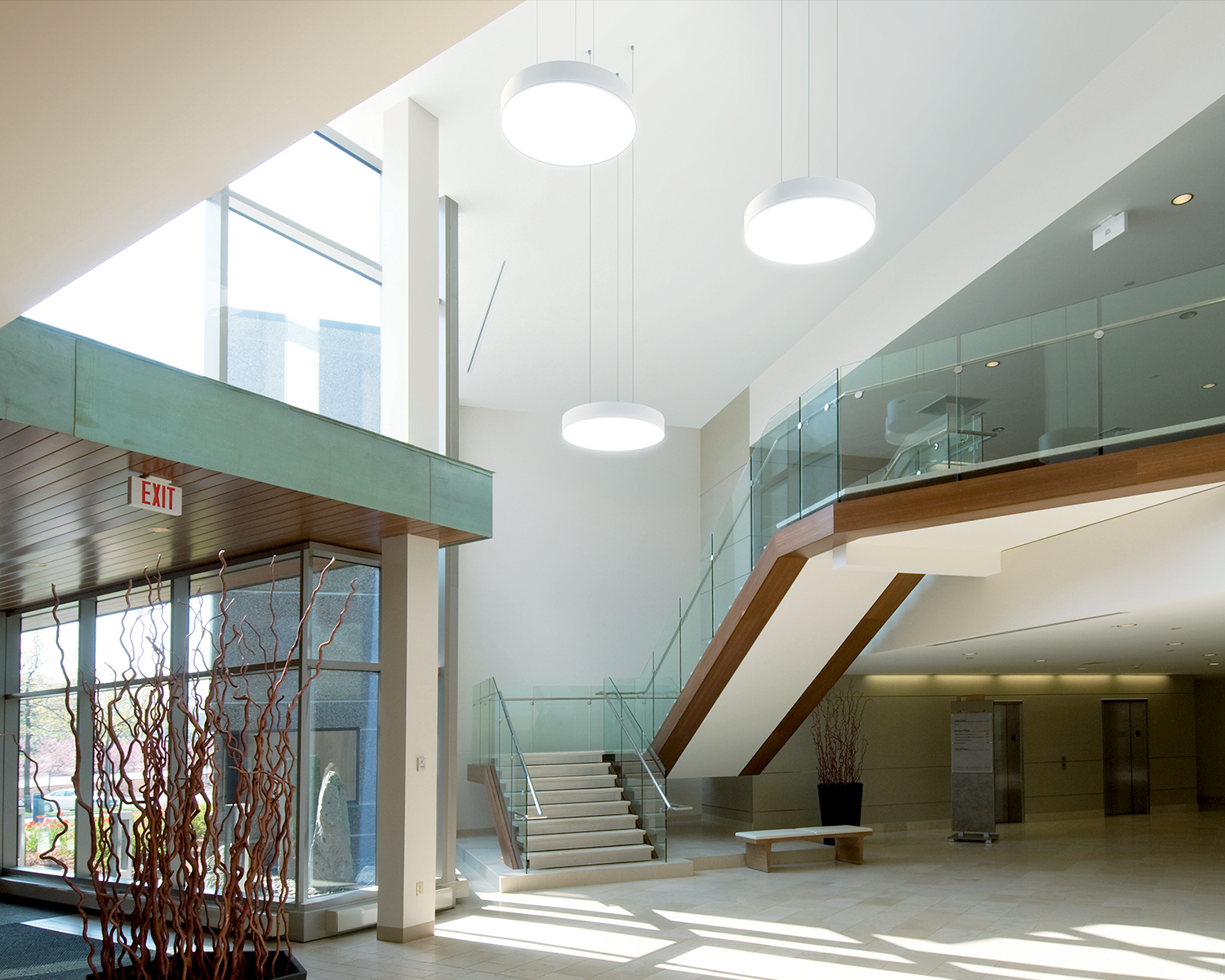

✔ Universal fixture produced with spun aluminium, for wall, ceiling, suspended or recessed applications

✔ White RAL 9003

✔ High levels of ingress protection are offered as standard, making this a truly versatile collection

✔ For applications where low glare is desirable, DPL optics are offered (IP40) which have a glare rating of UGR <19

✔ A satin opal diffuser is also offered for soft broad-beam distribution (UGR <22)

✔ IP54 option for wet area applications

✔ Quick fit connectors facilitate rapid installation

✔ Dimming and emergency versions complete the range

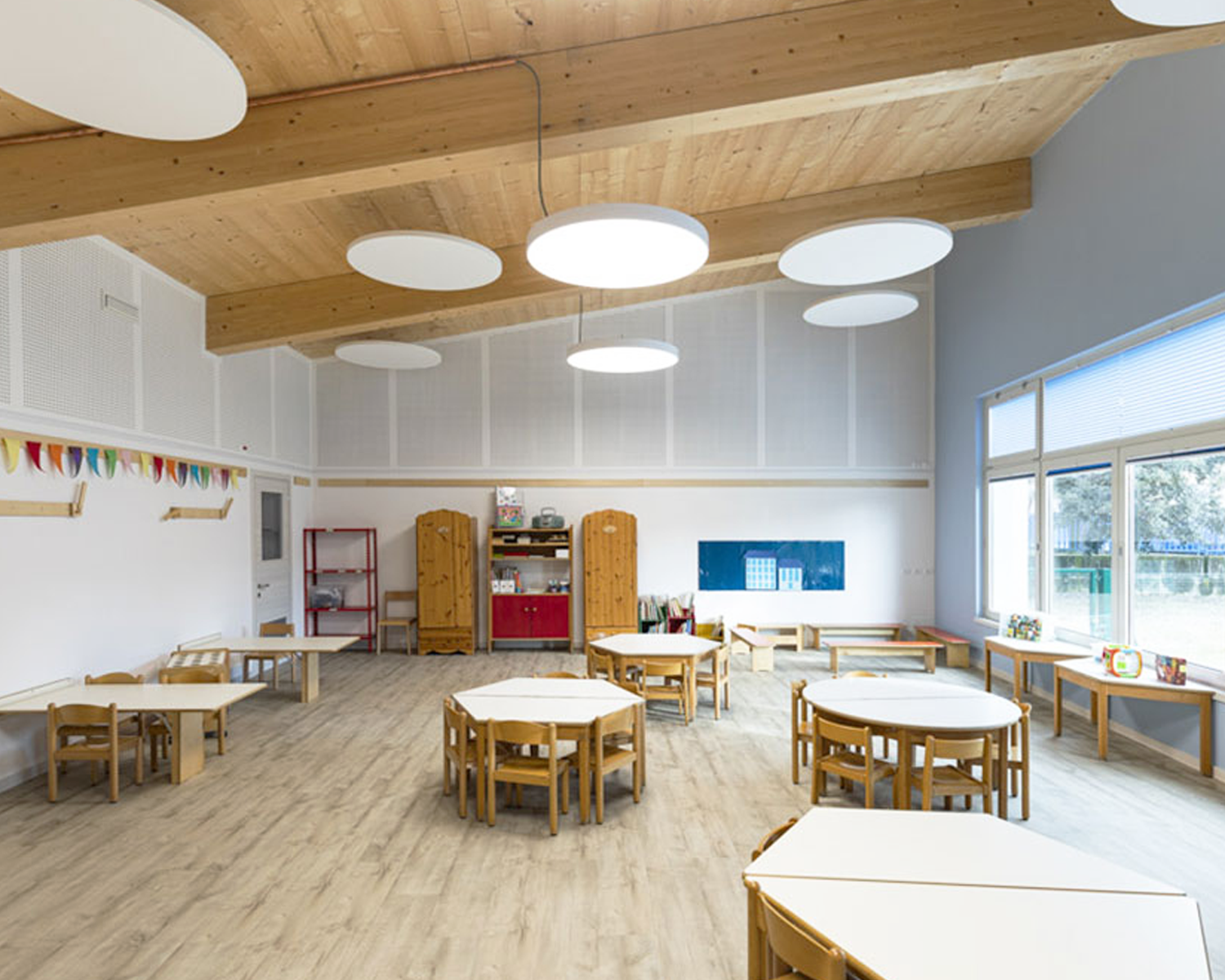

✔ Suitable for Commercial, Education, Healthcare, Office

Finishes / Material
  • White (Signal) RAL 9003
  • Body: Aluminium
  • Diffuser: Polycarbonate
    Impact resistant satin acrylic

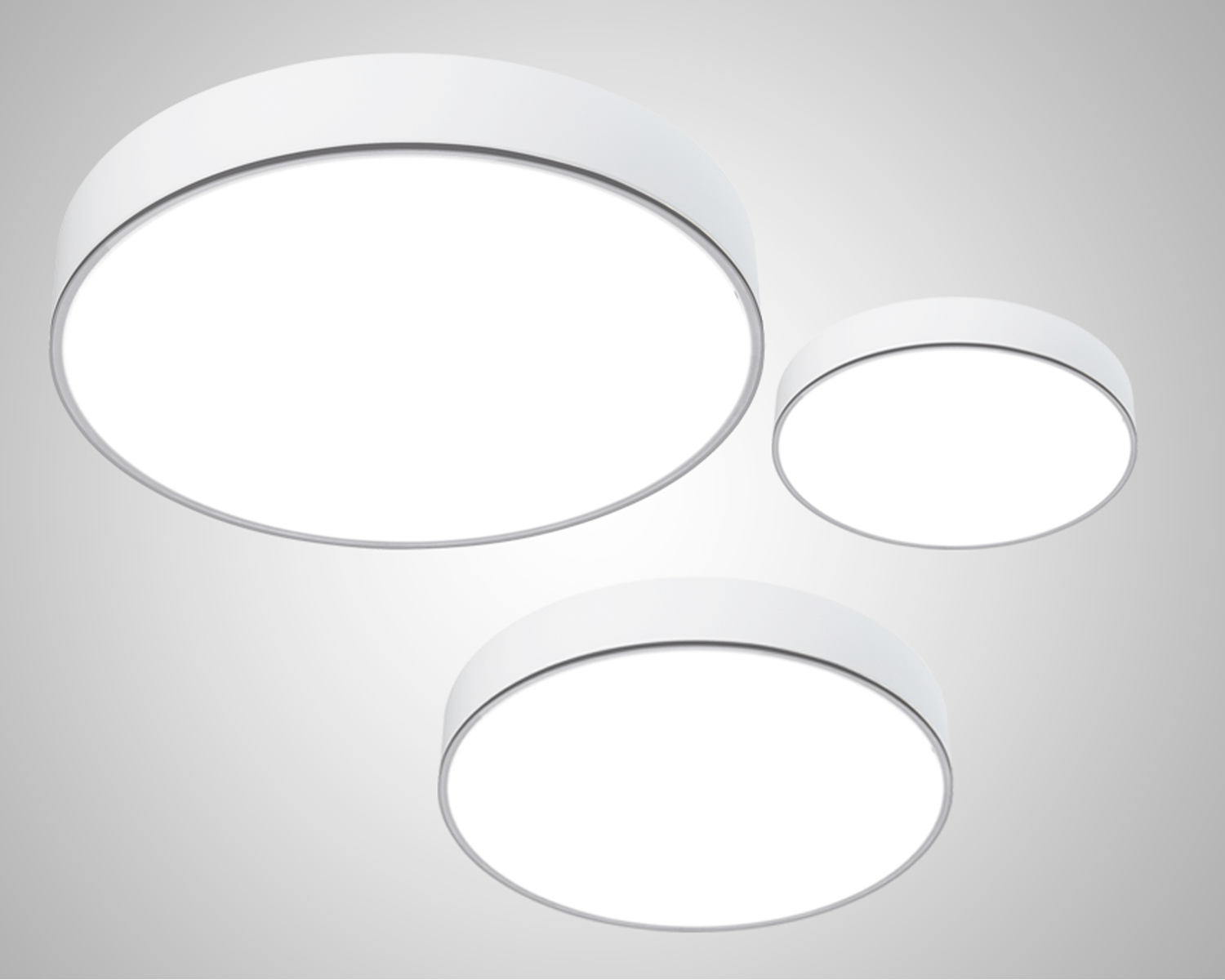

Sizes
  • 257 (Ø) x 68 (H) mm
  • 397 (Ø) x 86 (H) mm
  • 620 (Ø) x 86 (H) mm
  • 850 (Ø) x 86 (H) mm
  • 1080 (Ø) x 86 (H) mm

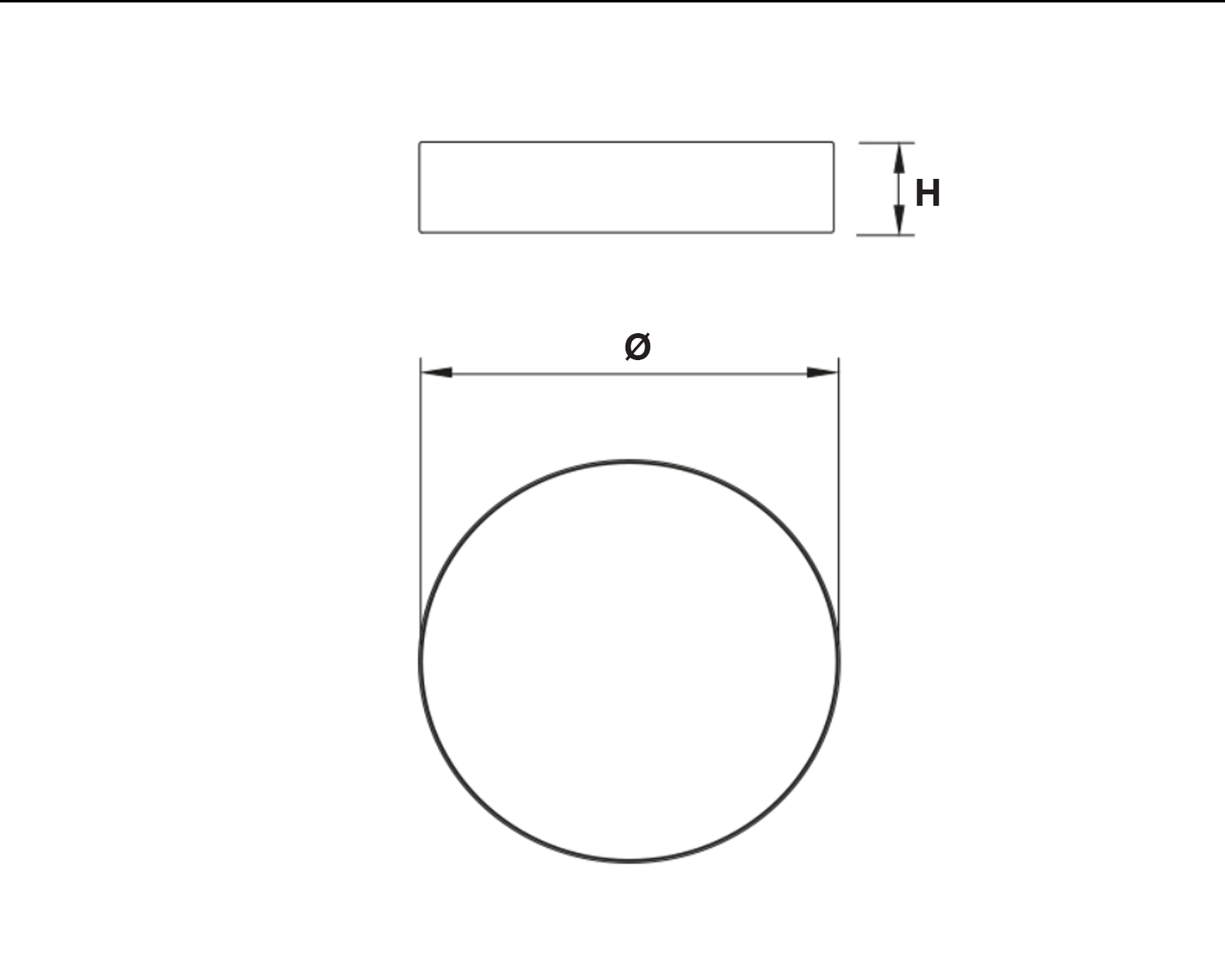

Technical Drawing
  • Source Info Tier 1 LED (Eg. Tridonic / Osram)
  • Lumens (delivered) 798Lm - 29240Lm
  • Circuit Watts 6cW - 221cW
  • Efficacy up to 155Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 2700K (On Request) / 3000K / 4000K / Tuneable White (2700K-6500K)
  • Colour Rendering CRI90

Options.

Diffuser

  • Opal Cover

    UGR <22

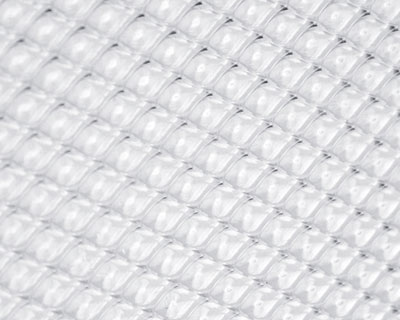

  • Prismatic Cover

    UGR <19

Enhanced IP Rating (optional)

*Please Note: Prismatic Cover is not available in IP54
  • IP54

    Gasket for enhanced IP rating

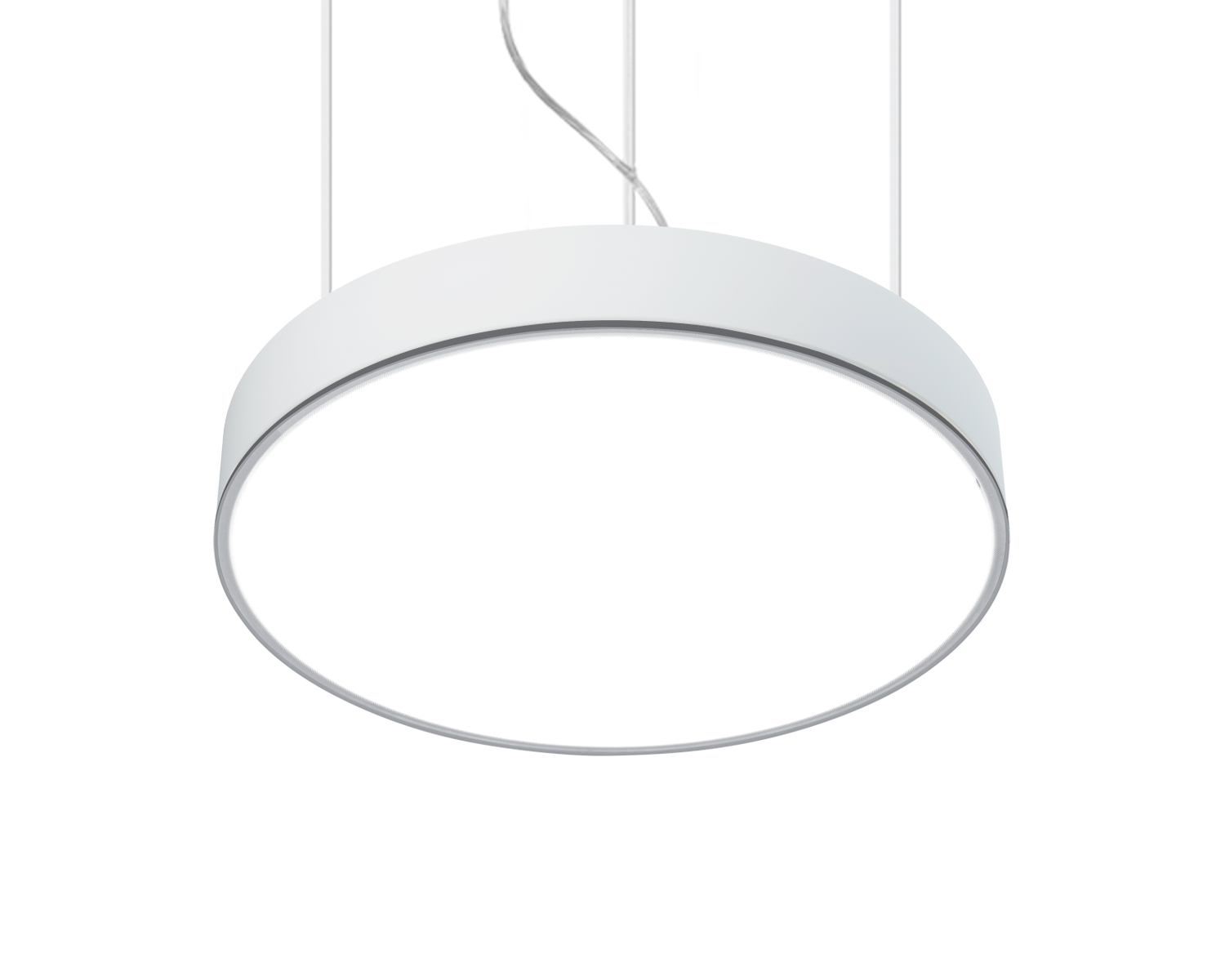

Suspension Wires (optional)

*Please Note: IP54 is not available when suspension kits are selected
  • Suspension wire kit (1.5m)
  • Suspension wire kit (3m)

Additional Information.

Universal fixture produced with spun aluminium, for wall, ceiling, suspended or recessed applications. High levels of ingress protection are offered as standard, making this a truly versatile collection. For applications where low glare is desirable, DPL optics are offered (IP40) which have a glare rating of UGR <19. A satin opal diffuser is also offered for soft broad-beam distribution (UGR <22). The LED boards are mounted on circular aluminium frames for optimum thermal management and quick fit connectors facilitate rapid installation. Dimming and emergency versions complete the range.
