Wave

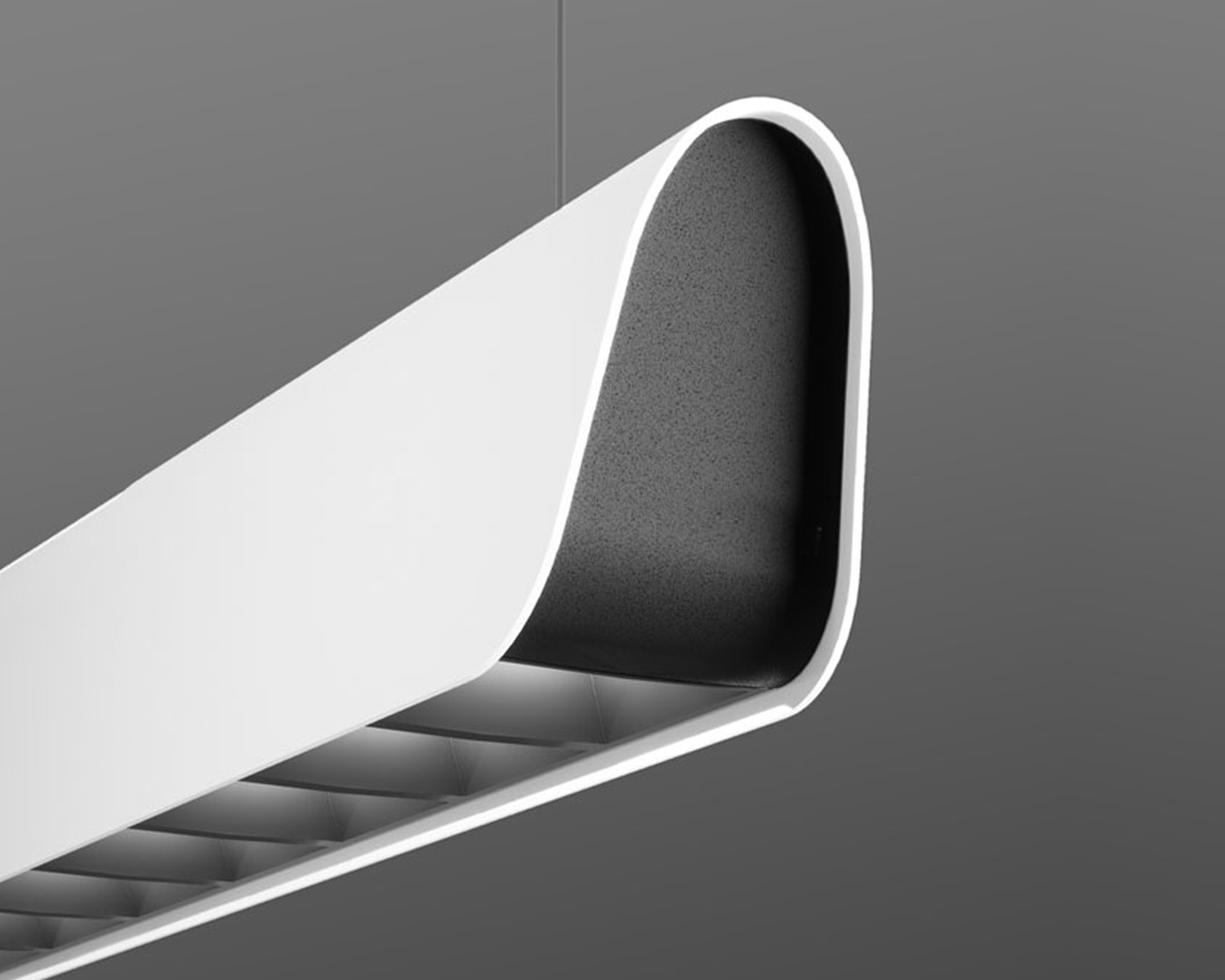

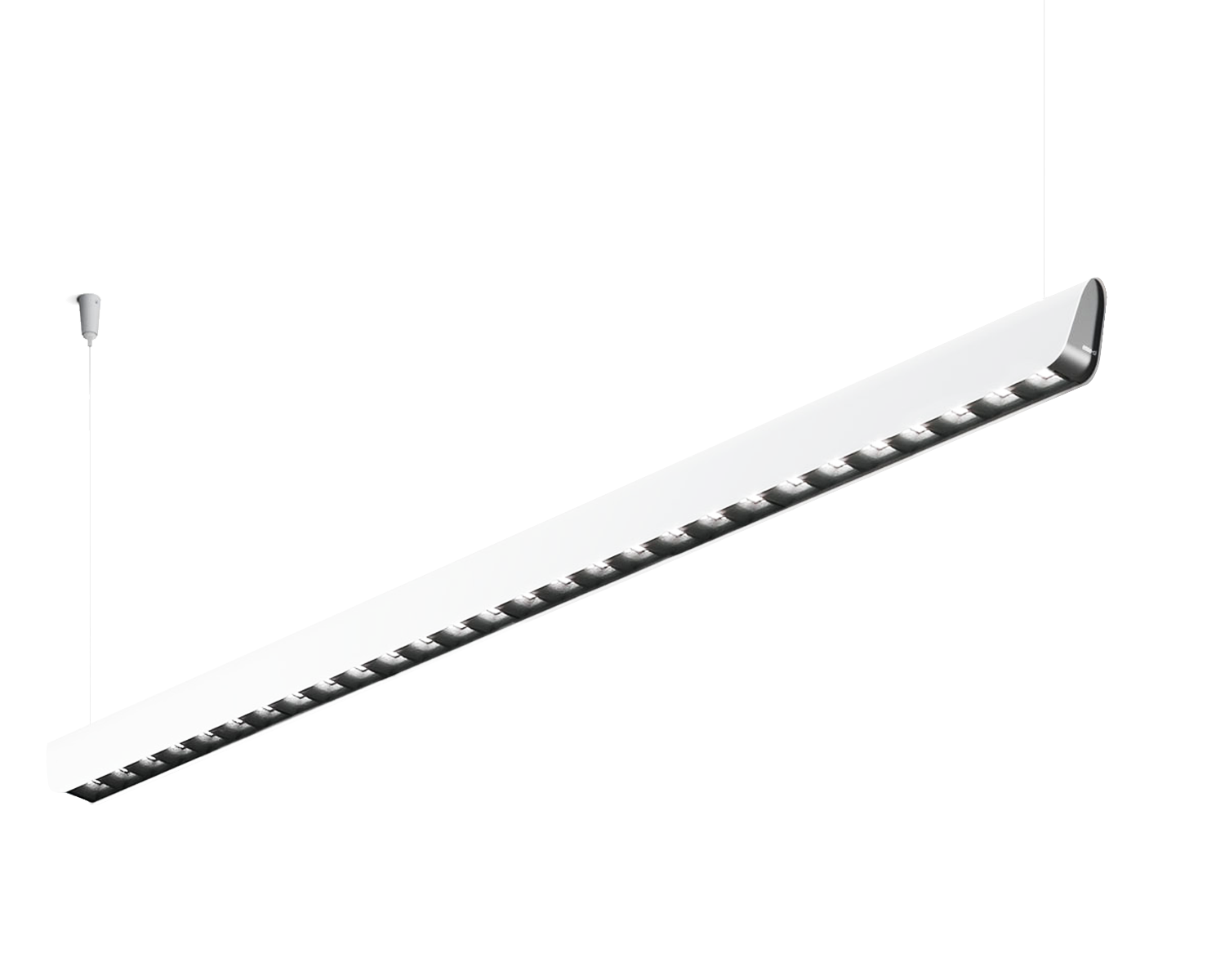

Low glare architectural linear office luminaire

Product Overview

✔ High Contrast microcell optical system and high glare control

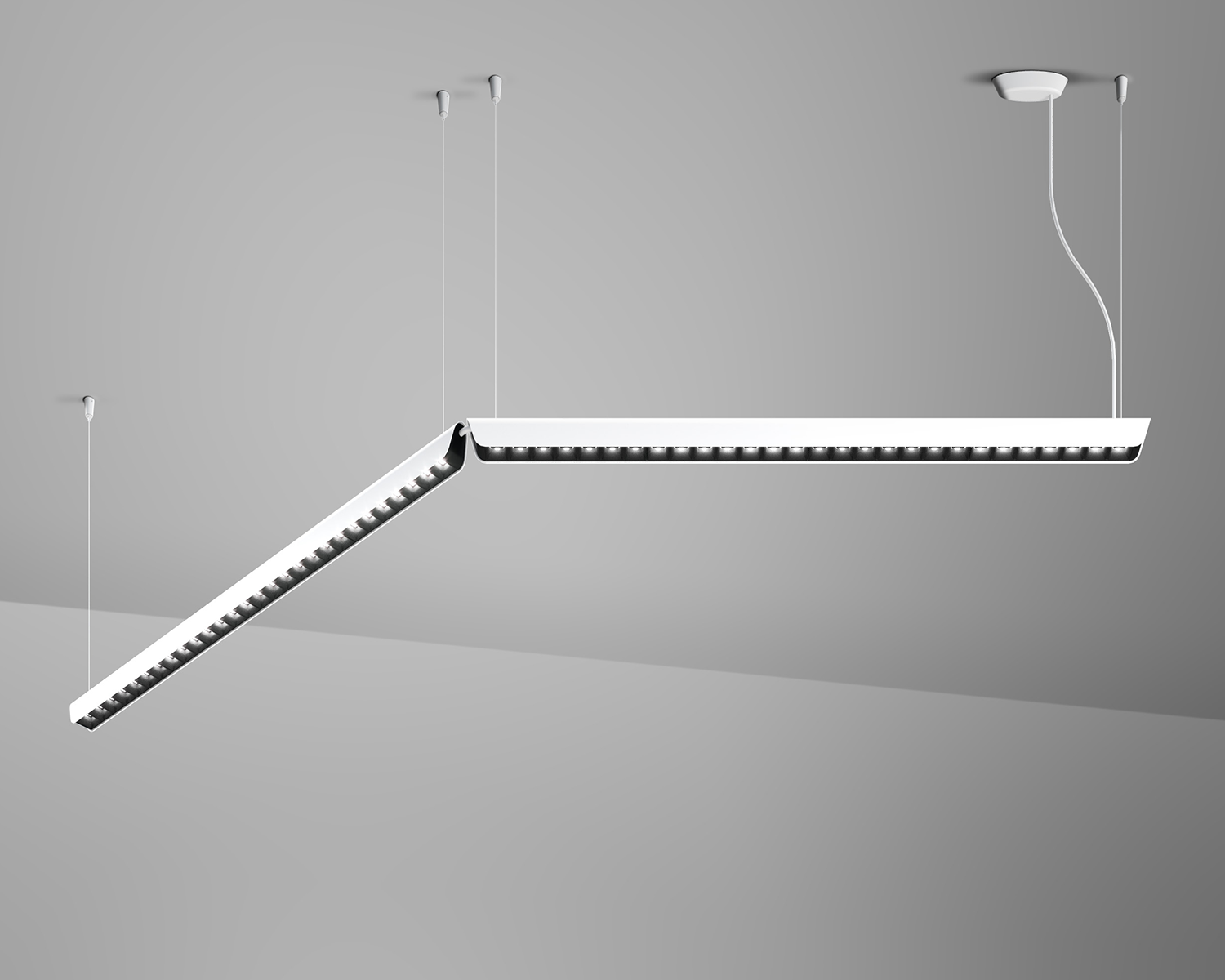

✔ Suitable both as an element for single installation and as a system for continuous suspended rows

✔ Direct/indirect versions

✔ EEA Conformity

✔ UGR <16 office light

✔ Recessed version for single installation and for continuous systems available to special order - please contact sales

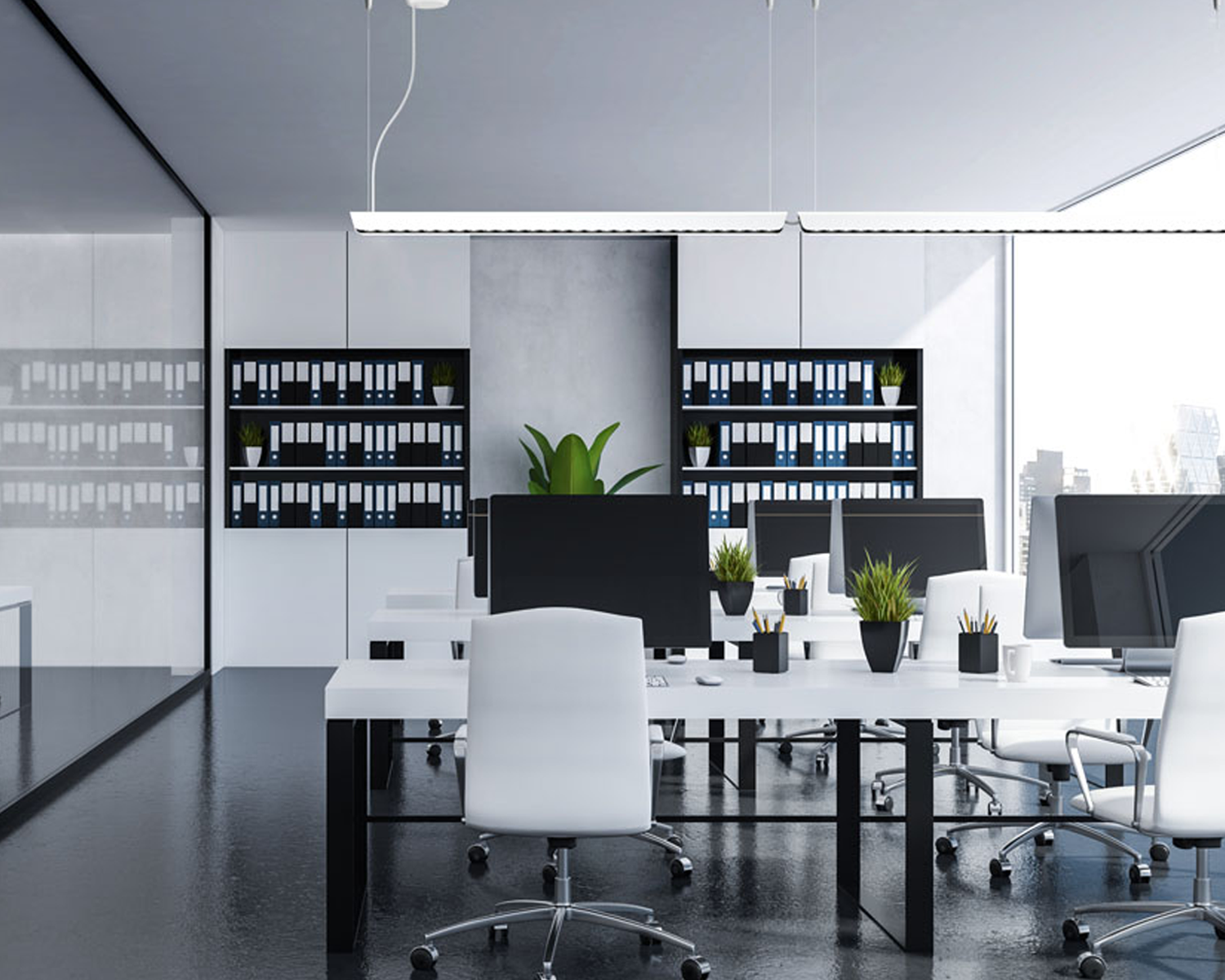

✔ Suitable for Office

Finishes / Material

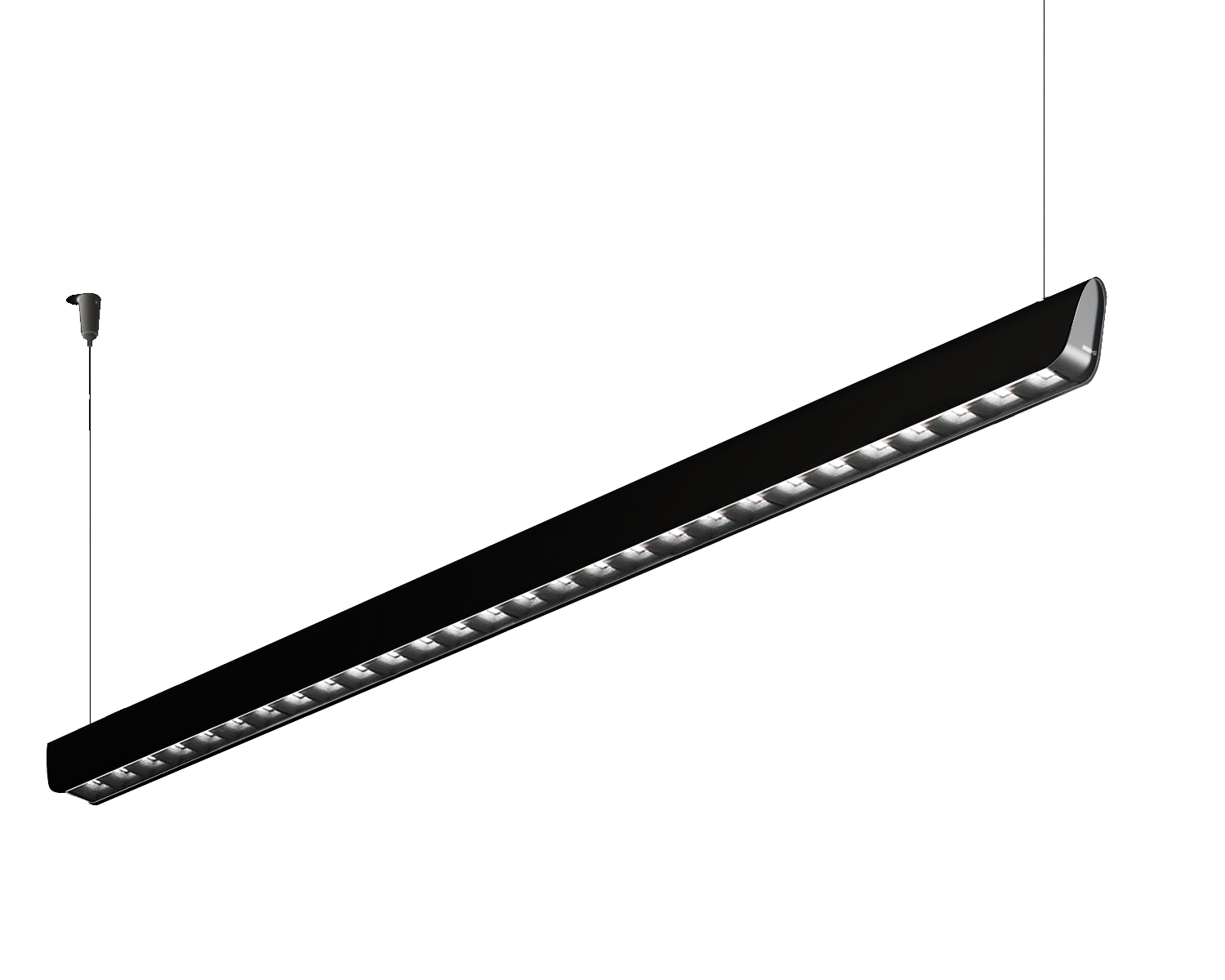

  • Black (Matt) RAL 9005
  • White (Signal) RAL 9003
  • Body: Aluminium
    Epoxy powder coating
Sizes
  • 1185 (L) x 45 (W) x 60 (H) mm
  • 1465 (L) x 45 (W) x 60 (H) mm
  • 1745 (L) x 45 (W) x 60 (H) mm
  • 2865 (L) x 45 (W) x 60 (H) mm

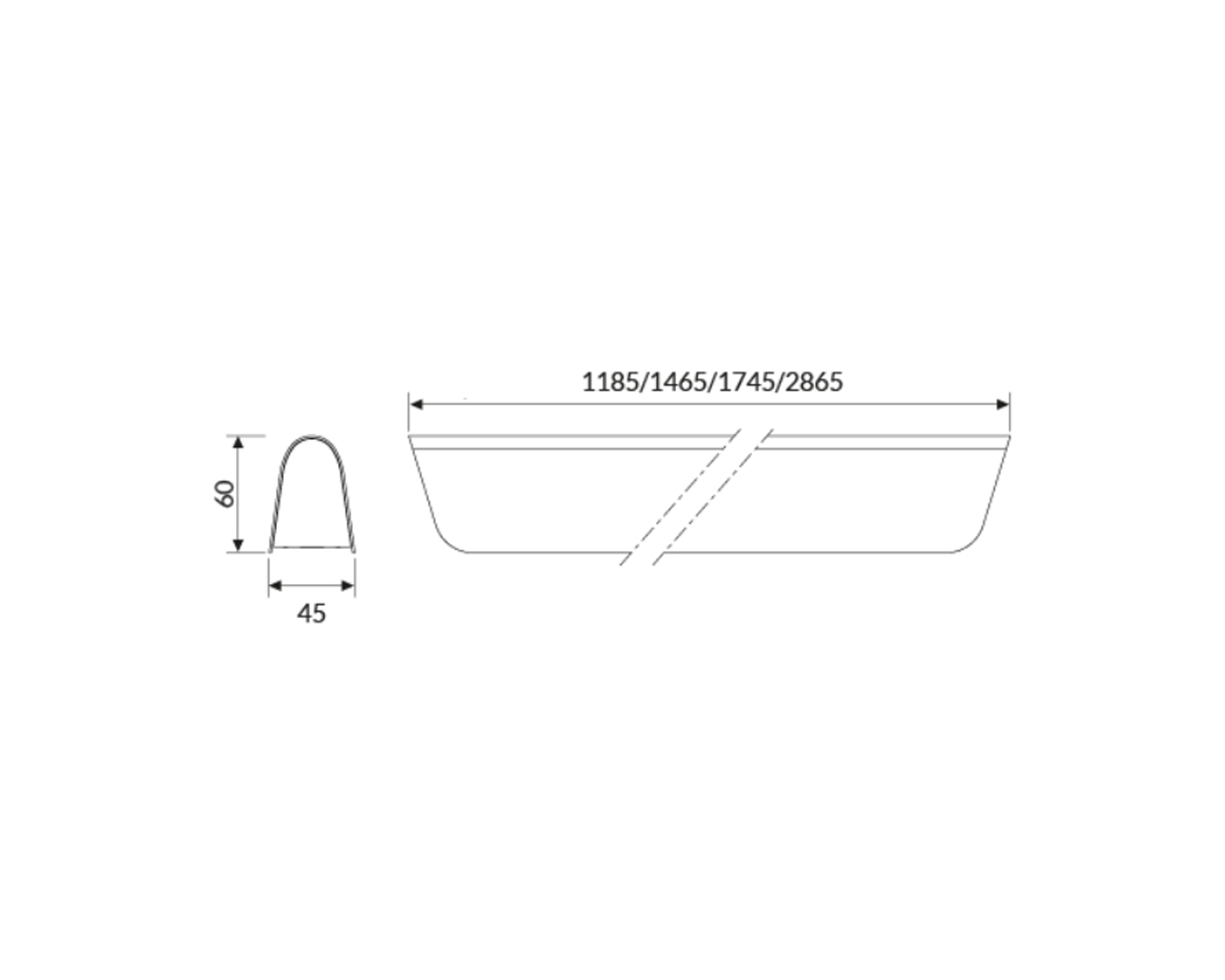

Technical Drawing
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 2938Lm - 13086Lm
  • Circuit Watts 26cW - 122cW
  • Efficacy up to 113Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 2700K (To special order) / 3000K / 4000K
  • Colour Rendering CRI90

Additional Information.

Soft-line design for a truly versatile range: WAVE is suitable both as an element for single installation and as a system for continuous suspended or recessed rows. Direct/indirect emission with High Contrast microcell optical system and high glare control.
