PSU - 1-10V 20W

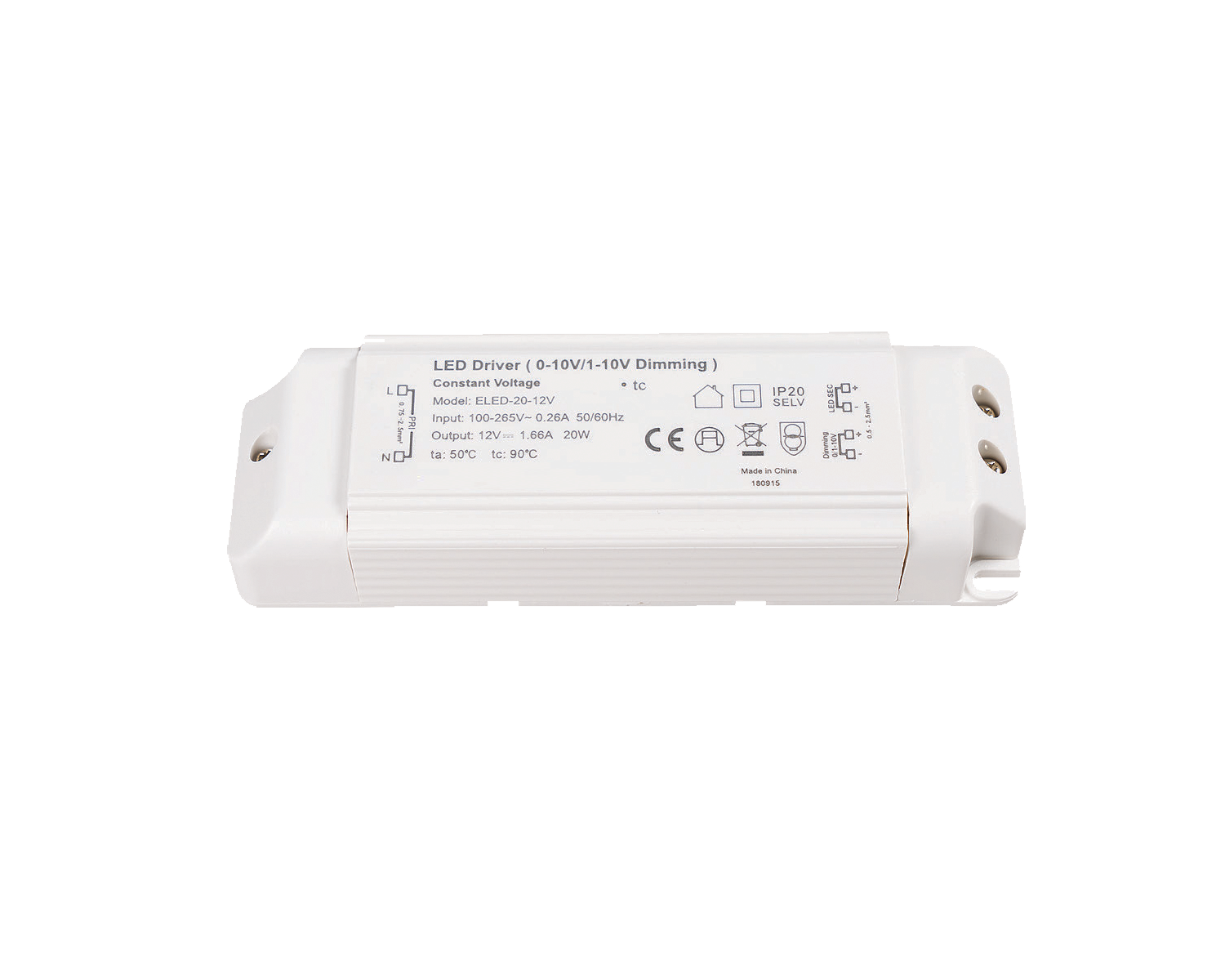

20W 0/1-10V Dimmable LED power supply unit (PSU-ELED-20-V)

Product Overview

✔ Constant voltage

✔ 3 in 1 dimming function (0/1-10Vdc or 10v PWM signal or resistance)

✔ AC input: 100-265VAC

✔ Built-in active PFC function

✔ High efficiency up to 82%

✔ Protections: Short circuit/Over current/Over loading

✔ Cooling by free air convection

✔ Suitable for LED lighting and moving signs

  • Base IP Rating IP20
  • Voltage 100-265VAC (Input) 12V/24V(Output), 47-63Hz
  • Power Factor PF>0.95/120VAC PF>0.95/230VAC PF>0.95/265VAC (Full Loading)
  • Temp Range -40ºC - +60ºC
  • Warranty 5 Years

Additional Information.

20Watt 0/1-10V Dimmable LED Driver
