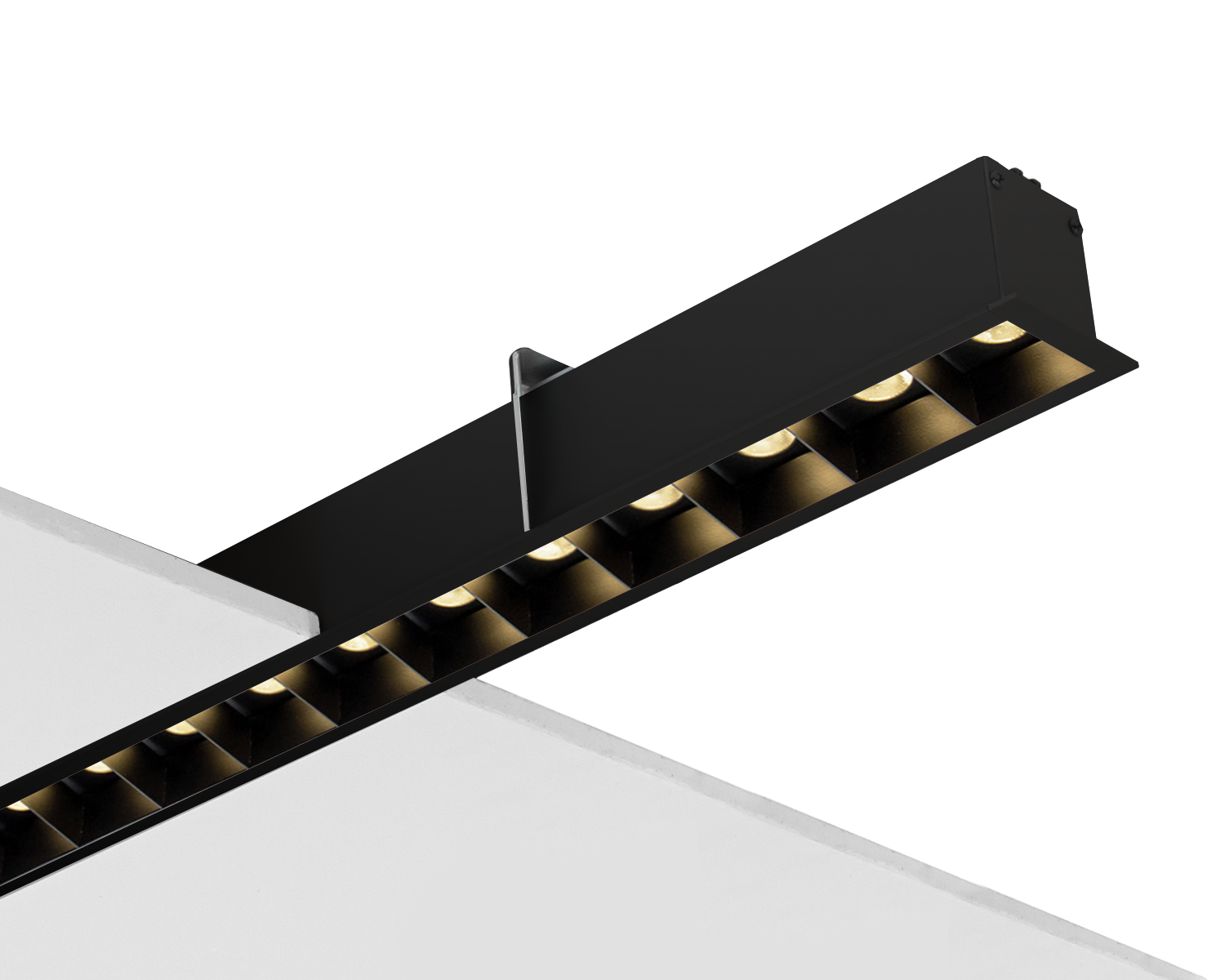

Vogue 5.7 LA (R)

Recessed linear wall grazer with dark light louvre

Product Overview

✔ Ceiling recessed linear luminaire constructed of extruded aluminium

✔ Individual LED spotlights concealed within a darklight louvre, ideal for wall washing

✔ Available in single lengths of upto 3m and connected together to form long, straight runs

✔ Pitch of LEDs: 50mm

✔ Osram LED technology

✔ Choice of beam angles available

✔ Standard or DALI drivers, remote from the luminaire

✔ Suitable for Hospitality, Office, Retail, Gallery/Museum, Leisure, Wall Washing

Finishes / Material
  • Silver (Anodised)
  • Black (Matt) RAL 9005
  • White (Signal) RAL 9003
  • Silver (White Aluminium) RAL 9006
  • Custom
  • Body: Extruded Aluminium
  • Louvre: Aluminium
Sizes
  • 424 (L) x 70 (W) x 70 (H) x 100 (D) mm
  • 624 (L) x 70 (W) x 70 (H) x 100 (D) mm
  • 924 (L) x 70 (W) x 70 (H) x 100 (D) mm
  • 1224 (L) x 70 (W) x 70 (H) x 100 (D) mm
  • 1524 (L) x 70 (W) x 70 (H) x 100 (D) mm
  • 1824 (L) x 70 (W) x 70 (H) x 100 (D) mm
  • 2424 (L) x 70 (W) x 70 (H) x 100 (D) mm
  • 3024 (L) x 70 (W) x 70 (H) x 100 (D) mm
  • >3024 (L) mm
    For longer lengths please contact sales
  • M2M (L) mm
    Made to measure length
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 889Lm - 12351Lm
  • Circuit Watts 11cW - 132cW
  • Efficacy up to 101Lm/cW
  • MacAdams 2SDCM
  • Colour Temperature 3000K (2 SDCM, Single Bin)
  • Colour Rendering CRI90

Options.

Beam

  • 16° Beam Angle
  • 36° Beam Angle

    50mm spacing only

Louvre Finish

  • Black
  • White
  • Gold

Additional Information.

Vogue 5.7 LA R is an architectural recessed linear wall grazer. Available in matt black, anodized silver or white, this high performance recessed linear wall washer is ideal for providing uniform accent lighting to wall surfaces. If you are looking for a recessed linear wall light to emphasise textured wallpapers or feature walls then Vogue 5.7 LA R is a great choice.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
