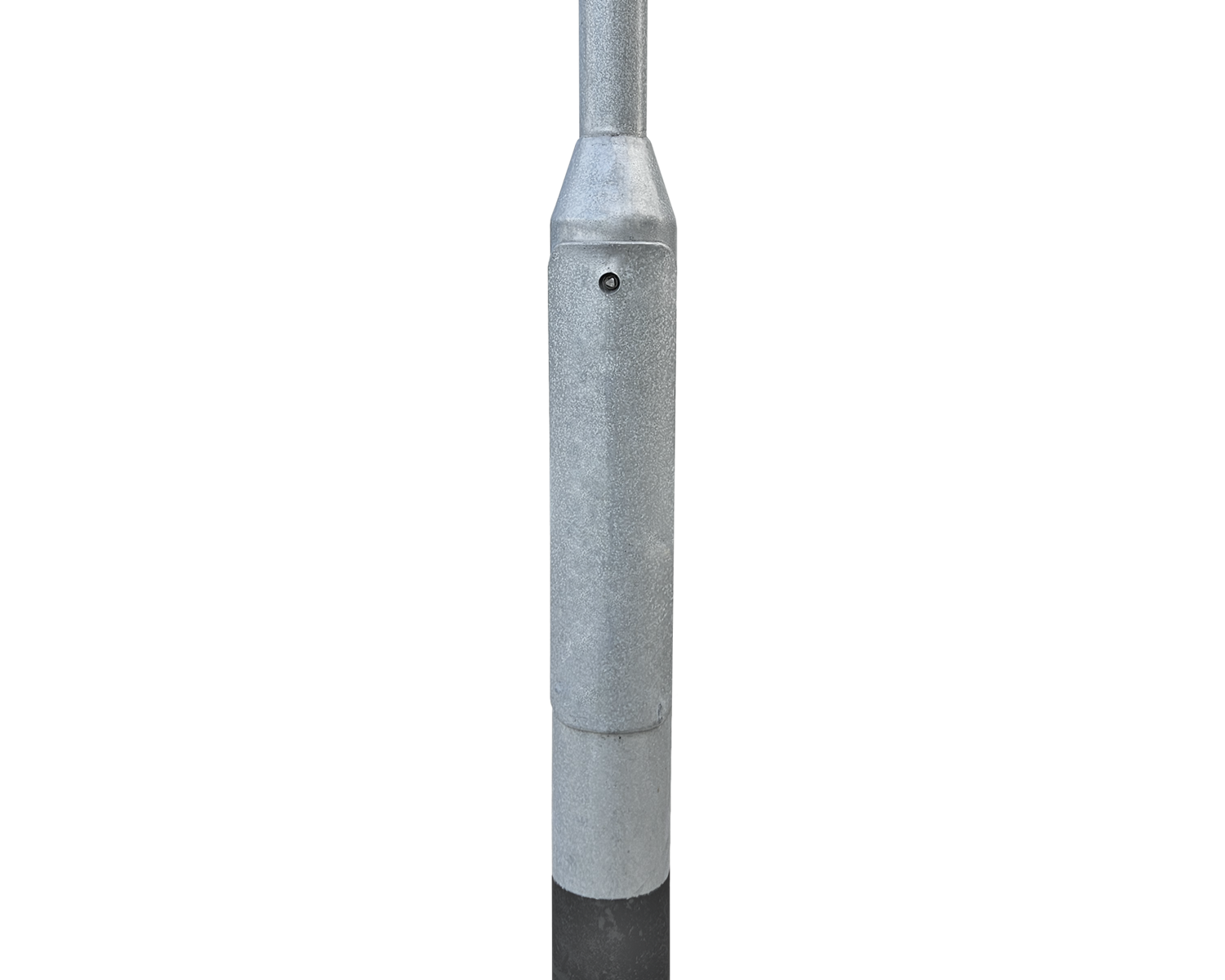

Tubular Column
Robust column suitable for roads, car parks and urban landscapes
Product Overview
✔ Manufactured in steel
✔ Various height options
✔ Can be supplied Galvanized, Black or painted in any standard RAL colour
✔ For roads, car parks and urban landscapes
✔ Available with root or flange plate mounting
✔ Suitable for Education, Healthcare, Hospitality, Industrial, Exterior, Commercial, Leisure, Parks & Gardens, Roads
Finishes / Material
-
Galvanized -
Black (Matt) RAL 9005
-
Custom
-
Body: Steel
Sizes
-

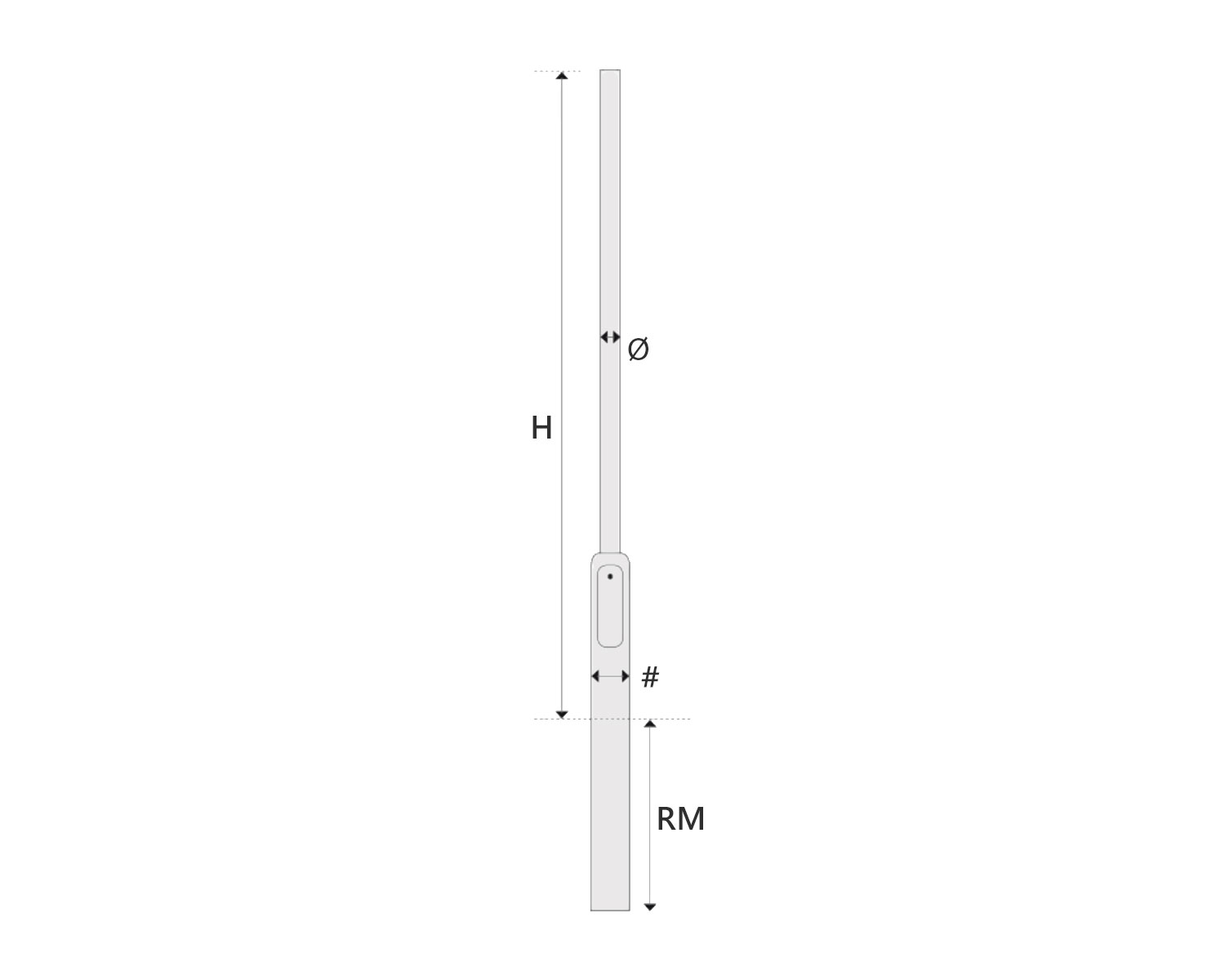

76 (Ø) x 3000 (H) x *800 (D) mm140, Weight: Max Head Load: 50kg, *RM
-
76 (Ø) x 4000 (H) x *800 (D) mm140, Weight: Max Head Load: 50kg, *RM
-
76 (Ø) x 5000 (H) x *800 (D) mm140, Weight: Max Head Load: 50kg, *RM
-
76 (Ø) x 6000 (H) x *1000 (D) mm140, Weight: Max Head Load: 50kg, *RM
-
89 (Ø) x 8000 (H) x *1200 (D) mm168, Weight: Max Head Load: 40kg, *RM
- Mounting Floor
Options.
Base
-
Root Mounted
-
Flange Plate Mounted
Fuse Cut Out (optional)
-

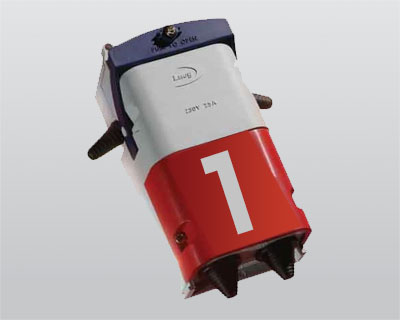

6 amp single fuse cut out
-

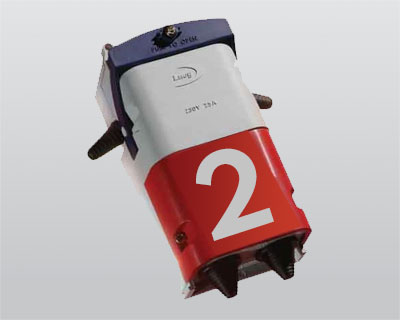

6 amp twin fuse cut out
Mounting Brackets (optional)
-

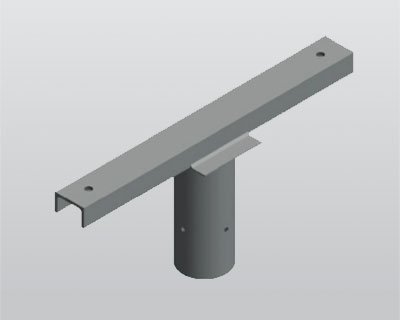

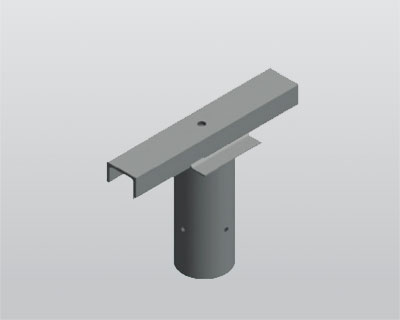

Single floodlight bracket to suit 76mm spigot/shaft - 300mm width
-
Double floodlight bracket to suit 76mm spigot/shaft - 600mm width
-
Triple floodlight bracket to suit 76mm spigot/shaft - 1300mm wdith
-

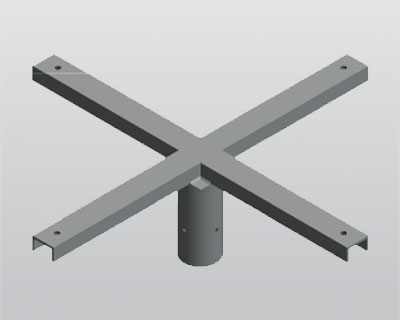

Quad floodlight bracket to suit 76mm spigot/shaft - 1100mm width
-

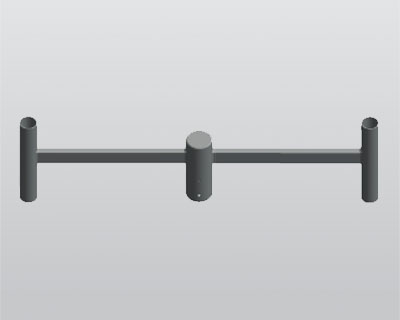

Double post top bracket to suit 76mm spigot/shaft
-

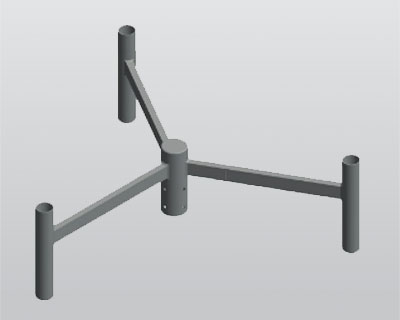

Triple post top bracket to suit 76mm spigot/shaft
-

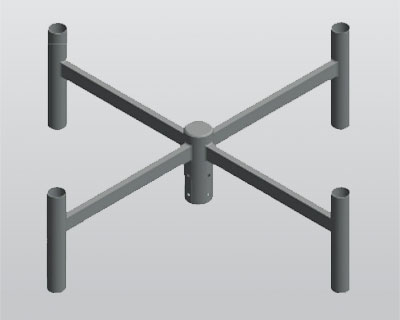

Quad post top bracket to suit 76mm spigot/shaft
Door Key (optional)
-
Key
Door key accessory
Additional Information.
Exterior tubular steel column light in galvanized or painted in finish.
