Blayde 3.0

High performance street light for side or column top entry

Product Overview

✔ High uniformity for maximum spacing’s between columns

✔ Anti-corrosion die cast aluminium

✔ Toughened glass cover for additional protection

✔ Supplied with adjustable spigot for side or column top entry

✔ Supplied with 10m of cable for a quick installation

✔ Its truly flat design prevents upward light

✔ Post–top or side–entry, 60 / 76mm spigot options

✔ Compliant with Dark Skies (3000K + DALI Option)

✔ Bat & Insect friendly (2700K + DALI Option)

✔ Suitable for Education, Healthcare, Hospitality, Industrial, Office, Retail, Exterior, Commercial, Leisure, Residential, Parks & Gardens, Roads

Finishes / Material

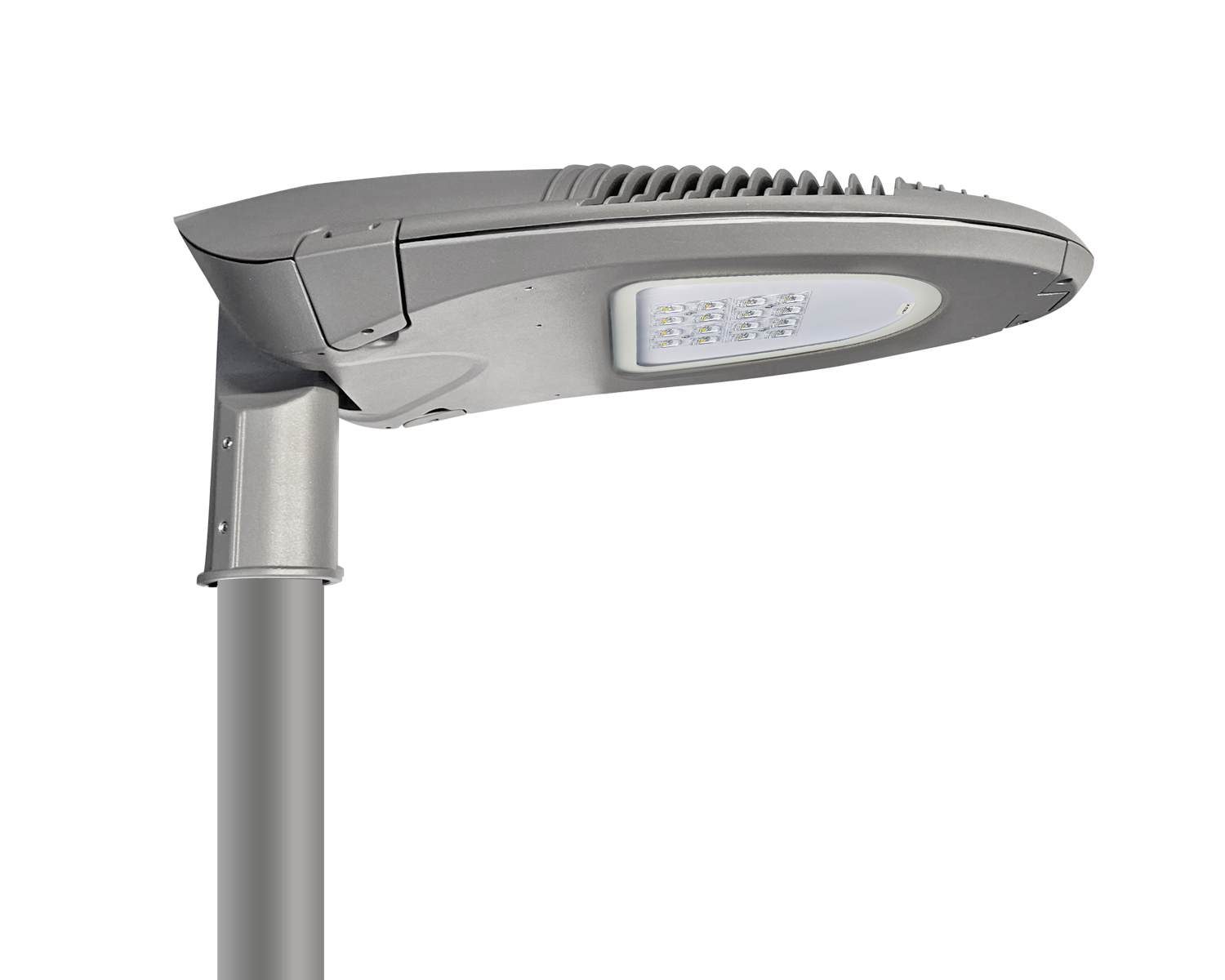

  • Grey (Light Grey)
    RAL 7037

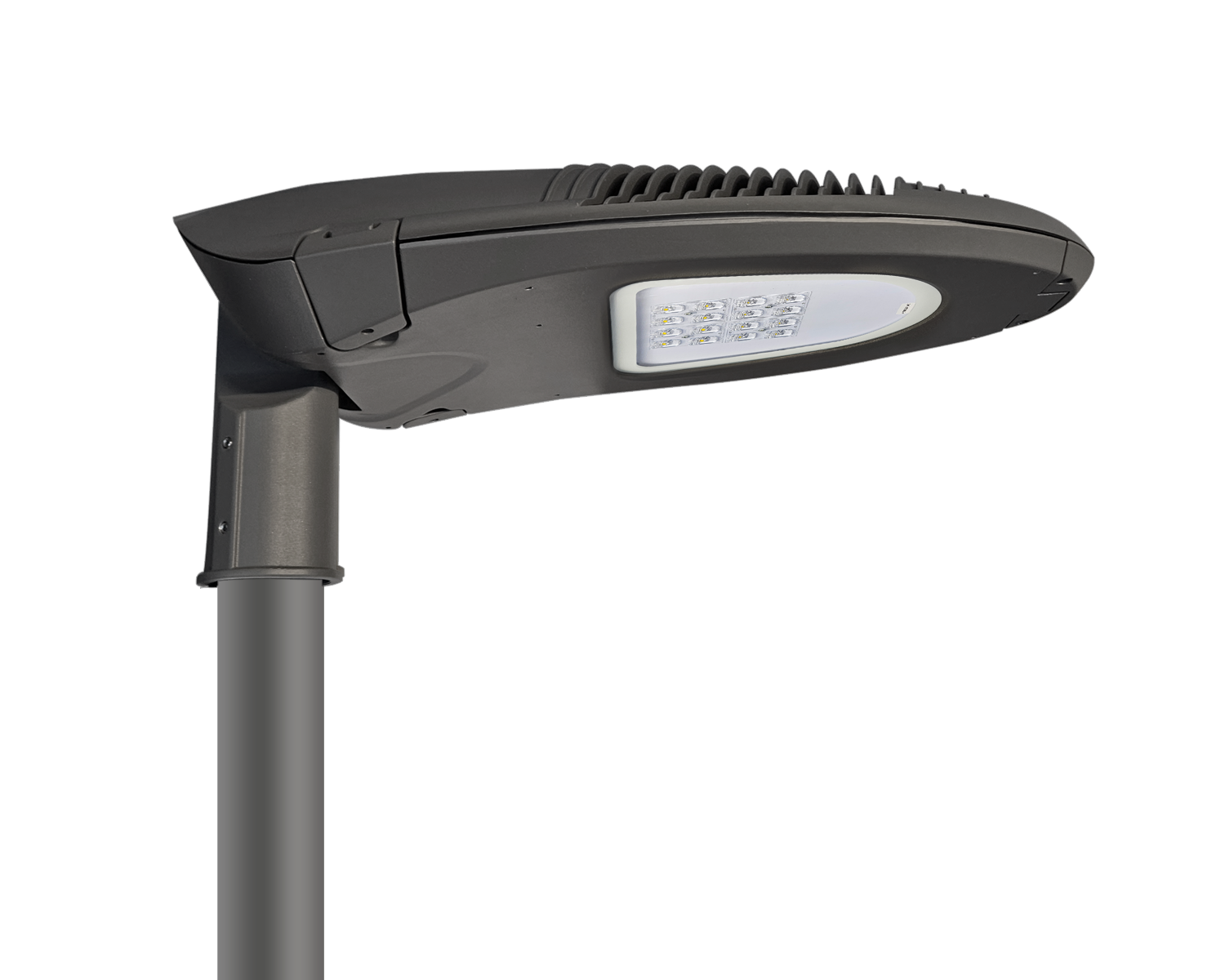

  • Black (Matt) RAL 9005

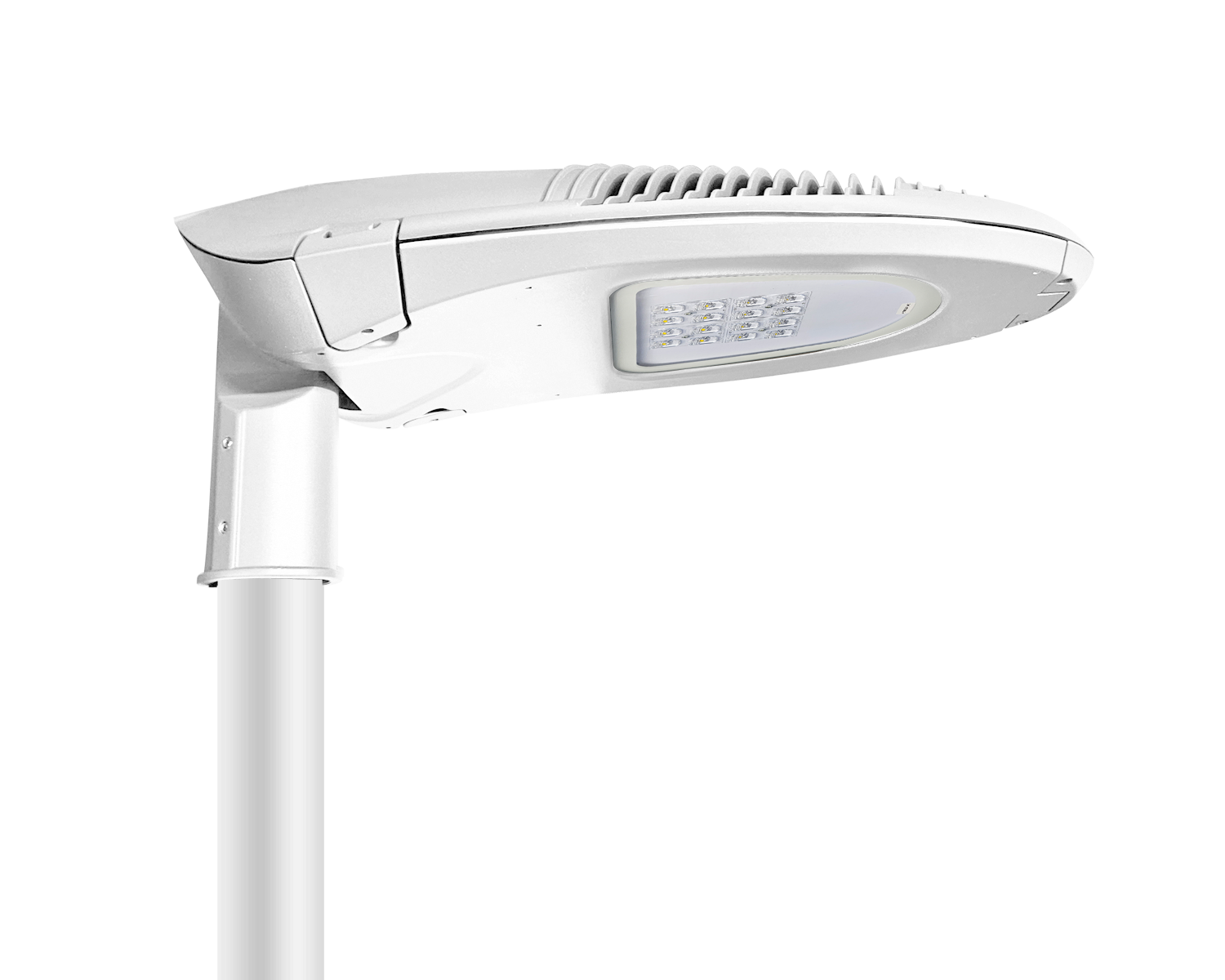

  • Custom
  • Body: Die Cast Aluminium
    Anti-corrosion
  • Diffuser: Glass
    High impact glass
Sizes
  • 590 (L) x 305 (W) x 134 (H) mm
    Spigot: Ø60/76mm, Weight: 8.25kg

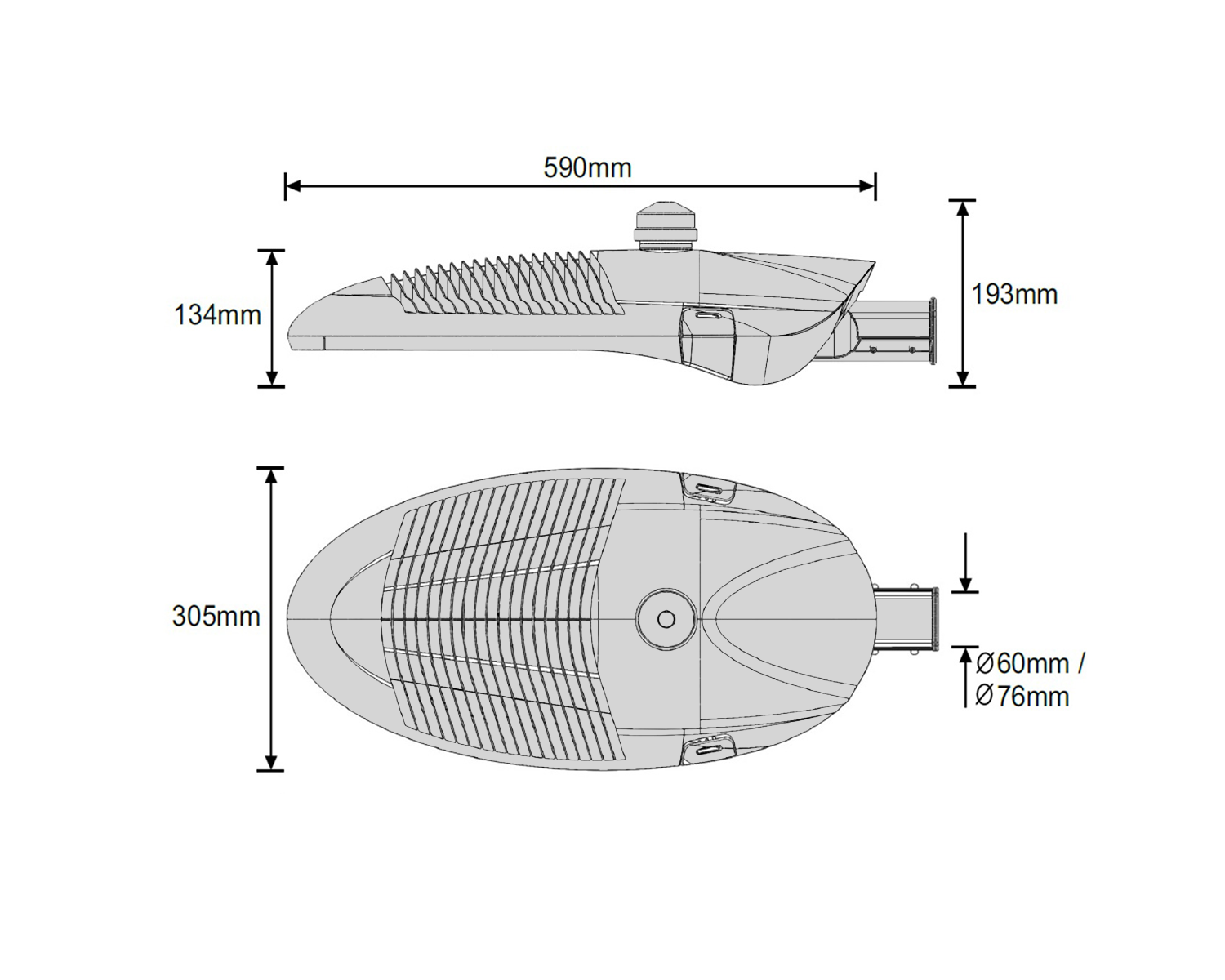

Technical Drawing
  • Source Info Osram LED technology
  • Lumens (delivered) 2402Lm - 9302Lm
  • Circuit Watts 20cW - 70cW
  • Efficacy up to 132Lm/cW
  • MacAdams <3 SDCM
  • Colour Temperature 2200K (On request) / 2700K (On request - Bat & Insect Friendly with DALI option) / 3000K (Compliant with Dark Skies Lighting with DALI option) / 4000K / 6000K
  • Colour Rendering CRI70 / CRI80

Options.

Spigot Size

  • Spigot - Fits 60mm Pole (Ø)
  • Spigot - Fits 76mm Pole (Ø)

Beam Distribution

  • Footpath / Cycle path
  • Carpark, symmetric
  • Carpark, forward throw distribution

Nema Sockets (optional)

  • 7 Pin Nema Socket (socket only)
  • 7 Pin Nema Socket + 7 Pin Nema Photocell (Dimmable)
  • 7 Pin Nema Socket + 3 Pin Nema Photocell (Non-Dim)

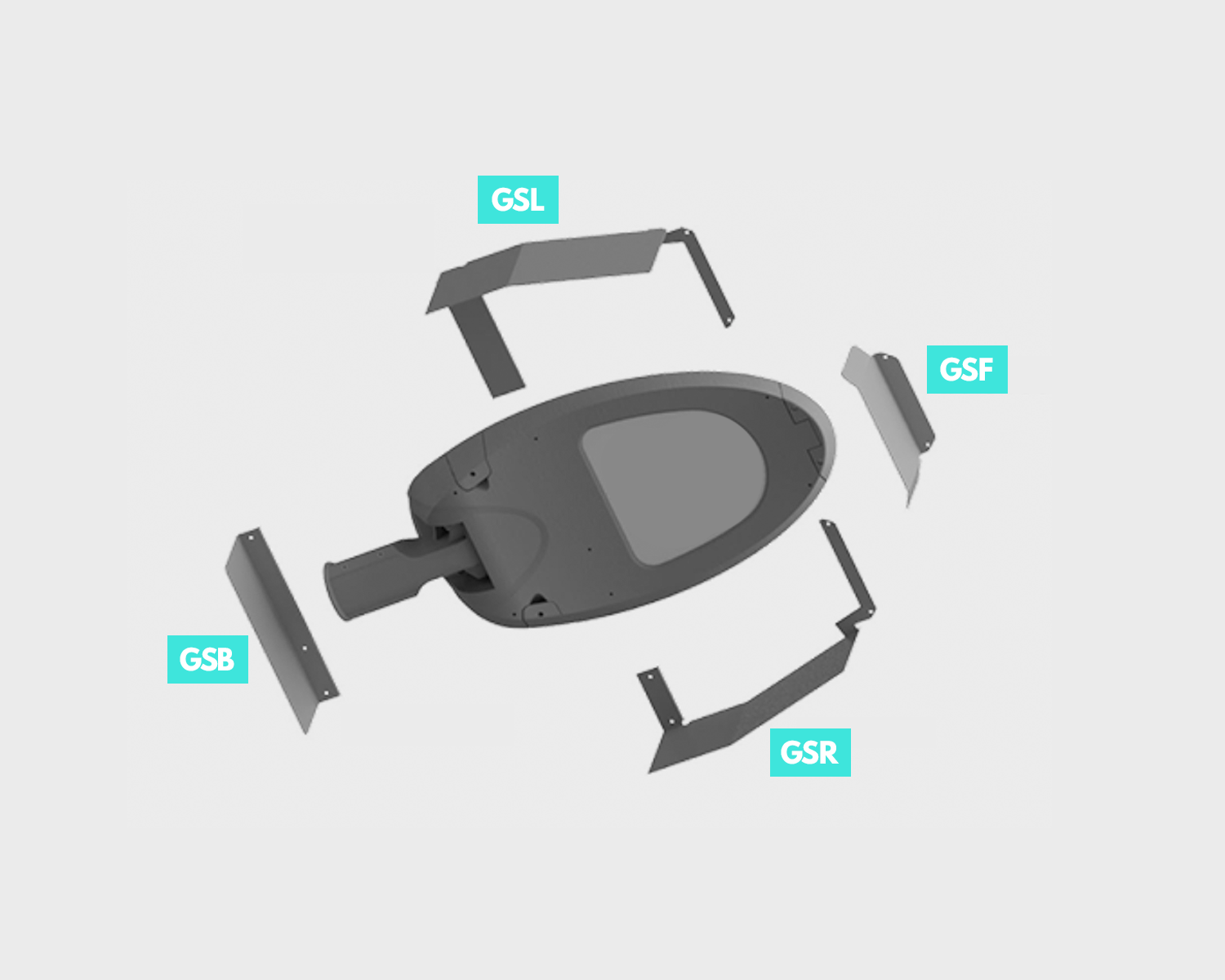

Spill Shield (optional)

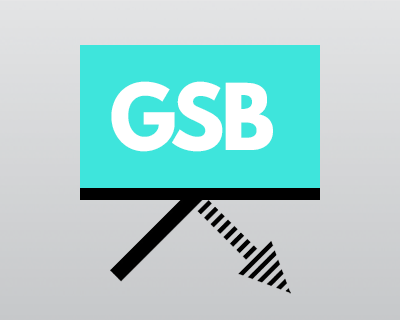

  • Glare Shield (Back)

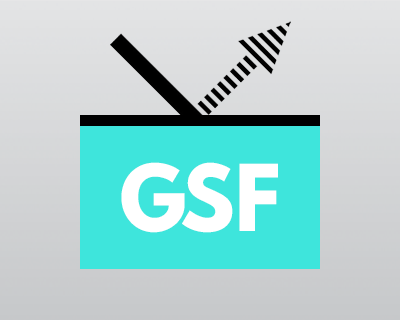

  • Glare Shield (Front)

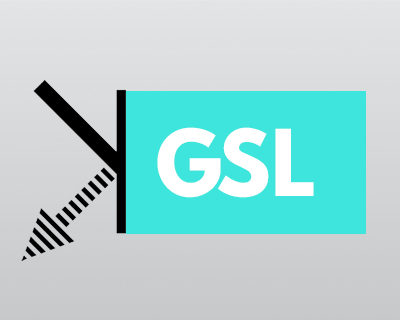

  • Glare Shield (Left)

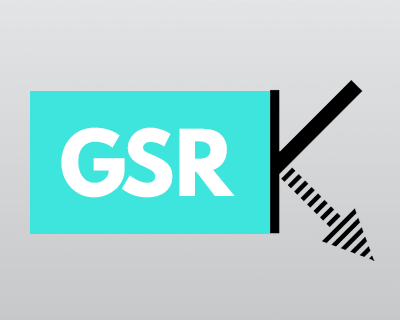

  • Glare Shield (Right)

Additional Information.

If you are looking for a Dark Skies compliant street light then Blayde is a great choice when specified at 3000K with DALI option. With it's robust die-case Aluminium housing and high performance optics, along with latest generation Osram LED technology, Blayde is a reliable, future-proof street lighting solution. Blayde can be supplied as either a black street light (RAL 9005), grey street light (RAL 7037), or even on request a custom painted street light, making the range completely versatile to any setting. Not only is Blayde Dark Skies exterior lighting compliant, but it is also a bat & insect friendly street light when specified at 2700K + DALI Option.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
