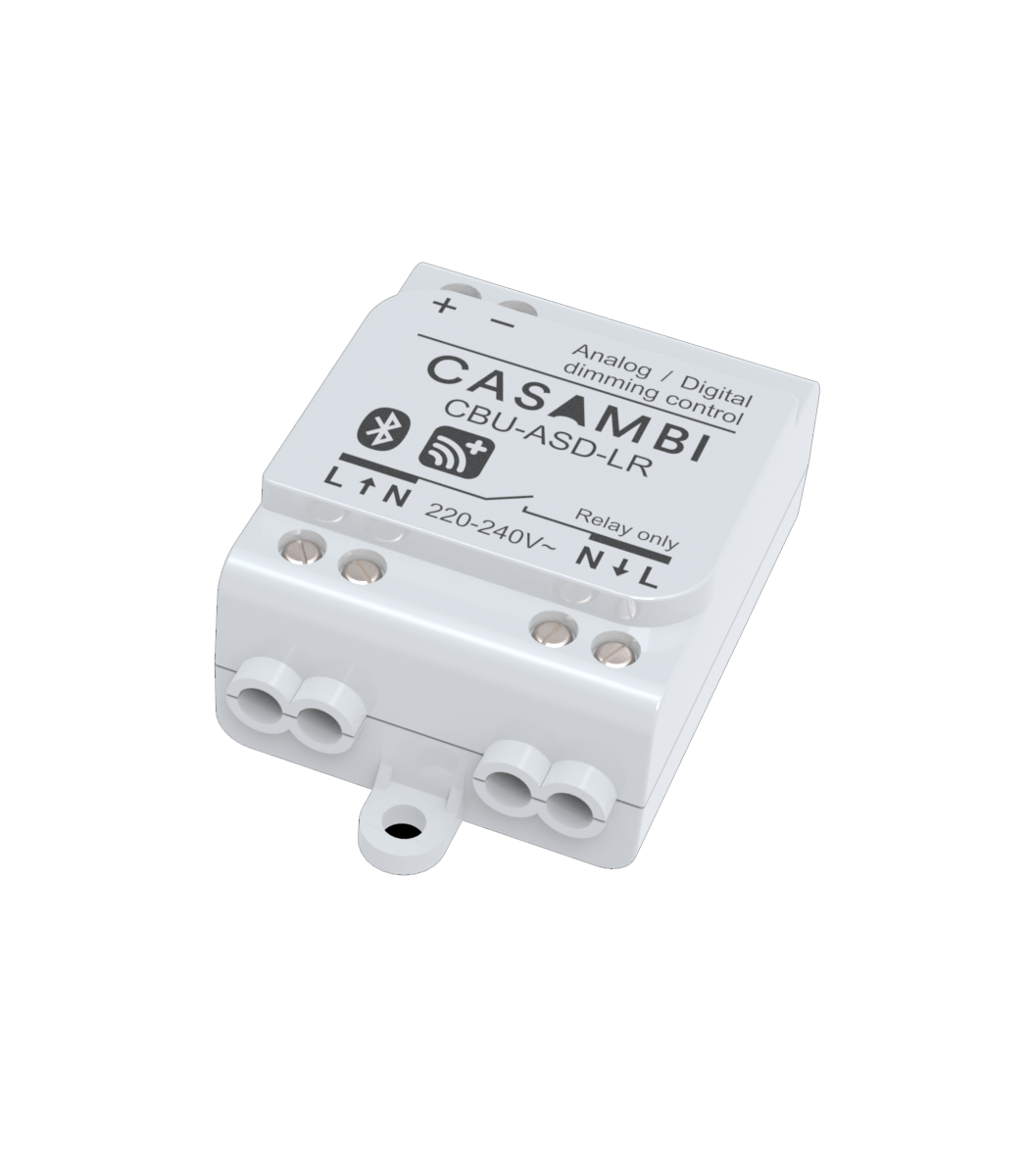

✔ CBU-ASD-LR is a wireless, long-range control unit for any type of driver with 0-10V, 1-10V or DALI dimming interface. The CBU-ASD-LR is available with either analog 0-10V (and 1-10V) or digital standalone DALI control interface.

✔ With standalone DALI [1] output, CBU-ASD-LR acts both as a controller and power supply, making it possible to connect directly to an LED driver with DALI interface without needing an external DALI power supply. This so-called standalone DALI makes it possible to implement multi-channel lighting systems with adjustable color (RGB and RGBW) or color temperature (CCT), while keeping the wiring and number of components to a minimum.

✔ The CBU-ASD-LR is controlled wirelessly with Casambi smartphone and tablet applications using Bluetooth 5.0 protocol. The Casambi App can be downloaded free of charge from Apple App Store and Google Play Store.

✔ Wirelessly controllable

✔ No need for an external gateway device

✔ Forms automatically a fast wireless mesh network

✔ Very small form factor for luminaire installation

✔ Configurable analog/digital output

✔ Analog output: 0-10V sinking/sourcing

✔ Digital output: Standalone DALI

✔ Easily implemented RGB and color temperature controls

✔ Controllable switched mains output

✔ Dimming from a standard on/off wall switches

✔ Possibility to configure to support “no voltage” push button

✔ Can be configured to work with a standard PIR sensor (via smart-switching)

✔ Device firmware can be updated over-the-air

✔ Casambi cloud service enhances the user experience
