Vogue 8.8

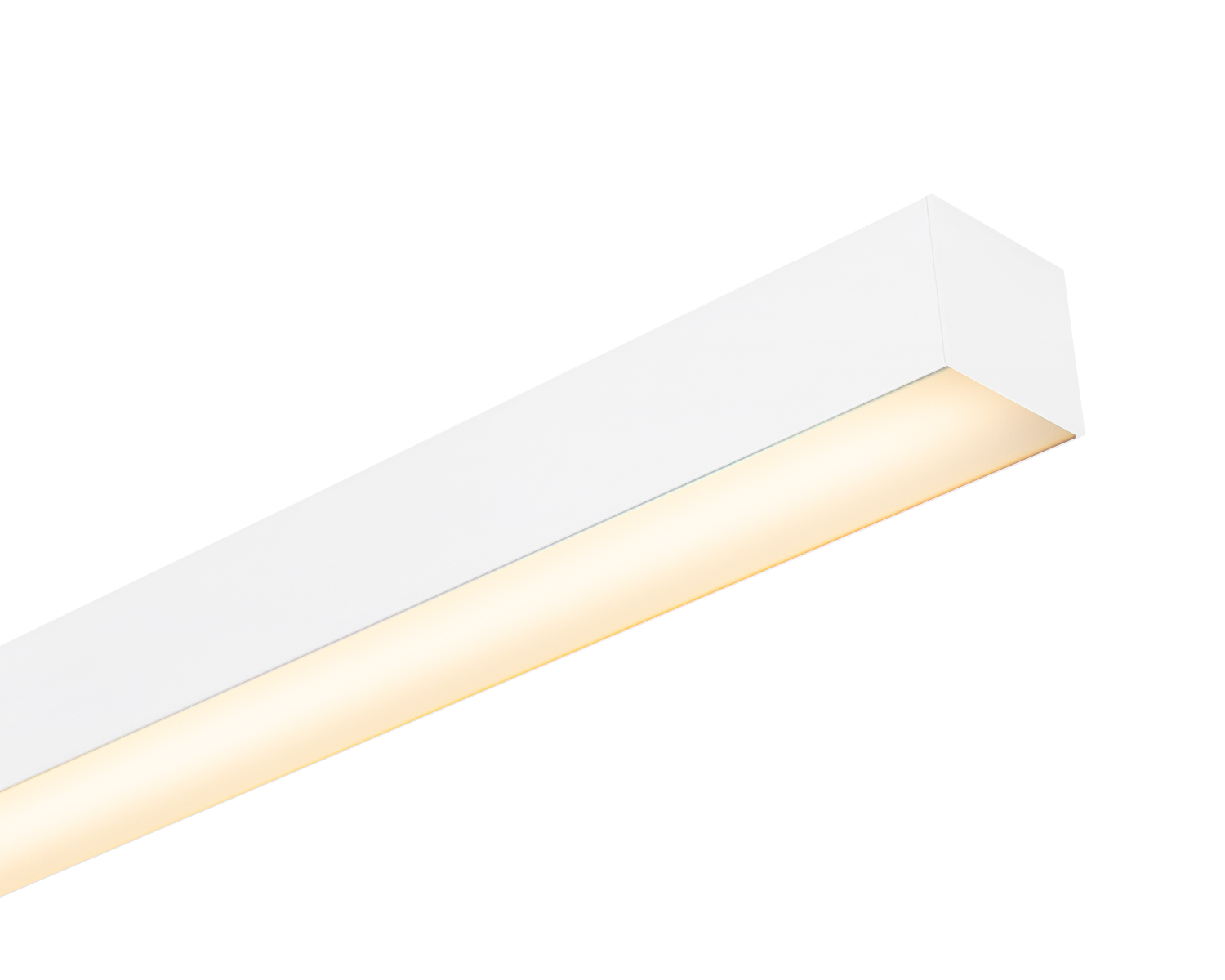

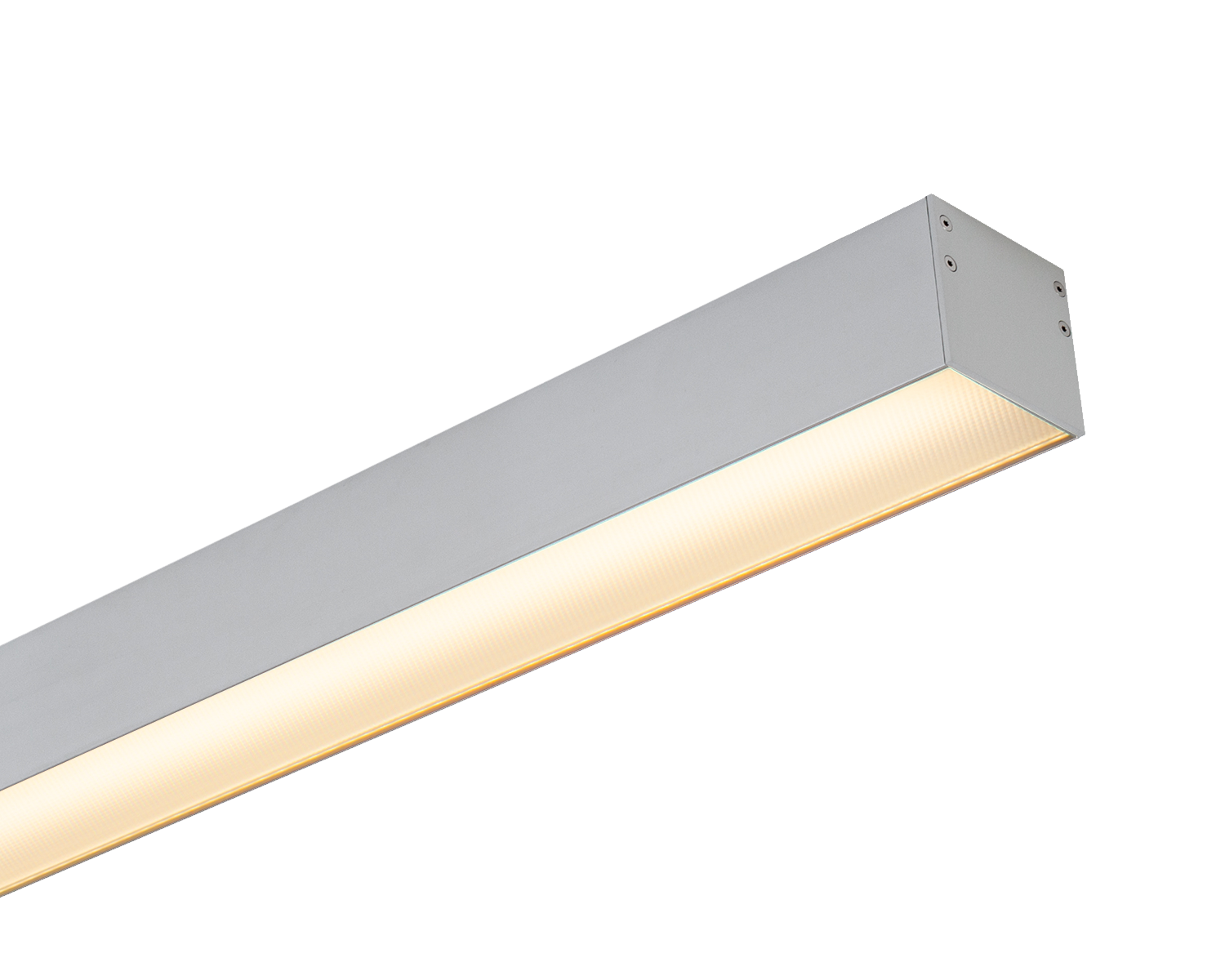

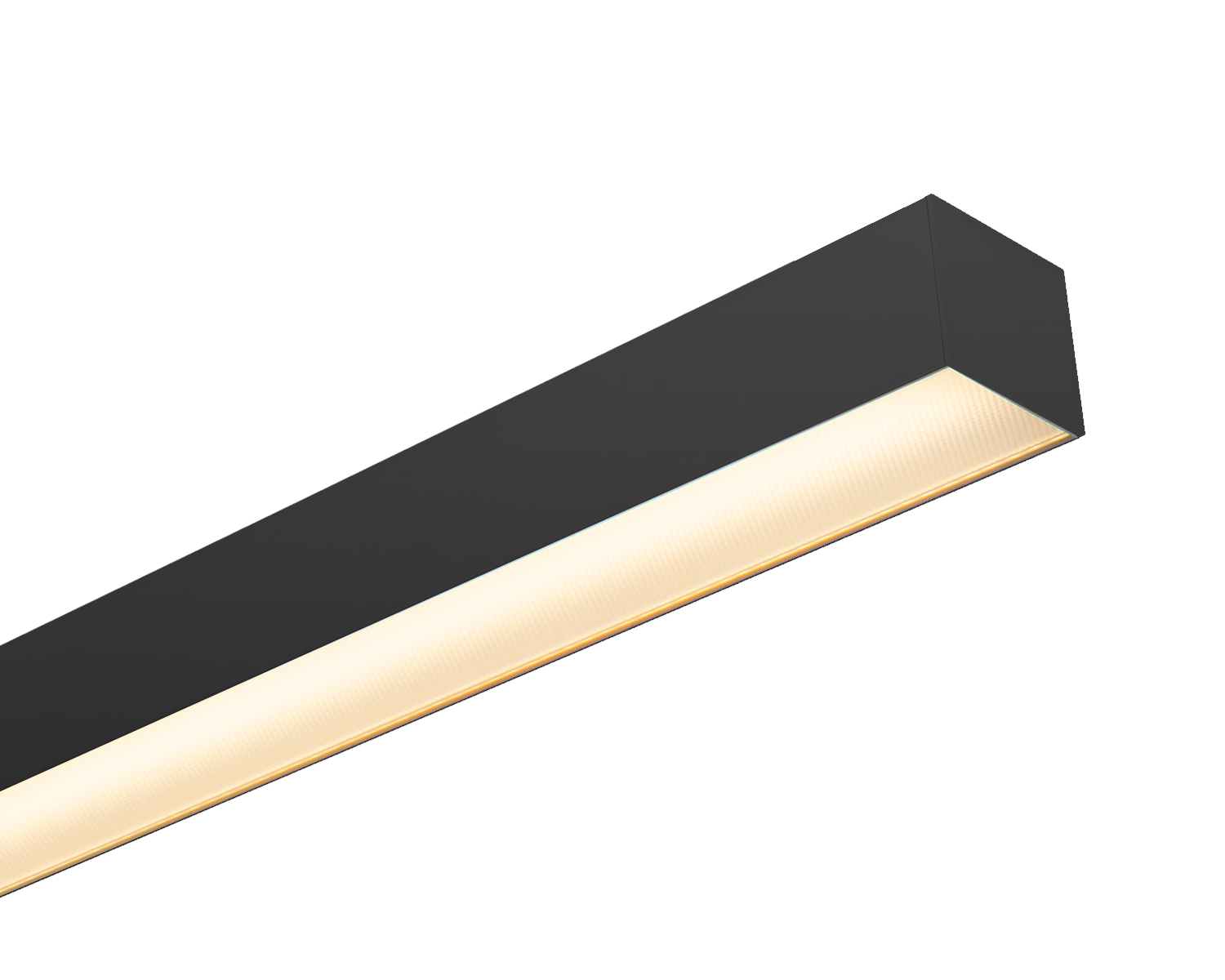

Extruded Aluminium Linear LED Luminaire

Product Overview

✔ Extruded aluminium profile suitable for suspended mounting

✔ Surface, wall mounting and recessed trimless versions also available

✔ Choice of optical elements

✔ Contemporary design 80mm wide, 80mm high

✔ Clutch operated lockable wire suspensions

✔ Choice of body colours

✔ Integral drivers, with DALI option available

✔ Protection class IP20 - Enhanced IP rating to IP44+ available to special order

✔ Contact sales for help with pattern forming this product

✔ Suitable for Hospitality, Office, Retail, Commercial

Finishes / Material
  • Silver (Anodised)
  • Black (Matt) RAL 9005
  • White (Signal) RAL 9003
  • Silver (White Aluminium) RAL 9006
  • Anthracite (Grey) RAL 7016
  • Custom
  • Body: Extruded Aluminium
  • Cover: Polycarbonate
Sizes
  • 600 (L) x 80 (W) x 80 (H) mm
  • 942 (L) x 80 (W) x 80 (H) mm
  • 1170 (L) x 80 (W) x 80 (H) mm
  • 1512 (L) x 80 (W) x 80 (H) mm
  • 1740 (L) x 80 (W) x 80 (H) mm
  • 2310 (L) x 80 (W) x 80 (H) mm
  • 2880 (L) x 80 (W) x 80 (H) mm
  • >2880 (L) mm
    For longer lengths please contact sales
  • M2M (L) mm
    Made to measure length

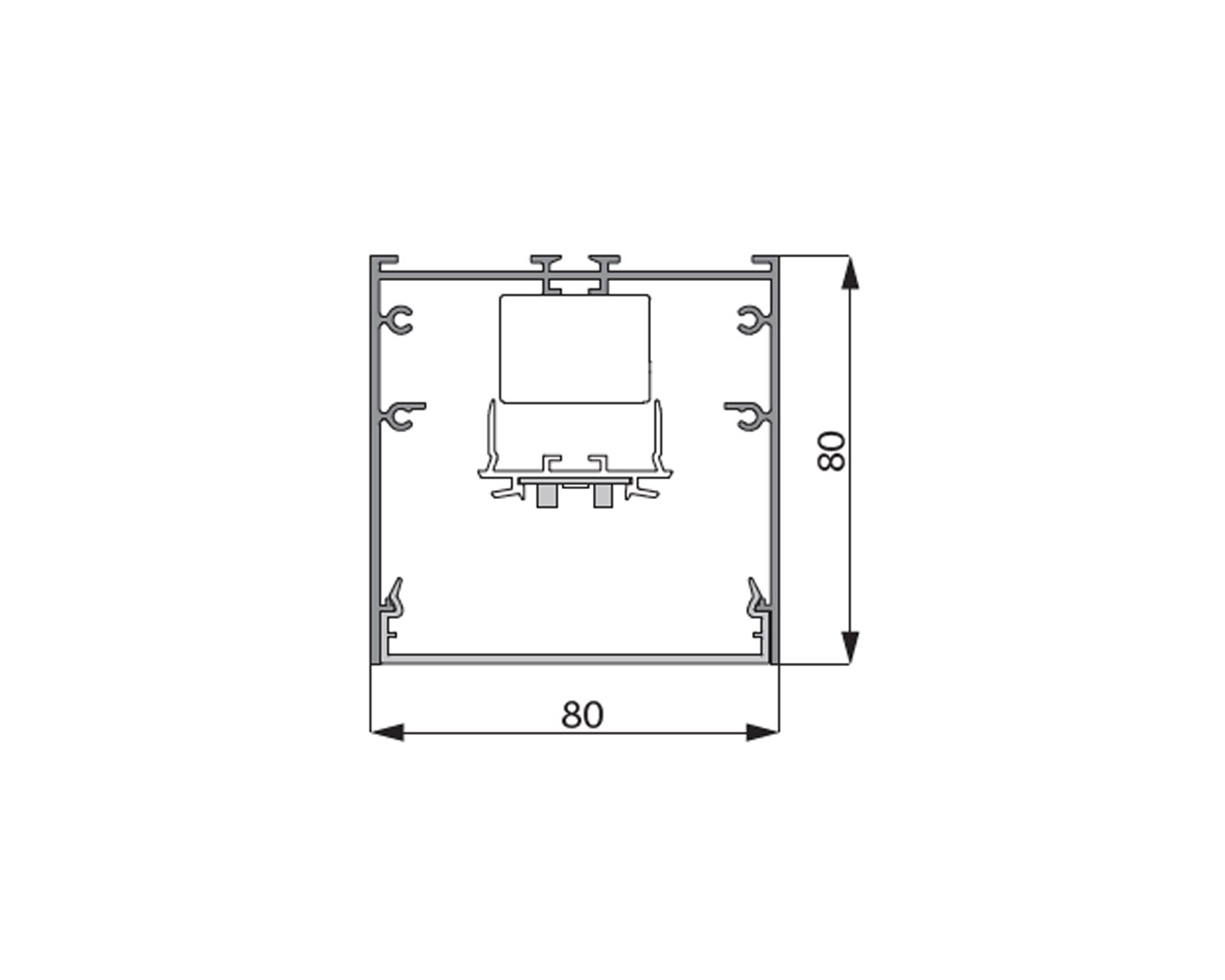

Technical Drawing
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 1114Lm - 11099Lm
  • Circuit Watts 12cW - 83cW
  • Efficacy up to 133Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K / Tuneable White
  • Colour Rendering CRI80 / CRI90

Options.

Optic (optional)

  • Opal Cover
  • Microprismatic Cover
  • Diffused Microprism Cover

    3-layer (UGR<19)

  • Double Parabolic Louvre

    (With frosted lens covering the LEDs)

Mount (optional)

  • Suspension wire kit (1.2m)
  • Suspension wire kit (2m)
  • Suspension wire kit (3m)
  • Wall Mounted

Additional Information.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
