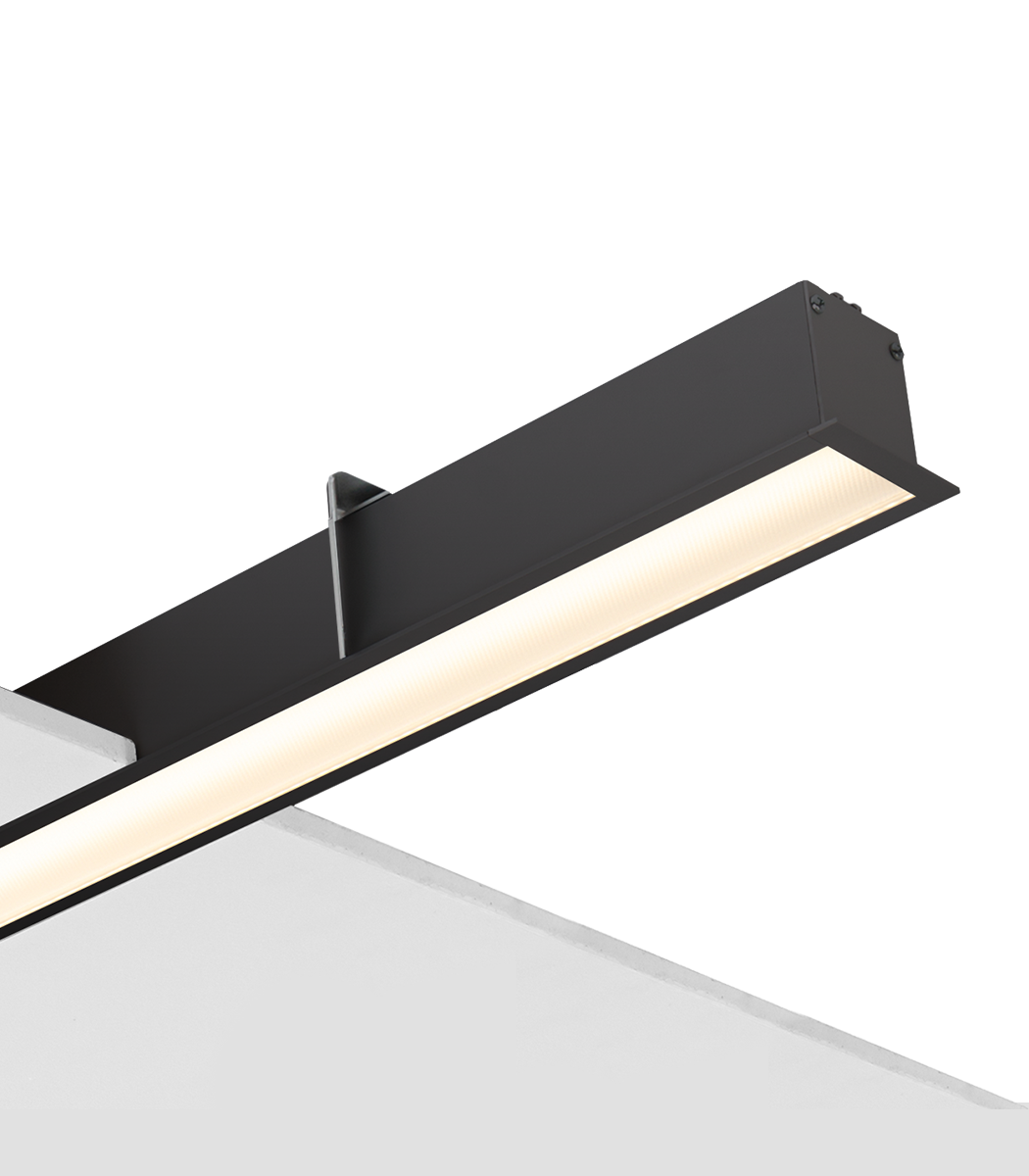

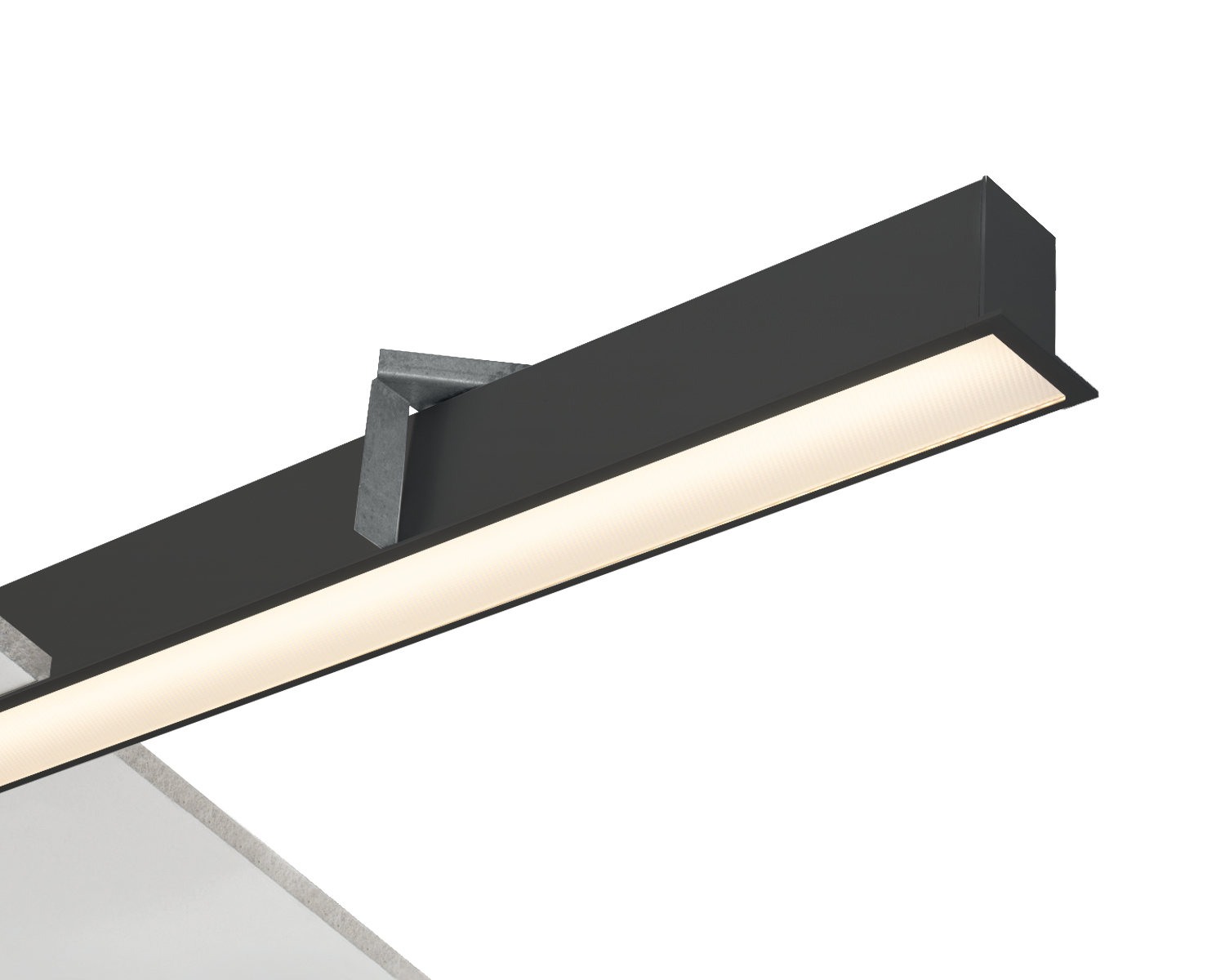

Vogue 3.5 (R)
Slim, recessed linear light with 38mm diffuser for direct illumination
Product Overview
✔ Extruded aluminium profile for ceiling recessed mounting
✔ Opal diffuser
✔ Subtle design with a 38mm wide diffuser
✔ Choice of body colours
✔ Remote driver in ceiling box, with DALI option available
✔ Protection Class IP20
✔ Suitable for ceilings from 1mm to 25mm thick. Brackets included
✔ Contact sales for help with pattern forming this product

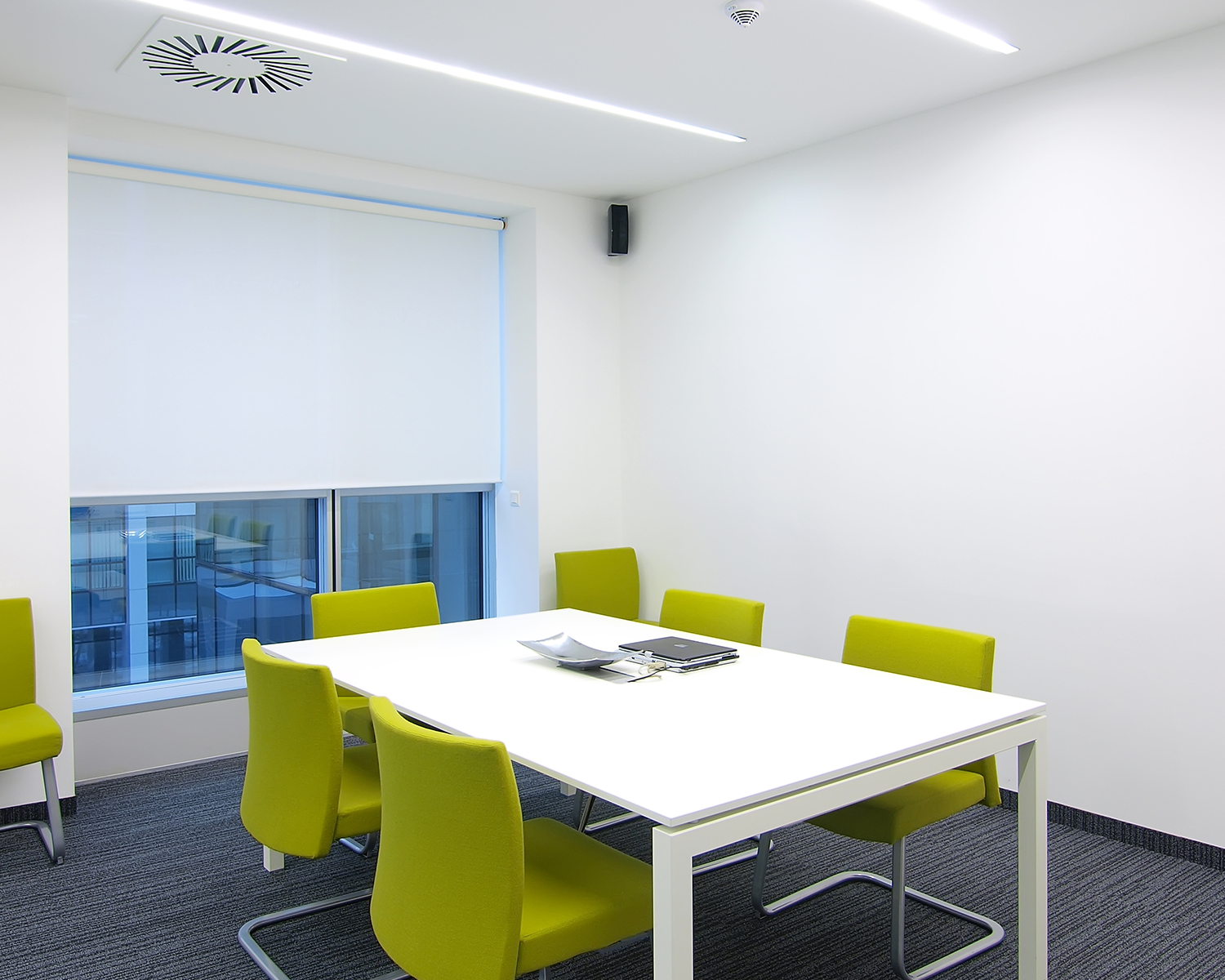

✔ Suitable for Hospitality, Office, Retail, Commercial, Gallery/Museum
Finishes / Material
-
Silver (Anodised) -
Black (Matt) RAL 9005
-
White (Signal) RAL 9003
-
Anthracite (Grey) RAL 7016
-
Silver (White Aluminium) RAL 9006
-
Custom
-
Body: Extruded Aluminium
-
Diffuser: PolycarbonateOpal
-
Fixings: Dressed Steel

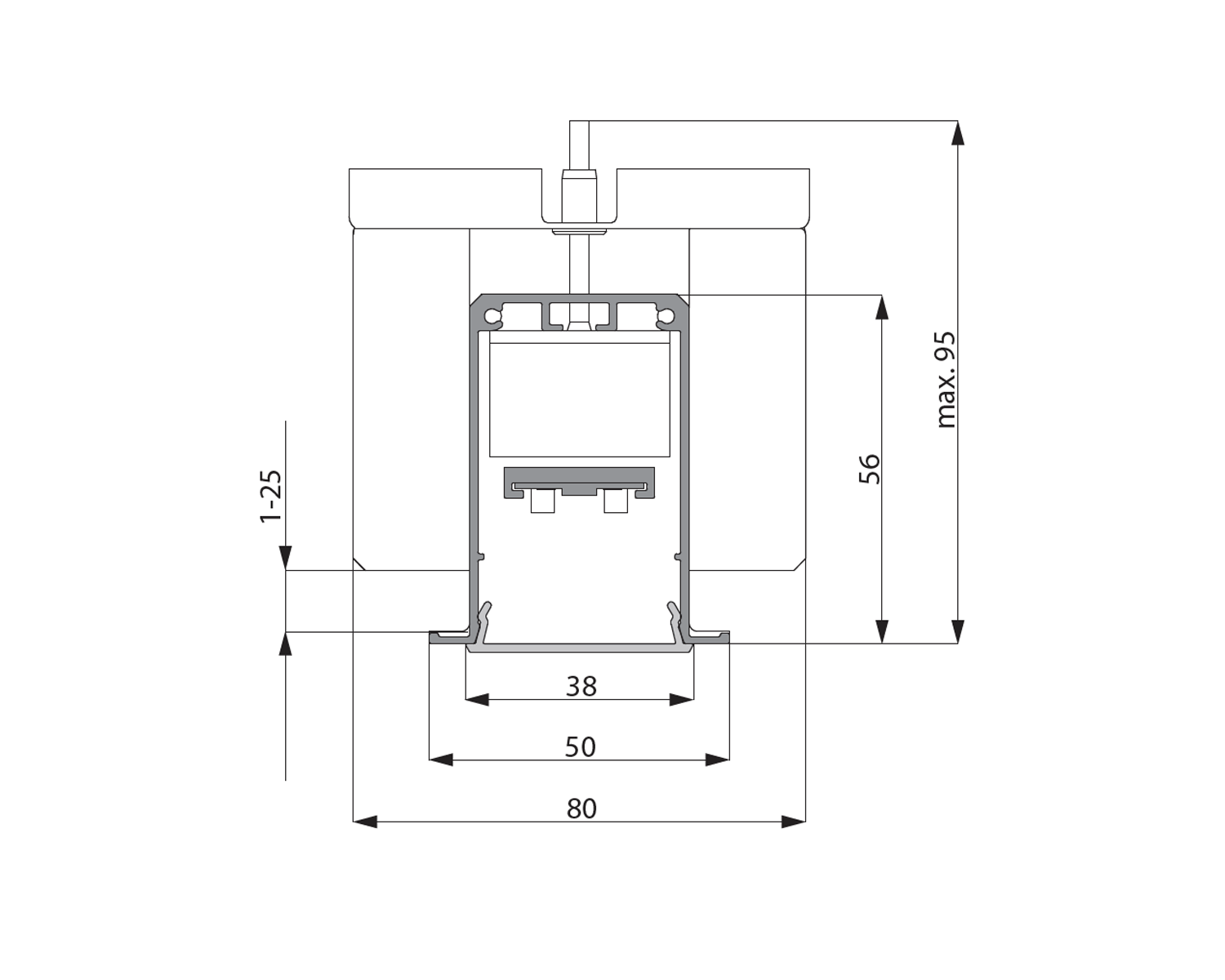

Sizes
-
618 (L) x 50 (W) x 56 (H) x 95 (D) mm
-
960 (L) x 50 (W) x 56 (H) x 95 (D) mm
-
1188 (L) x 50 (W) x 56 (H) x 95 (D) mm
-
1530 (L) x 50 (W) x 56 (H) x 95 (D) mm
-
1758 (L) x 50 (W) x 56 (H) x 95 (D) mm
-
2328 (L) x 50 (W) x 56 (H) x 95 (D) mm
-
2898 (L) x 50 (W) x 56 (H) x 95 (D) mm
-
>2898 (L) mmFor longer lengths please contact sales
-
M2M (L) mmMade to measure length
- Source Info Tier 1 LED components (Tridonic, Philips, Osram)
- Lumens (delivered) 1014Lm - 10111Lm
- Circuit Watts 12cW - 83cW
- Efficacy up to 121Lm/cW
- MacAdams 3 SDCM
- Colour Temperature 3000K / 4000K
- Colour Rendering CRI80 / CRI90
Options.
Optic
-
Opal Cover
-
Microprismatic Cover
-
Diffused Microprism Cover
Additional Information.
