Vogue 5.3 DC

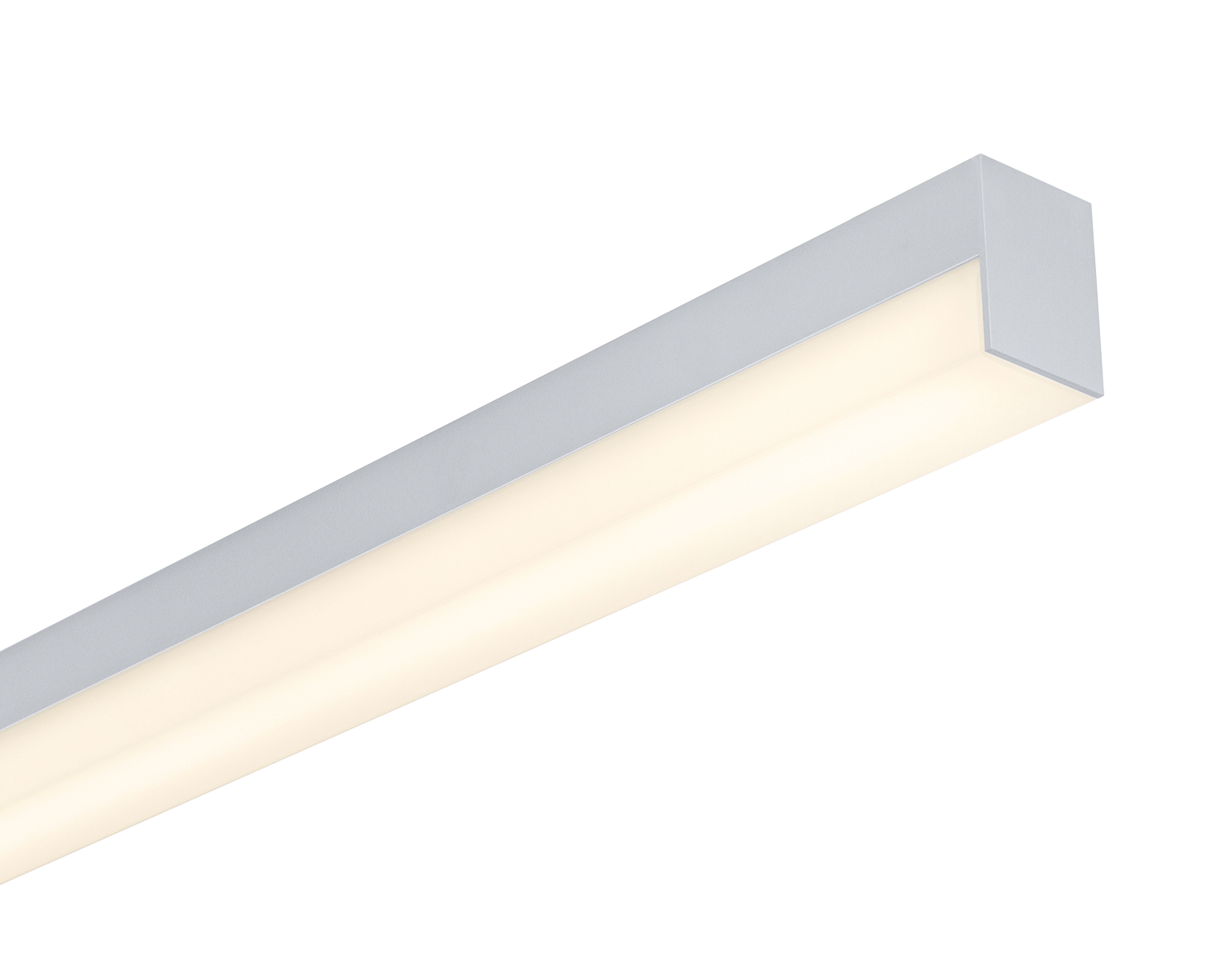

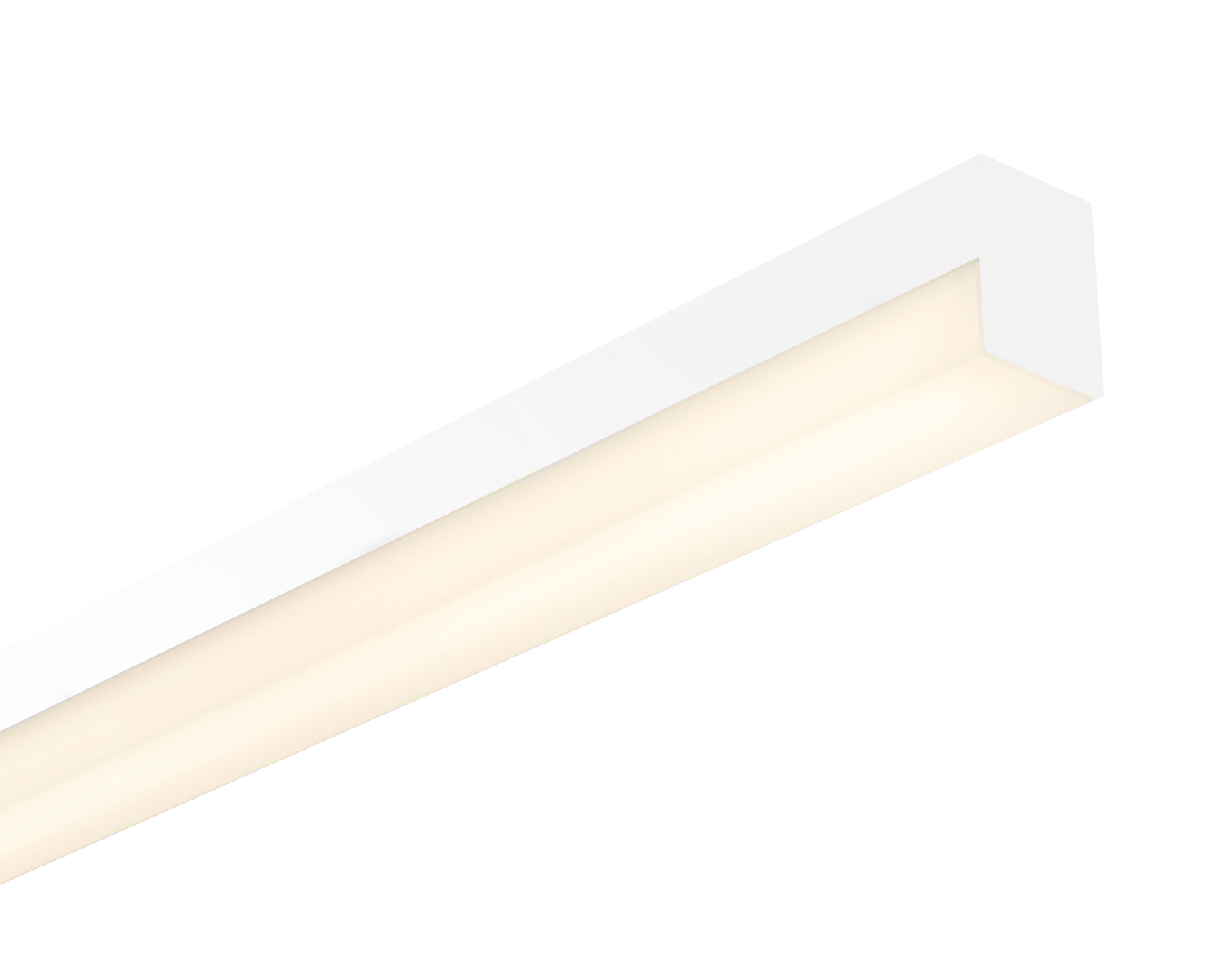

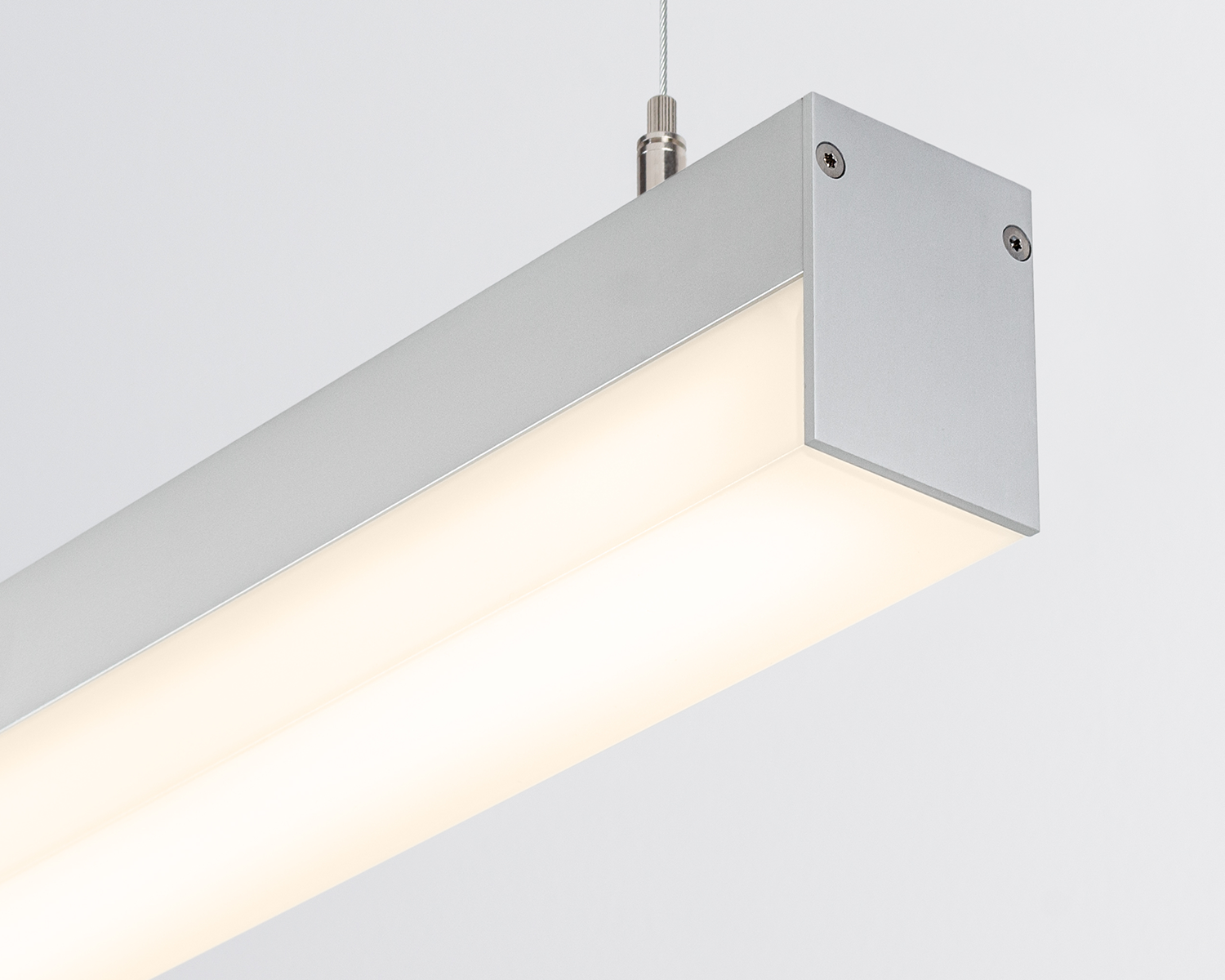

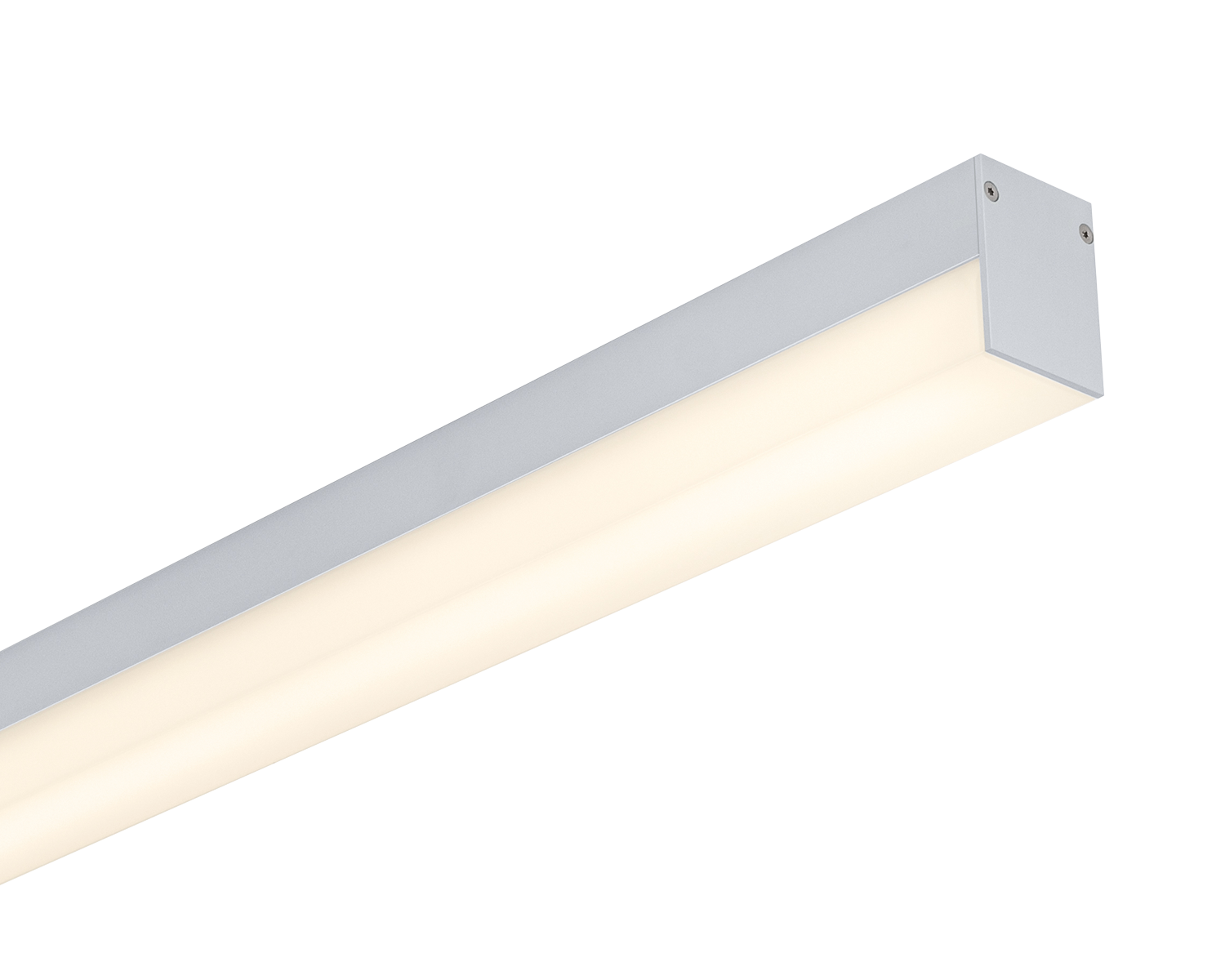

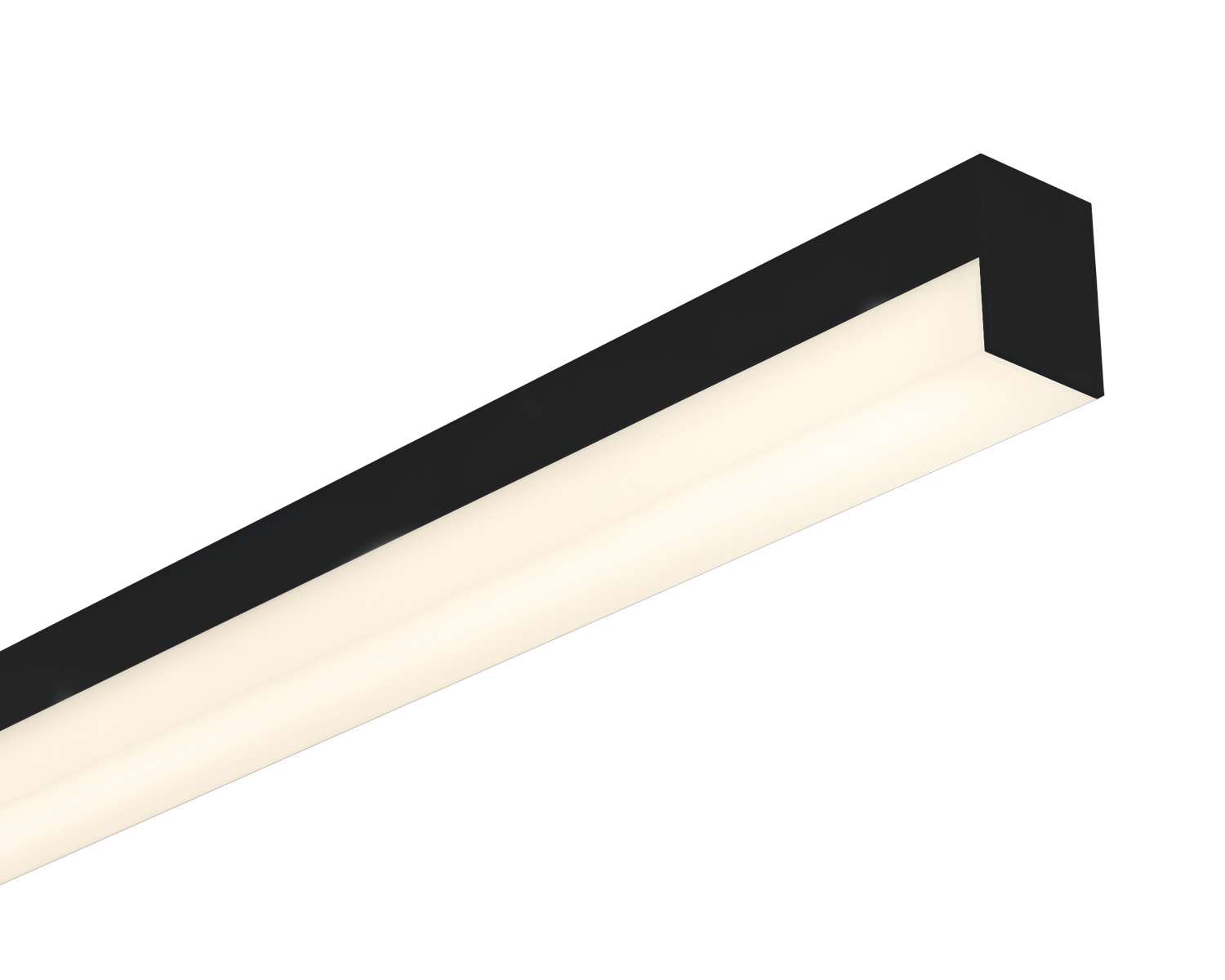

Linear LED with dropped opal cover

Product Overview

✔ Extruded aluminium profile for pendant mounting

✔ Wall mounting also available

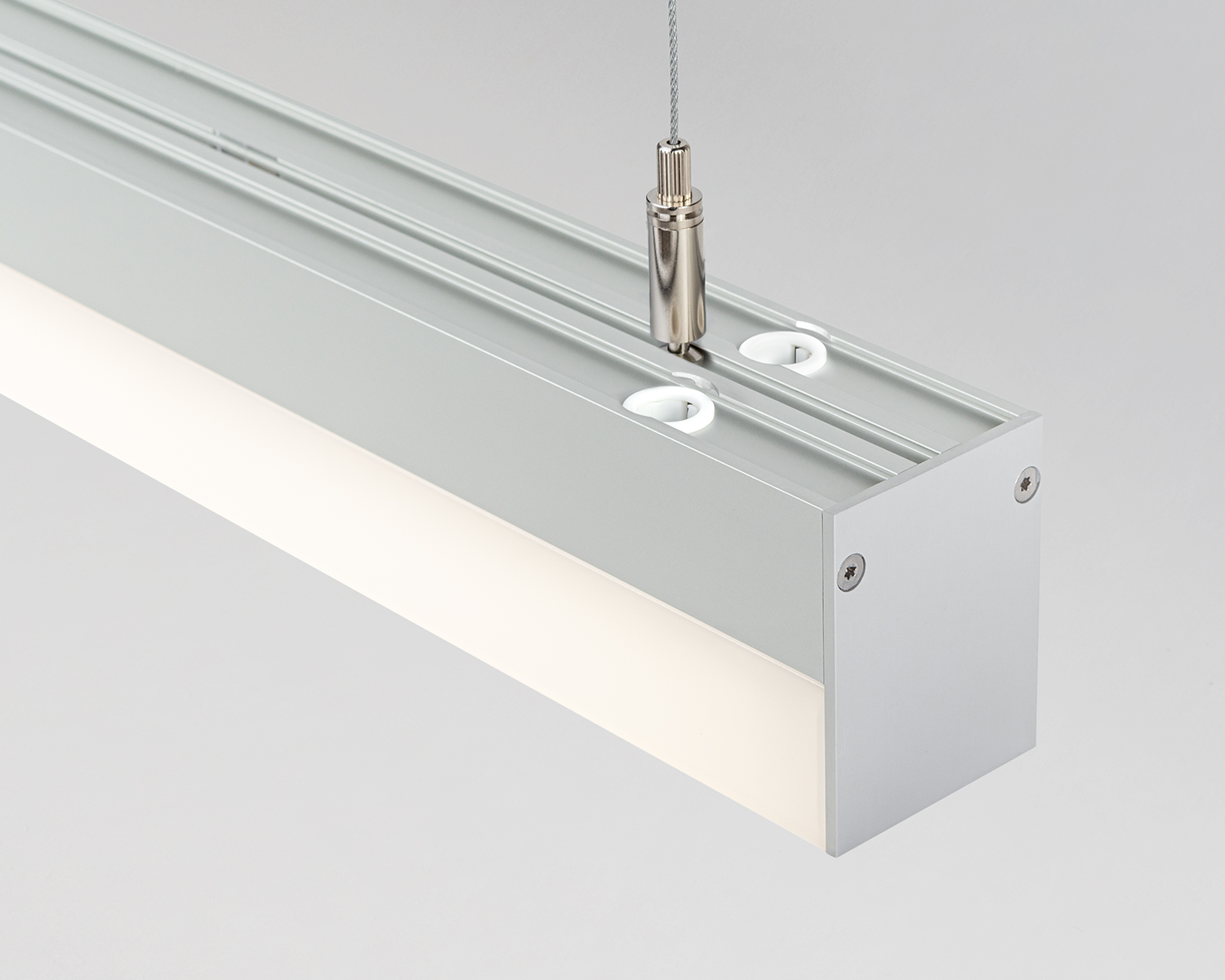

✔ Clutch operated lockable wire suspensions

✔ Integral driver, with DALI option available

✔ Choice of body colours

✔ Choice of powers and light outputs

✔ Suitable for Hospitality, Office, Retail, Gallery/Museum

Finishes / Material
  • Silver (Anodised)
  • Black (Matt) RAL 9005
  • White (Signal) RAL 9003
  • Anthracite (Grey) RAL 7016
  • Silver (White Aluminium) RAL 9006
  • Custom
  • Body: Extruded Aluminium
  • Diffuser: Polycarbonate
Sizes
  • 600 (L) x 53 (W) x 70 (H) mm
  • 942 (L) x 53 (W) x 70 (H) mm
  • 1170 (L) x 53 (W) x 70 (H) mm
  • 1512 (L) x 53 (W) x 70 (H) mm
  • 1740 (L) x 53 (W) x 70 (H) mm
  • 2310 (L) x 53 (W) x 70 (H) mm
  • 2880 (L) x 53 (W) x 70 (H) mm
  • M2M (L) mm
    Made to measure length up to 2880mm

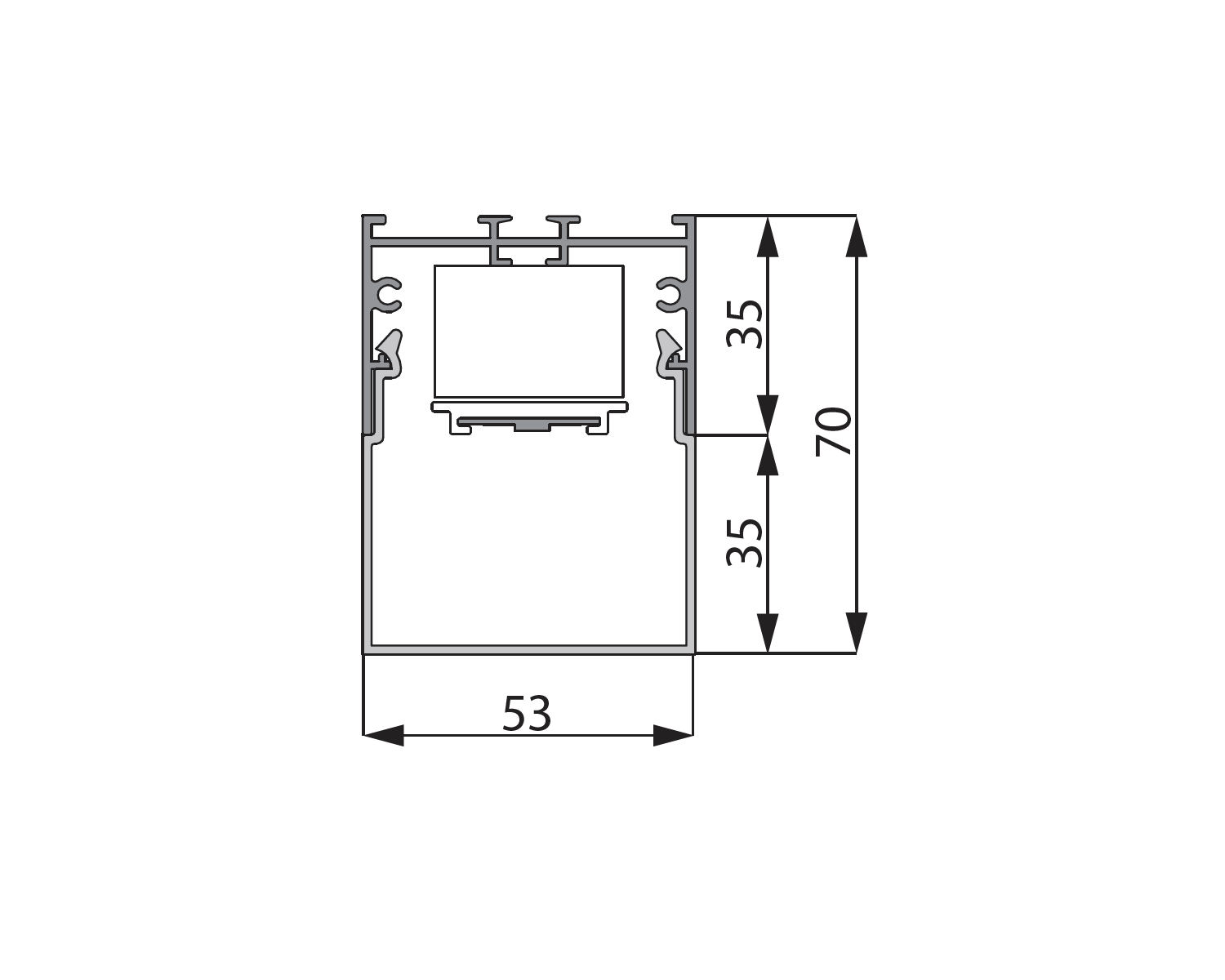

Technical Drawing
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 1150Lm - 11460Lm
  • Circuit Watts 12cW - 83cW
  • Efficacy up to 138Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K
  • Colour Rendering CRI80 / CRI90

Options.

Mount (optional)

  • Suspension wire kit (1.2m)
  • Suspension wire kit (2m)
  • Suspension wire kit (3m)
  • Wall Mounted

Additional Information.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
