EX2 Wall

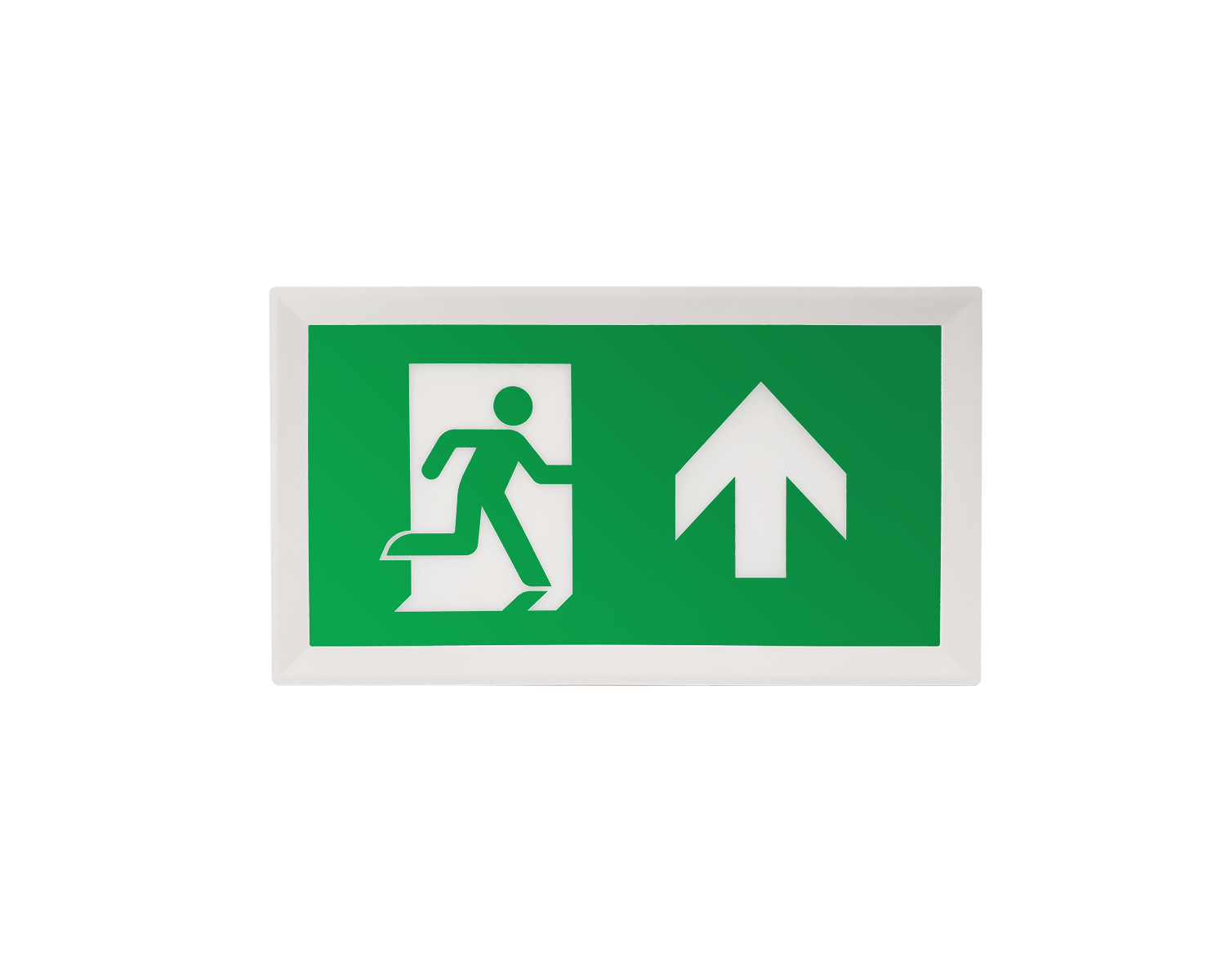

Slim wall mounted illuminated box exit sign

Product Overview

✔ Back lit acrylic panel

✔ Supplied with 1x arrow up legend

✔ Easy to install

✔ Viewing Distance 30m

✔ Ultra slim modern design

✔ With angle adjustable down light

✔ LiFePO4 battery

✔ Suitable for Education, Healthcare, Industrial, Commercial

Finishes / Material

White
Black

Body: Polycarbonate

Sizes

330 (L) x 185 (H) x 29 (D) mm
Weight: 0.716kg

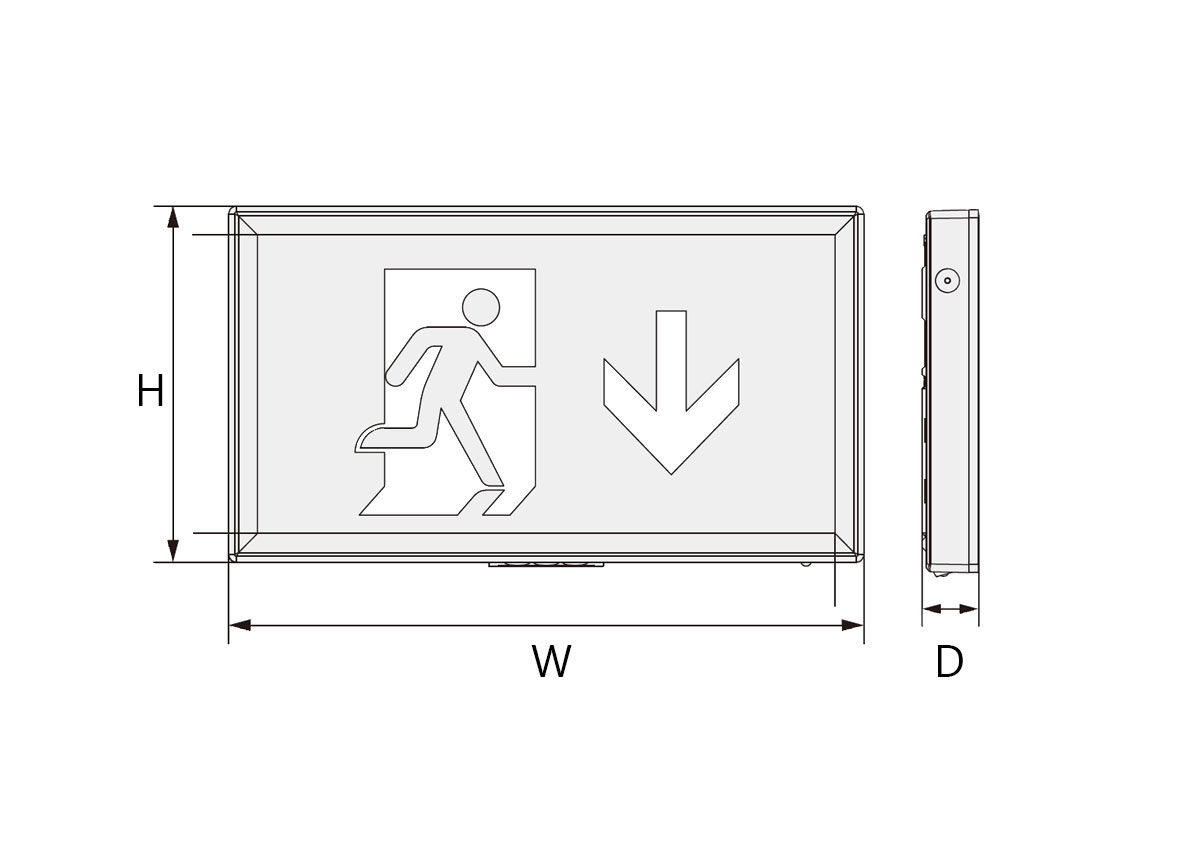

Technical Drawing

Source Info LED
Lumens (delivered) 130Lm
Watts 4W
Efficacy up to 32Lm/cW
Colour Temperature 6500K
Colour Rendering CRI80

Emergency Duration 3hr
Mounting Wall
Base IP Rating IP20
Impact Rating IK03
Safety Class II
Voltage 220-240V, 50Hz
Temp Range 5℃ - 45℃
Lifetime 60,000hrs (L70)
Warranty 5 Years (Batteries 1 Year)
Additional Battery Type - LiFePo4 3.2V 1500mAh

Datasheet (Custom)
Configure to Download
Images
Download

Options.

Emergency Type

Maintained (Self Contained)
Self -Test (Self Contained)

White finish only

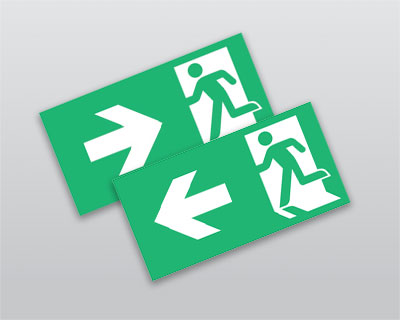

Additional Legends (optional)

Exit Legend (Down)
Exit Legend Kit (Left & Right)

Additional Information.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
