Ace

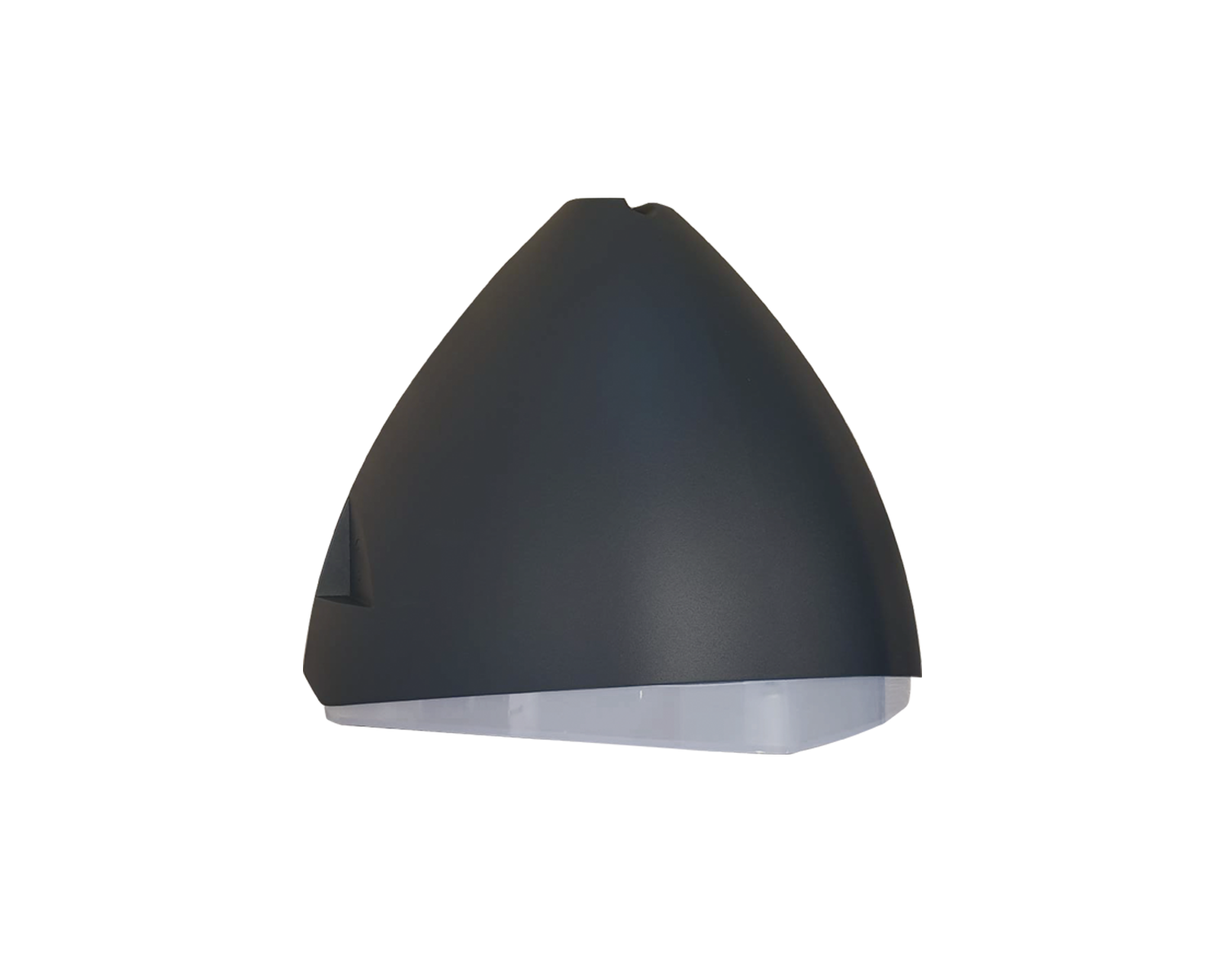

Robust exterior wall light for general amenity lighting

Product Overview

✔ Robust die-cast body with anti-tamper fixing options

✔ Beam angle options

✔ Emergency option available

✔ Modern and minimalist design, screw-less from front

✔ IP65 ingress protection and IK10 impact resistance

✔ Suitable for rear and side cable entry

✔ Suitable for conduit and BESA box installation

✔ Suitable for Education, Hospitality, Exterior, Commercial, Leisure

Finishes / Material
  • Anthracite (Grey) RAL 7016
  • Black (Matt) RAL 9005
  • Grey
    White Grey RAL 9002
  • Body: Die Cast Aluminium
  • Diffuser: Polycarbonate
Sizes
  • 128 (W) x 104 (H) x 67 (D) mm
  • 260 (W) x 214 (H) x 136.5 (D) mm
  • 319 (W) x 265 (H) x 165 (D) mm

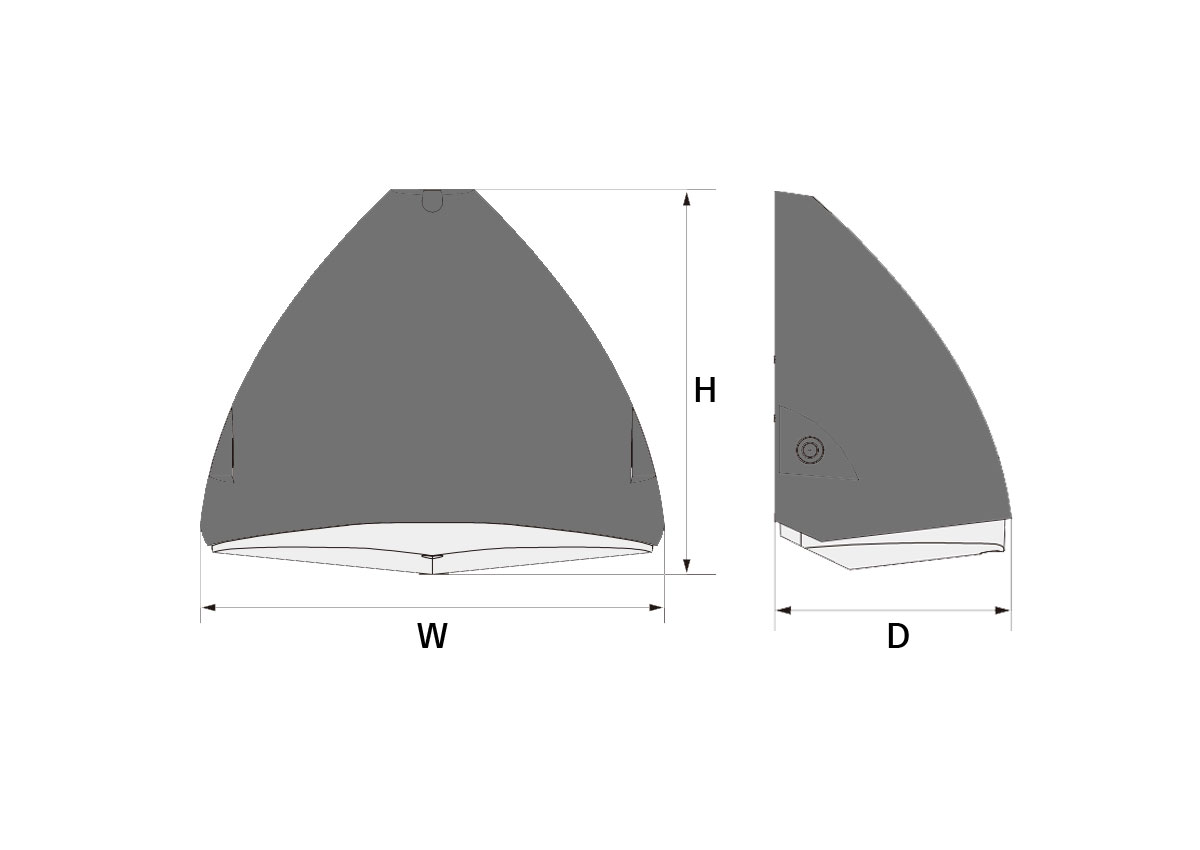

Technical Drawing
  • Source Info Tier one LED
  • Lumens (delivered) 584Lm - 3652Lm
  • Circuit Watts 5cW - 27cW
  • Efficacy up to 147Lm/cW
  • Colour Temperature 3000K (Supplied switchable (3/4000K)) / 4000K (Supplied switchable (3/4000K))
  • Colour Rendering CRI80

Options.

Light Distribution (optional)

  • Asymmetrical Distribution

    Clear Cover, Only for size 319mm 4000K

Additional Information.
