Edge FX

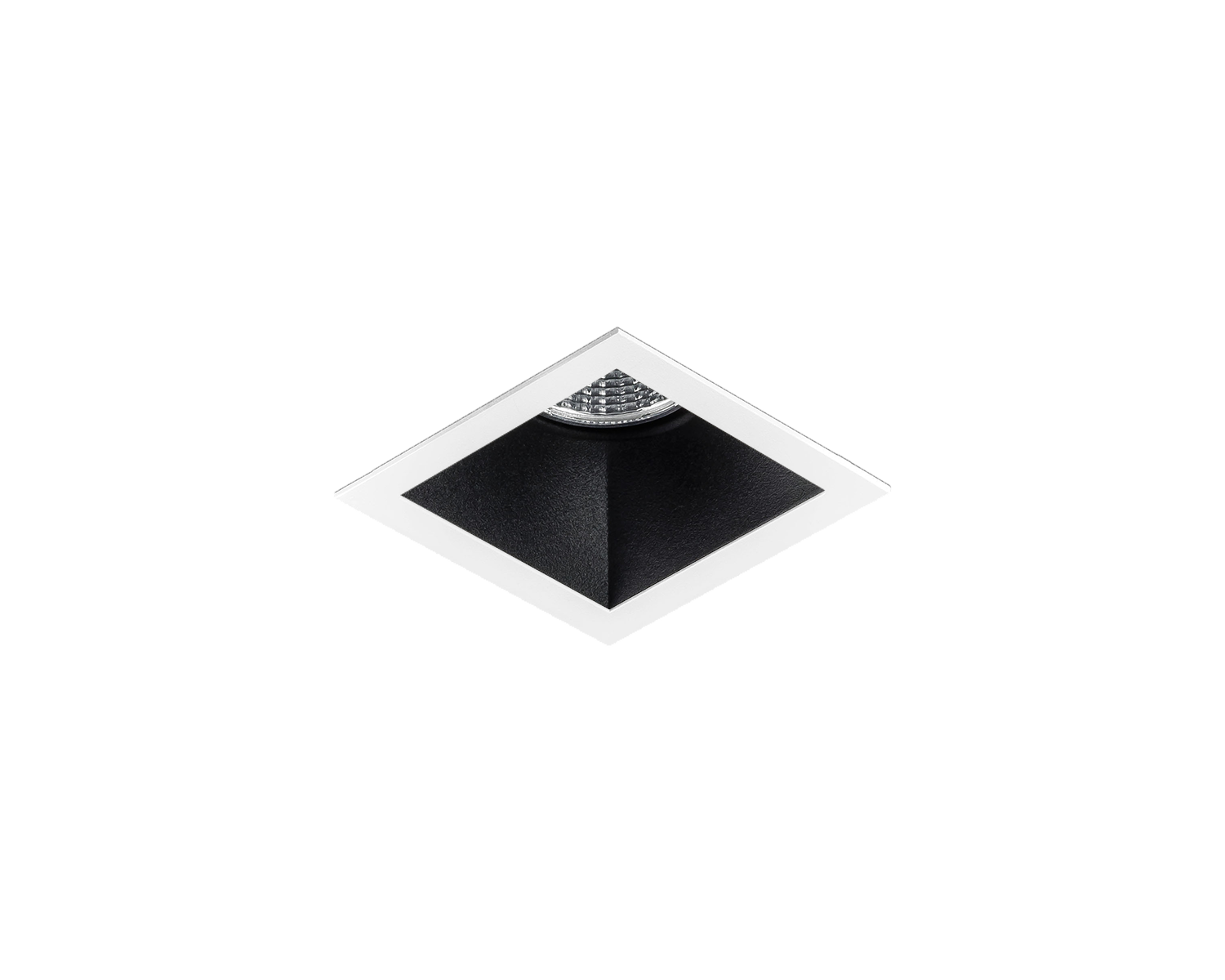

Architectural Square Darklight LED Downlight

Product Overview

✔ Low glare architectural darklight downlight

✔ Discreet minimal bezel, from pure aluminium

✔ Matt black darklight baffle, developed to minimise glare

✔ Fitted with an integral IP44 protective lens as standard

✔ Precision moulded polycarbonate reflector with medium beam distribution

✔ Deep installed Tier 1 Chip-on-board LED module

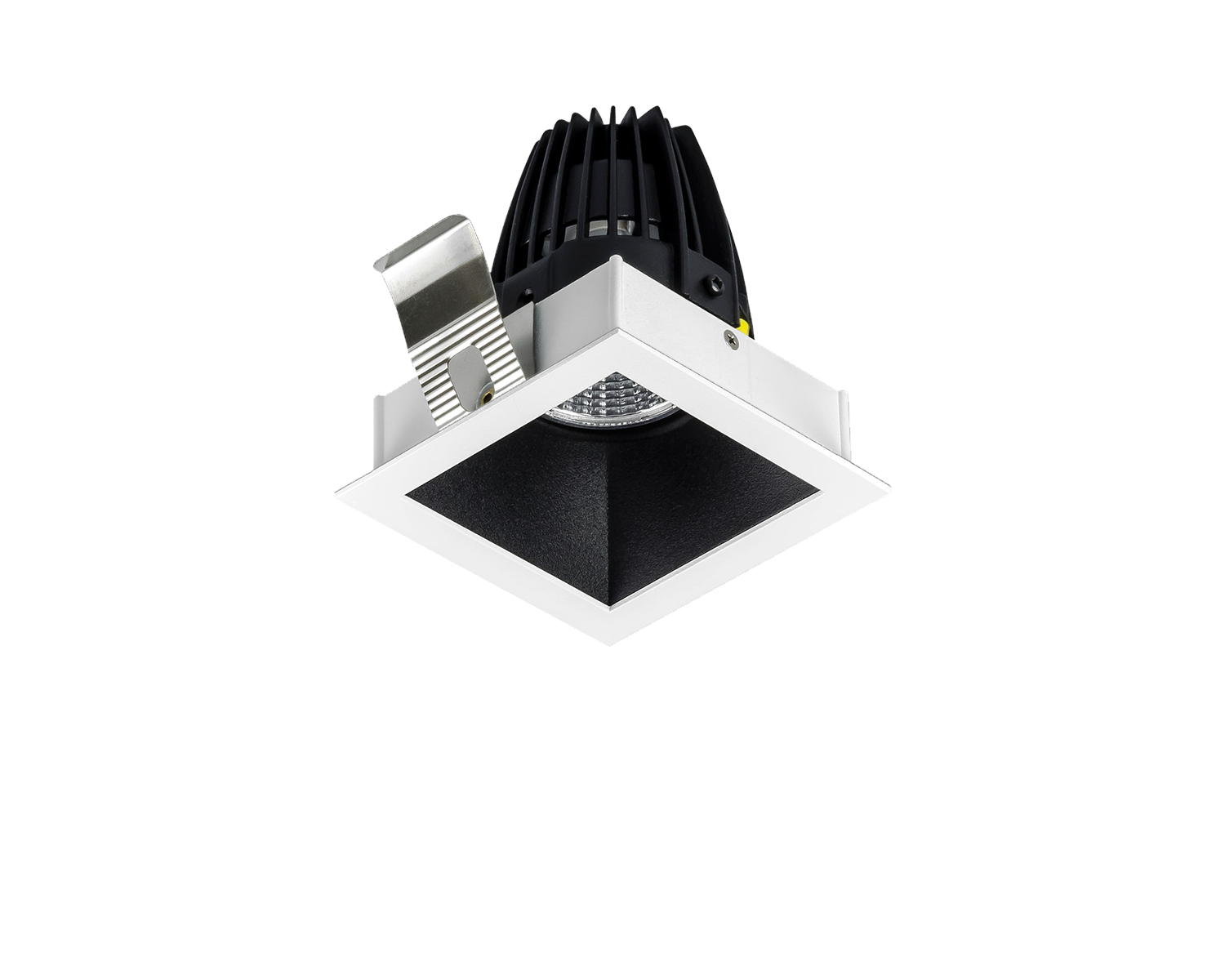

✔ Excellent thermally optimised 24 super-fin die-cast heatsink

✔ Short circuit, overload and temperature protection

✔ Asymmetric, trimless and round versions also available

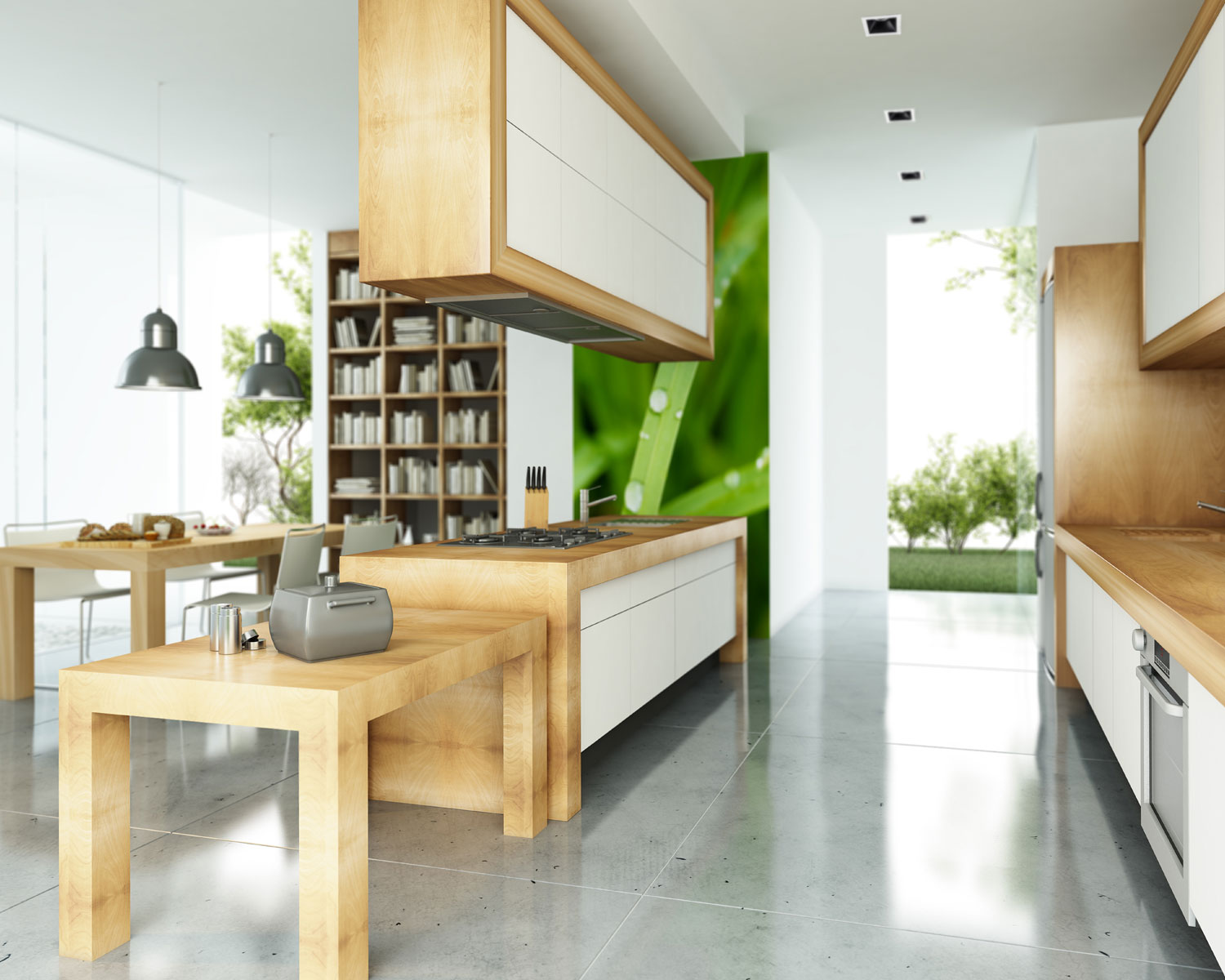

✔ Suitable for Hospitality, Office, Retail, Leisure, Residential

Finishes / Material
  • White (Signal) RAL 9003
  • Black (Matt) RAL 9005
  • Body: Die Cast Aluminium
  • Bezel: Die Cast Aluminium
Sizes

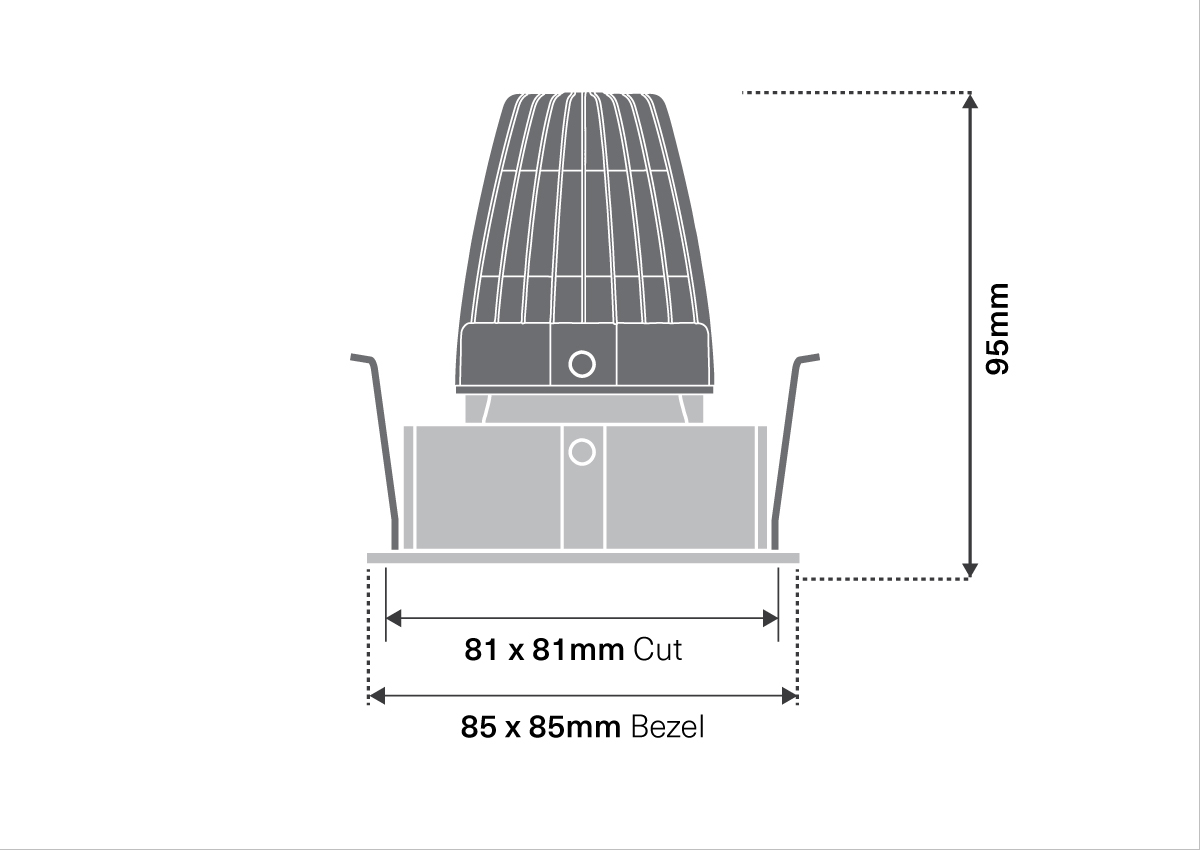

  • 85 (L) x 85 (W) x 95 (D) mm
    Cutout: 81 x 81 mm, Weight: 0.3kg
  • Source Info Tier 1 LED components (Tridonic, Philips, Osram)
  • Lumens (delivered) 627Lm, 811Lm
  • Circuit Watts 7cW, 8cW
  • Efficacy up to 101Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 2700K / 3000K / 4000K
  • Colour Rendering CRI80 / CRI90

Options.

Baffle (optional)

*Please Note: Supplied in Black as standard. Other Baffle colours available on request
  • Softlight Baffle

Beam Angle

  • 20° Beam Angle

    Narrow

  • 40° Beam Angle

Additional Information.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
