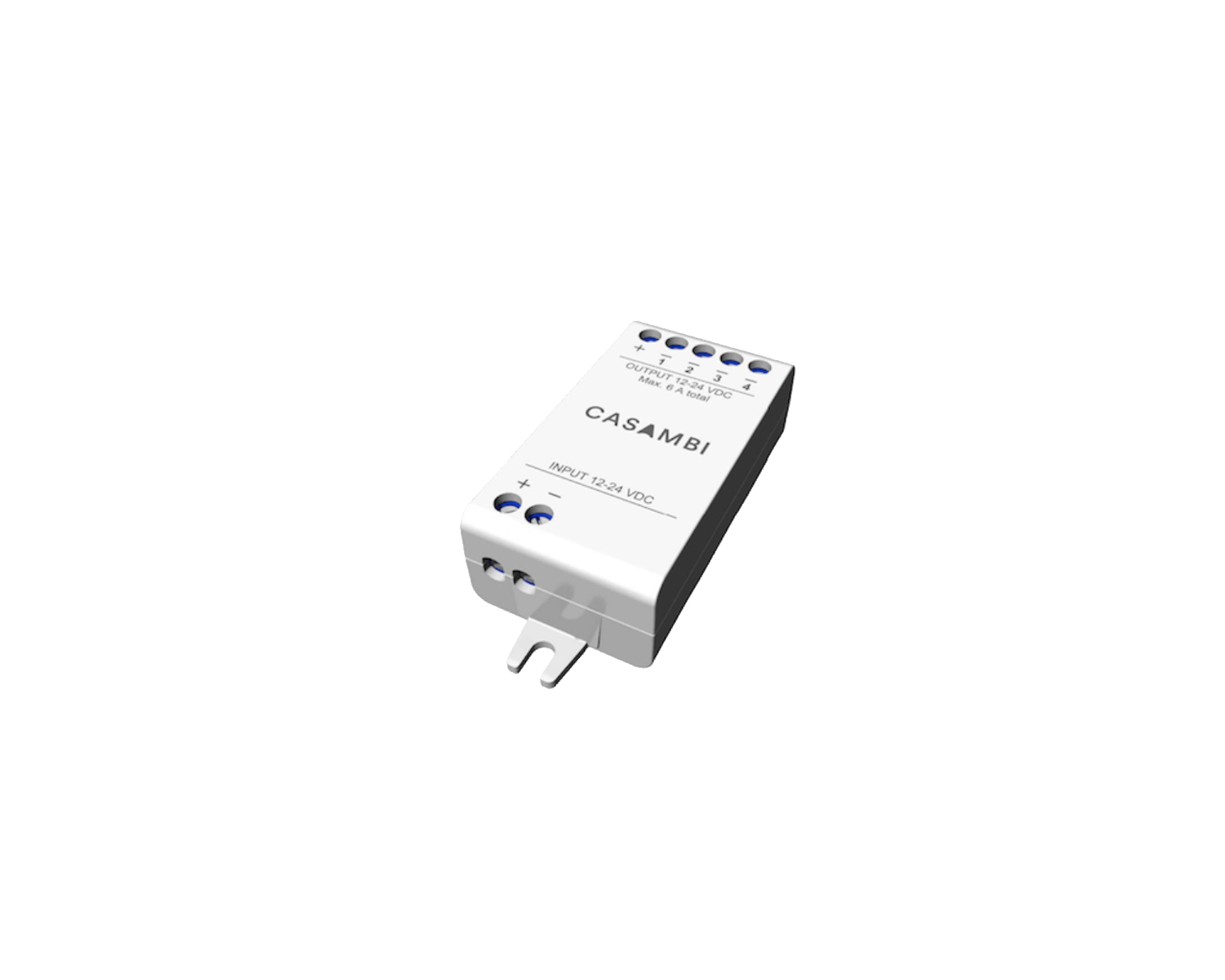

✔ CBU-PWM4 is a Bluetooth controllable, Casambi enabled four channel PWM dimmer for constant voltage LED loads, such as LED strips and constant voltage LED modules. It is connected between a 12-24 VDC power supply and the constant voltage LED load.

✔ CBU-PWM4 can control up to four channels making it an ideal partner for RGBW and tunable white (TW) applications. The maximum combined output current is 6 A which can be freely divided between 1 -4 channels. CBU-PWM4 is protected against overvoltage, overcurrent and short circuit situations.

✔ CBU-PWM4 can be controlled with Casambi app which can be downloaded free of charge from Apple App Store and Google Play Store.

✔ Voltage range: 12-24 VDC

✔ Max. input current: 6 A

✔ No-load standby power: < 0,3 W

✔ Output voltage: Same as input voltage

✔ Max. output power: 144 W @ 24 VDC

✔ Max. output power: 72 W @ 12 VDC

✔ Max. output current: 6 A (can be freely divided between the channels)

✔ Min. load requirement: 0 W

✔ Dimming method: Pulse Width Modulation (PWM)

✔ Dimensions: 72.6 x 30.0 x 18.0 mm

✔ Protection: IP20
