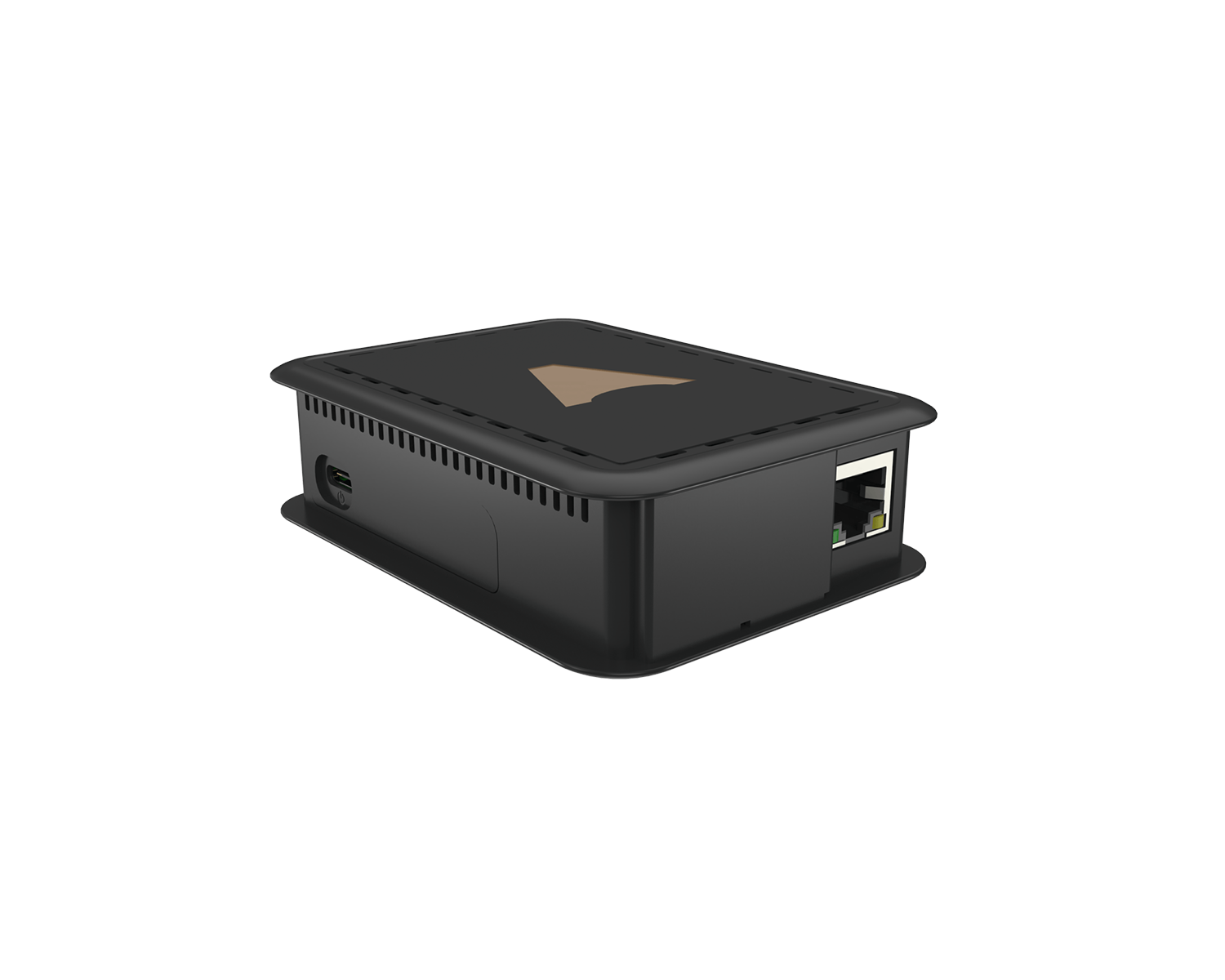

✔ Receive data from your Casambi network and remotely control it over the internet with a Casambi Cloud Gateway.

✔ Based on Raspberry Pi hardware, the Casambi Cloud Gateway comes with Ethernet and Wi-Fi connections for internet access. The user interface is the Casambi App. Two product variants are available; PSU (CGW-001-PSU) and PoE-enabled (CGW-001-POE). The Power Supply Unit (PSU) version comes with a power adapter that’s suitable for the EU, UK, US, AU and PRC regions. The Power over Ethernet (PoE) version comes with a splitter to separate the power from the data and feed it into a separate input.

✔ Lighting control options: It affords much of the same end-user functionality as the Casambi App

✔ Create groups, scenes, animations

✔ Dim or turn on/off singular or groups of luminaires

✔ Dim or turn on/off a whole network

✔ Turn on/off scenes and animations

✔ Control color temperature, hue and saturation utilizing the control slider in the app

✔ Create and edit timers

✔ Further considerations

✔ For indoor use only

✔ Use one Casambi Cloud Gateway per Casambi network

✔ Works with Casambi’s Evolution firmware only

✔ For remote control and monitoring of a Casambi network in real-time

✔ Broadcom BCM2711, Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

✔ 4GB LPDDR4-3200 SDRAM

✔ 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE

✔ Gigabit Ethernet

✔ USB-C and Ethernet ports

✔ 5V DC via USB-C connector (minimum 3A)

✔ Power over Ethernet (PoE) enabled

✔ Operating temperature: 32 – 122 degrees F ambient (0 – 50 degrees C ambient)
