B-Line 5.8 Recessed
Commercial linear luminaire
Product Overview
✔ Designed and manufactured in the UK
✔ Manufactured from extruded aluminium
✔ Continuous runs and pattern forming possible
✔ Polyester powder coated finish in a range of colours
✔ Easy installation and low maintenance
✔ Opal optic or UGR19 compliant microprismatic cover
✔ Contact sales for help with pattern forming with this product
✔ Also available as a recessed trimless, pendant and surface versions

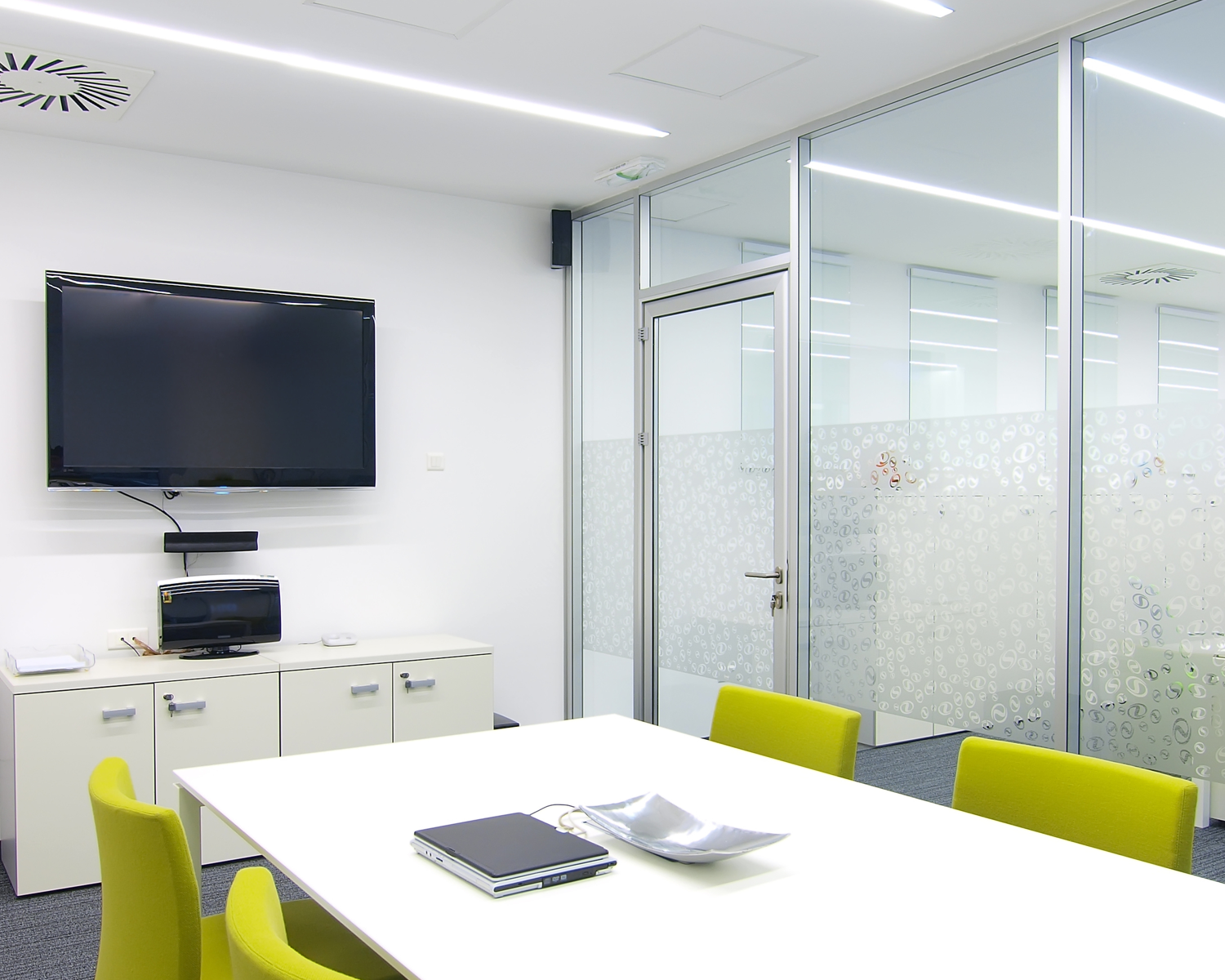

✔ Suitable for Education, Healthcare, Hospitality, Office, Retail, Commercial, Leisure
Finishes / Material
-

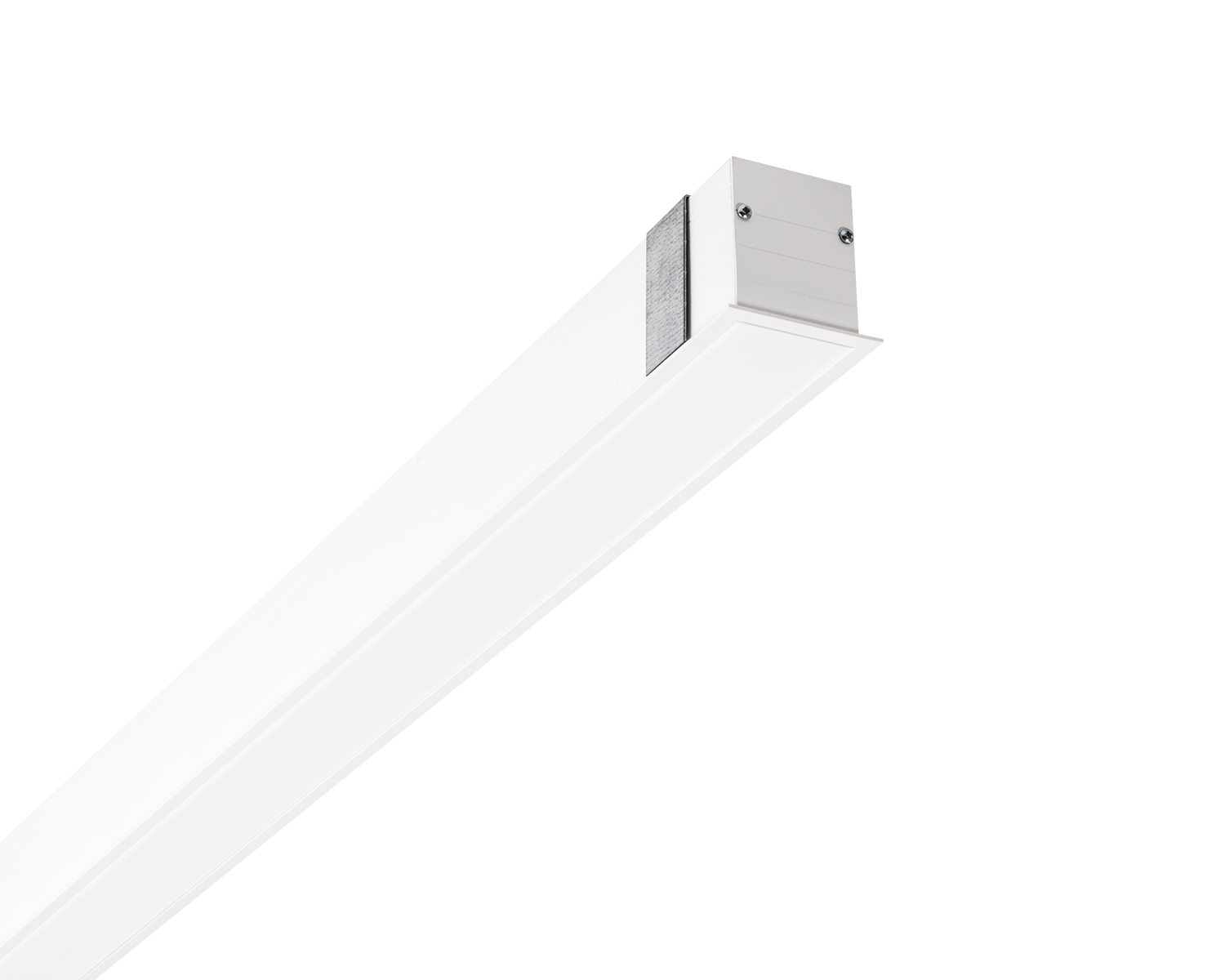

White (Traffic) RAL 9016 -

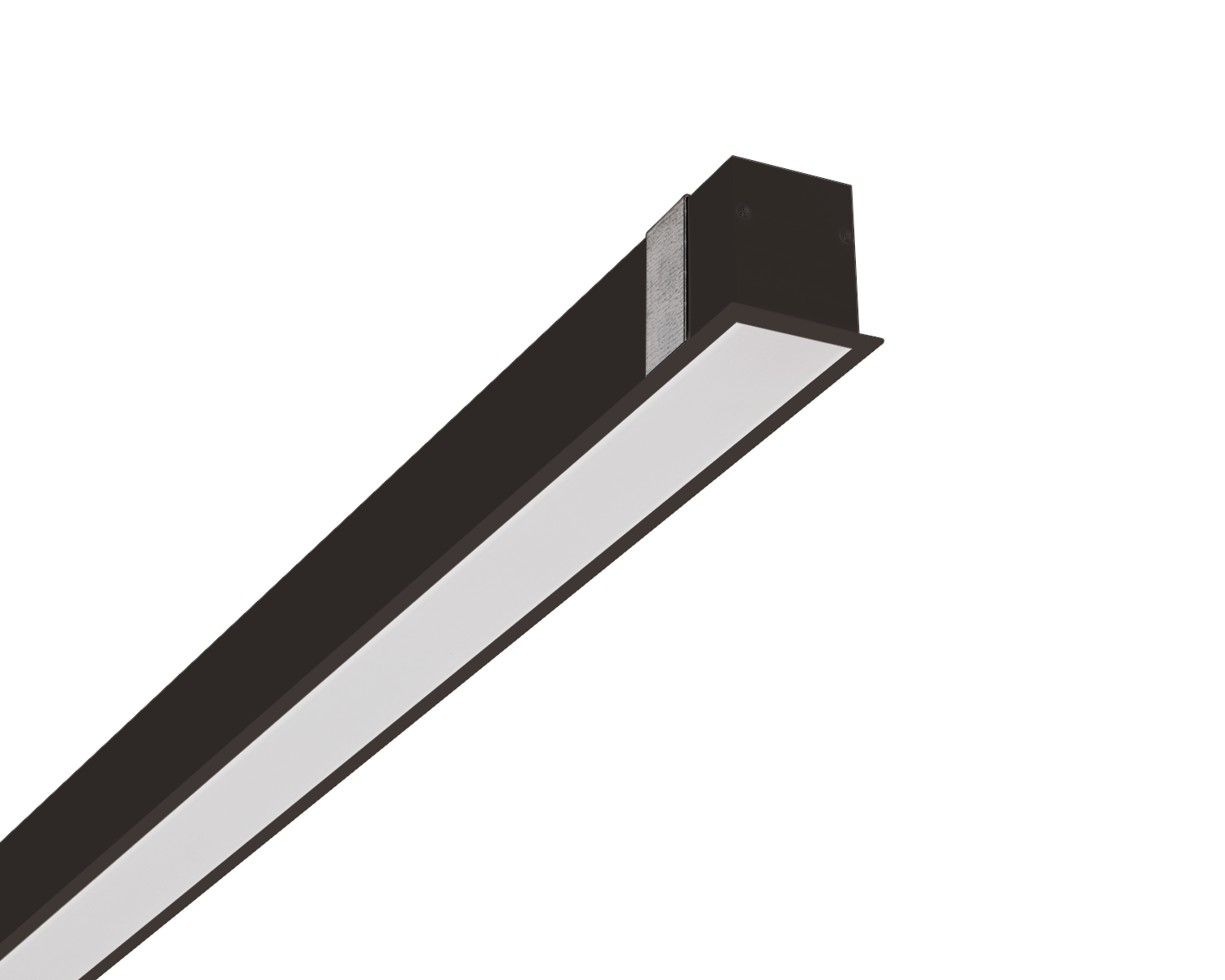

Black (Matt) RAL 9005
-

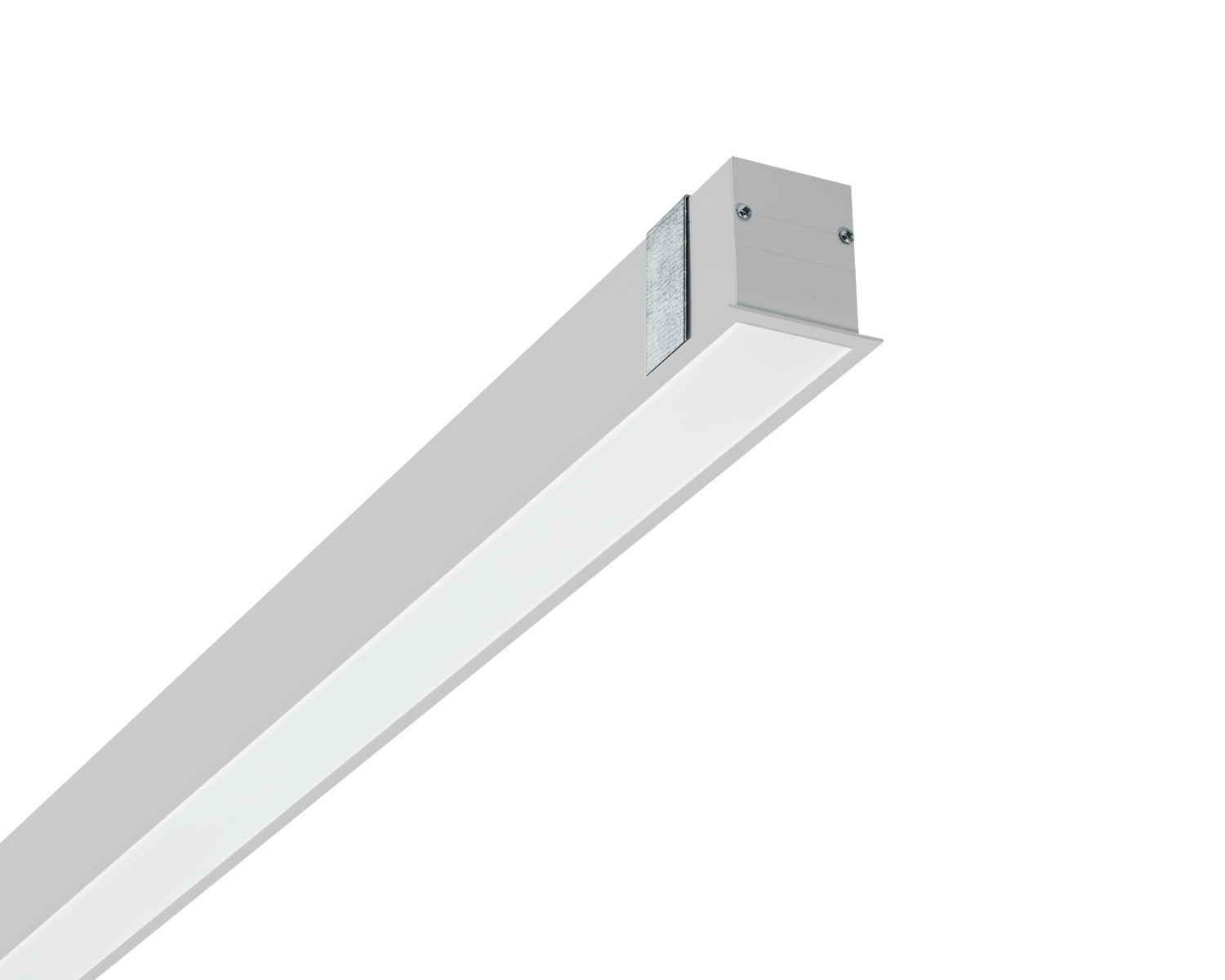

Silver (White Aluminium) RAL 9006
-

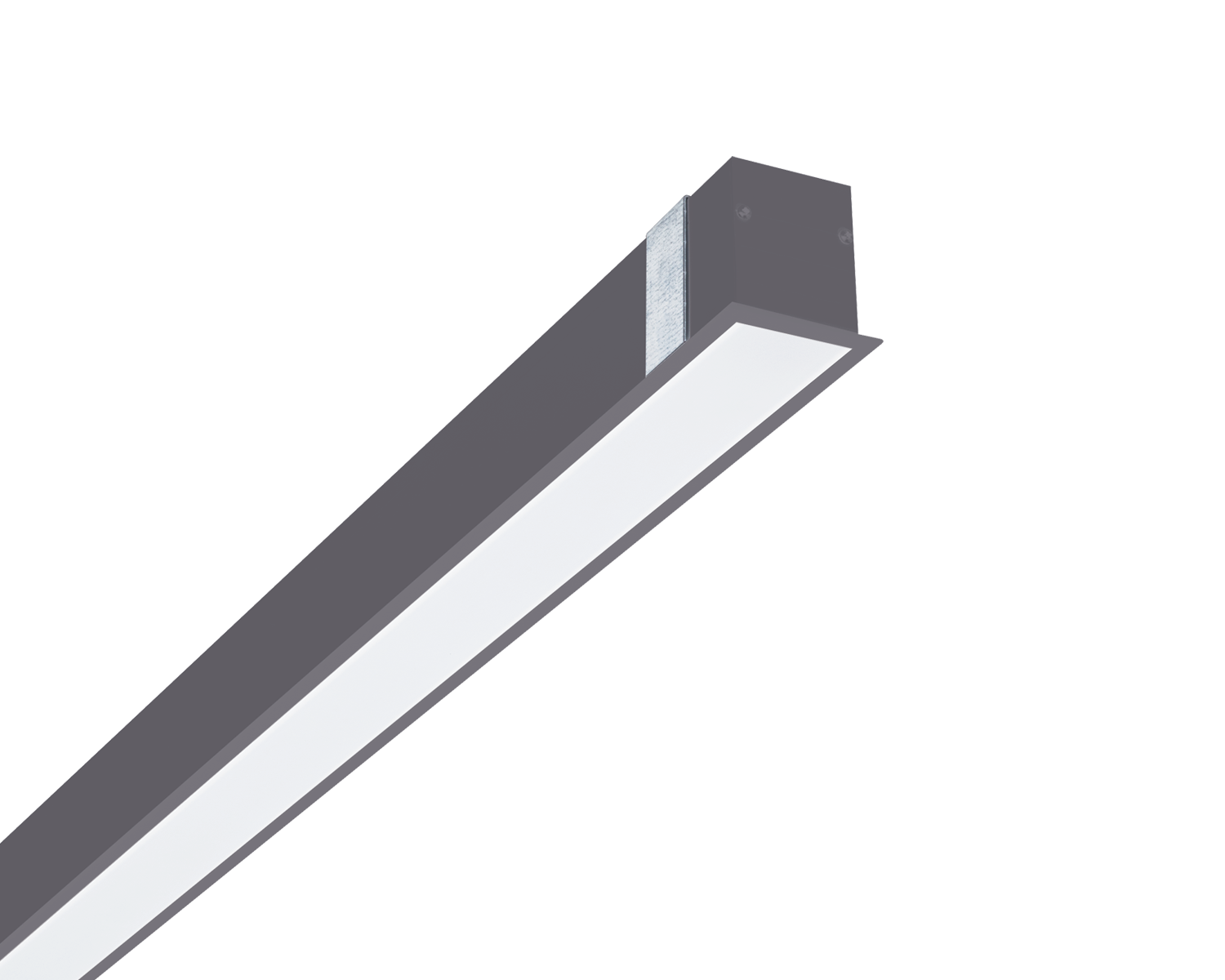

Anthracite (Grey) RAL 7016
-
Custom
-
Body: Extruded Aluminium
-
Diffuser: Polycarbonate

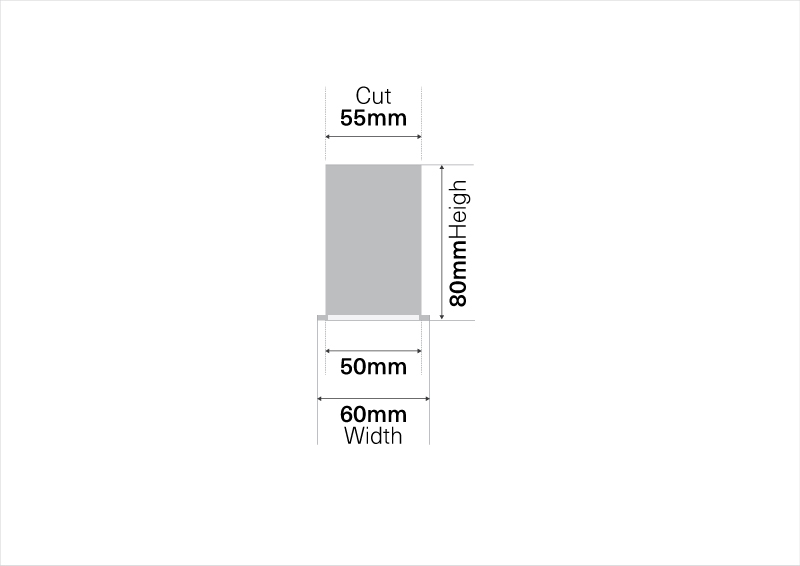

Sizes
-
881 (L) x 60 (W) x 80 (H) mmCutout: 875 x 55 mm
-
1161 (L) x 60 (W) x 80 (H) mmCutout: 1155 x 55 mm
-
1441 (L) x 60 (W) x 80 (H) mmCutout: 1435 x 55 mm
-
1721 (L) x 60 (W) x 80 (H) mmCutout: 1715x55 mm
-
2001 (L) x 60 (W) x 80 (H) mmCutout: 1995x55 mm
-
2281 (L) x 60 (W) x 80 (H) mmCutout: 2275x55 mm
-
2561 (L) x 60 (W) x 80 (H) mmCutout: 2555x55 mm
-
2981 (L) x 60 (W) x 80 (H) mmCutout: 2975x55 mm
-
>2981 (L) mmFor longer lengths please contact sales
-
M2M (L) mmMade to measure length
- Source Info Tier 1 LED (Tridonic, Philips, Osram)
- Lumens (delivered) 1158Lm - 7904Lm
- Circuit Watts 12cW - 81cW
- Efficacy up to 100Lm/cW
- MacAdams 3 SDCM
- Colour Temperature 3000K / 4000K / Tuneable White (2700K-5700K)
- Colour Rendering CRI80
Options.
Diffuser
-
Opal Cover
-
Microprismatic Cover
Additional Information.
Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.
