Kontor H84

Ambient 600x600 office LED panel

Product Overview

✔ Cost effective recessed solution

✔ Graduated & even illumination on side panels

✔ Linear micro-prismatic opalized central optic, with no spotting

✔ Standard polycarbonate cover TP(b) 650ºC tested

✔ Assists with the compliance of LG7

✔ No visible flicker (IEEE 1789-2015)

✔ Tridonic HCL tunable version available - please contact sales

✔ Low profile 100mm

✔ Suspended or surface mounted body also available

✔ Micro prismatic central diffuser

✔ Wireless, dimming and emergency options

✔ Suitable for Hospitality, Office, Commercial

Material
  • Body: Aluminium / Plastic / Steel
    White (RAL 9016)
  • Diffuser: Polycarbonate
    TPA Rated B as standard
Sizes
  • 593 (L) x 589 (W) x 100 (D) mm
    Weight: 3.9kg
  • Source Info Tier 1 LEDTier 1 LED components Philips
  • Lumens (delivered) 3574Lm, 3875Lm, 5106Lm
  • Circuit Watts 31cW, 46cW, 52cW
  • Efficacy up to 115Lm/cW
  • MacAdams 3 SDCM
  • Colour Temperature 3000K / 4000K / Tuneable White (3000K - 6000K; 52W version only)
  • Colour Rendering CRI80

Options.

TPA Rating (optional)

*Please Note: Fitting supplied TP(b) rated as standard unless TP(a) is selected
  • Enhanced TP(a) Rating

    TP(a) 850ºC hot wire tested

Mount (optional)

  • Surface mount kit
  • Suspension wire kit

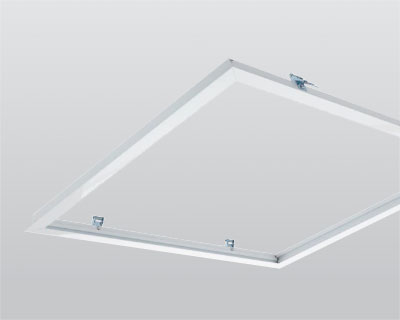

  • Plasterboard ceiling frame
