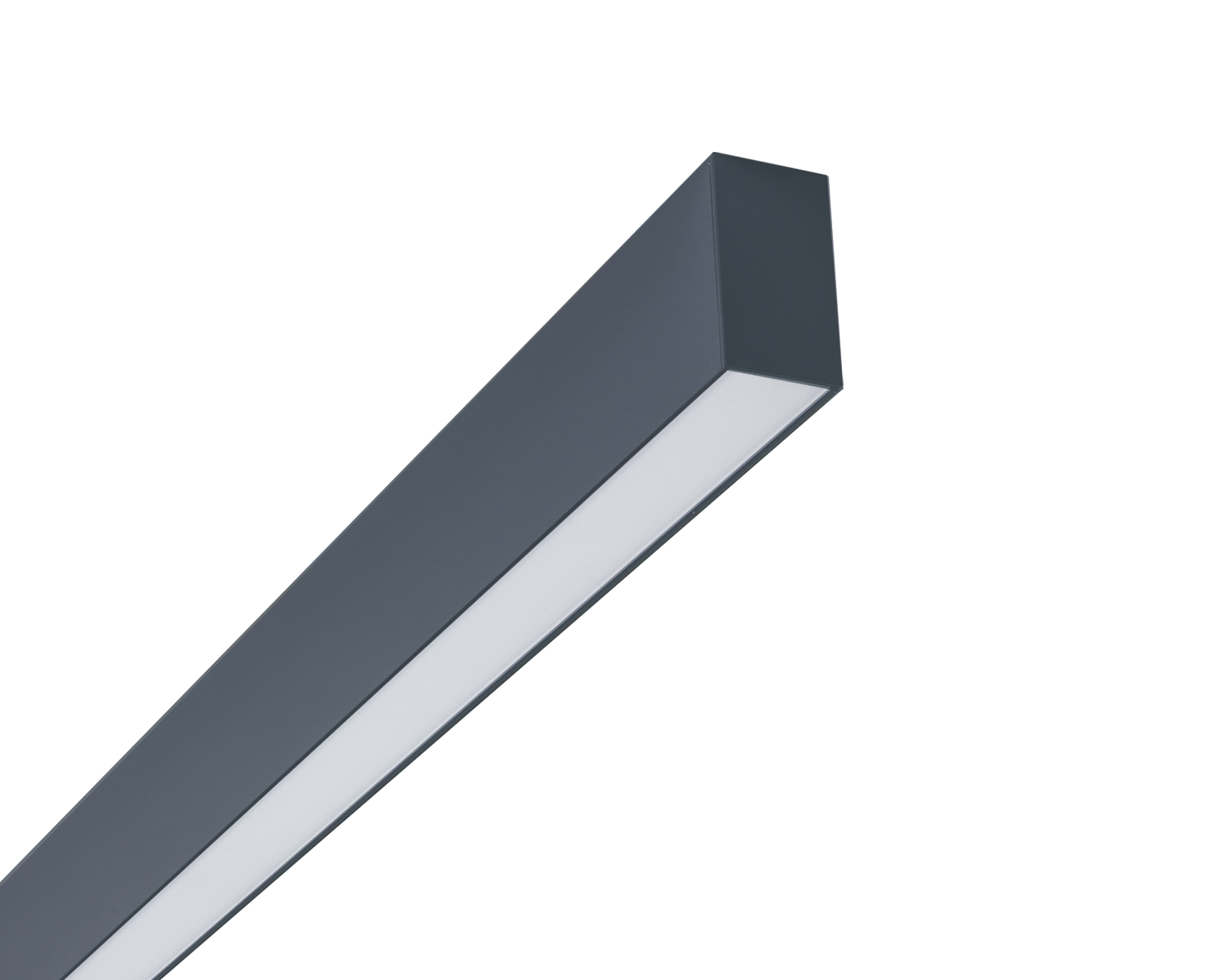

B-Line 5.8

Commercial linear luminaire

Product Overview

✔ Designed and manufactured in the UK

✔ Available in indirect/direct light distribution

✔ Suspended, surface mounted or recessed versions available

✔ Choice of attractive body colours

✔ Easy installation and low maintenance

✔ LG7 Compliant UGR >19 (Microprism diffuser)

✔ Custom lengths possible on request

✔ Suitable for Education, Healthcare, Hospitality, Office, Retail, Commercial, Leisure

Finishes / Material

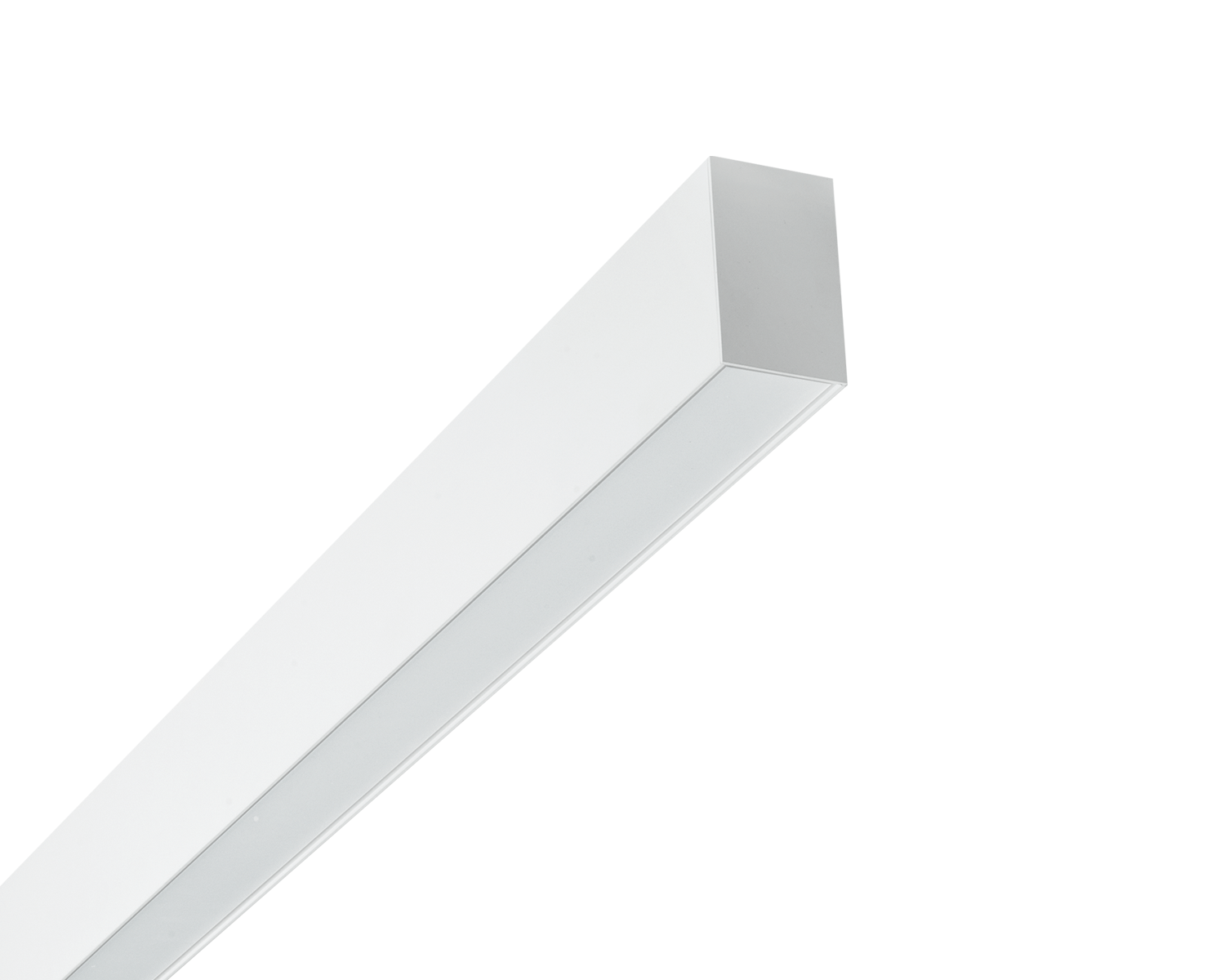

  • White (Traffic) RAL 9016
  • Black (Matt) RAL 9005

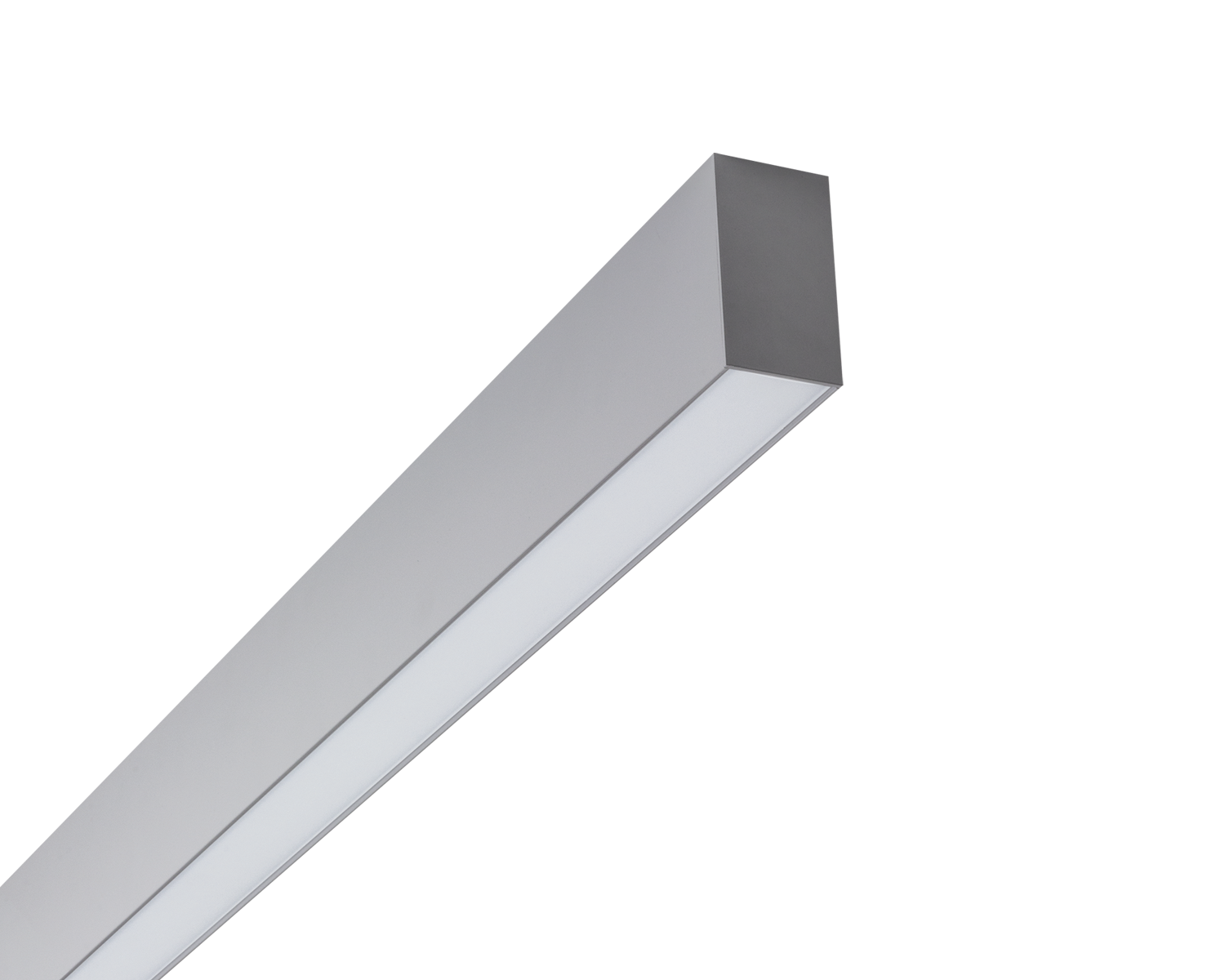

  • Silver (White Aluminium) RAL 9006
  • Anthracite (Grey) RAL 7016
  • Custom
  • Body: Extruded Aluminium
  • Diffuser: Polycarbonate
Sizes
  • 870 (L) x 50 (W) x 85 (H) mm
  • 1150 (L) x 50 (W) x 85 (H) mm
  • 1430 (L) x 50 (W) x 85 (H) mm
  • 1710 (L) x 50 (W) x 85 (H) mm
  • 1990 (L) x 50 (W) x 85 (H) mm
  • 2270 (L) x 50 (W) x 85 (H) mm
  • 2550 (L) x 50 (W) x 85 (H) mm
  • 2970 (L) x 50 (W) x 85 (H) mm
  • >2970 (L) x 50 (W) mm
    For longer lengths please contact sales
  • M2M (L) mm
    Made to measure length

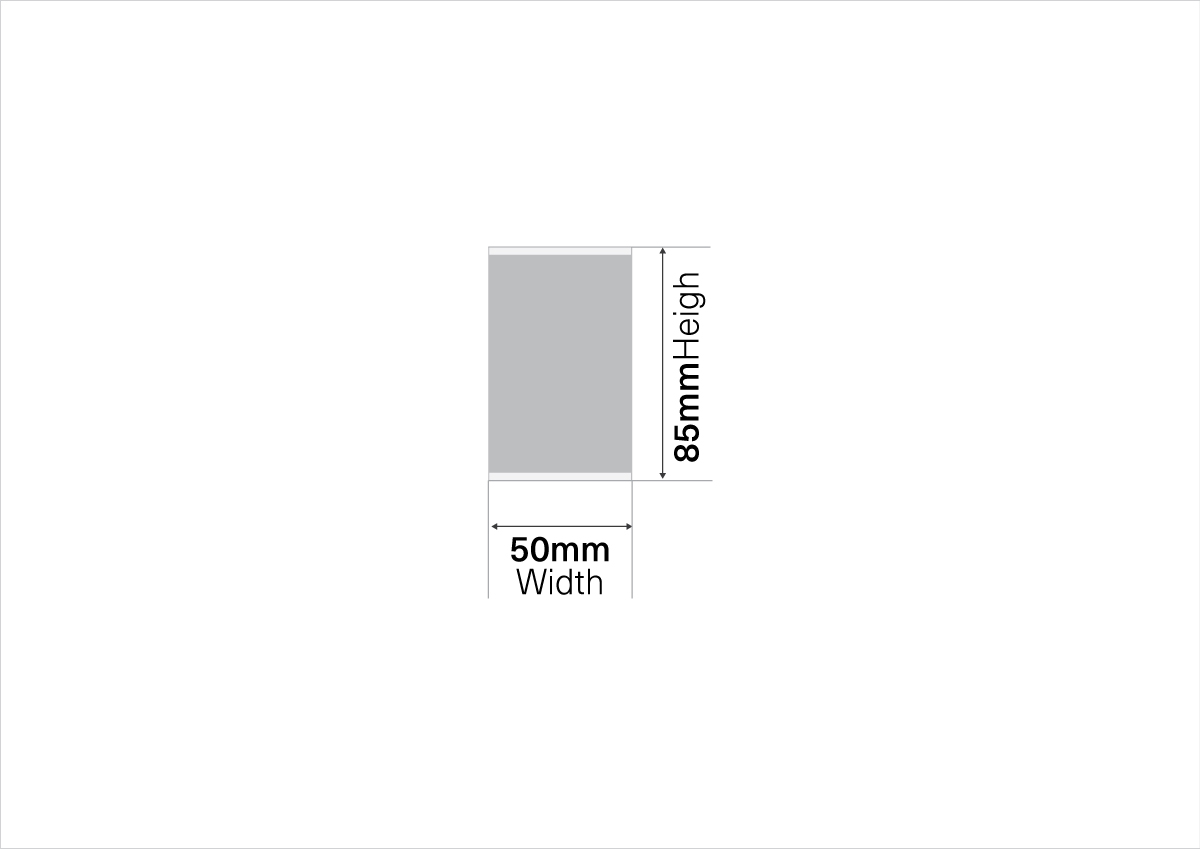

Technical Drawing
  • Source Info Tier 1 LED linear boards
  • Lumens (delivered) 1158Lm - 20233Lm
  • Circuit Watts 12cW - 159cW
  • Efficacy up to 127Lm/cW
  • MacAdams 2 SDCM
  • Colour Temperature 3000K / 4000K / Tuneable White (2700K-5700K)
  • Colour Rendering CRI80

Options.

Diffuser

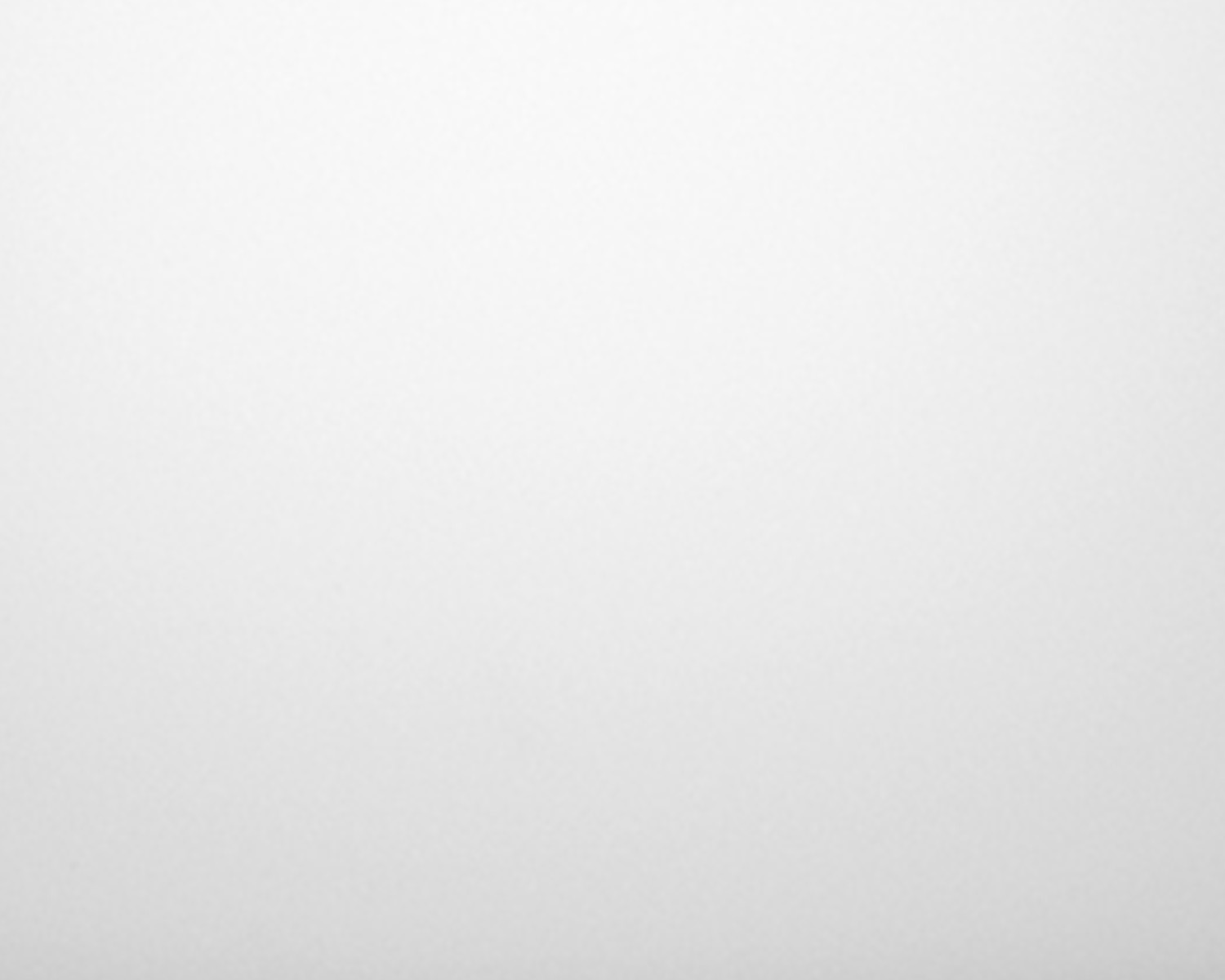

  • Opal Cover

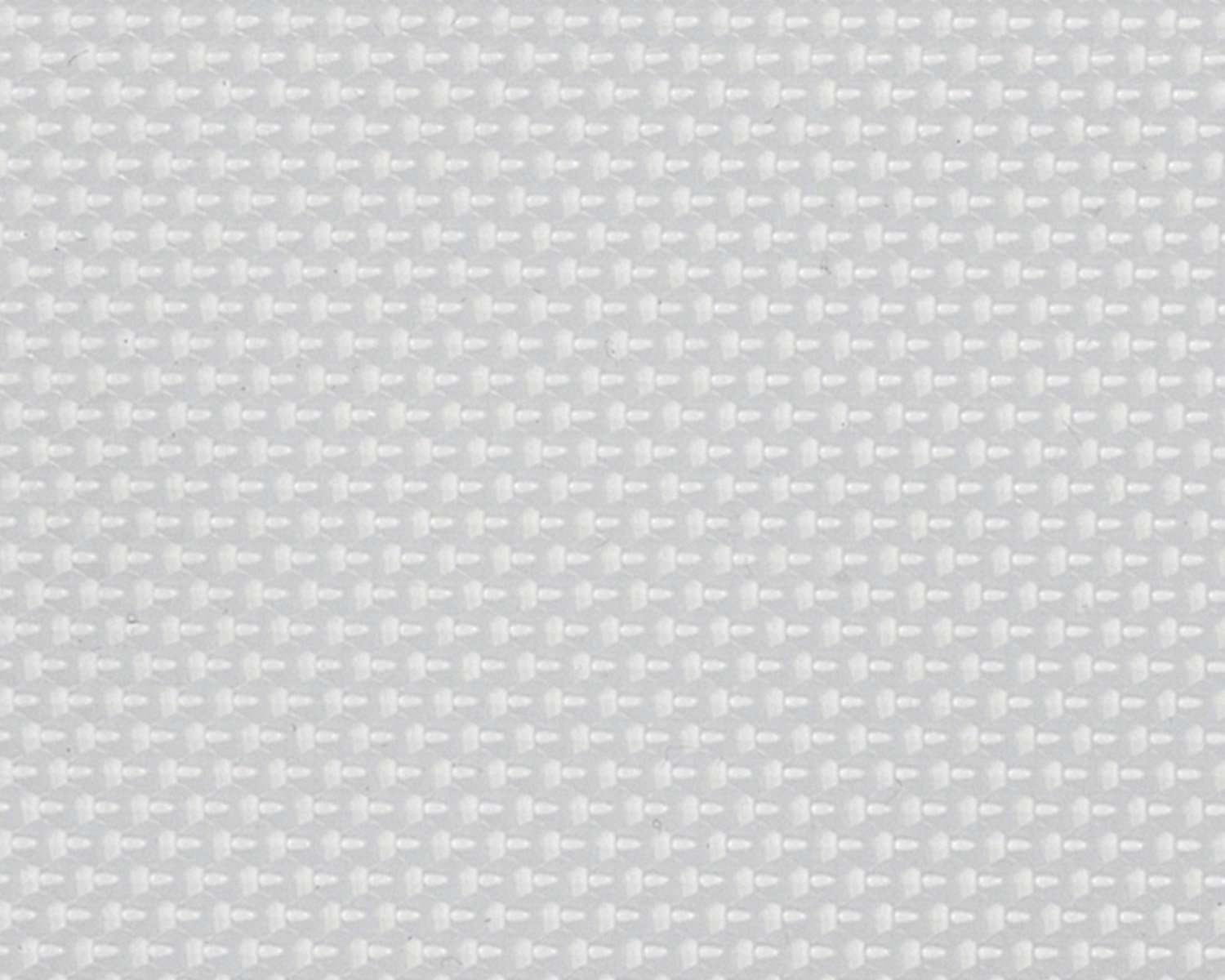

  • Microprismatic Cover

    UGR <19

Mount (optional)

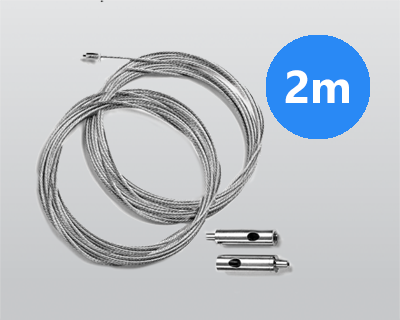

  • Suspension wire kit (2m)

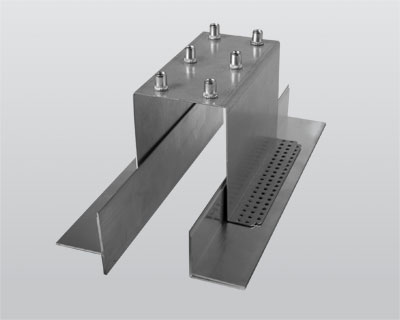

  • Trimless Installation Kit

Additional Information.

Need Assistance? If you need help finding the perfect light for your project we can help. From product selection, price enquiry & technical support, we’ll be happy to assist. Please make contact via our contact page.

You May Also Like...

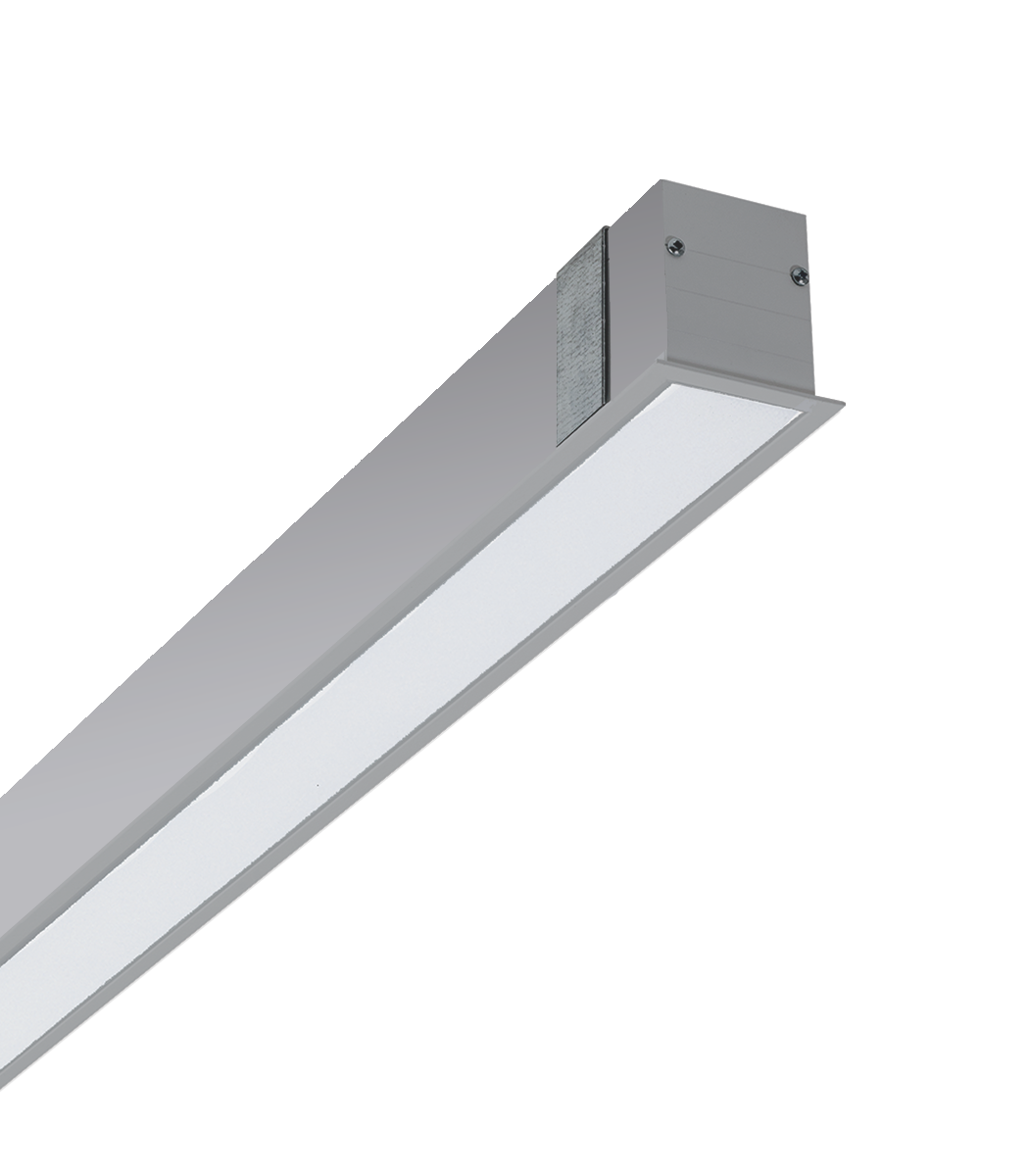

  • B-Line
    5.8 Recessed

  • B-Line
    5.8 Acoustic

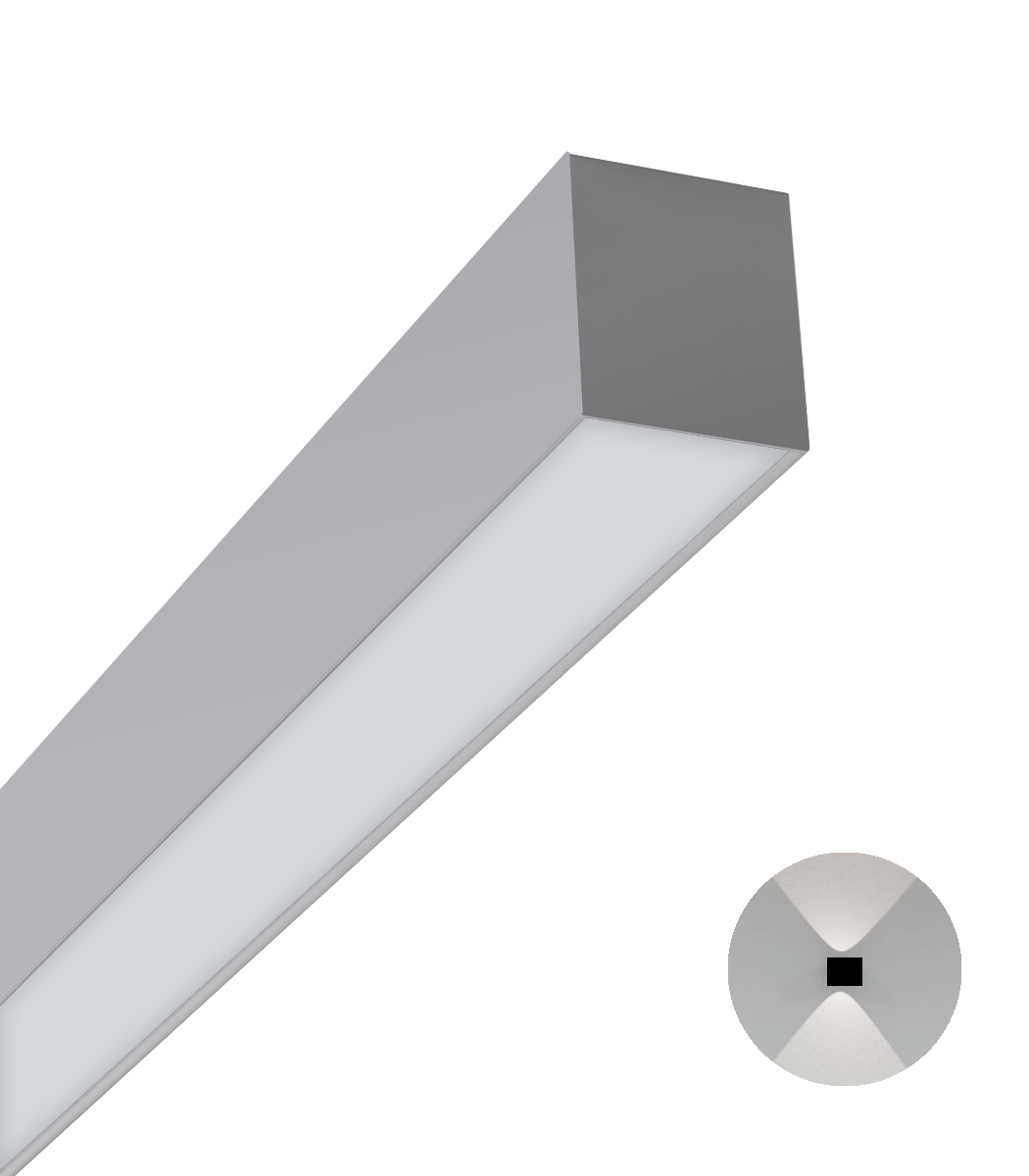

  • B-Line
